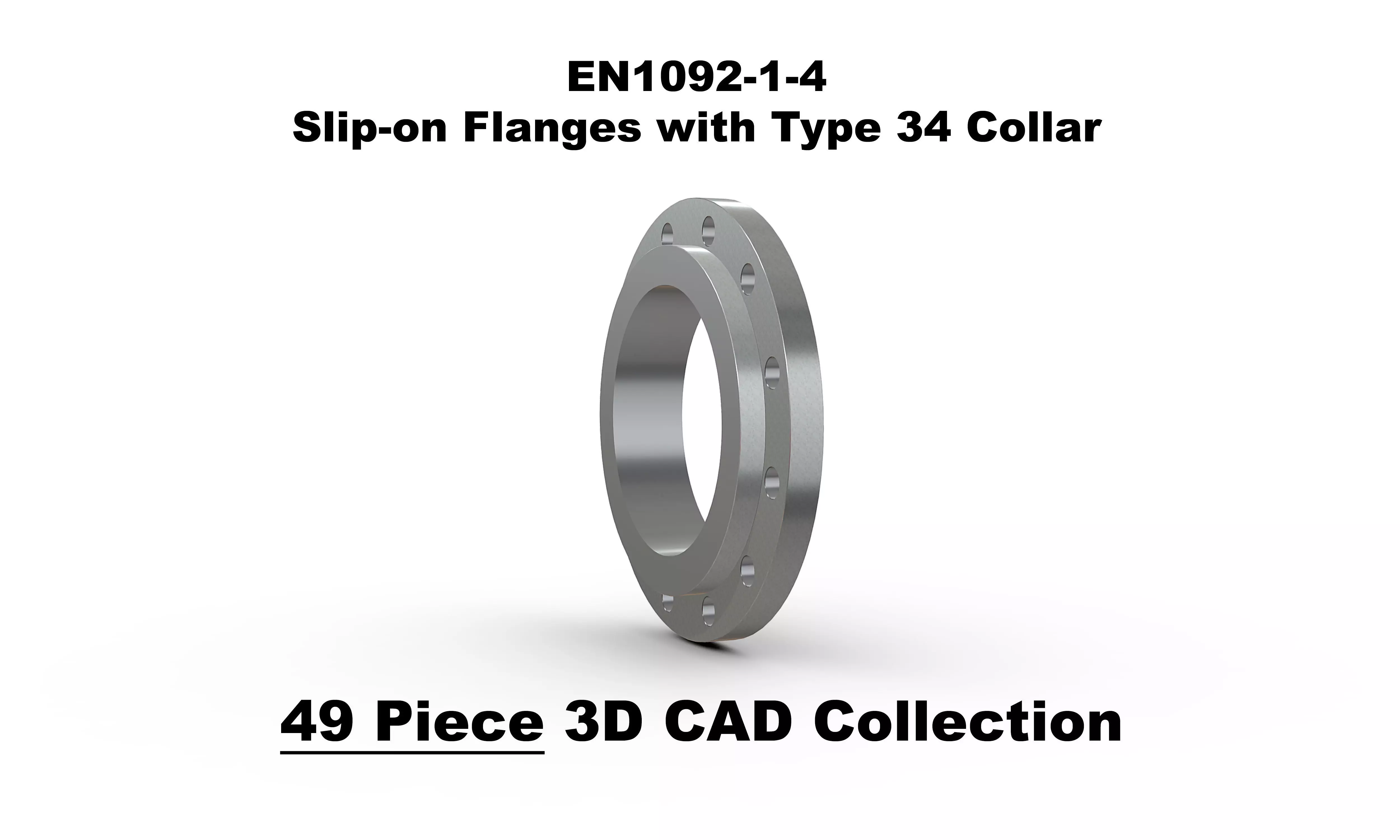

EN1092-1-4 Slip-on Flanges with Type 34 Collars 3D model

A COMPLETE COLLECTION THAT COVERS ALL POSSIBLE DIAMETERS AND PRESSURE RATINGS(!)

About EN1092-1 Type 4 Slip-on Flanges with Type 34 Collars

In the world of piping systems, where connections and components are pivotal for ensuring seamless and efficient operations, EN1092-1-4 hubbed slip-on flanges play a crucial role. These flanges are a key part of the European standard EN1092-1, which specifies the dimensions, materials, and technical requirements for various types of flanges. EN1092-1-4, commonly known as the hubbed slip-on flange, holds a unique position within this standard, offering a versatile solution for connecting pipes, valves, and equipment in diverse industrial applications. In this article, we will explore the features, applications, and advantages of EN1092-1-4 hubbed slip-on flanges.

Understanding EN1092-1-4 Hubbed Slip-On Flanges

EN1092-1 is a comprehensive European standard that governs flanges used in piping systems. This standard covers an array of flange types, each designed for specific purposes. Among these, the EN1092-1-4 hubbed slip-on flange stands out. It is designed to be slipped over the end of a pipe and then welded in place, making it an efficient and reliable means of connecting pipes, valves, and other equipment.

Key Features of EN1092-1-4 Hubbed Slip-On Flanges

• Slip-On Design: The slip-on design of these flanges is a standout feature. It enables easy installation by allowing the flange to be slipped over the end of the pipe. This feature significantly reduces the time and effort required for assembly.
• Hub or Collar: EN1092-1-4 flanges are equipped with a hub or collar that extends from the inner diameter. This hub serves multiple purposes, providing additional strength and reinforcement to the connection while simplifying alignment during installation.
• Standard Compliance: EN1092-1-4 flanges adhere to the stringent European standard, ensuring uniformity and reliability in their design and performance. They are coded as type 12 within this standard, making them easily identifiable and compatible with other components.

Applications of EN1092-1-4 Hubbed Slip-On Flanges

EN1092-1-4 hubbed slip-on flanges find their applications in a wide range of industries due to their versatility and efficiency. Some notable applications include:

• Oil and Gas Industry: In the oil and gas sector, these flanges are used to connect pipes in various processes, including drilling, refining, and transportation. Their quick installation and reliable sealing properties are crucial for maintaining the integrity of the system.
• Chemical Industry: Chemical processing facilities rely on hubbed slip-on flanges to ensure leak-tight connections in the transfer and handling of corrosive materials. The flanges' robust construction and welding capability make them ideal for these environments.
• Water Treatment Plants: These flanges play a vital role in water treatment facilities where they connect pipes, valves, and pumps. Their ability to withstand diverse operating conditions and facilitate rapid installation is particularly valuable in this industry.
• Manufacturing and Construction: In manufacturing and construction applications, EN1092-1-4 flanges are used for connecting pipes and equipment, supporting a wide range of processes from HVAC systems to industrial machinery.

Advantages of EN1092-1-4 Hubbed Slip-On Flanges

• Quick and Convenient Installation: The slip-on design of these flanges makes installation a straightforward process, reducing labor and downtime.
• Reliable Sealing: Once in place, EN1092-1-4 flanges are welded to the pipe, creating a secure and leak-tight connection. This reliability is essential in industries where fluid or gas containment is critical.
• Enhanced Strength and Alignment: The hub or collar extending from the inner diameter of the flange not only reinforces the connection but also simplifies alignment during welding, ensuring a robust and precise connection.
• Standardized Design: These flanges conform to the EN1092-1 standard, ensuring compatibility with various systems and components, simplifying procurement and maintenance.

Conclusion

EN1092-1-4 hubbed slip-on flanges are essential components within piping systems, recognized for their efficiency, reliability, and versatility. Their slip-on design, combined with the hub for strength and alignment, sets them apart in the world of industrial connectors. With compliance to the EN1092-1 standard and applications across diverse industries, these flanges continue to be a preferred choice for professionals seeking dependable and convenient solutions for connecting pipes, valves, and equipment. Whether in the oil and gas sector, chemical industry, water treatment plants, or manufacturing and construction, EN1092-1-4 hubbed slip-on flanges remain integral to maintaining fluid and gas flow in a wide range of processes.

File Formats:

• .f3d - Fusion 360
• .stp - Autodesk Inventor, Solidworks, Solid Edge and more...
