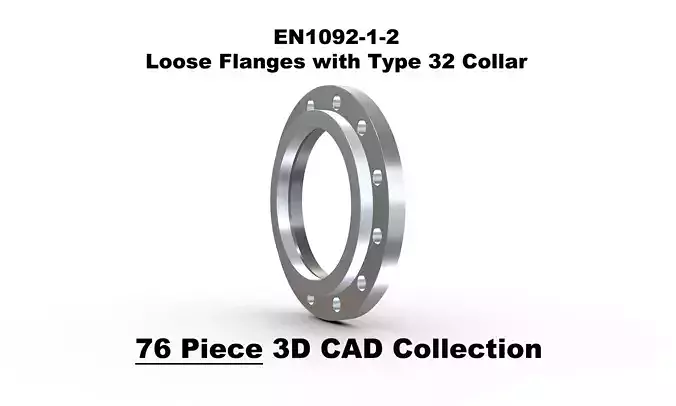

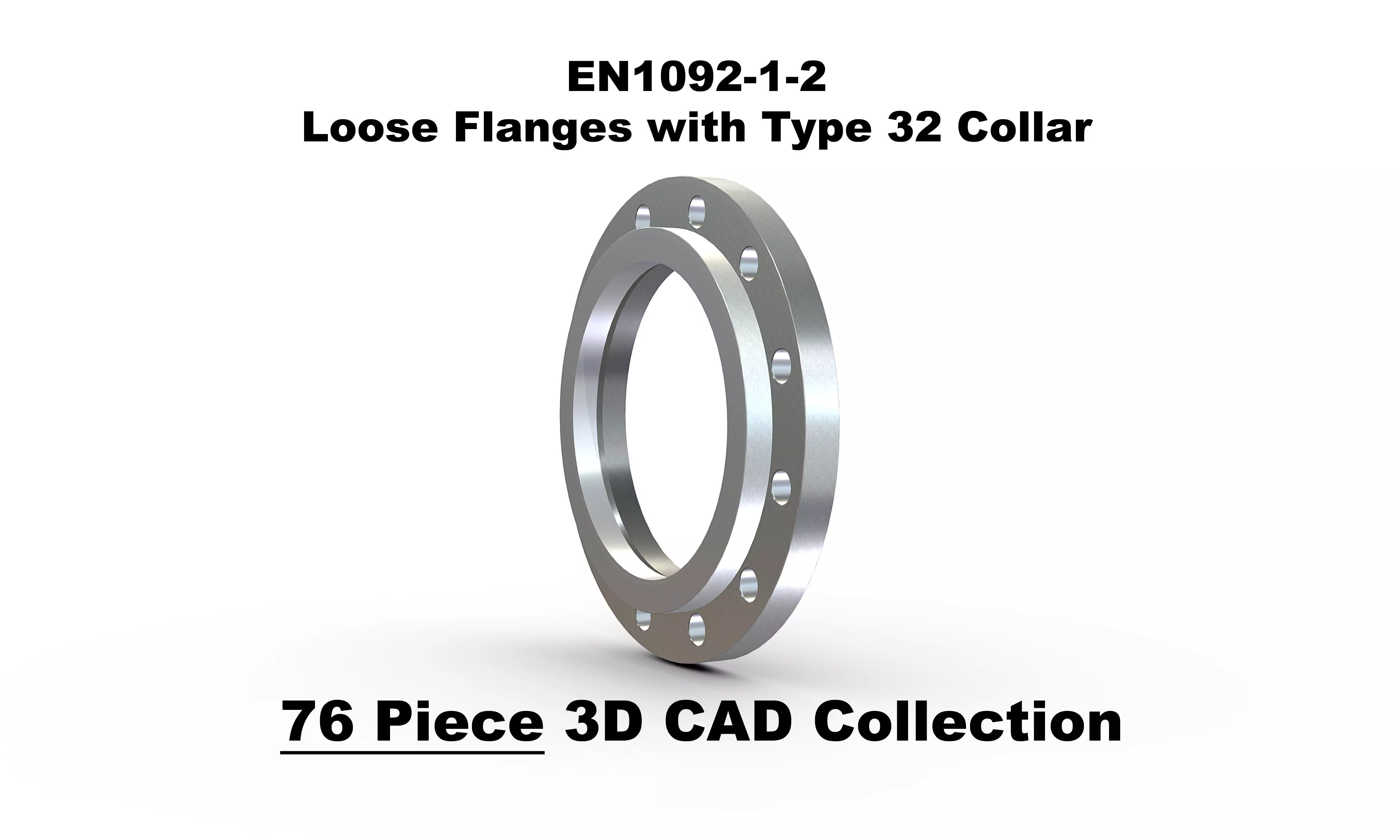

EN1092-1-2 Loose Flanges with Type 32 Collars 3D model

A COMPLETE COLLECTION THAT COVERS ALL POSSIBLE DIAMETERS AND PRESSURE RATINGS(!)

About EN1092-1 Type 2 Loose Flanges with Type 32 Collars

In the intricate world of piping systems, where fluid conveyance is a fundamental requirement, EN1092-1-2 loose flanges with Type 32 collars emerge as vital components that ensure the integrity of connections. These flanges are integral to the European standard EN1092-1, which meticulously defines the dimensions, materials, and technical requirements for various flange types. EN1092-1-2, commonly referred to as loose flanges with Type 32 collars, is a versatile and dependable solution for connecting pipes, valves, and equipment in diverse industrial applications. This article delves into the features, applications, and advantages of EN1092-1-2 loose flanges with Type 32 collars, highlighting their pivotal role in ensuring secure and adaptable connections in piping systems.

Understanding EN1092-1-2 Loose Flanges with Type 32 Collars

EN1092-1 is a comprehensive European standard governing flanges' use in piping systems. The standard covers a variety of flange types, each tailored for specific purposes. EN1092-1-2 loose flanges with Type 32 collars distinguish themselves with their unique design, characterized by loose flanges that can be rotated, offering flexibility during installation. These flanges also feature Type 32 collars, which are essential for reinforcement and alignment.

Key Features of EN1092-1-2 Loose Flanges with Type 32 Collars

• Loose Flange Design: The hallmark feature of these flanges is their loose design, allowing them to be rotated for precise alignment during installation. This feature significantly simplifies the connection process.
• Type 32 Collar: EN1092-1-2 flanges incorporate Type 32 collars that extend from the inner diameter. These collars provide additional strength, reinforce the connection, and facilitate proper alignment during installation.
• Standard Compliance: EN1092-1-2 loose flanges with Type 32 collars conform to the stringent European standard, ensuring uniformity in design and performance. They are coded as type 2 within this standard, making them easily identifiable and compatible with other flange types.

Applications of EN1092-1-2 Loose Flanges with Type 32 Collars

EN1092-1-2 loose flanges with Type 32 collars find applications across various industries due to their versatility and adaptability. Some notable applications include:

• Chemical and Petrochemical Industry: These flanges are used to connect pipes, valves, and equipment in chemical processing plants. The loose design and Type 32 collars make it easier to align and install connections, especially in facilities that handle corrosive and high-pressure substances.
• Water Treatment Plants: In the water treatment sector, loose flanges with Type 32 collars are used to connect pipes and valves. The ability to rotate and align the flanges during installation is crucial for setting up efficient water treatment processes.
• Food and Beverage Industry: These flanges are employed in the food and beverage sector for connecting pipes and equipment. The rotation capability facilitates precise alignment, essential for maintaining hygienic and contamination-free processes.
• Power Generation: Power plants, including those using both thermal and renewable energy sources, rely on EN1092-1-2 loose flanges with Type 32 collars to connect various pipes and components. The adaptability and strength of these flanges are vital in power generation systems.

Advantages of EN1092-1-2 Loose Flanges with Type 32 Collars

• Easy Alignment and Installation: The loose flange design and Type 32 collars allow for rotation and precise alignment during installation, making it easier for professionals to create secure connections.
• Enhanced Strength and Reinforcement: The Type 32 collars extend from the inner diameter of the flange, providing additional strength and reinforcement to the connection. This feature ensures the integrity of the system.
• Standardized Design: These flanges adhere to the EN1092-1 standard, ensuring compatibility with various system components and simplifying procurement and maintenance.
• Versatile Applications: EN1092-1-2 loose flanges with Type 32 collars are adaptable to a wide range of industries and operating conditions, making them a versatile solution for connecting pipes, valves, and equipment.

Conclusion

EN1092-1-2 loose flanges with Type 32 collars are indispensable components in the realm of piping systems, known for their versatility, adaptability, and strength. Their loose design and Type 32 collars enable precise alignment and simplified installation, making them the ideal choice for professionals across various industries. From chemical processing plants to water treatment facilities, food and beverage production, and power generation systems, these flanges play a pivotal role in ensuring the integrity of piping connections. EN1092-1-2 loose flanges with Type 32 collars serve as a testament to the importance of adaptability and reliability in modern piping systems, and their unique features continue to make them an integral part of industries worldwide

File Formats:

• .f3d - Fusion 360
• .stp - Autodesk Inventor, Solidworks, Solid Edge and more...
