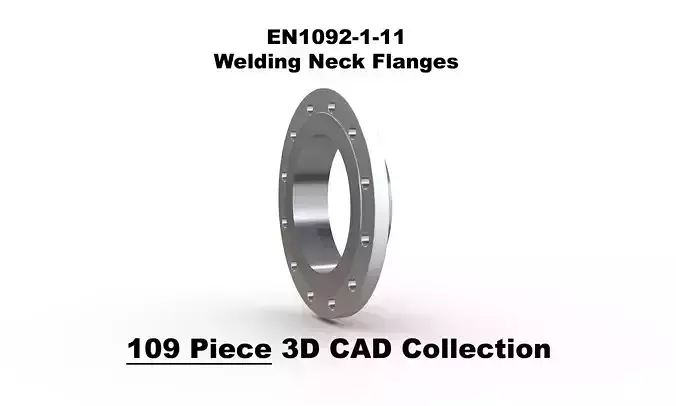

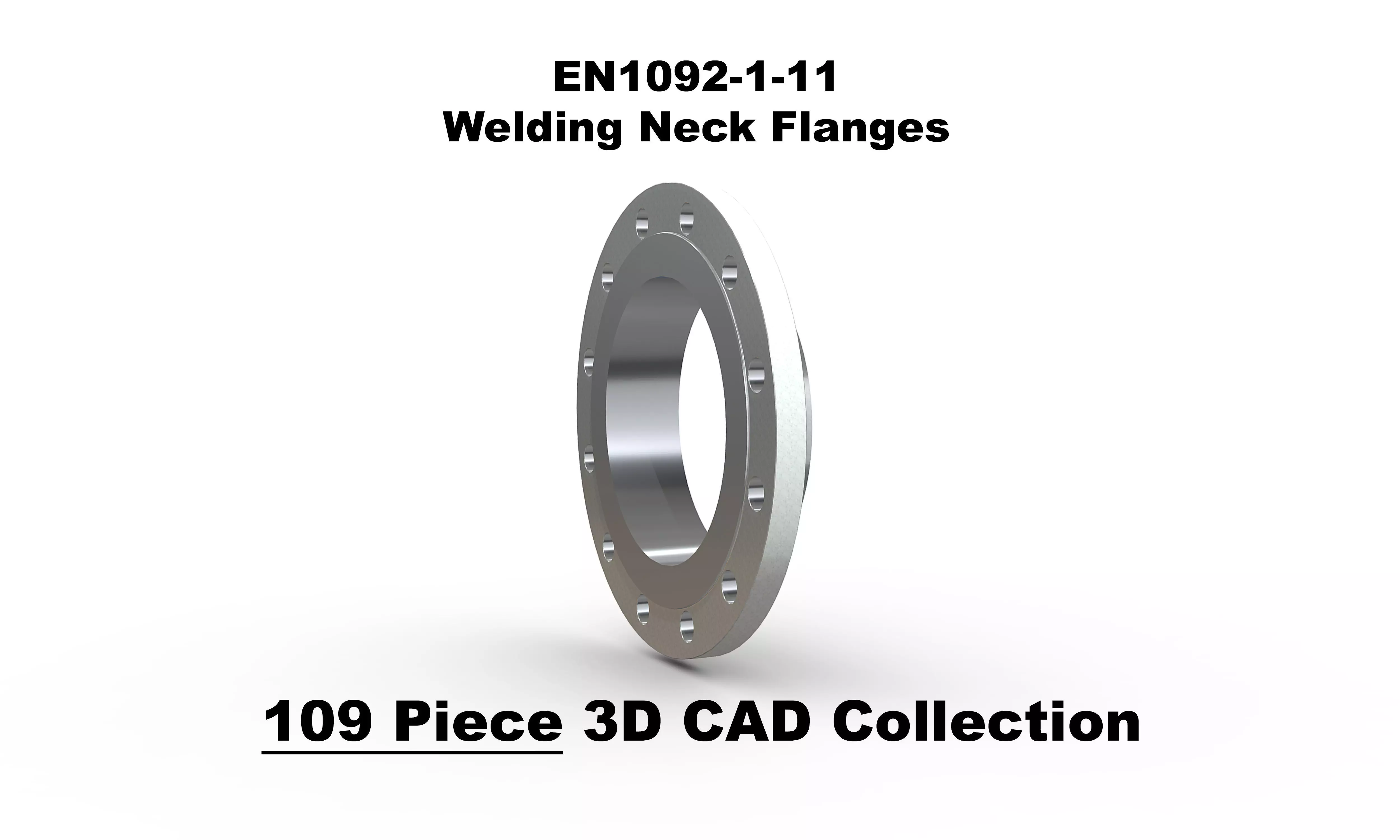

EN1092-1-11 Welding Neck Flanges 3D model

A COMPLETE COLLECTION THAT COVERS ALL POSSIBLE DIAMETERS AND PRESSURE RATINGS(!)

About EN1092-1 Type 11 Welding Neck Flanges

In the intricate world of piping systems, where seamless connections are paramount, EN1092-1-11 welding neck flanges stand as the stalwart components that ensure robust, leak-resistant connections. These flanges are a vital part of the European standard EN1092-1, which meticulously specifies the dimensions, materials, and technical requirements for a variety of flange types. EN1092-1-11, commonly known as the welding neck flange, holds a pivotal role within this standard, offering a secure and dependable solution for connecting pipes, valves, and equipment in diverse industrial applications. This article explores the features, applications, and advantages of EN1092-1-11 welding neck flanges, highlighting their essential contribution to the reliability of piping systems.

Understanding EN1092-1-11 Welding Neck Flanges

EN1092-1 is a comprehensive European standard that regulates the use of flanges in piping systems. This standard encompasses numerous flange types, each designed for specific purposes. Among these, the EN1092-1-11 welding neck flange shines as a critical choice. It boasts a tapered hub with a precision machined bore that fits snugly onto a pipe, facilitating secure welding and dependable connections.

Key Features of EN1092-1-11 Welding Neck Flanges

• Tapered Hub: The hallmark feature of welding neck flanges is their tapered hub. This hub provides a smooth transition from the flange's bore to the pipe, reducing stress concentration and promoting a secure weld joint.
• Precision Bore: The bore of welding neck flanges is meticulously machined to provide a precise fit with the pipe. This accuracy in machining ensures an even, strong weld and a reliable connection.
• Standard Compliance: EN1092-1-11 welding neck flanges adhere to the stringent European standard, guaranteeing uniformity in their design and performance. They are coded as type 11 within this standard, making them easily recognizable and compatible with other flange types.

*Applications of EN1092-1-11 Welding Neck Flanges * EN1092-1-11 welding neck flanges find a wide range of applications across various industries due to their strength, reliability, and the precision of their design. Prominent applications include:

• Petrochemical Industry: Welding neck flanges are commonly employed in refineries and chemical processing plants. These flanges form secure connections that are vital for handling corrosive materials and high-pressure fluids.
• Power Generation: Power plants, whether thermal, nuclear, or renewable, rely on welding neck flanges for joining different pipes and components. The durability and dependability of these connections are indispensable for the intricate processes of power generation.
• Oil and Gas Industry: In the oil and gas sector, welding neck flanges play a crucial role in connecting pipes, valves, and equipment for drilling, extraction, and transportation. These flanges ensure the integrity and efficiency of the system.
• Water Treatment Plants: Welding neck flanges are commonly used in water treatment facilities to connect pipes, valves, and pumps. They provide the strength and reliability needed to withstand the demanding conditions of water treatment processes.

Advantages of EN1092-1-11 Welding Neck Flanges

• Secure Welding: The tapered hub and precision-machined bore of welding neck flanges allow for secure, even welding, minimizing the risk of leaks and ensuring the long-term integrity of the connection.
• Stress Reduction: The tapered hub design distributes stress evenly, reducing stress concentration points at the weld joint and enhancing the overall strength of the connection.
• Standardized Design: EN1092-1-11 welding neck flanges adhere to the EN1092-1 standard, ensuring compatibility with various system components and simplifying procurement and maintenance.
• Versatile Applications: These flanges are adaptable to a wide range of industries and diverse operating conditions, making them a versatile solution for connecting pipes, valves, and equipment.

*Conclusion * EN1092-1-11 welding neck flanges are the unsung heroes of piping systems, known for their dependability, strength, and precision. Their tapered hub design and precision-machined bore ensure even welding and reduce stress concentration points, making them indispensable in industries where leak-tight connections are paramount. From the demanding environments of petrochemical plants to the vital water treatment facilities and the world of power generation, EN1092-1-11 welding neck flanges play a pivotal role in ensuring the integrity of piping systems. These flanges are the cornerstone of secure, leak-resistant connections and remain essential components for professionals in a variety of industries worldwide.

*File Formats: *

• .f3d - Fusion 360
• .stp - Autodesk Inventor, Solidworks, Solid Edge and more...
