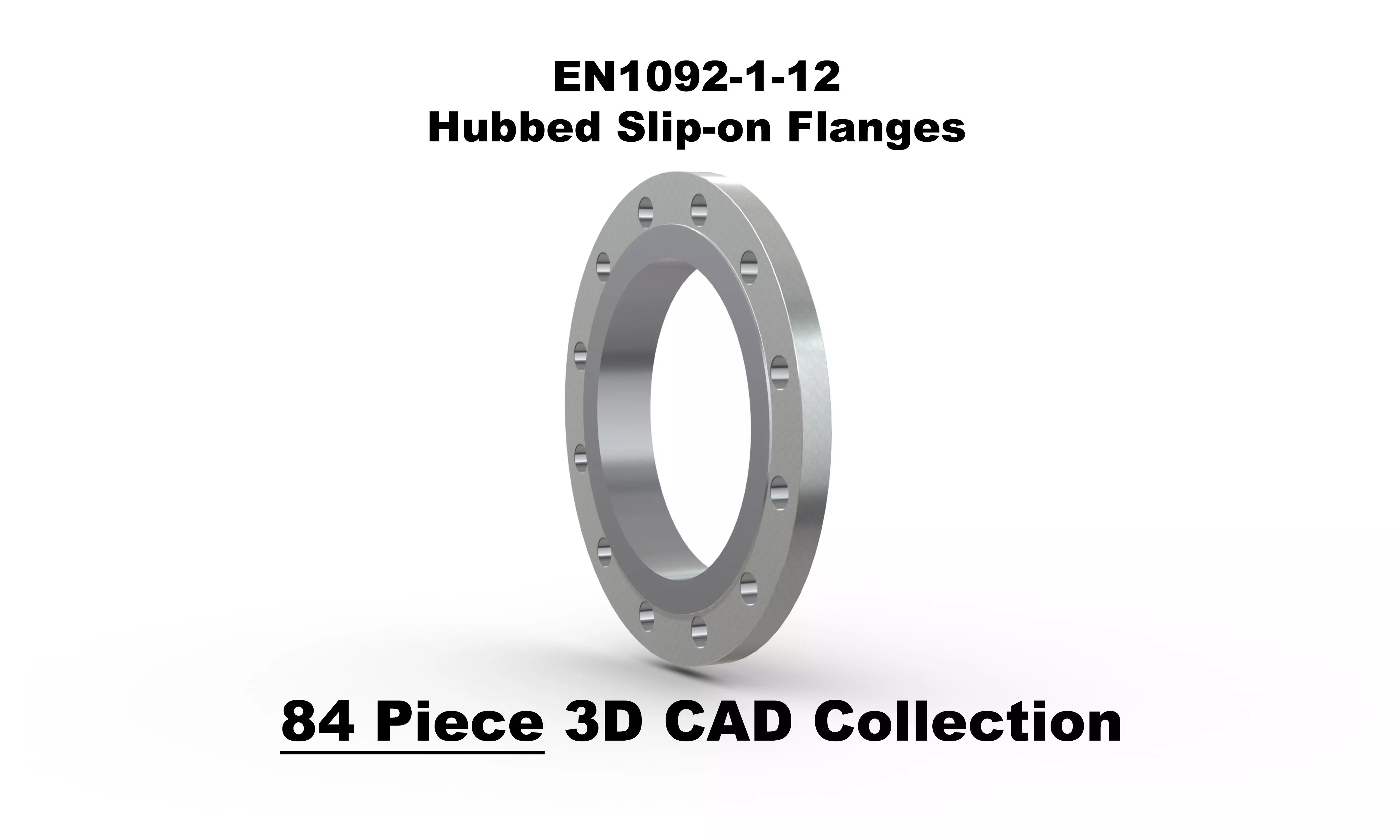

EN1092-1-12 Hubbed Slip-on Flanges 3D model

A COMPLETE COLLECTION THAT COVERS ALL POSSIBLE DIAMETERS AND PRESSURE RATINGS(!)

About EN1092-1 Type 12 Hubbed Slip-on Flanges

In the complex world of piping systems, where seamless connections are of paramount importance, EN1092-1-12 hubbed slip-on flanges have emerged as the backbone of reliability. These versatile components play an integral role within the European standard EN1092-1, which meticulously defines the dimensions, materials, and technical requirements for various flange types. EN1092-1-12, commonly known as the hubbed slip-on flange, holds a pivotal place within this standard, offering an efficient and dependable solution for connecting pipes, valves, and equipment in diverse industrial applications. This article delves into the features, applications, and advantages of EN1092-1-12 hubbed slip-on flanges, highlighting their essential contribution to the reliability of piping systems.

Understanding EN1092-1-12 Hubbed Slip-On Flanges

EN1092-1 is a comprehensive European standard governing the use of flanges in piping systems. The standard encompasses a variety of flange types, each designed for specific applications. EN1092-1-12 hubbed slip-on flanges are recognized for their slip-on design, making them easy to install and widely used for connecting pipes, valves, and equipment. These flanges have a hub or collar that extends from their inner diameter, providing additional strength and aiding in alignment during installation and welding.

Key Features of EN1092-1-12 Hubbed Slip-On Flanges

• Slip-On Design: The most distinctive feature of hubbed slip-on flanges is their slip-on design. This design allows them to be conveniently slipped over the end of a pipe, facilitating quick and easy installation.
• Hub or Collar: EN1092-1-12 flanges are equipped with a hub or collar that extends from their inner diameter. This hub enhances the connection's strength and facilitates proper alignment during installation and welding.
• Standard Compliance: These flanges adhere to the strict EN1092-1 standard, ensuring uniformity in their design and performance. They are coded as type 12 within this standard, making them easily recognizable and compatible with other flange types.

Applications of EN1092-1-12 Hubbed Slip-On Flanges

EN1092-1-12 hubbed slip-on flanges find applications in a wide range of industries due to their efficiency, reliability, and versatility. Notable applications include:

• Oil and Gas Industry: In the oil and gas sector, these flanges are employed to connect pipes, valves, and equipment for drilling, refining, and transportation. Their quick installation and reliable sealing properties are essential for maintaining the integrity of the system.
• Chemical Industry: Chemical processing facilities rely on hubbed slip-on flanges to ensure leak-tight connections in the transfer and handling of corrosive materials. The robust construction and welding capability of these flanges make them ideal for these environments.
• Water Treatment Plants: These flanges play a vital role in water treatment facilities where they connect pipes, valves, and pumps. Their ability to withstand diverse operating conditions and facilitate rapid installation is particularly valuable in this industry.

Manufacturing and Construction In manufacturing and construction applications, EN1092-1-12 hubbed slip-on flanges are used for connecting pipes and equipment, supporting a wide range of processes, from HVAC systems to industrial machinery.

Advantages of EN1092-1-12 Hubbed Slip-On Flanges

• Quick and Convenient Installation: The slip-on design of these flanges simplifies the installation process, reducing labor and downtime.
• Reliable Sealing: Once in place, EN1092-1-12 hubbed slip-on flanges are welded to the pipe, creating a secure and leak-tight connection. This reliability is essential in industries where fluid or gas containment is critical.
• Enhanced Strength and Alignment: The hub or collar extending from the flange's inner diameter not only reinforces the connection but also simplifies alignment during welding, ensuring a robust and precise connection.
• Standardized Design: These flanges conform to the EN1092-1 standard, ensuring compatibility with various systems and components, simplifying procurement and maintenance.

Conclusion

EN1092-1-12 hubbed slip-on flanges are essential components within piping systems, known for their efficiency, reliability, and versatility. Their slip-on design, combined with the hub for strength and alignment, sets them apart in the world of industrial connectors. With compliance to the EN1092-1 standard and applications across diverse industries, these flanges continue to be a preferred choice for professionals seeking dependable and convenient solutions for connecting pipes, valves, and equipment. Whether in the oil and gas sector, chemical industry, water treatment plants, or manufacturing and construction, EN1092-1-12 hubbed slip-on flanges remain integral to maintaining fluid and gas flow in a wide range of processes

File Formats:

• .f3d - Fusion 360
• .stp - Autodesk Inventor, Solidworks, Solid Edge and more...
