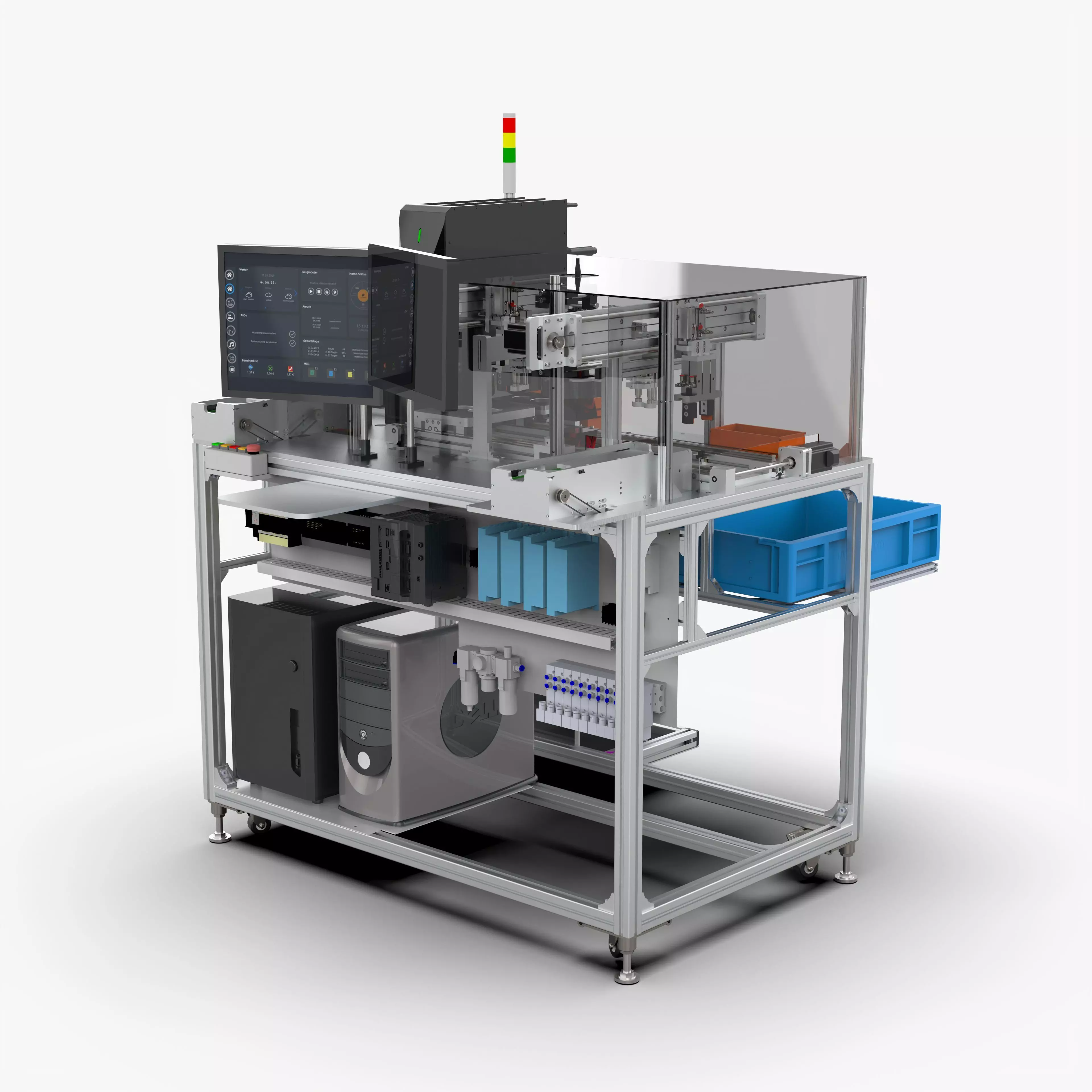

Marking Visual Inspection all-in-one Machine 3D model
Description
Marking Visual Inspection all-in-one Machine
Introduction
This equipment adopts the automatic feeding method, the conveying line feeds the material, takes out the material through the cylinder combined with the manipulator, reaches the marking position for marking, and performs visual inspection after reaching the standard.If it is qualified, it will continue to flow to the unloading area. If it is NG, the material is divided and rejected by the manipulator.The sub-equipment has fine structure, strong practicability, complex mechanism, and can be used for learning and so on.
File Formats
- SolidWorks 2018 | Keyshot 10
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
Geometry
- Polygons: 2,178,357
- Vertice: 6,535,071
Marking Visual Inspection all-in-one Machine
Royalty Free License
Marking Visual Inspection all-in-one Machine
Royalty Free License
3D Modeling
Rendering
Post Production
PBR modeling
3D Model formats
Format limitations
Native
- SolidWorks 2018 (.sldprt, .sldasm, .slddrw)33.8 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
- STEP (.stp)42.8 MB
- IGES (.ige, .igs, .iges)168 MB
- OBJ (.obj, .mtl)161 MB
- Stereolithography (.stl)104 MB
3D Model details
- Publish date2023-02-18
- Model ID#4304826
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 2,178,357
- Vertices 6,535,071
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
