Automatic Gift Box Corner Sticking Machine 3D model

Automatic Gift Box Corner Sticking Machine

Introduction

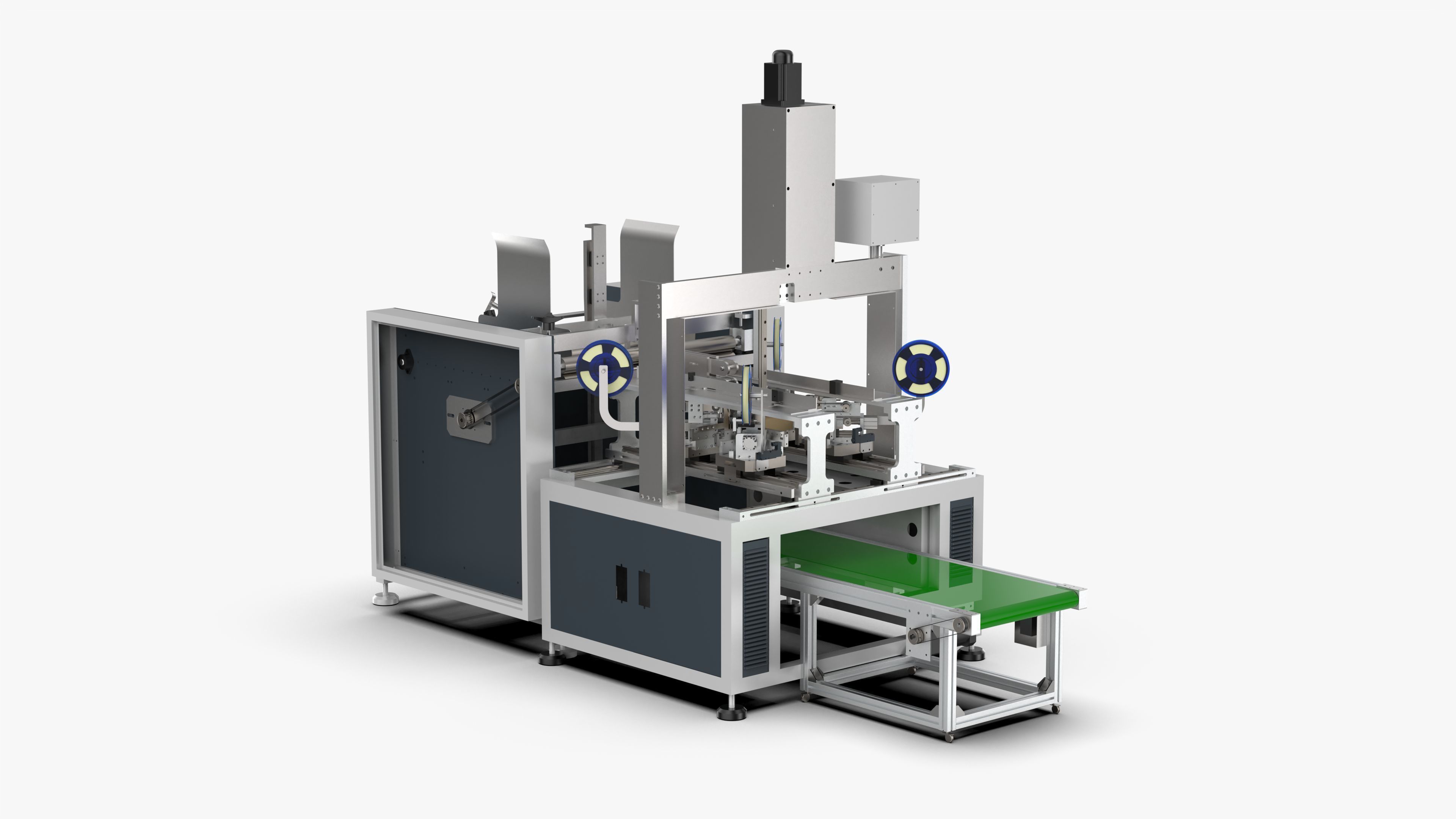

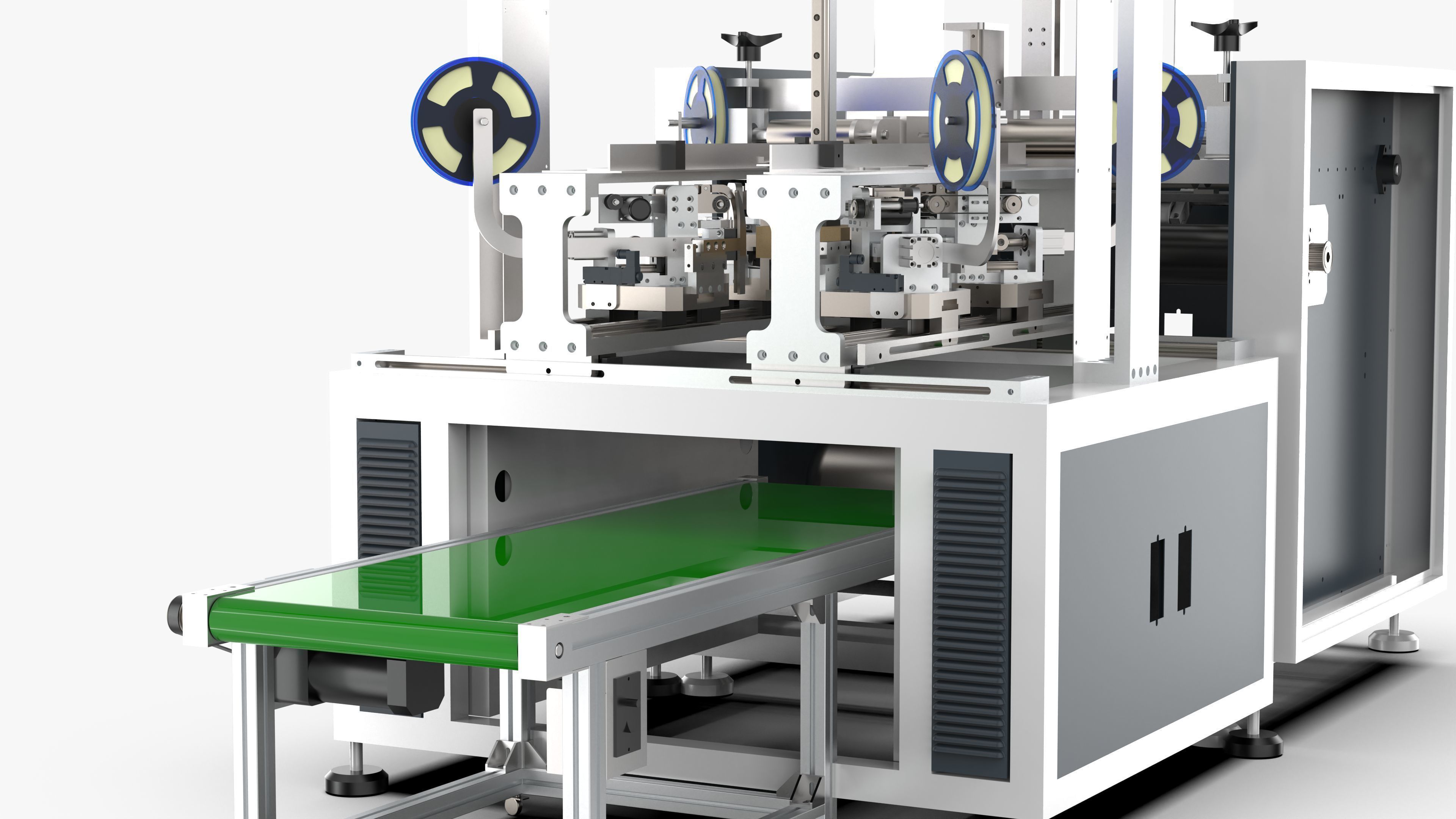

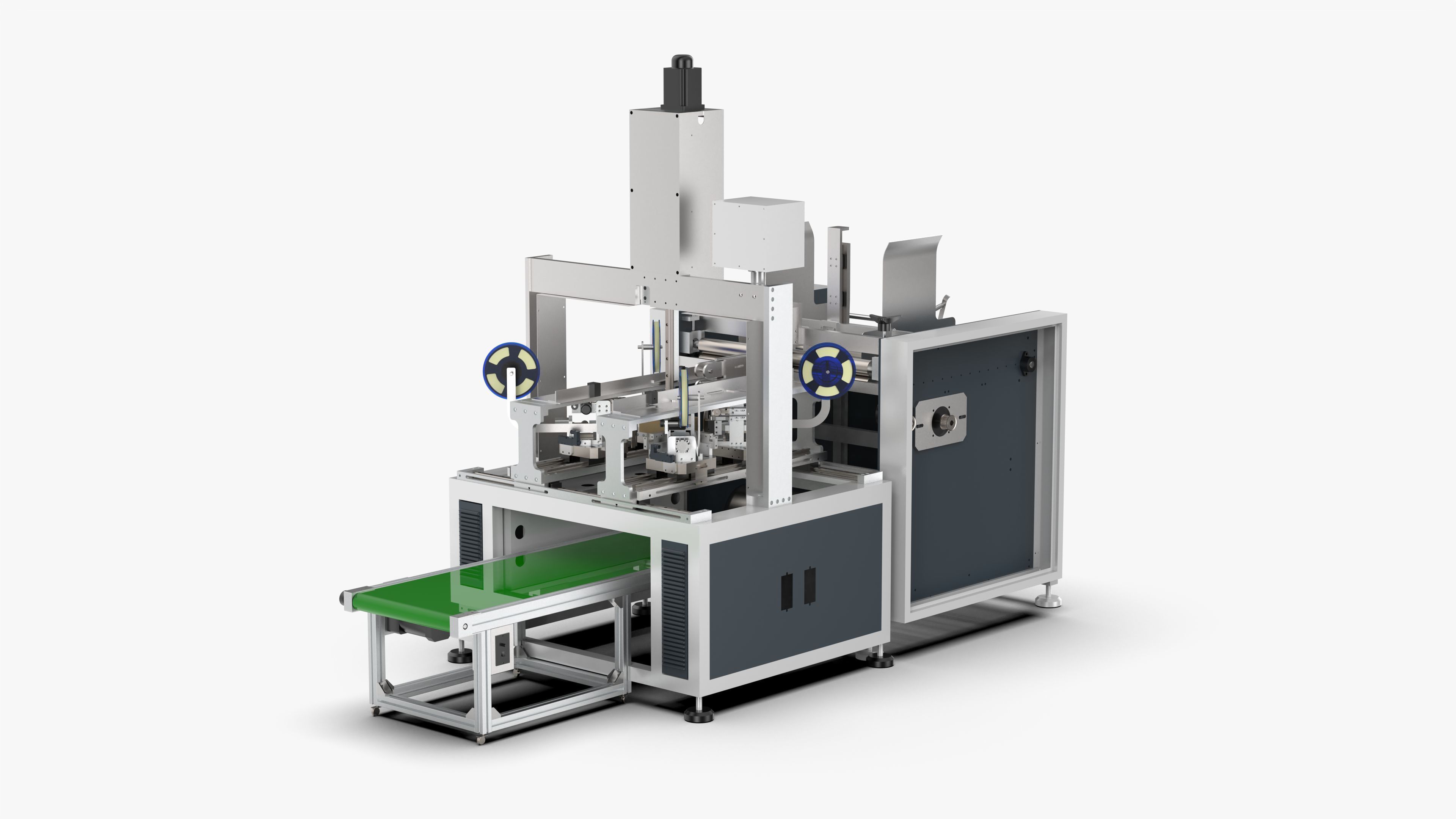

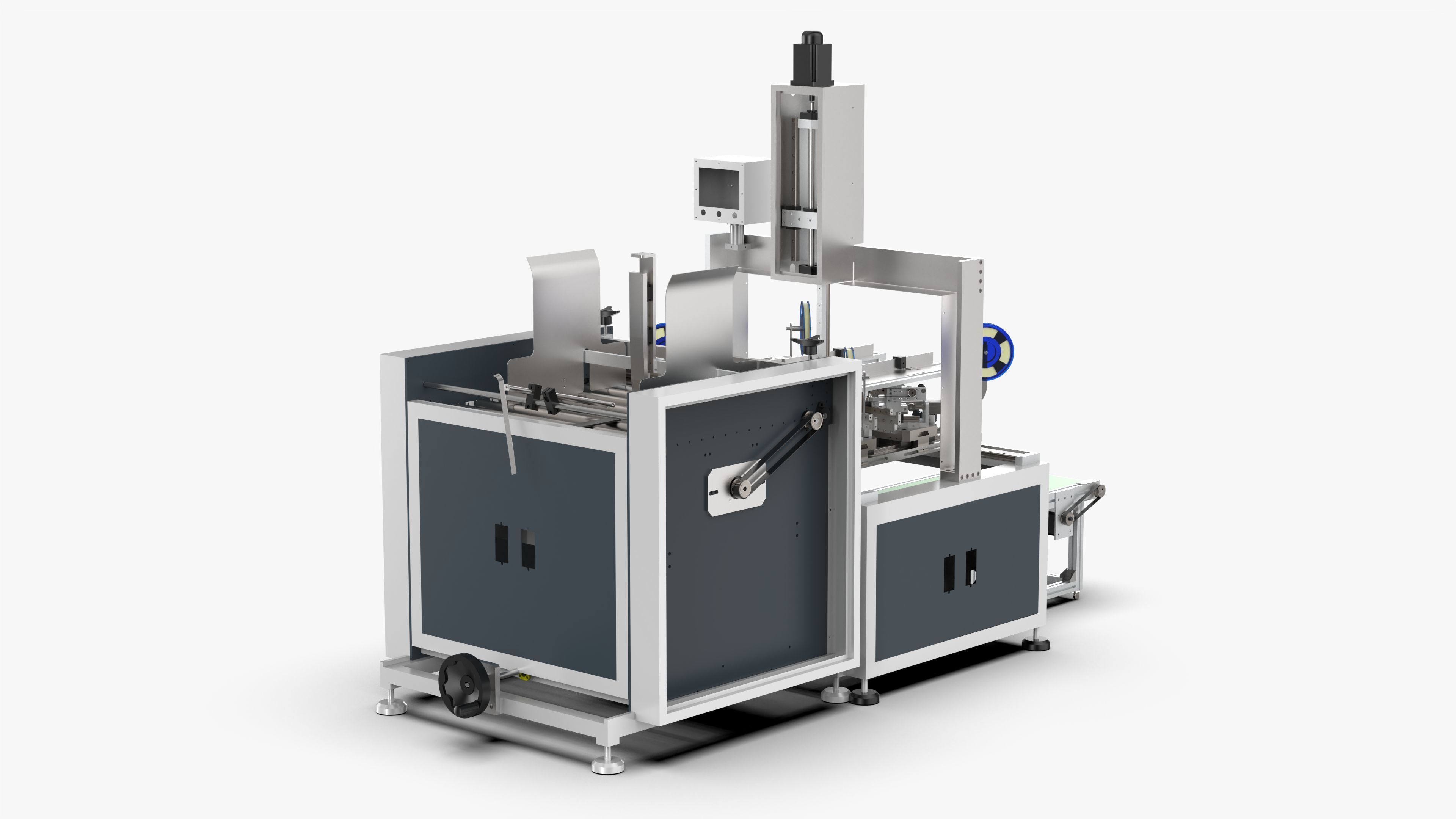

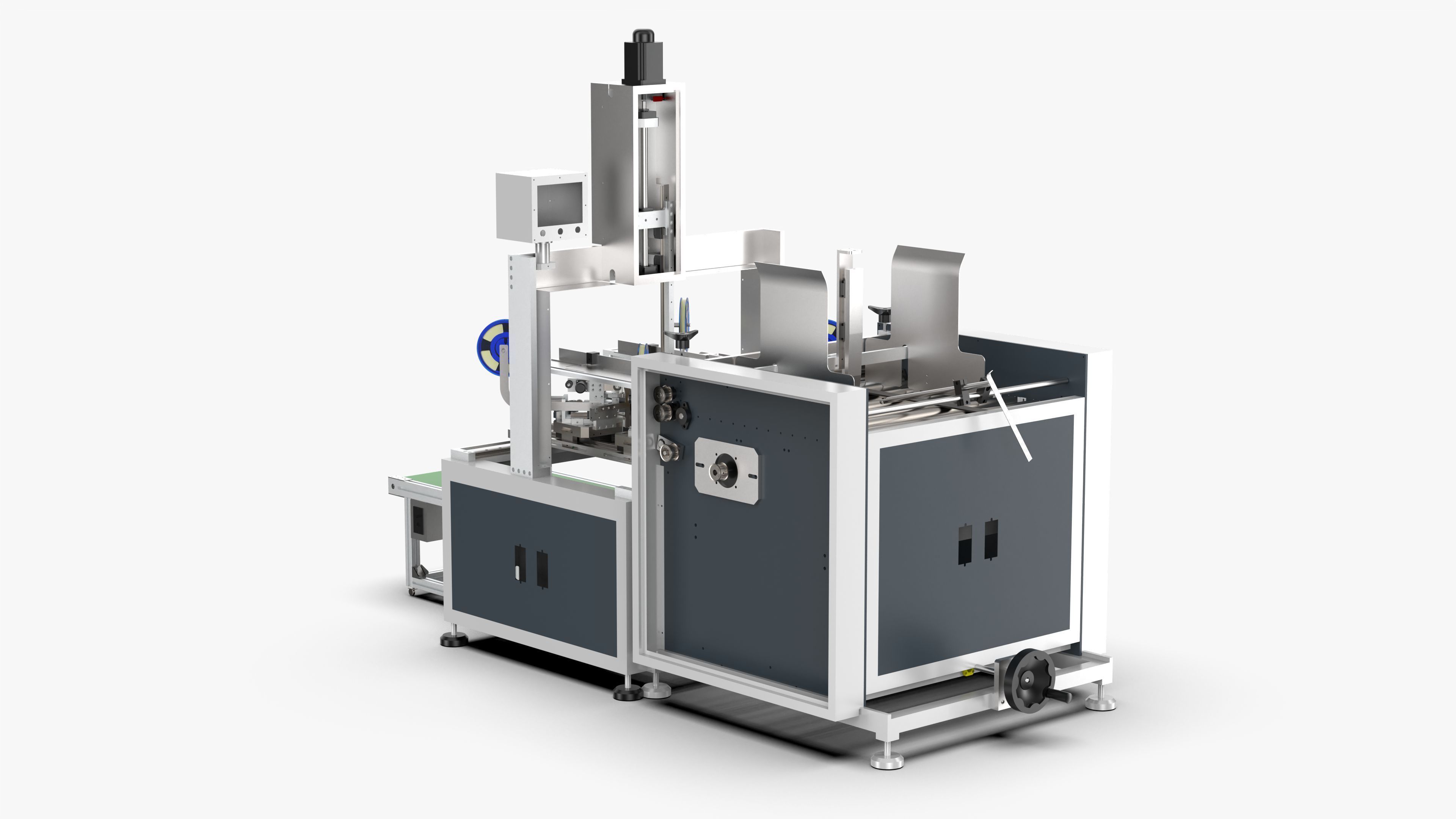

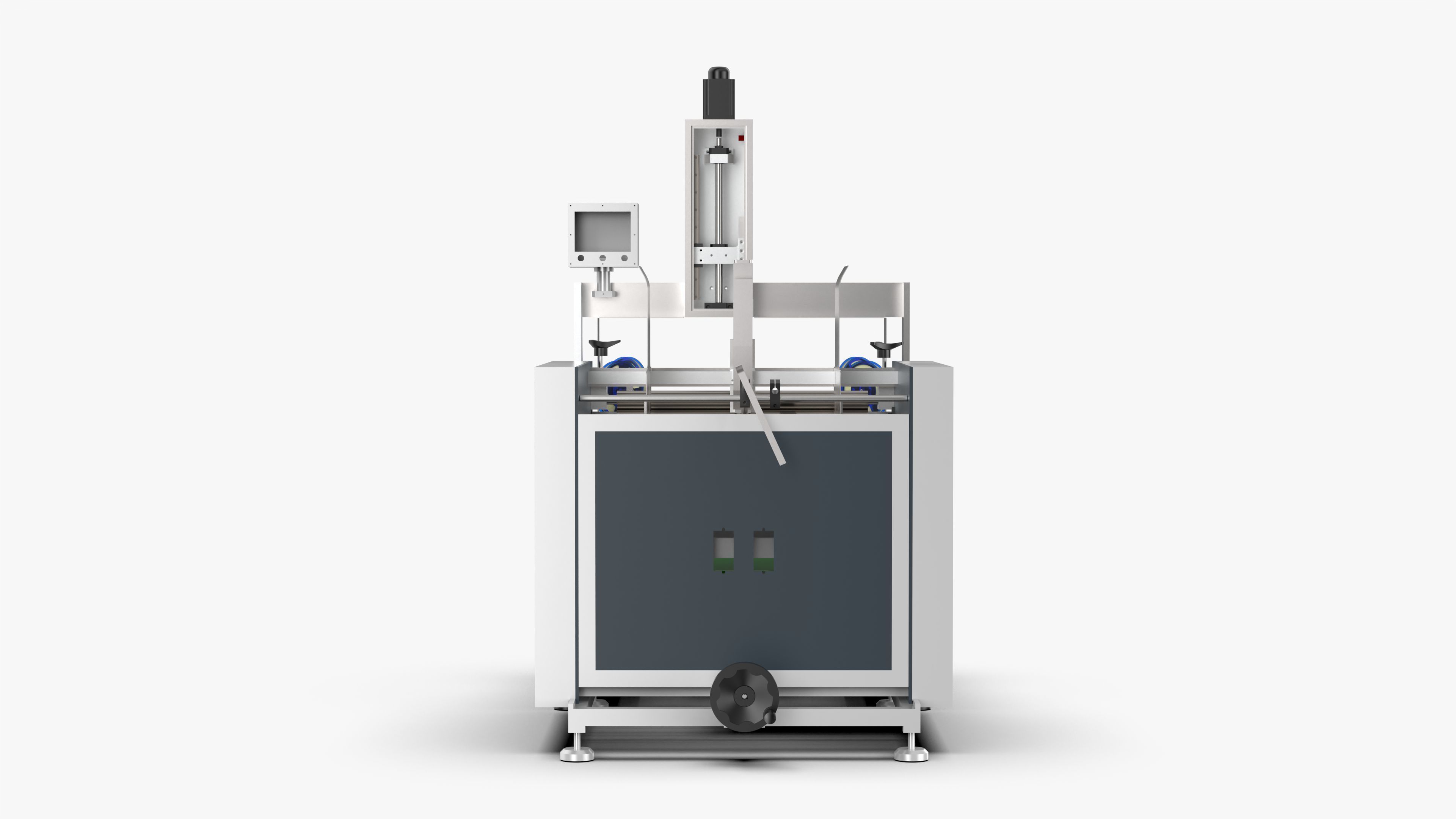

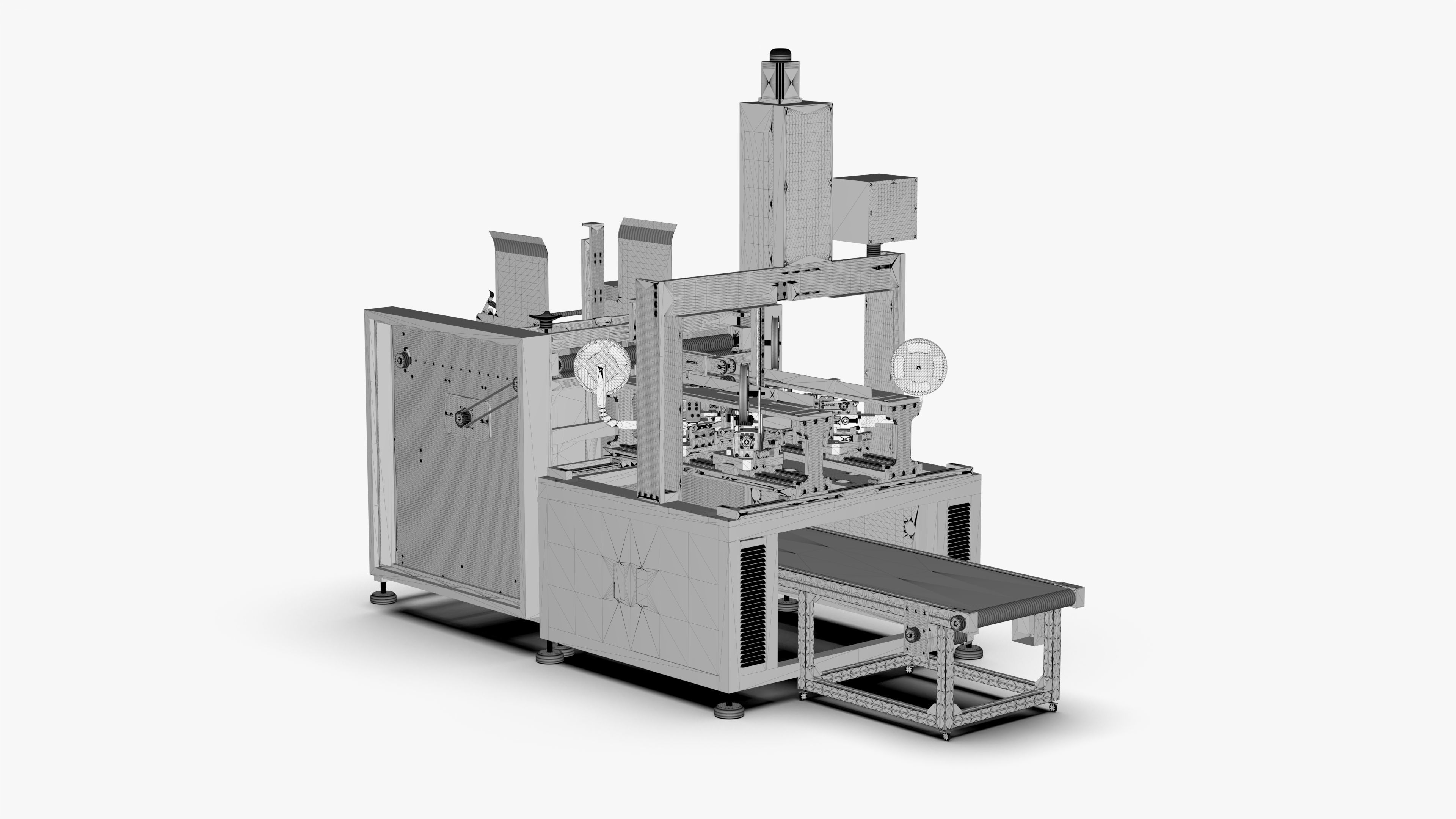

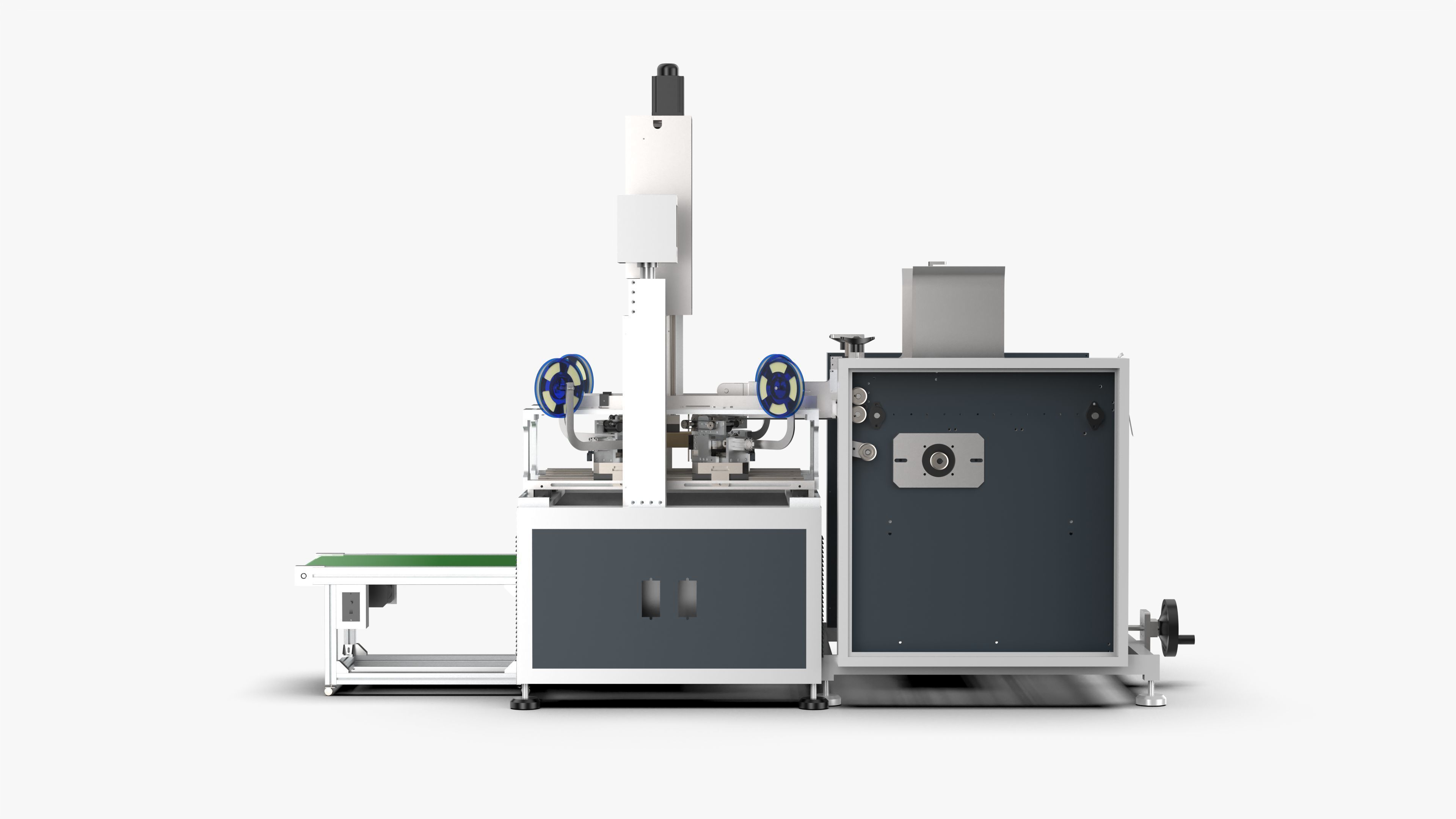

Fully automatic carton corner pasting machine, using mold forming, the size of the mold can be changed, eagerly cooperate with the motor screw to form the carton corner pasting automatic carton corner pasting machine carton corner pasting machine gift box corner pasting machine drawing corner pasting equipment Drawing carton corner sticking machine 3D model The fully automatic four-corner high-speed corner sticking machine has a reasonable design and is widely used for four-corner forming and pasting of folders, photo albums, hardcover book boxes, decorative boxes, shoe boxes and other products. like. The corner pasting machine can be produced alone, or it can be matched with Feida glue pasting machine, V-shaped slotting machine, forming and folding machine and other mechanical equipment to form an assembly line operation. It can paste folders, binders, photo albums, writing, advertising game boards and other high-end paper products such as gift boxes, moon cake boxes, exquisite boxes, and hard boxes.

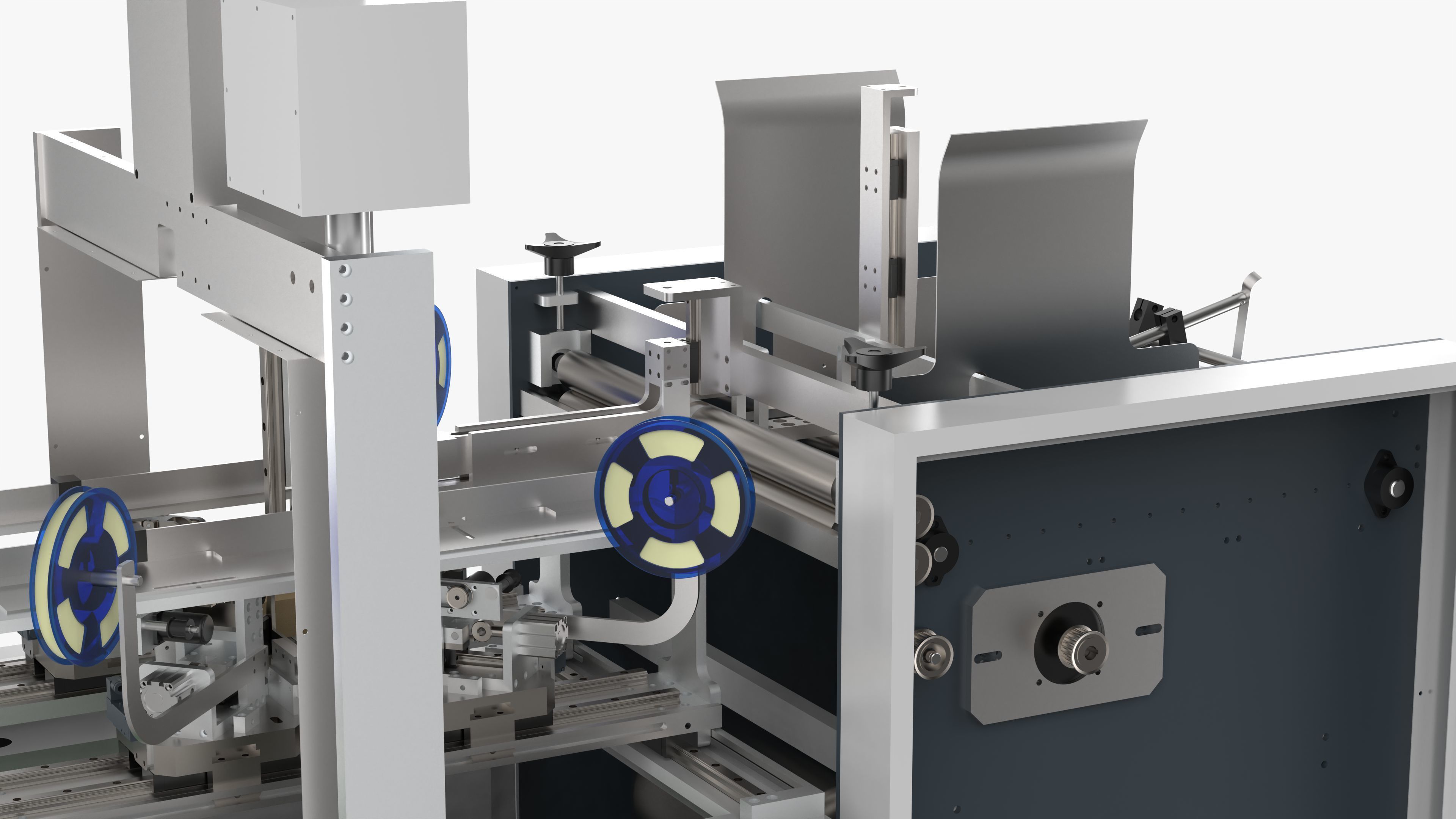

1. 1. Feeding part:

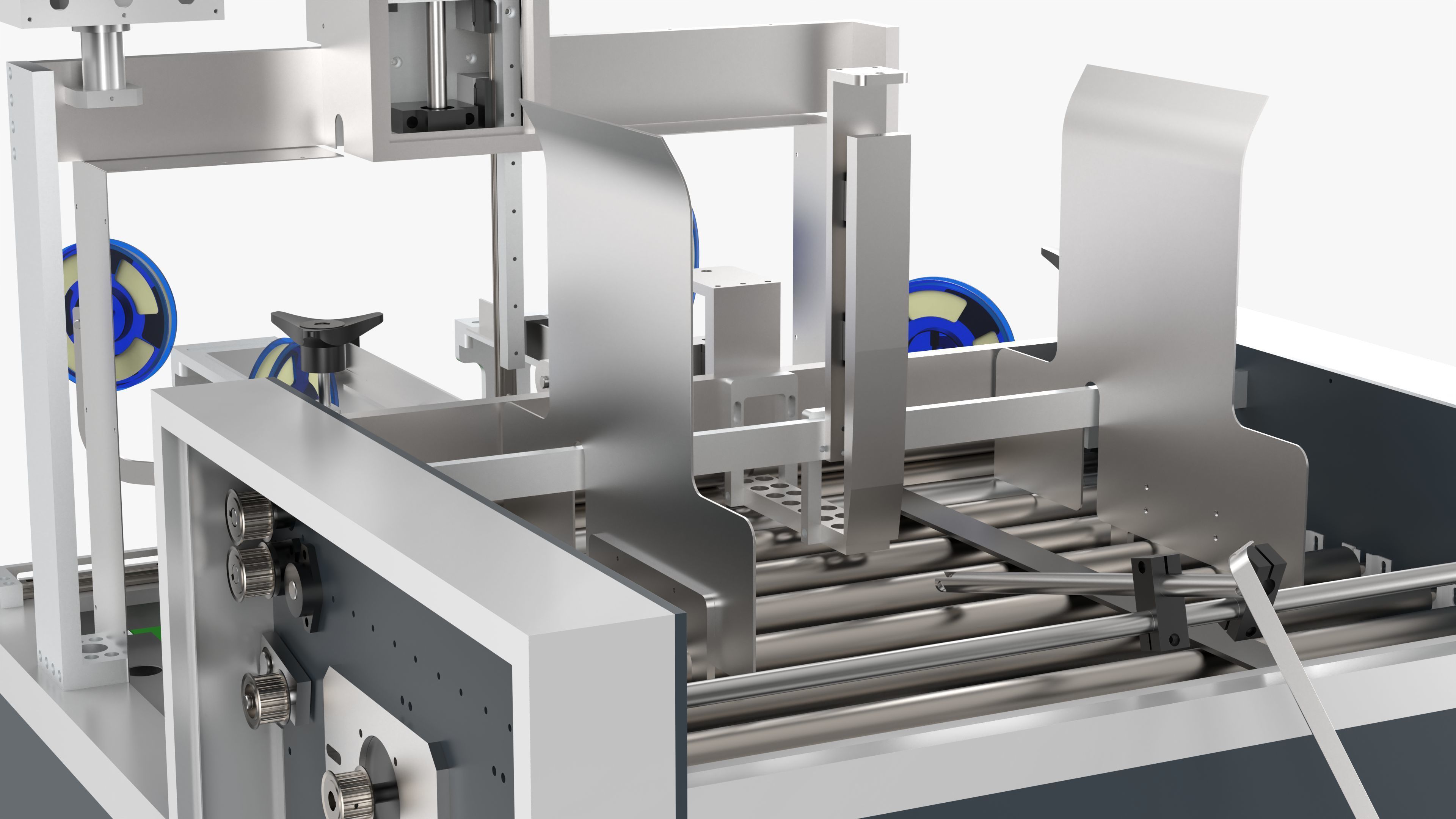

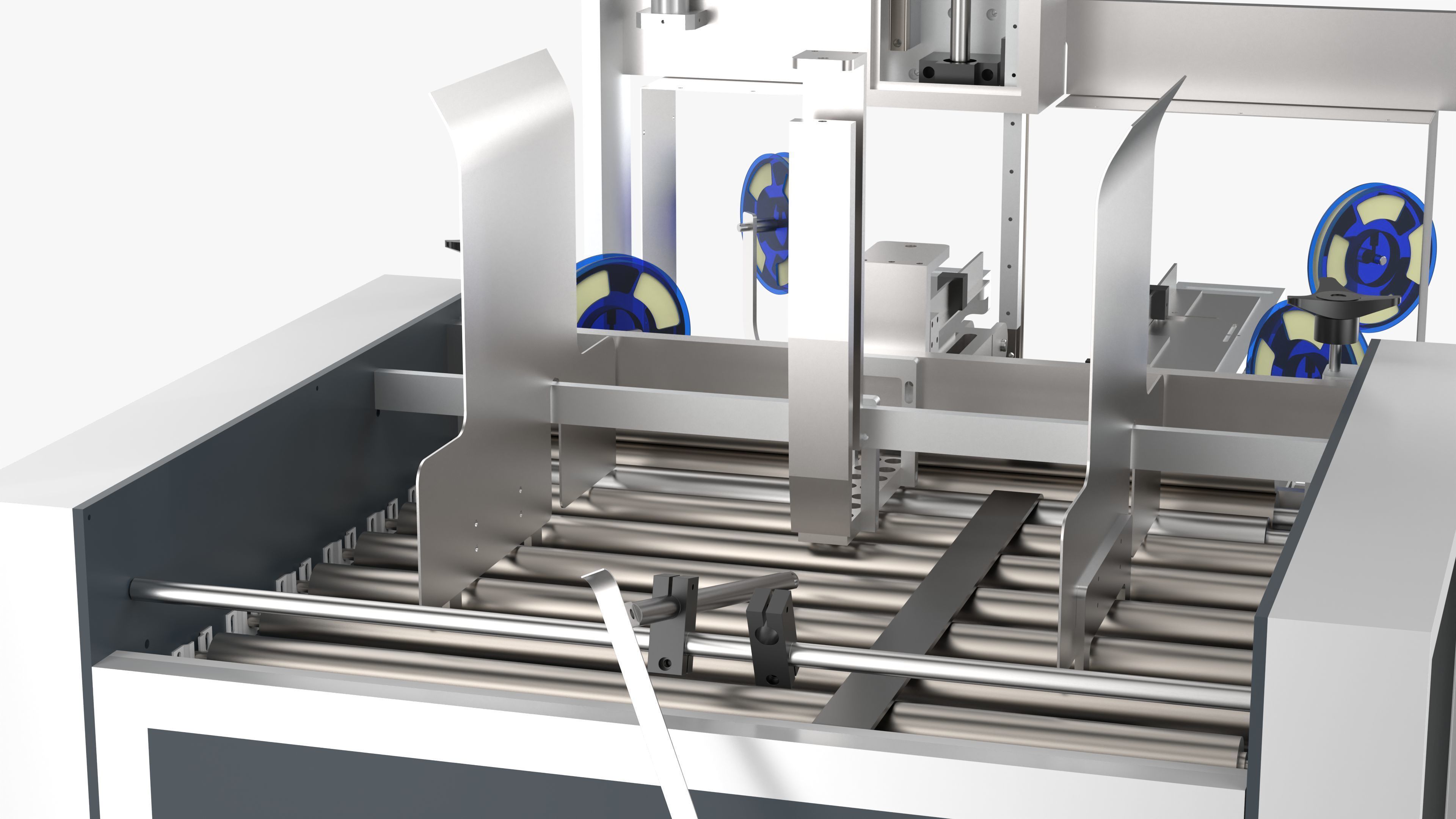

• Circular feeding device: It can quickly feed materials and save a lot of time;
• Feeder feeding device: thin plates, thick plates, die-cut plates, and slotted plates can be fed quickly and smoothly to avoid damage to gray plates, material jams, double sheets, etc.;
• Feeding belt: It adopts a fully automatic sky and earth cover type slide rail type telescopic device, with the sliding feeder part, the size can be easily adjusted;
• The support rod can be automatically retracted: the touch screen can be turned on or off with one key, suitable for boxes of special specifications, to prevent The carton has come off.

1. 2. Corner sticking part:

• Times of sticking corners: one-key switching: the number of sticking corners can be selected;

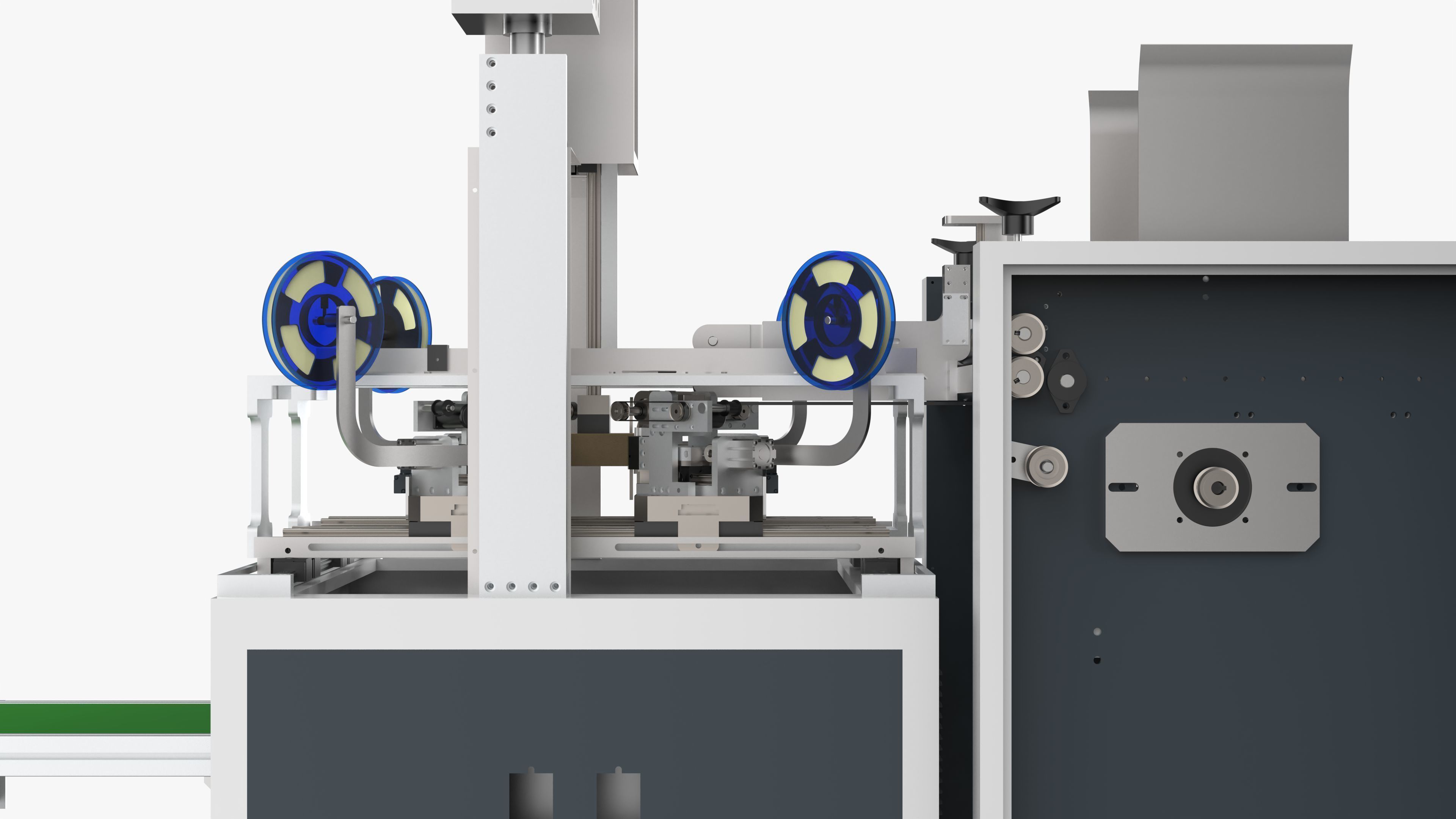

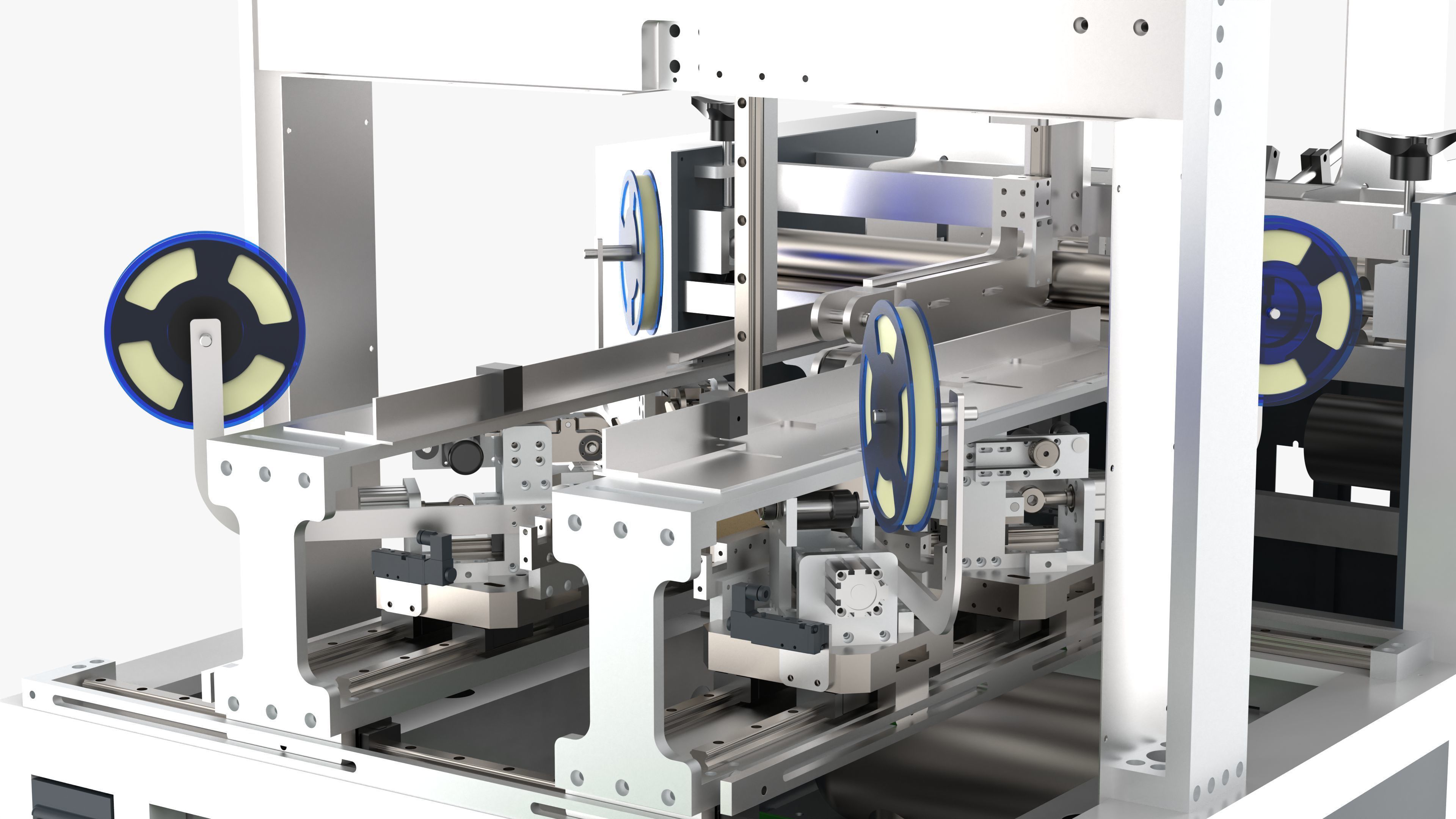

• Tape length: four stepping motors send tape, and any length of corner sticking tape can be saved with one key;
• Blowing protection: After it is turned on, it will automatically blow air during standby to prevent the tape from overheating and melting, causing blockage.

1. 3. Others:

• The frame is made of thickened 45# steel plate with baking paint treatment, precision machining of spare parts, and all hard chrome plating treatment;
• Multiple sets of linear guide rail sliders are used for guidance, and the adjustment plate is more accurate;

• Main shaft drive: Using high-power servo drive, combined with the precision guidance of imported guide rails and double sliders, to improve service efficiency and service life
