Automatic PCB Board Heating Dispenser Machine 3D model
Description
Automatic PCB Board Heating Dispenser Machine
Introduction

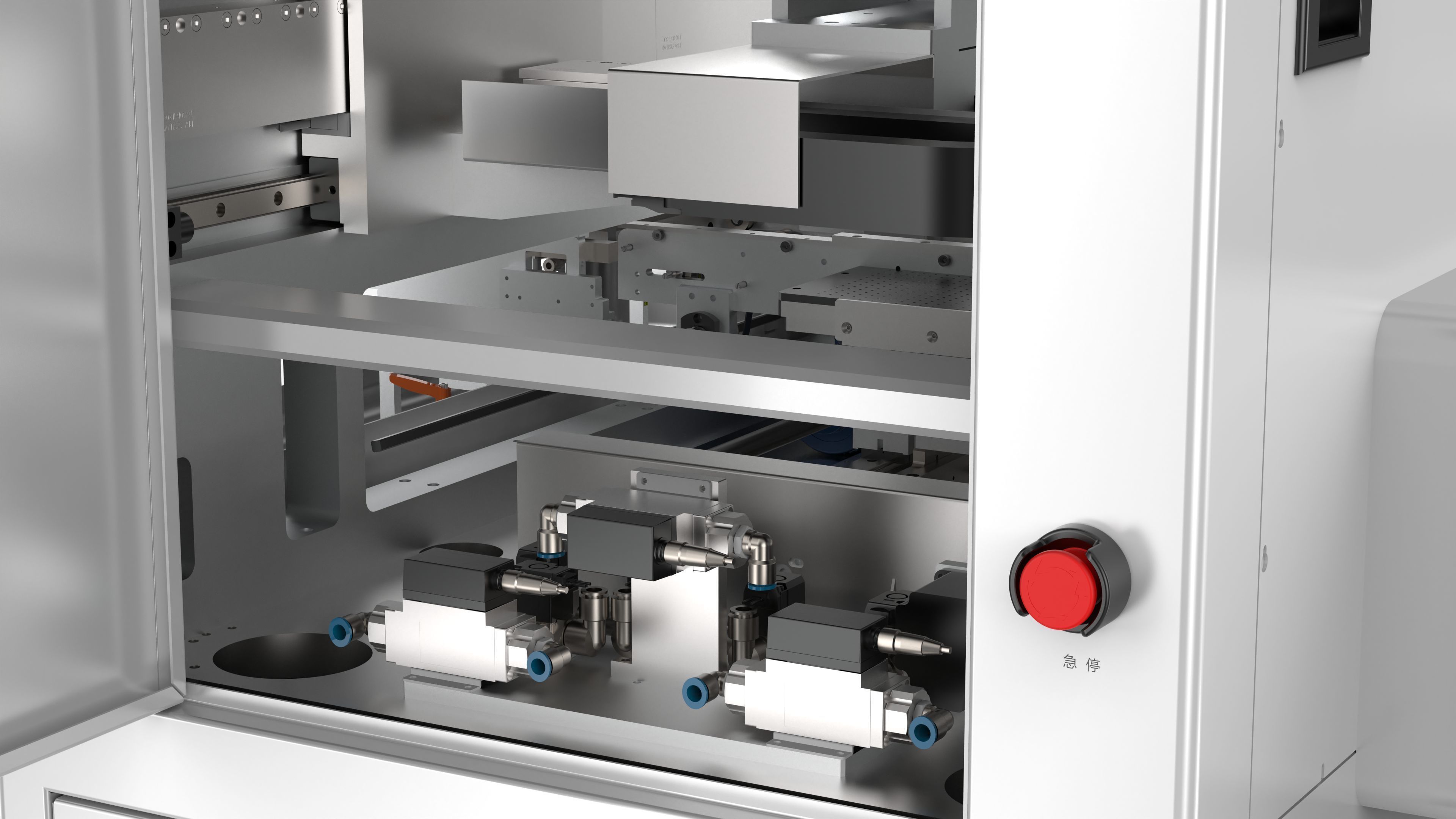

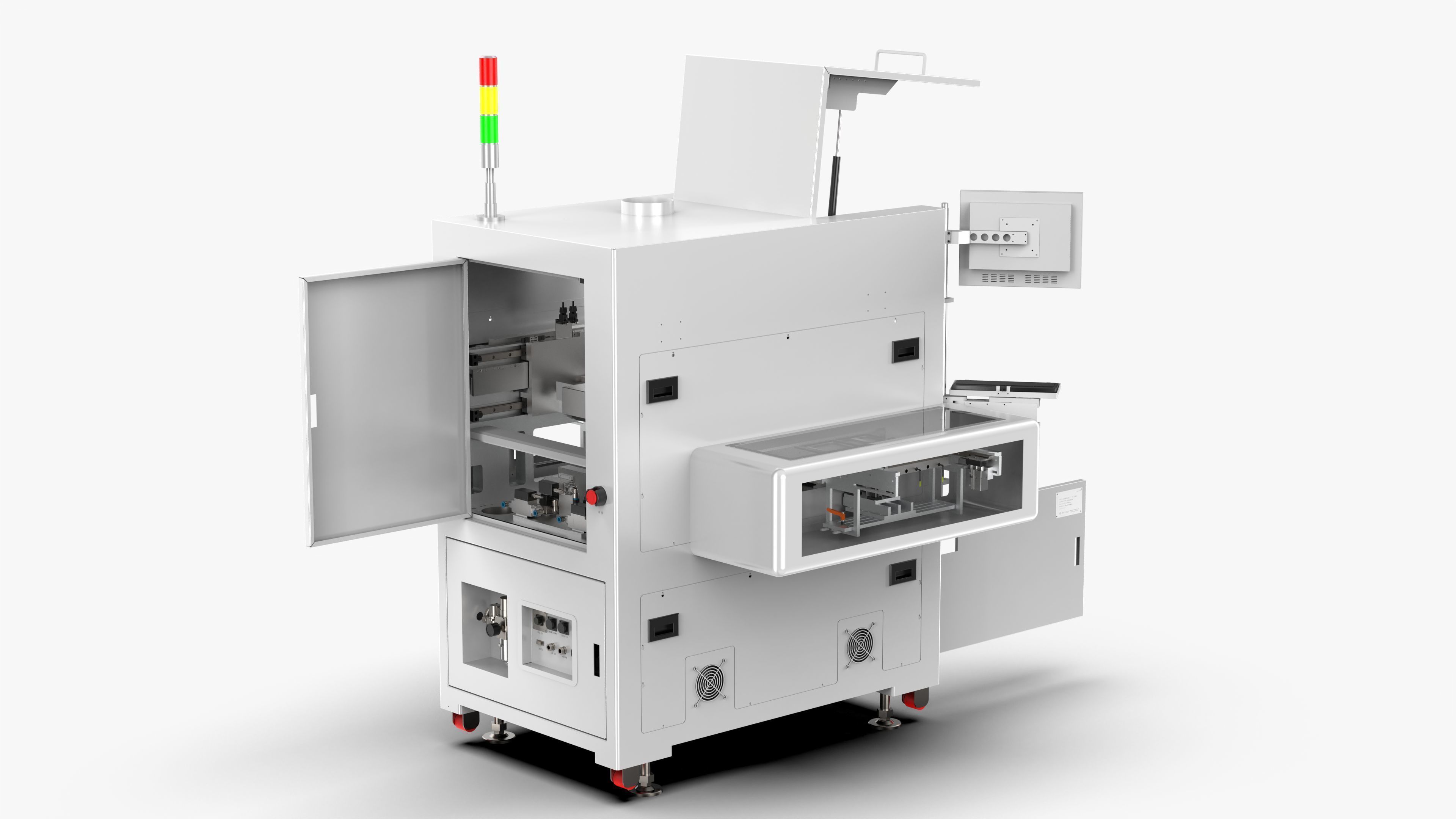

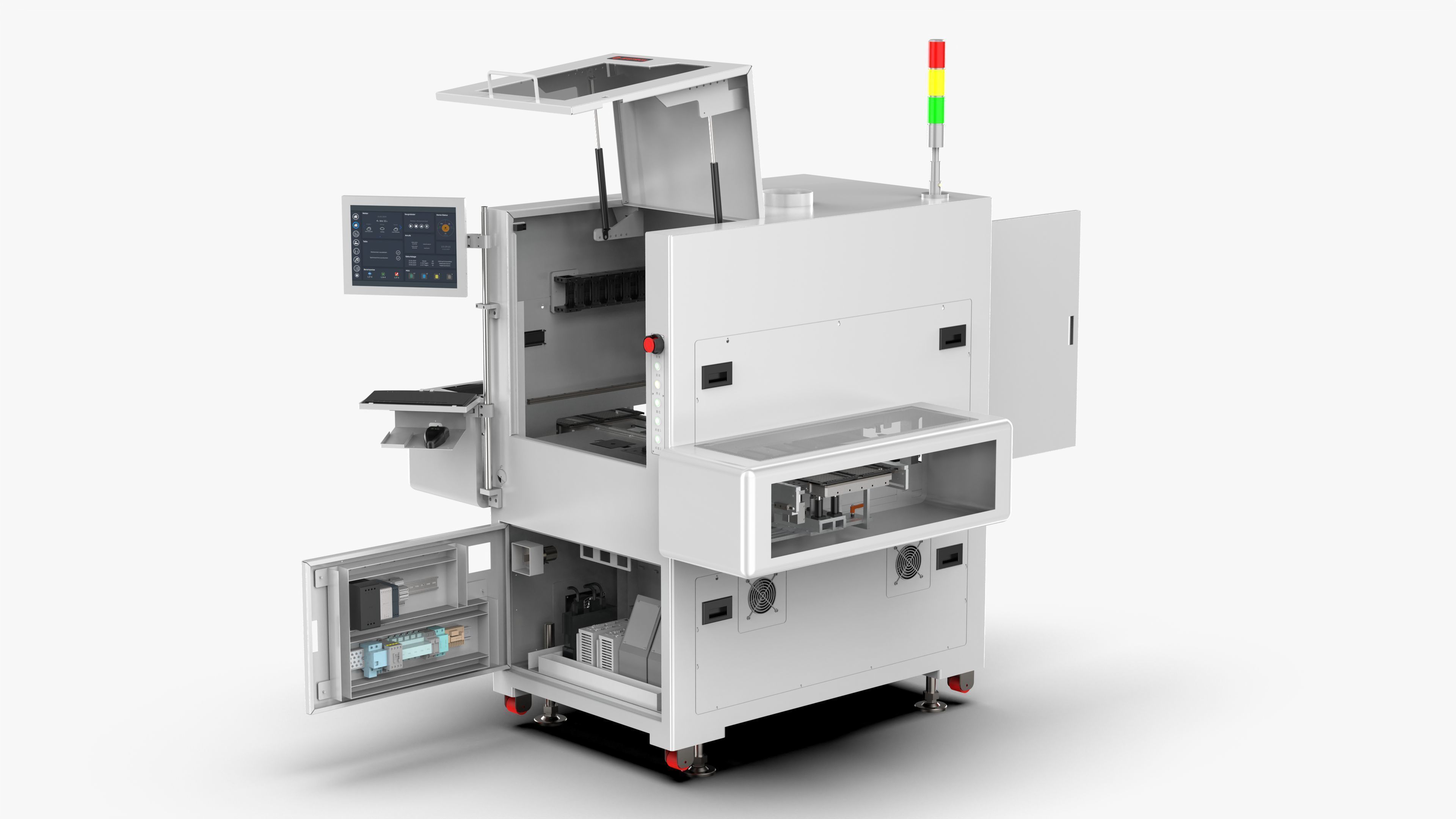

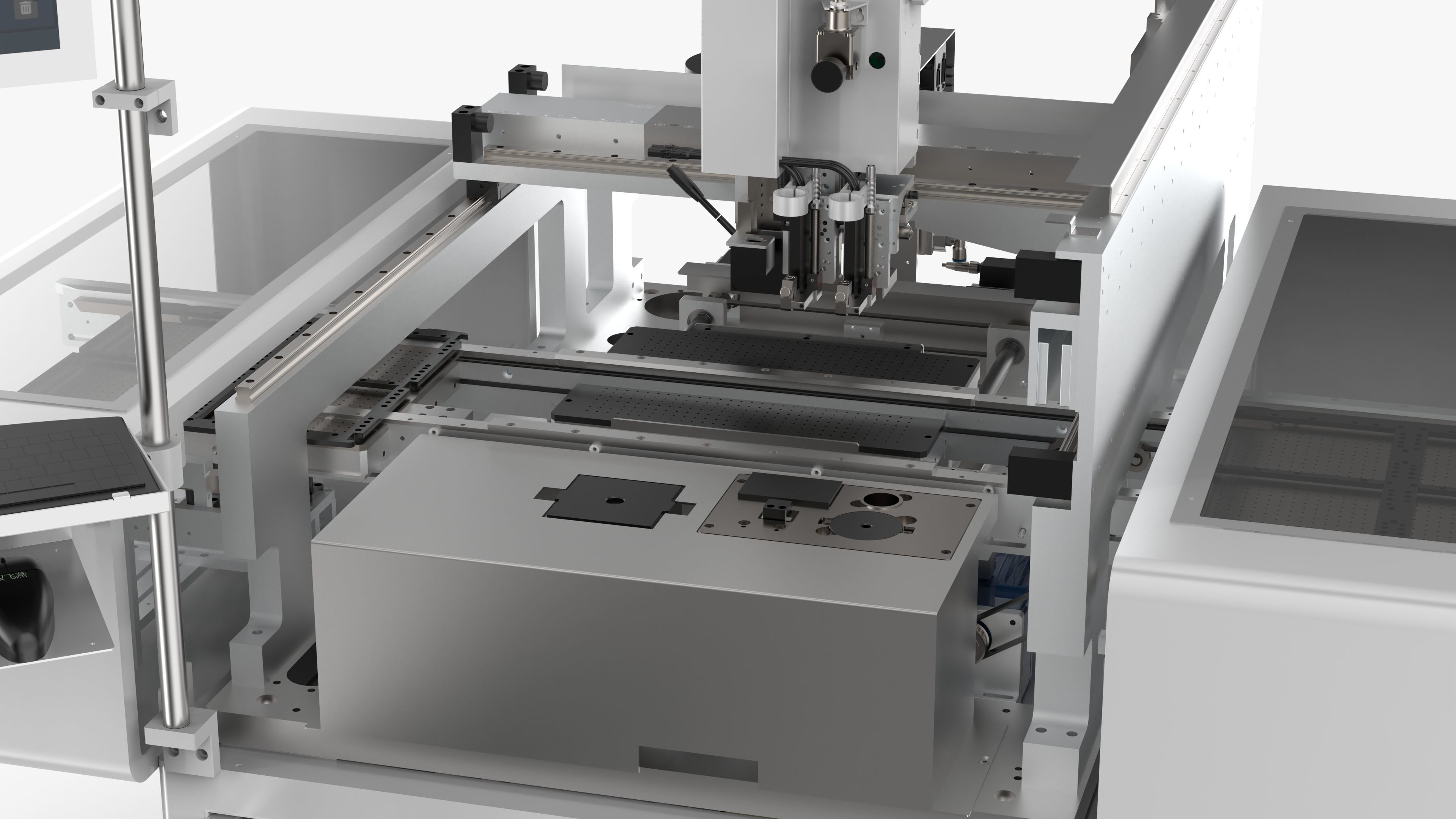

This drawing is a fully automatic heating dispenser for PCBA boards. It has a manual adjustment structure of double dispensing heads. The width of the flow channel can be adjusted freely. The bottom of the flow channel is equipped with a heating structure that can heat the PCBA board. It has automatic glue removal and automatic needle alignment. Automatic weighing structure, and equipped with detailed processing parts and standard parts BOM!
File Formats
- SolidWorks 2018 | Keyshot 10
- FBX (Filmbox)
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
- x_t (Parasolic Model Part File)
Geometry
- Polygons: 5,349,200
- Vertice: 16,047,400
