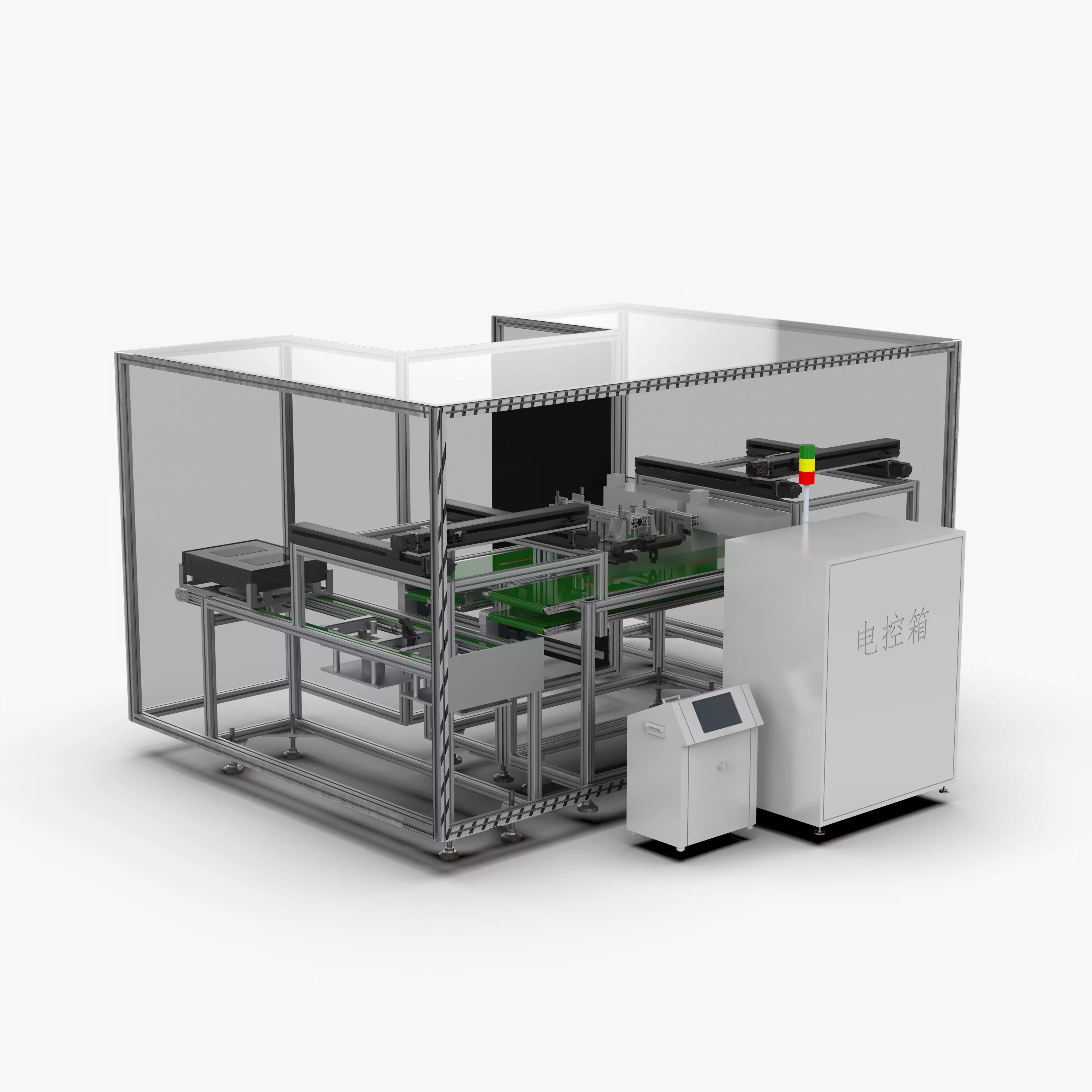

Fully Automatic Loading and Unloading Code Scanning Machine 3D model

Fully Automatic Loading and Unloading Tray Inkjet Code Scanning Machine

Introduction

This equipment is for reference only, and has no actual production. The equipment is an integrated equipment for printing on the surface of the tablet computer panel. The equipment includes a material loading area, a material loading and unloading mechanism, an operation area (rectification, code printing, and code scanning), a material unloading and loading mechanism, and a material unloading area. The loading and unloading area includes conveyor belts, automatic blanking components, stacking components, and transfer mechanisms. and many more. For informational use only.

File Formats

• SolidWorks 2019 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 860,692
• Vertice: 2,582,076
