New realease v1.3

With this revision, the following improvements have been made:

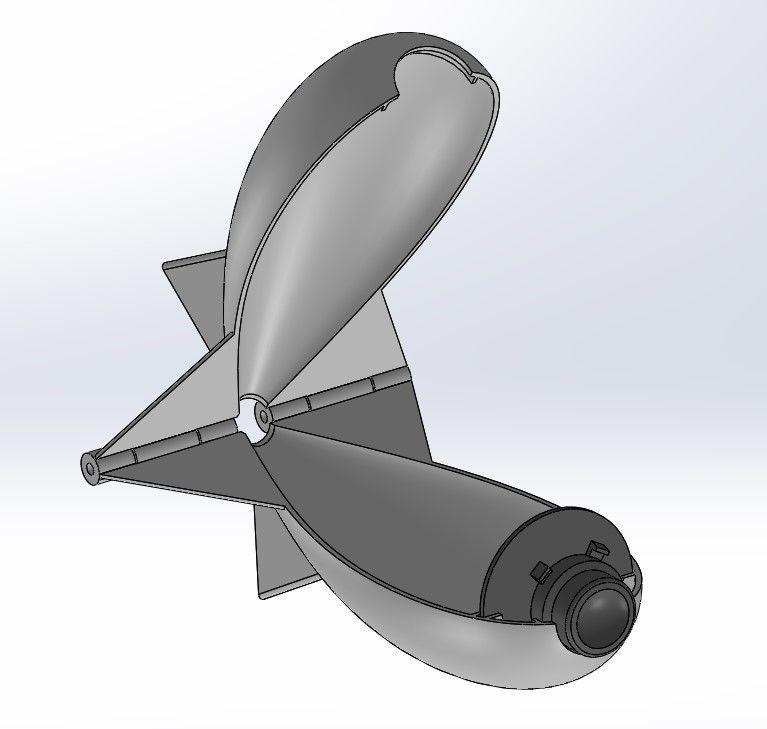

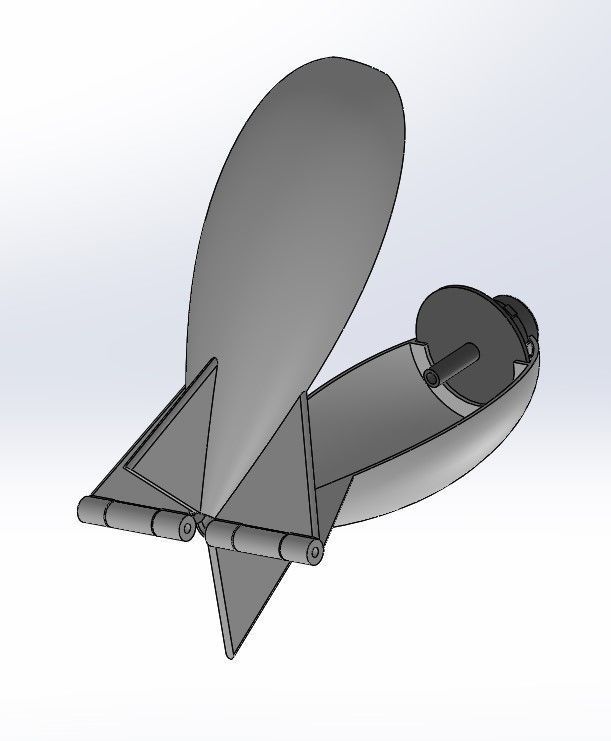

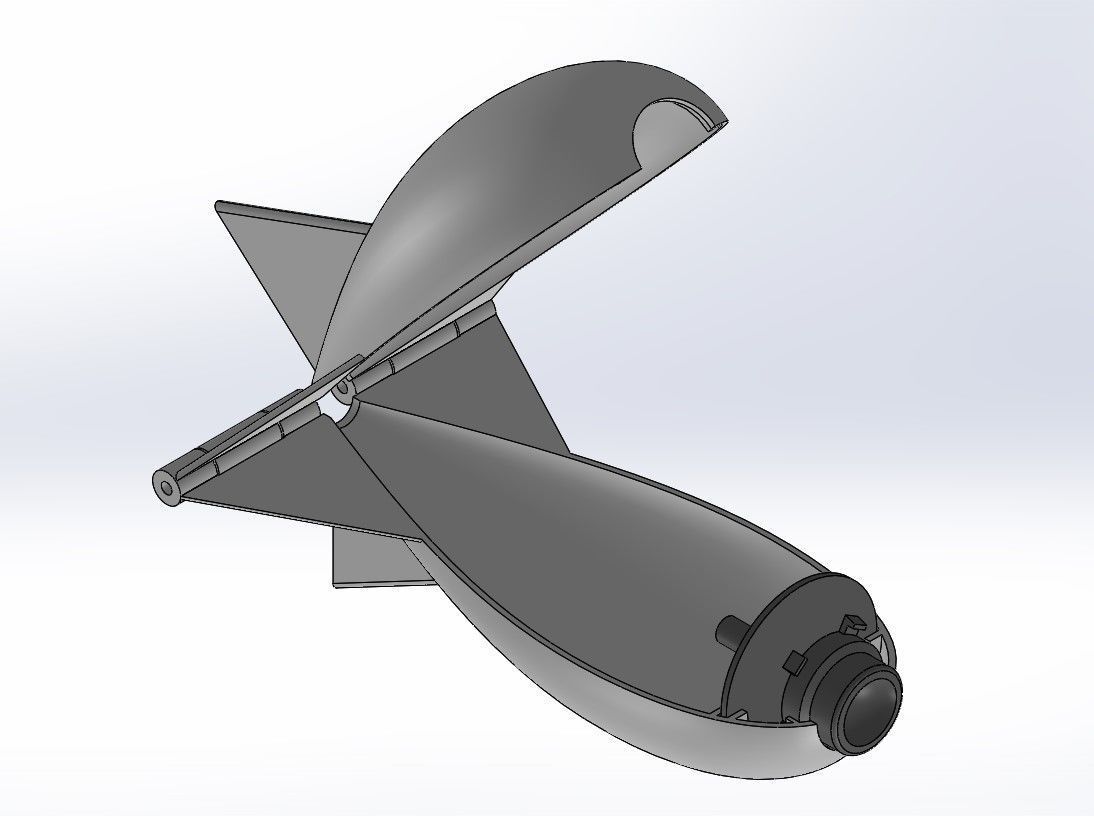

1 - New hinge design, now it is more functional and easier to print.

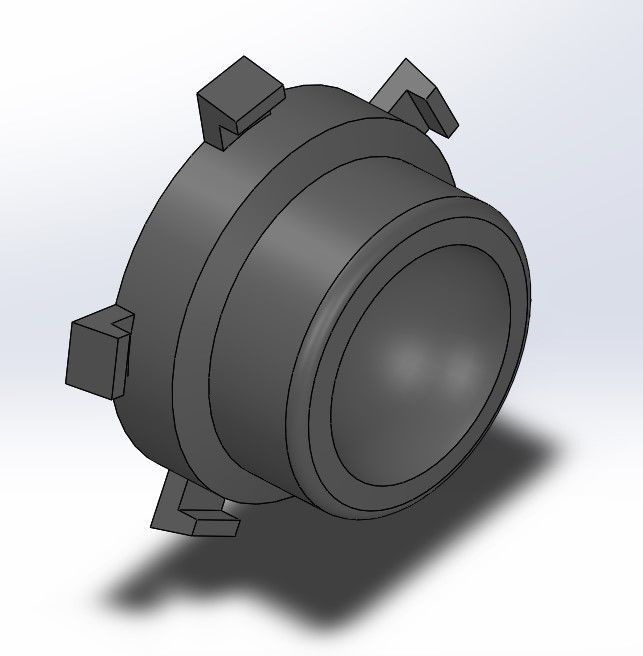

2 - Improved the locking mechanism of the key, with a more functional design.

3 - Only four components to print and the hinge has been simplified with a more robust design.

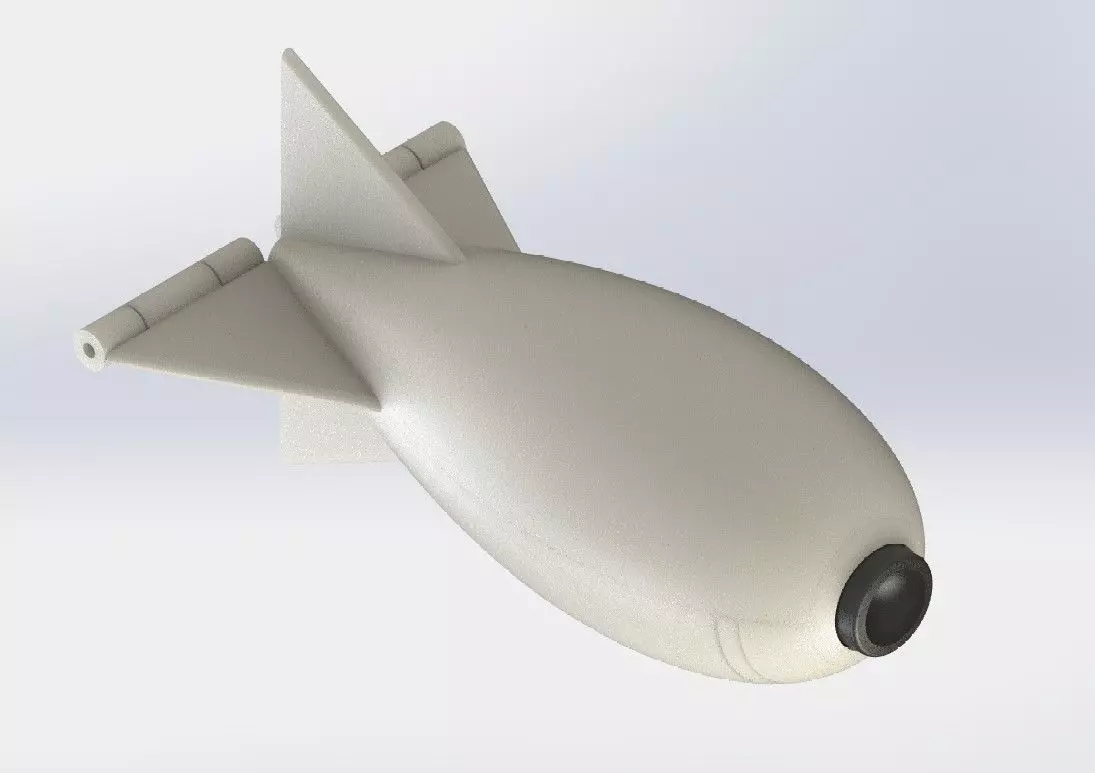

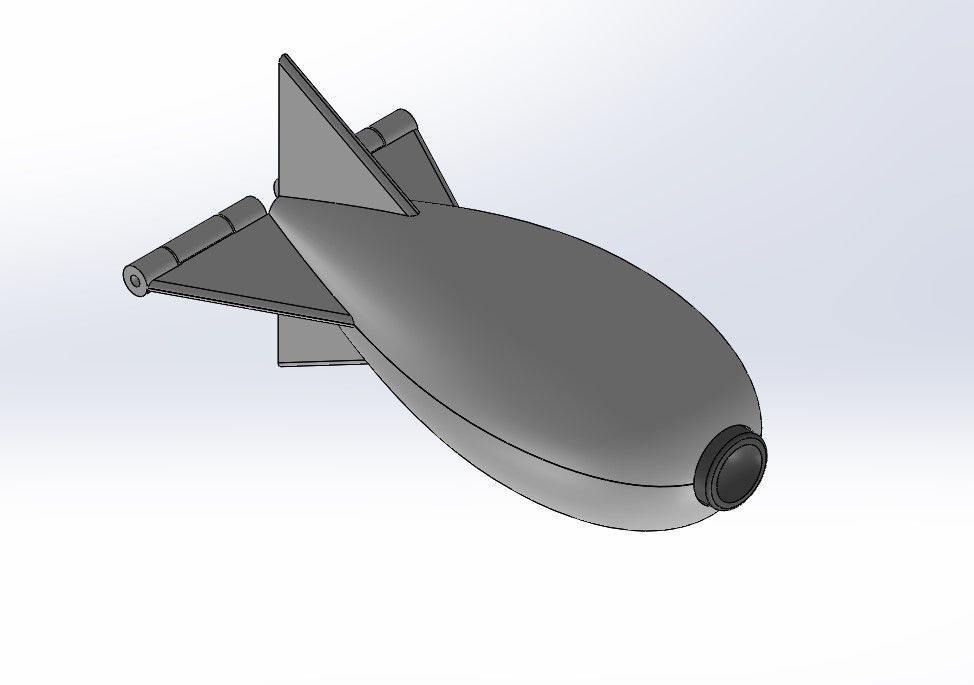

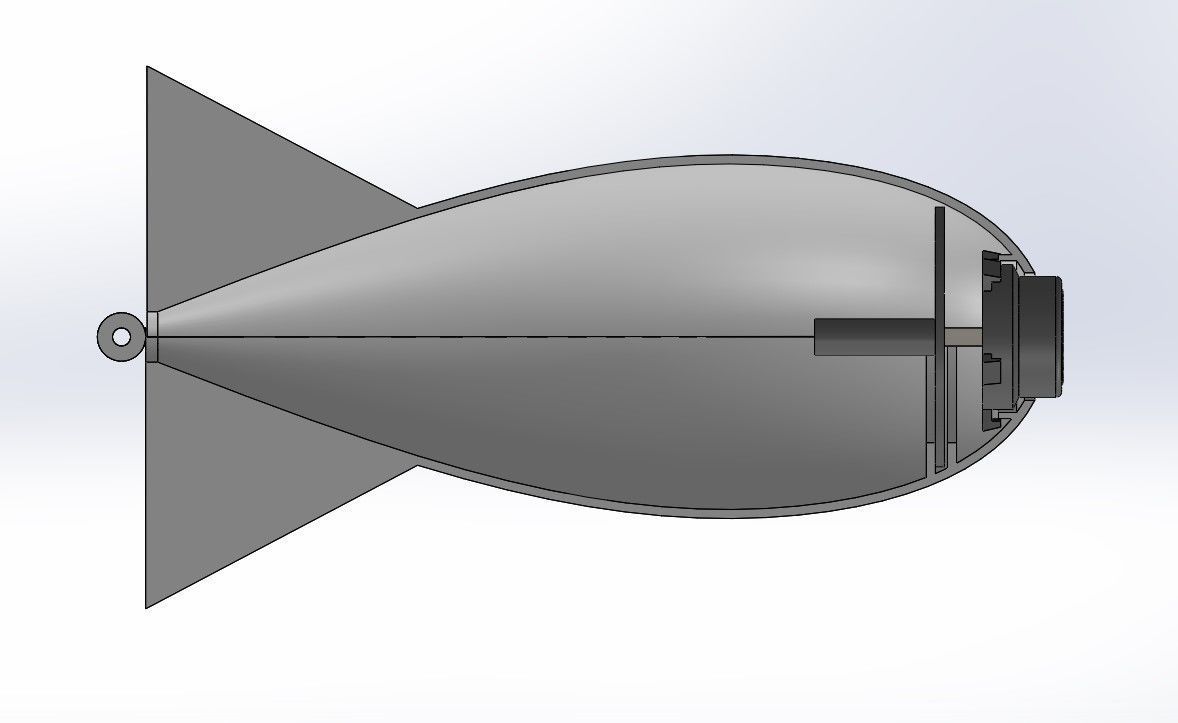

With this project I'd like to present a very useful tool for carpfishing enthusiasts.Based on a revolutionary concept, this tool is used like a classic Bait Rocket but has many more advantages.The perfectly aerodynamic shape, which resembles a missile, makes it encounter minimal resistance in flight and thanks to its wings it maintains a very precise trajectory even in strong winds.The Spomb releases its contents instantly upon impact with water. It is a very effective feeder, to be used with SPOD carp fishing rods for baiting operations. The locking mechanism is very strong and does not open in the launch. The aerodynamic shape allows launches even up to 180 meters. The SPOMB can be used for baiting with pellets, boilies, hemp, corn, dog biscuits, bread, etc.

Features:

• Streamlined design for minimal air resistance.
• Enhances accuracy and efficiency in baiting swims.

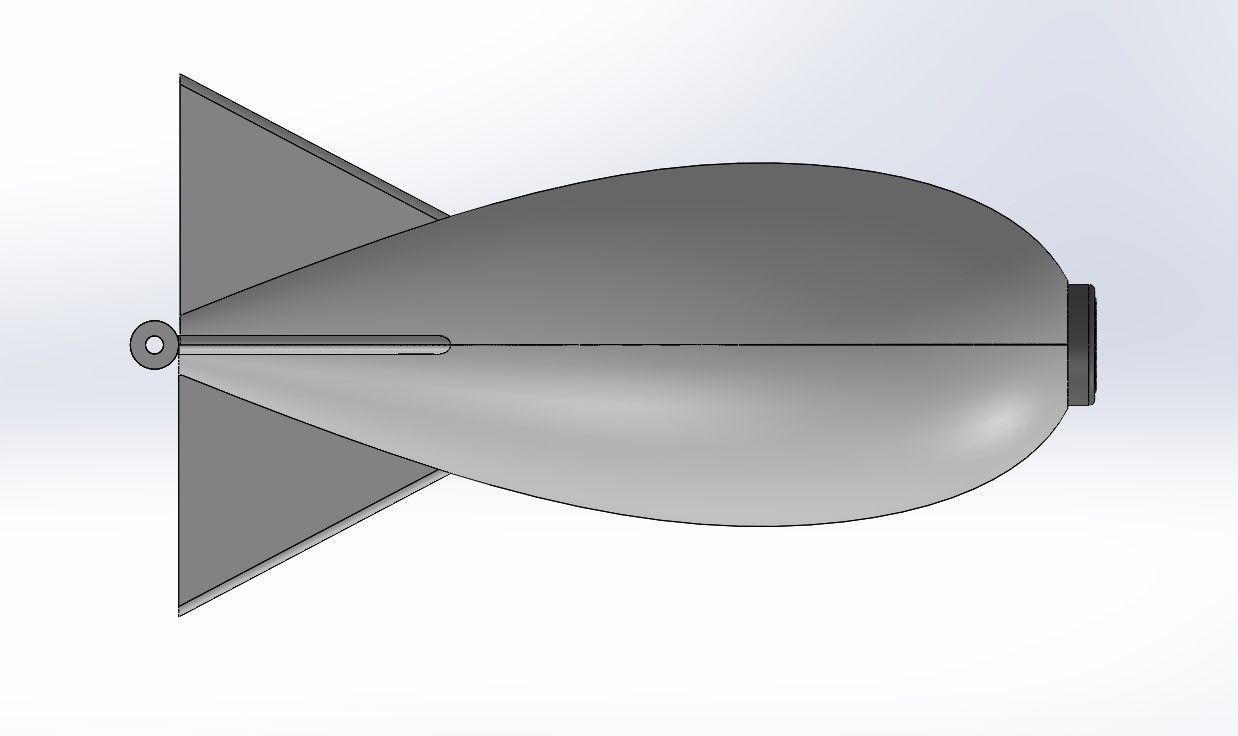

• Dimensions: 150mm length, 60mm diameter.

Instructions:

1) Download the design files for the 3D fully printable Rocket.

2) Use a 3D printer to print the Rocket in a single piece.

3) Once printed, remove any support structures and ensure smooth movement of the hinges.

4) Attach your chosen bait to the Spomb.

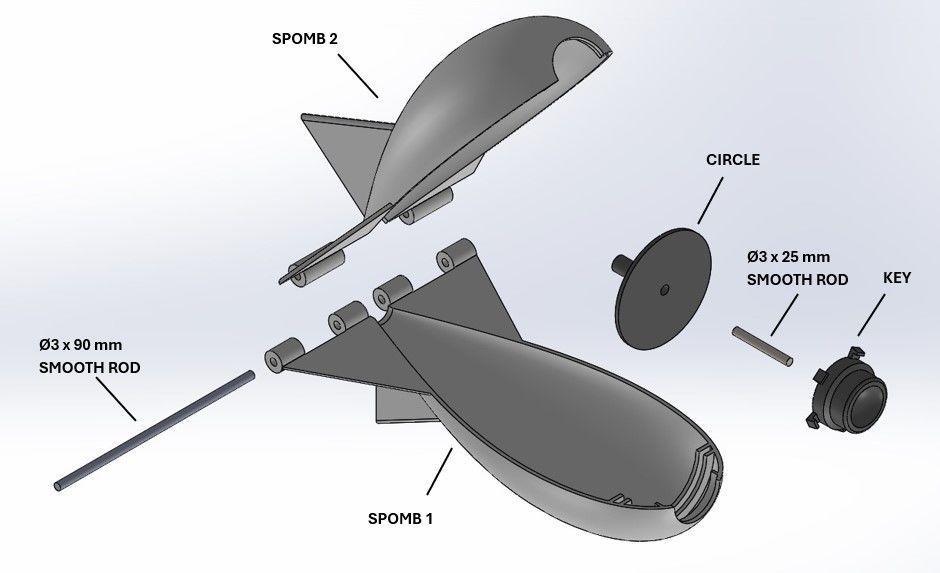

The printable plastic parts are:

1 x KEY

1 x SPOMB 1

1 x SPOMB 2

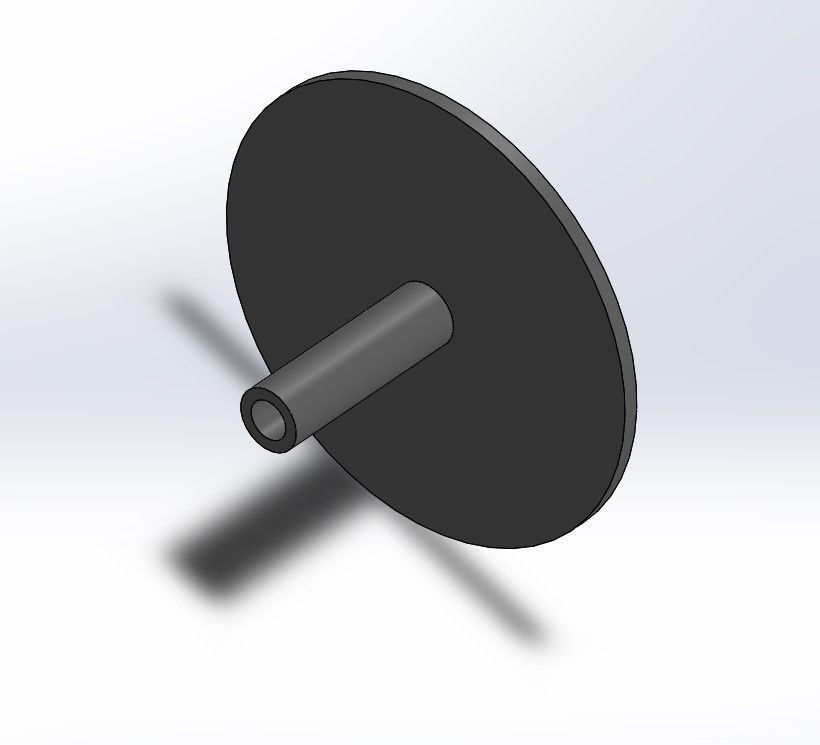

1 x CIRCLE

Below are the specifications for printing:

FIRST LAYER HEIGHT: 0.2 mm

LAYERS HEIGHT: 0.2 MM

INFILL: 10%

SUPPORT: YES

The non-printable materials required to complete the assembly are:

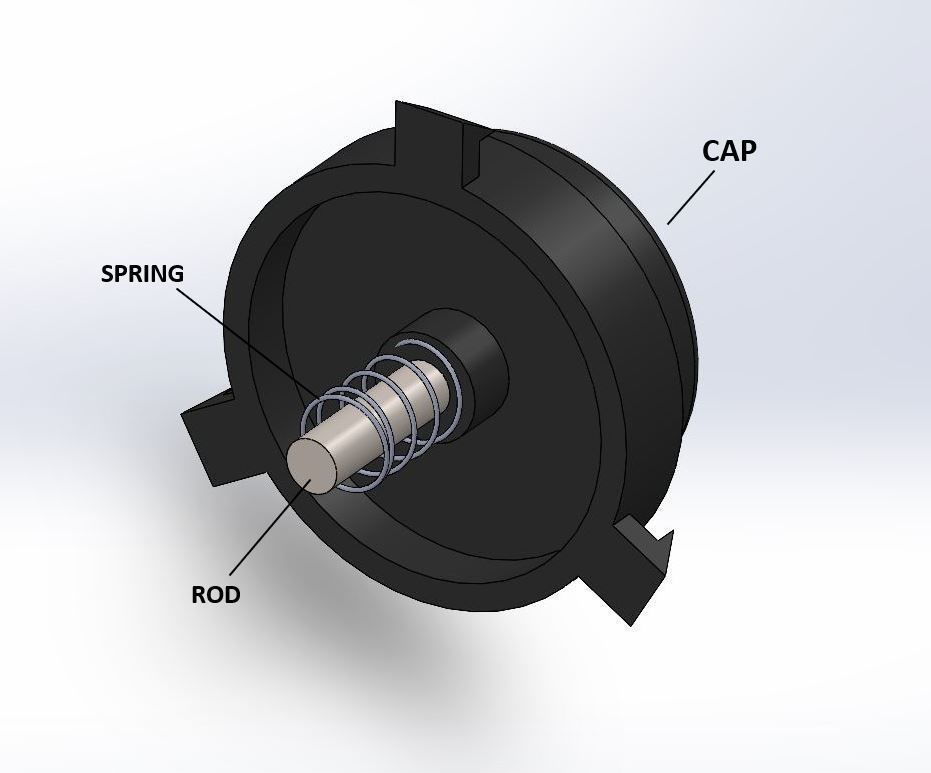

1 x Ø4 mm SPRING (you can bring it from an old ballpoint pen)

1 x Ø3 mm x 25 mm smooth rod

1 x Ø3 mm x 90 mm smooth rod
