Pokemon Ball 3D print model

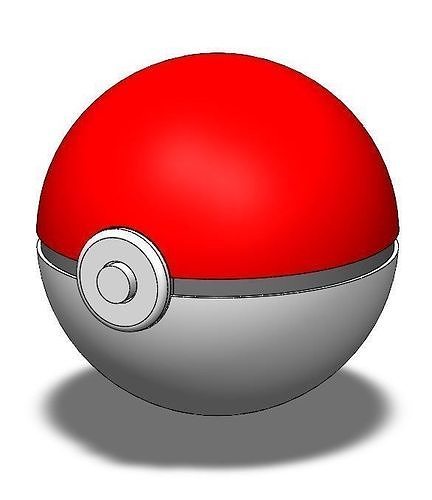

This model represents a fully functional 1:1 scale replica of the Pokemon Ball, it features a hinged lid that opens when the button is pressed and locks to allow you to store things inside the ball. It also includes a stand to display your Pokeball. By simply pressing the button that hides a spring inside, the hinge opens at an angle greater than 90°. The mechanism consists of a button, a spring inside and by pressing the button the lid opens like a real Pokemon Ball.

3D Part list

1 x BOTTOM WHITE

1 x TOP RED

1 x BUTTON

1 x FRONT RING

1 x RING

1 x STAND

You will need

• Super Glue

• A small spring (ball point pens or mechanical pencils)

• Sandpaper

• An extra piece of 1.75 mm thick filament 12 mm long

Instruction

1 - Remember to remove the support frome the BUTTON part

2 - Use sand paper to remove imperfections from the RING part and the two lids to make sure that the whole assembly works properly before gluing the parts together.

3 - Use super glue to assembly the RING part to the TOP RED part

4 - Use a piece of 1.75 mm thick filament 12 mm long for the hinge

Printer setting

First layer height: 0.2 mm

Layer height: 0.2 mm

Support: supports are needed only for the RING part

Infill: 15 %
