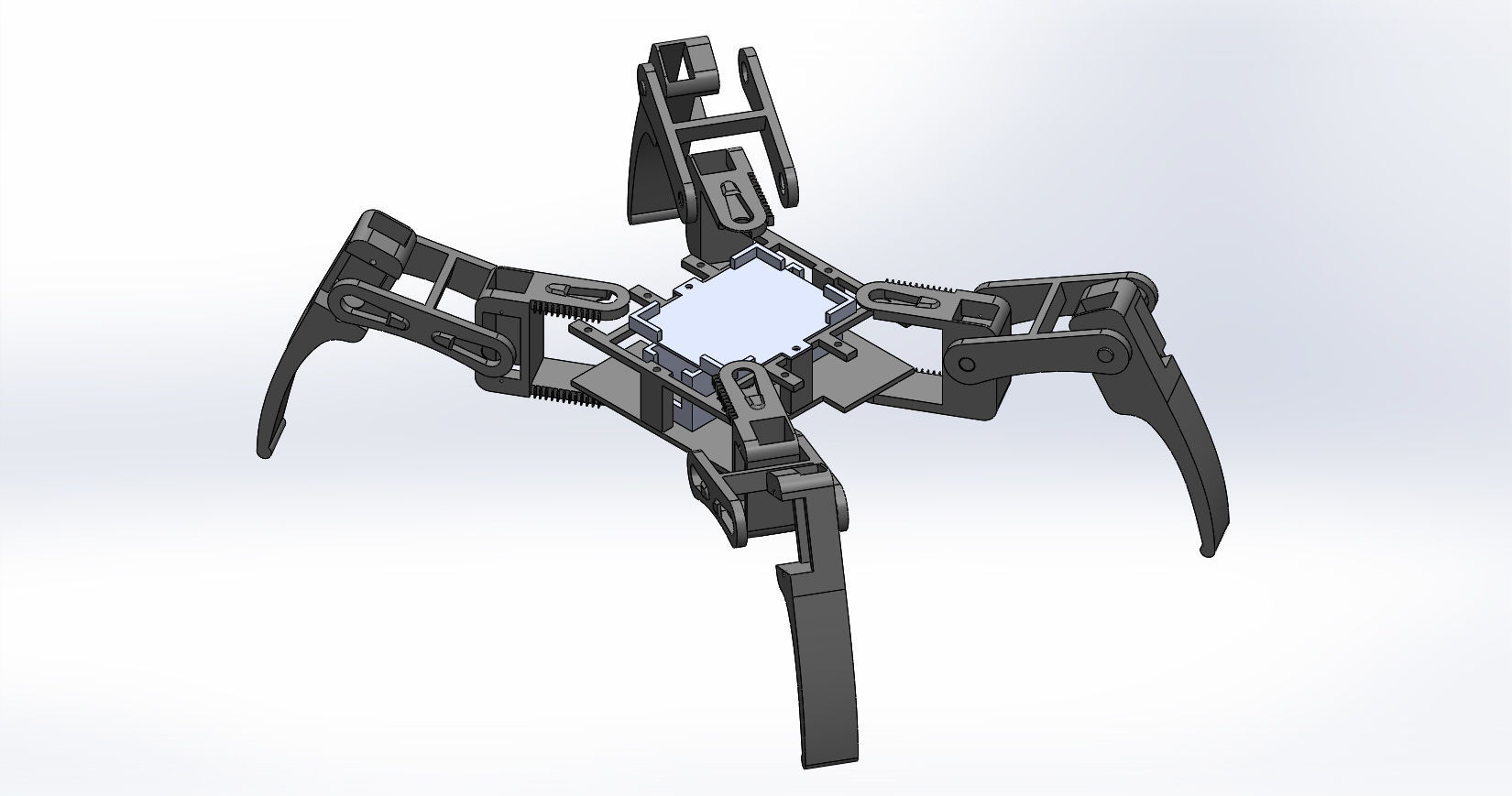

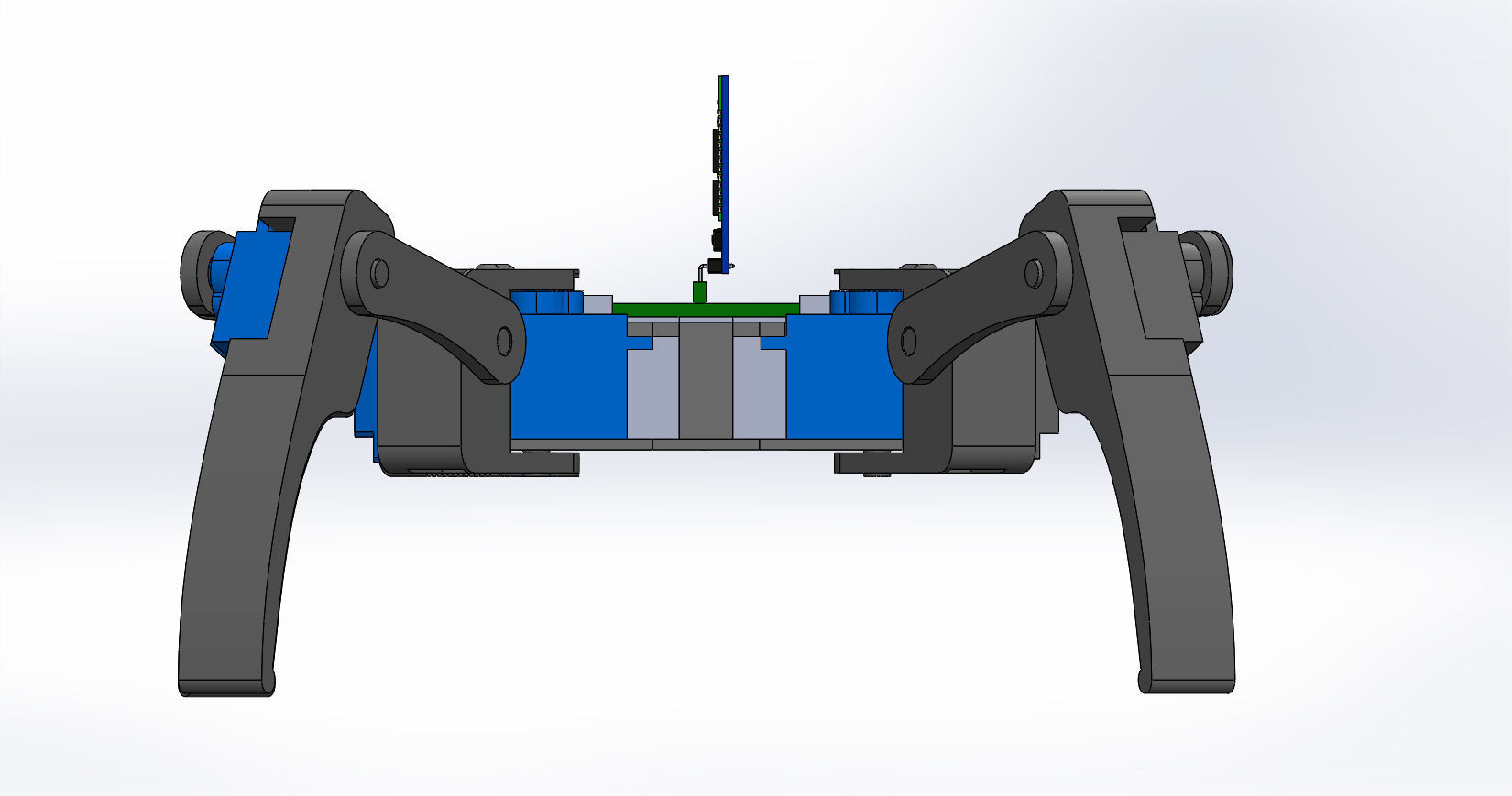

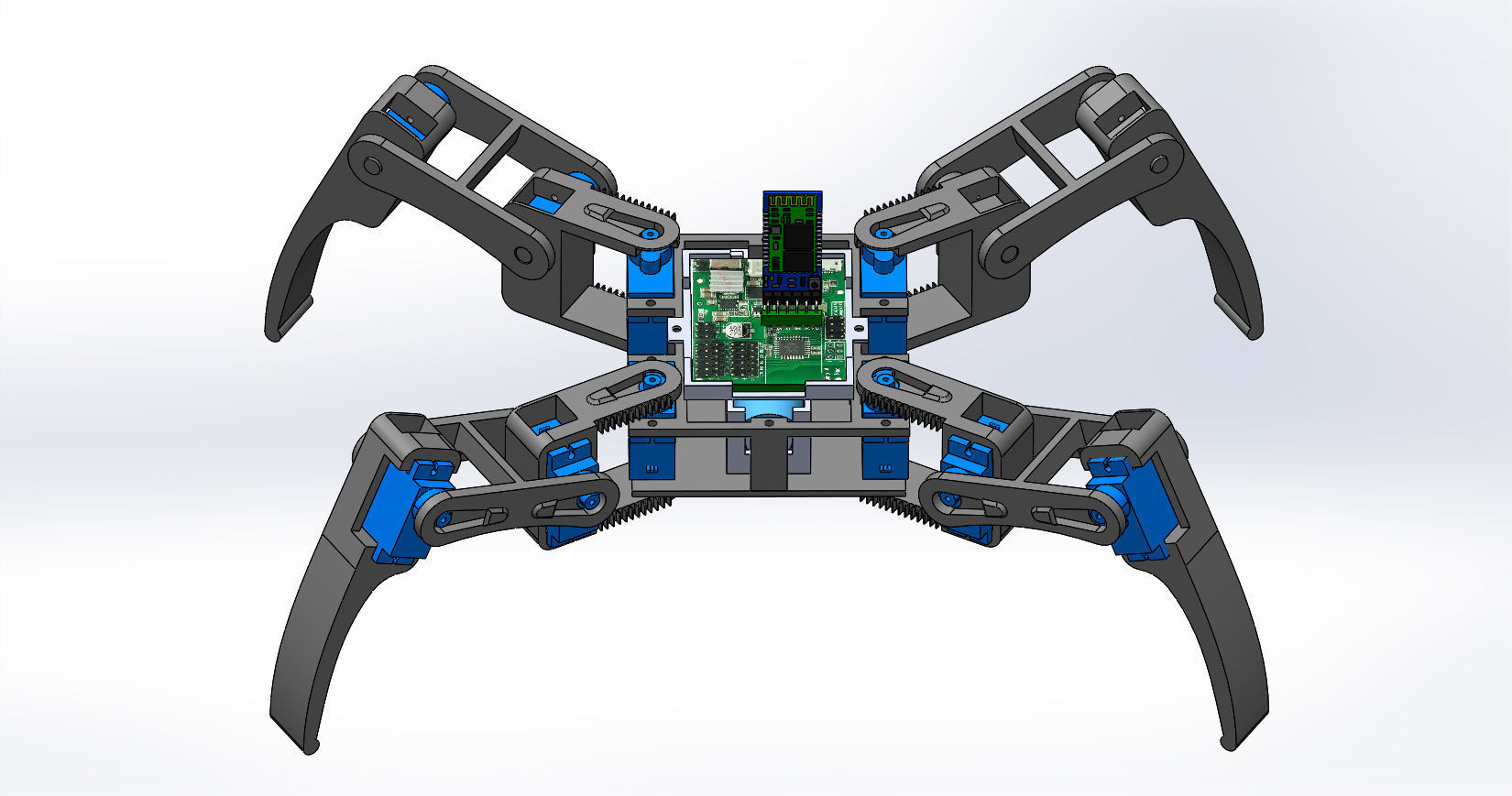

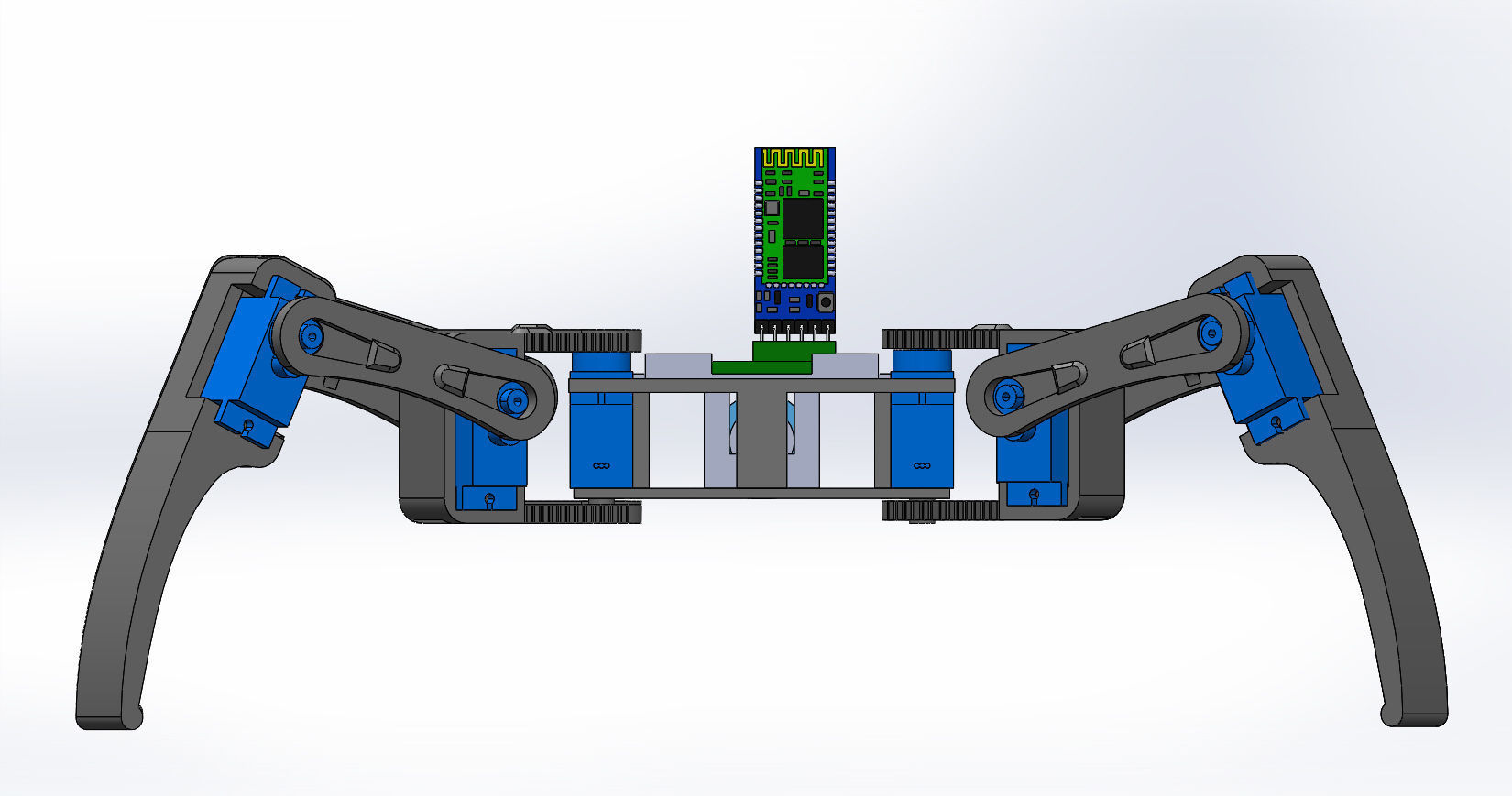

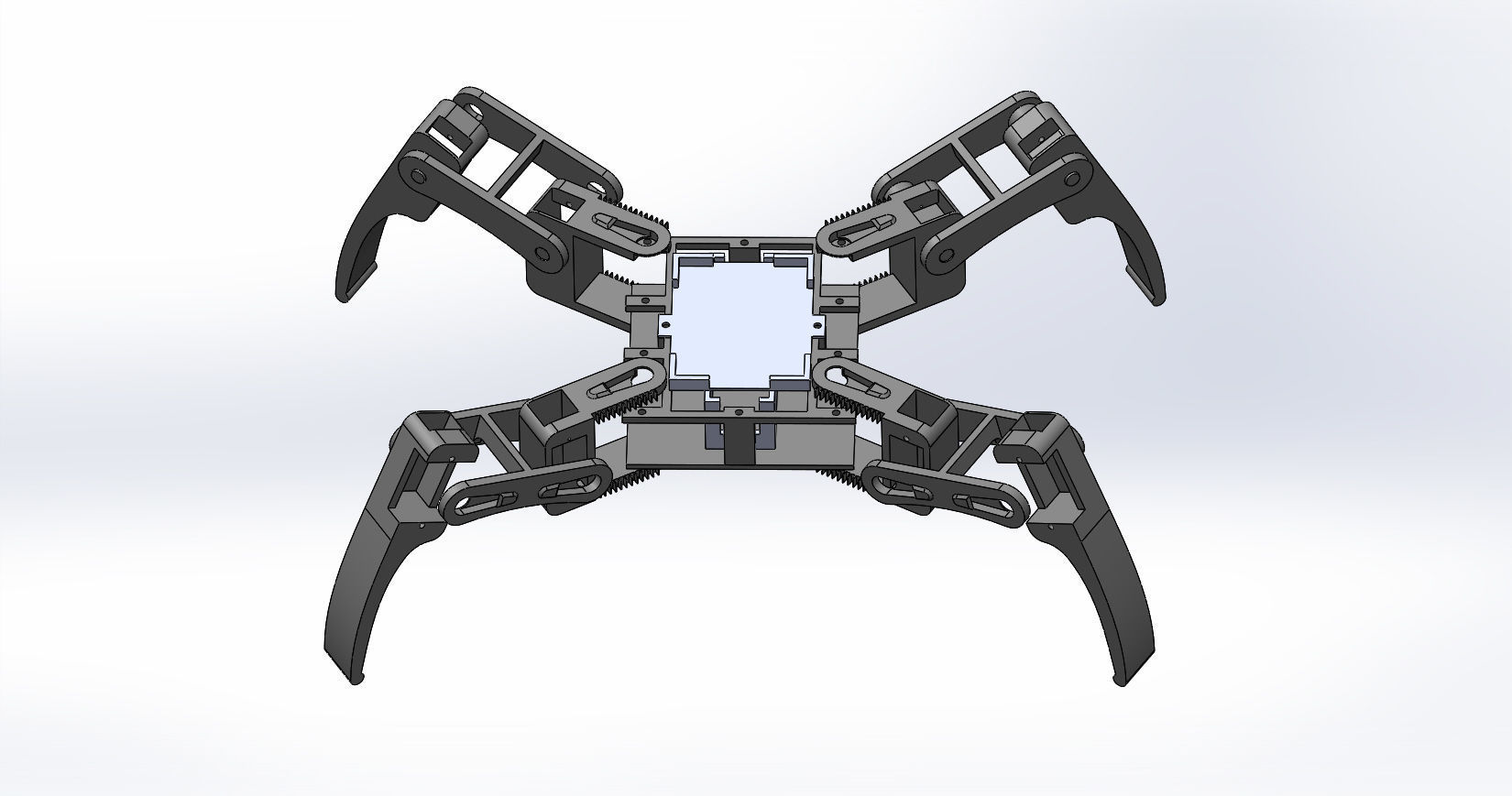

Four legged spider robot 3D print model

NOTE 1: The download zip file contains only the printable gray parts of the SPIDER ROBOT (no.16 stl files). Electronics cad models are not included. Please read the parts list in the PRINTING PARTS section.

NOTE 2: If you want to receive a real full working SPIDER ROBOT already assembled with electronics, configured and working, please contact me.

DESCRIPTION

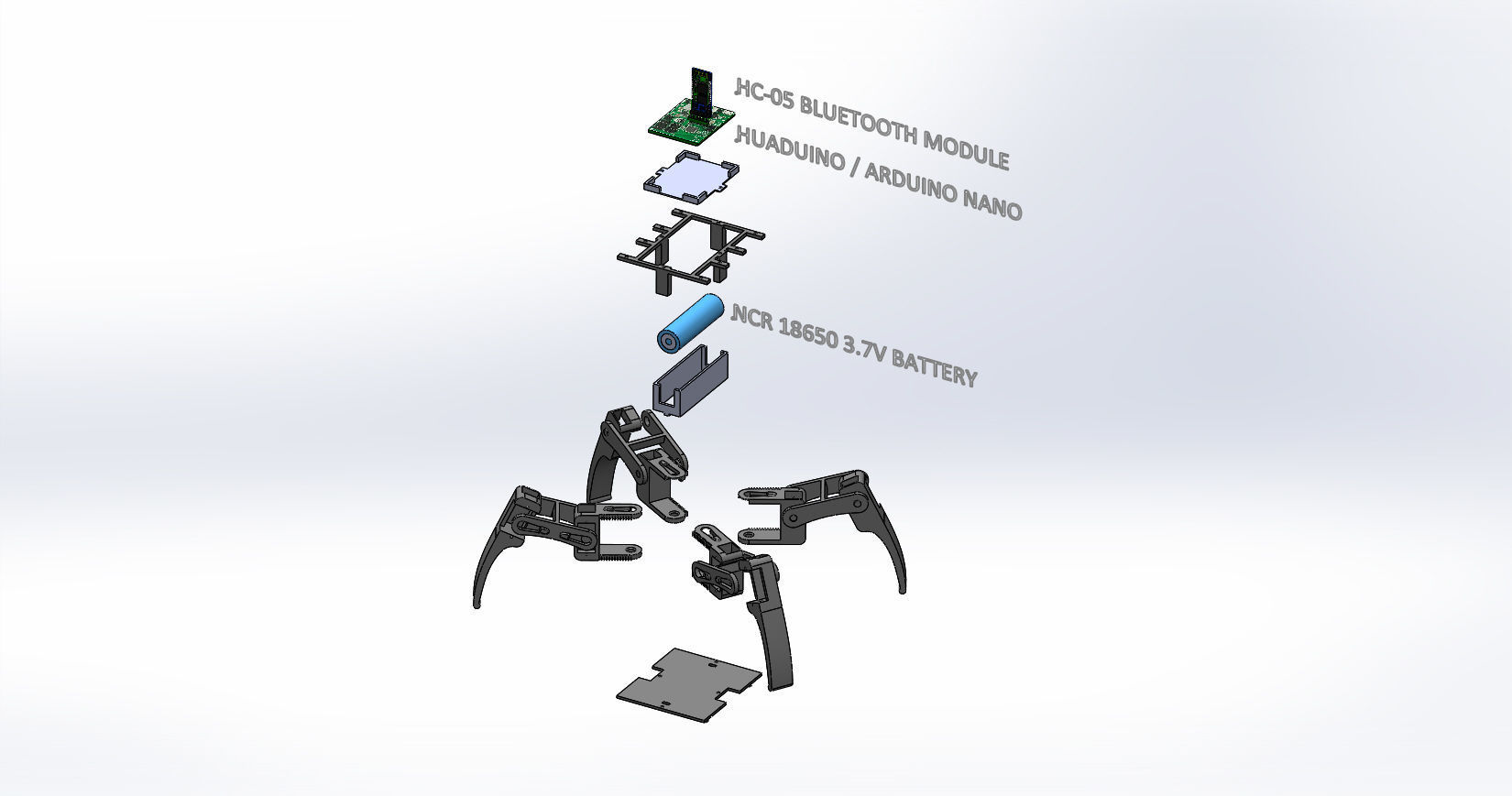

This is an update of the famous Ez Arduino 12 DOF quadruped robot found on thingiverse. In this version I have improved the structure of the four legs by lightening them and also I improved the body to have a longer life of the battery model NCR 18650 3.7V. The improved design makes the robot less clunky and easier to print, no supports are required, I just applied supports to the legs that can be easily removed. The assembly of the spider and its configuration may seem complex, but by following the author's instructions it is possible to make the robot work without much difficulty and with my improvements the design of the spider looks great!!!

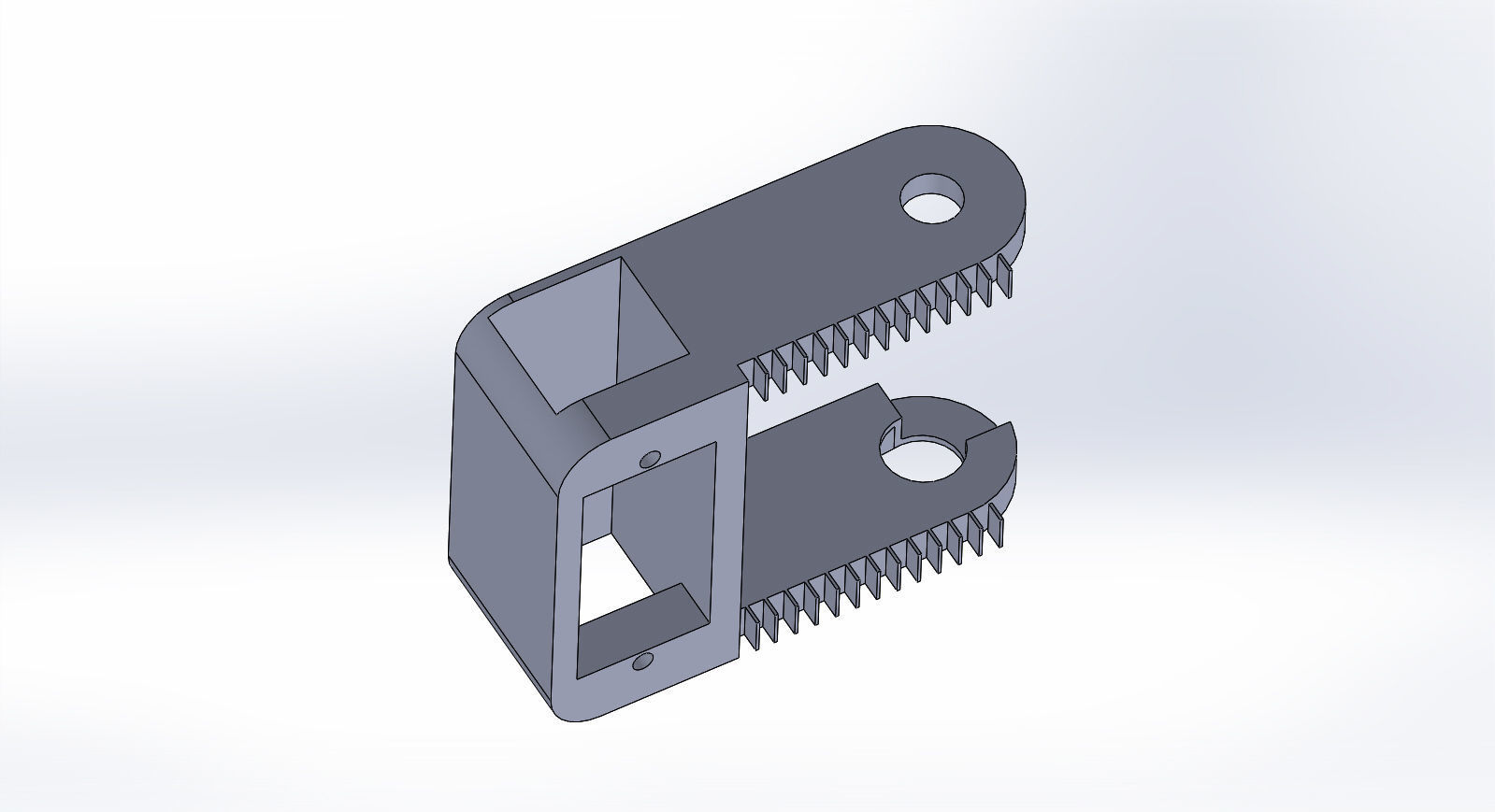

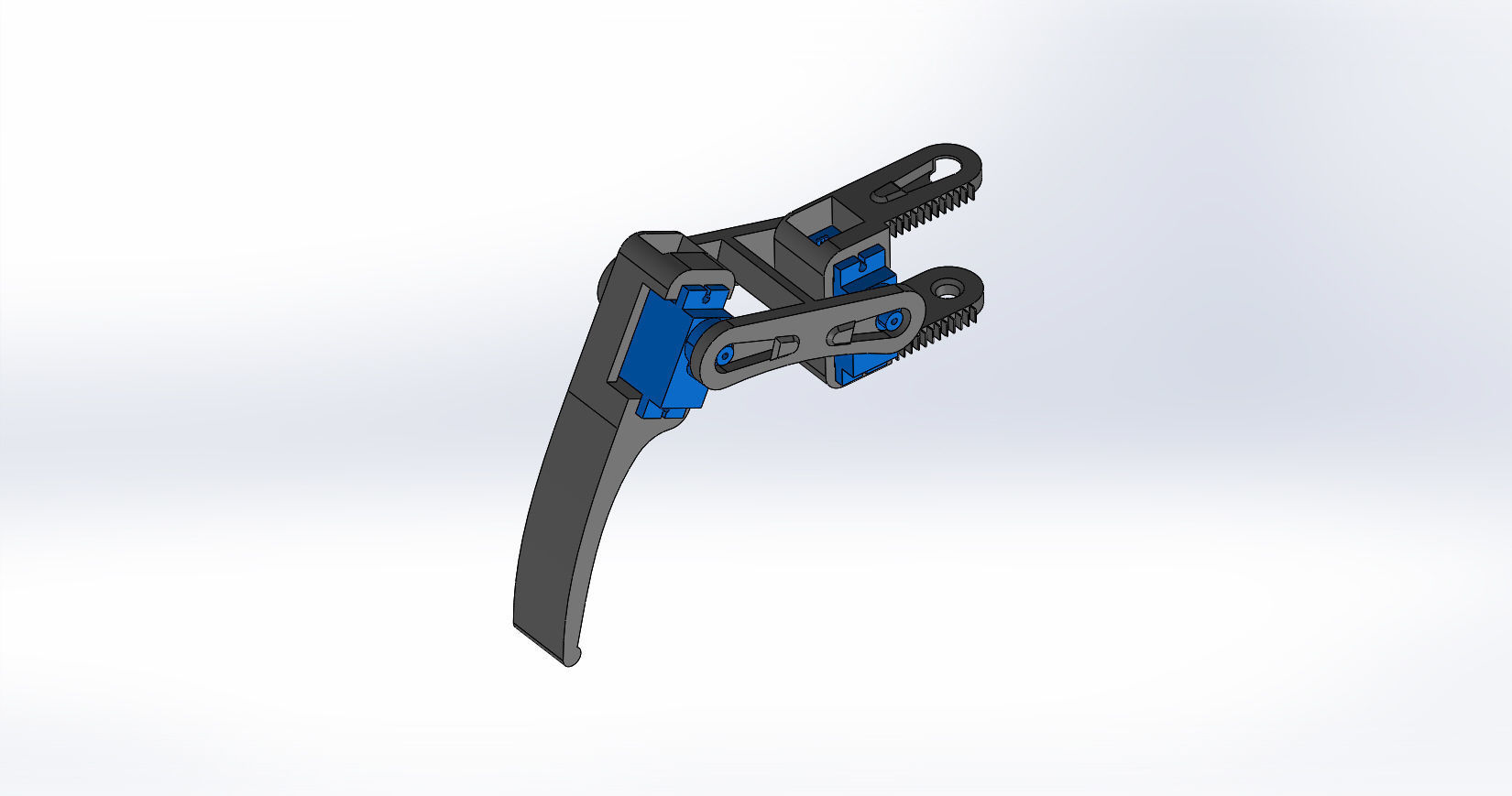

PRINTING PARTS - The parts to be printed are 16 in total and are in .STL format:

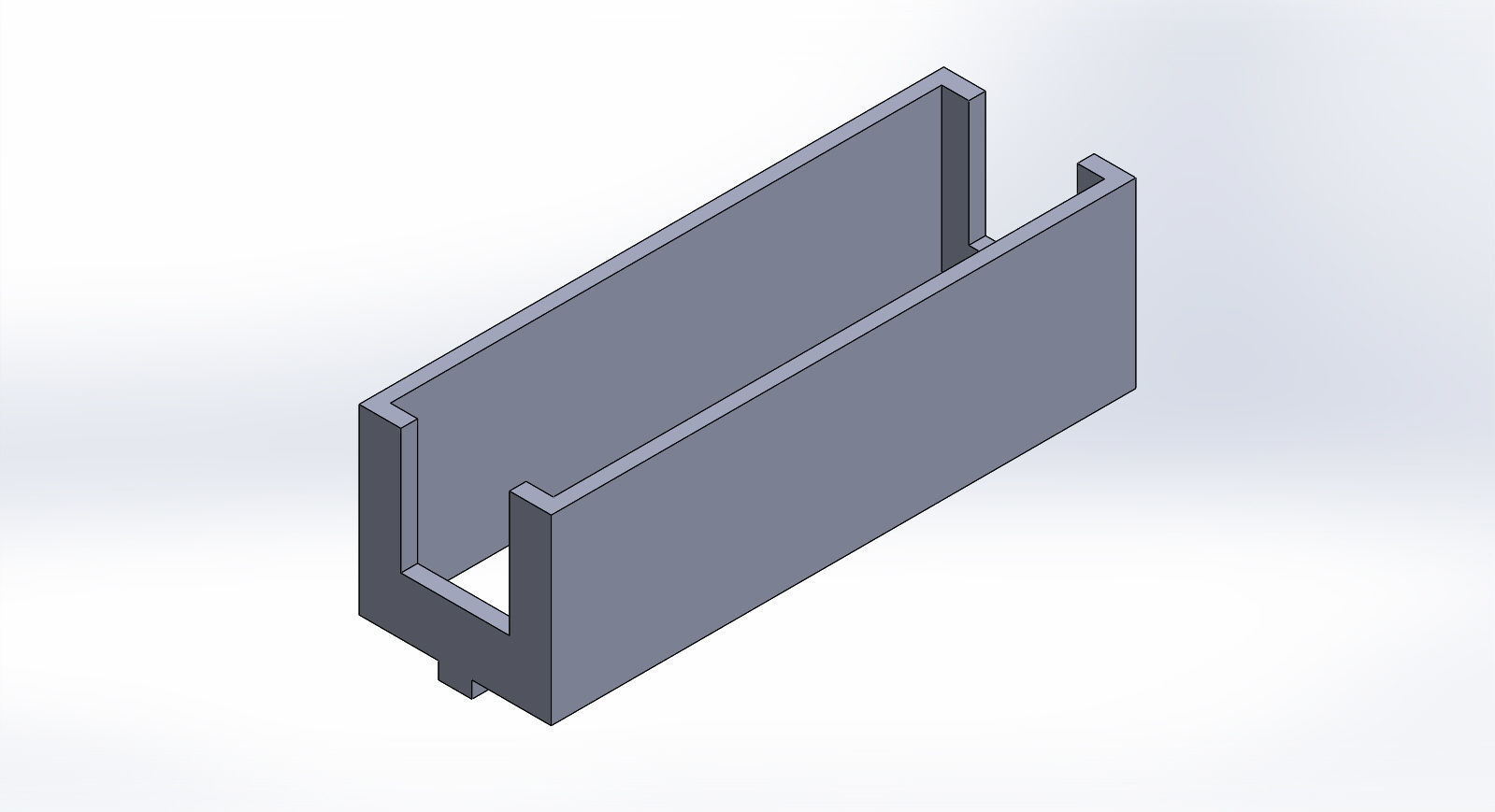

1 x BATTERY HOLDER

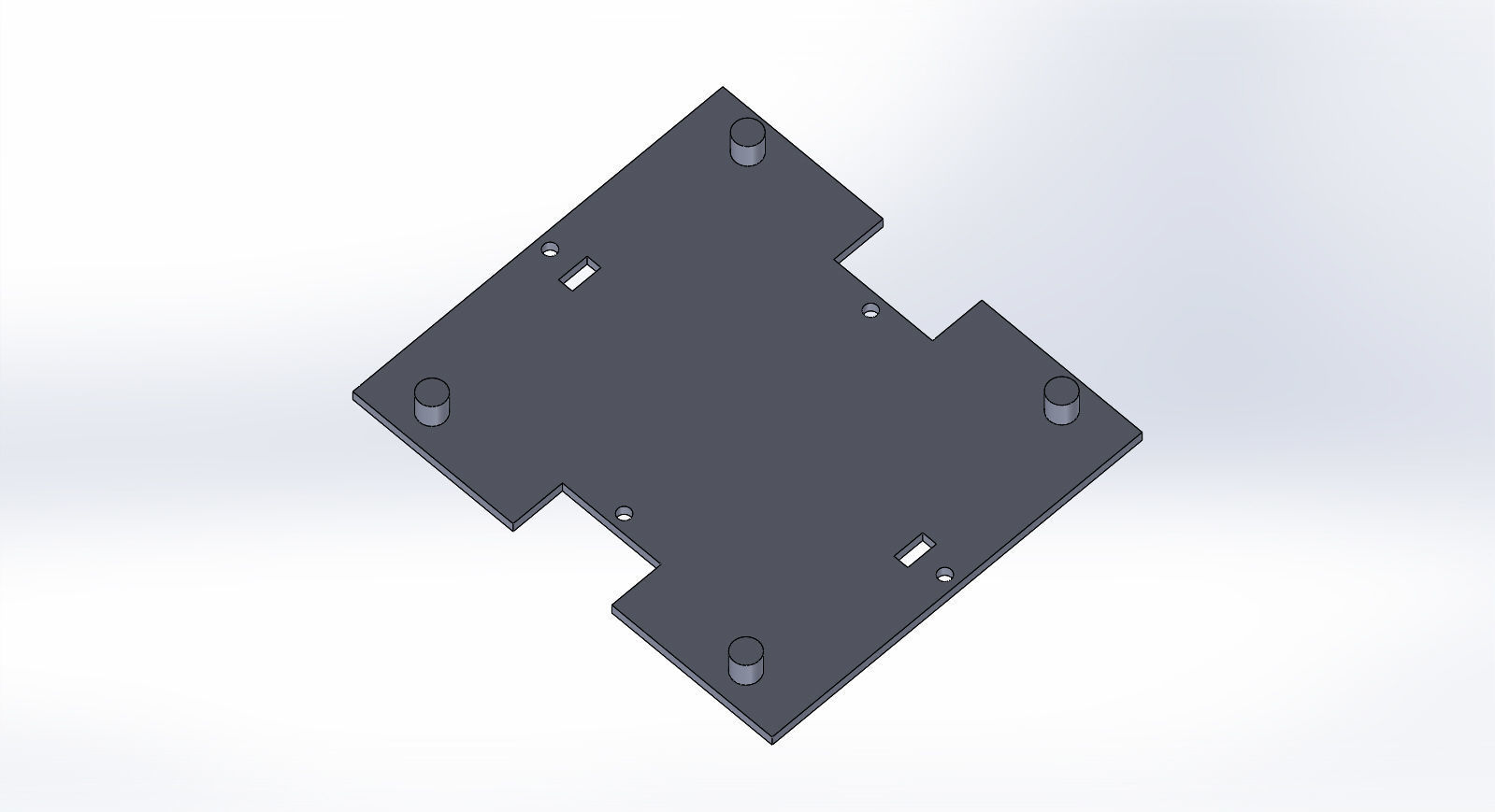

1 X BOTTOM FRAME

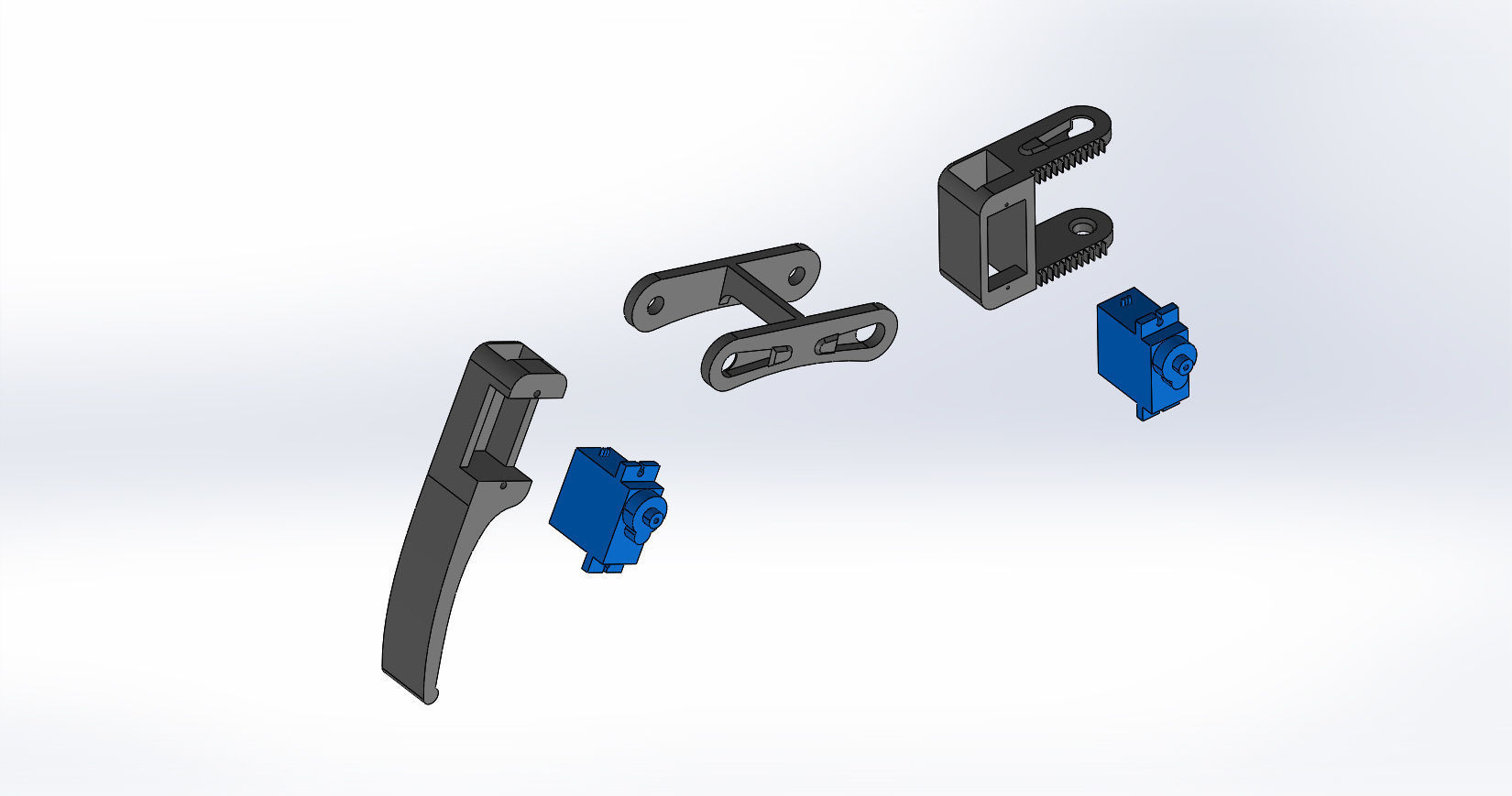

2 X LEFT BEAM

2 X LEFT FOOT

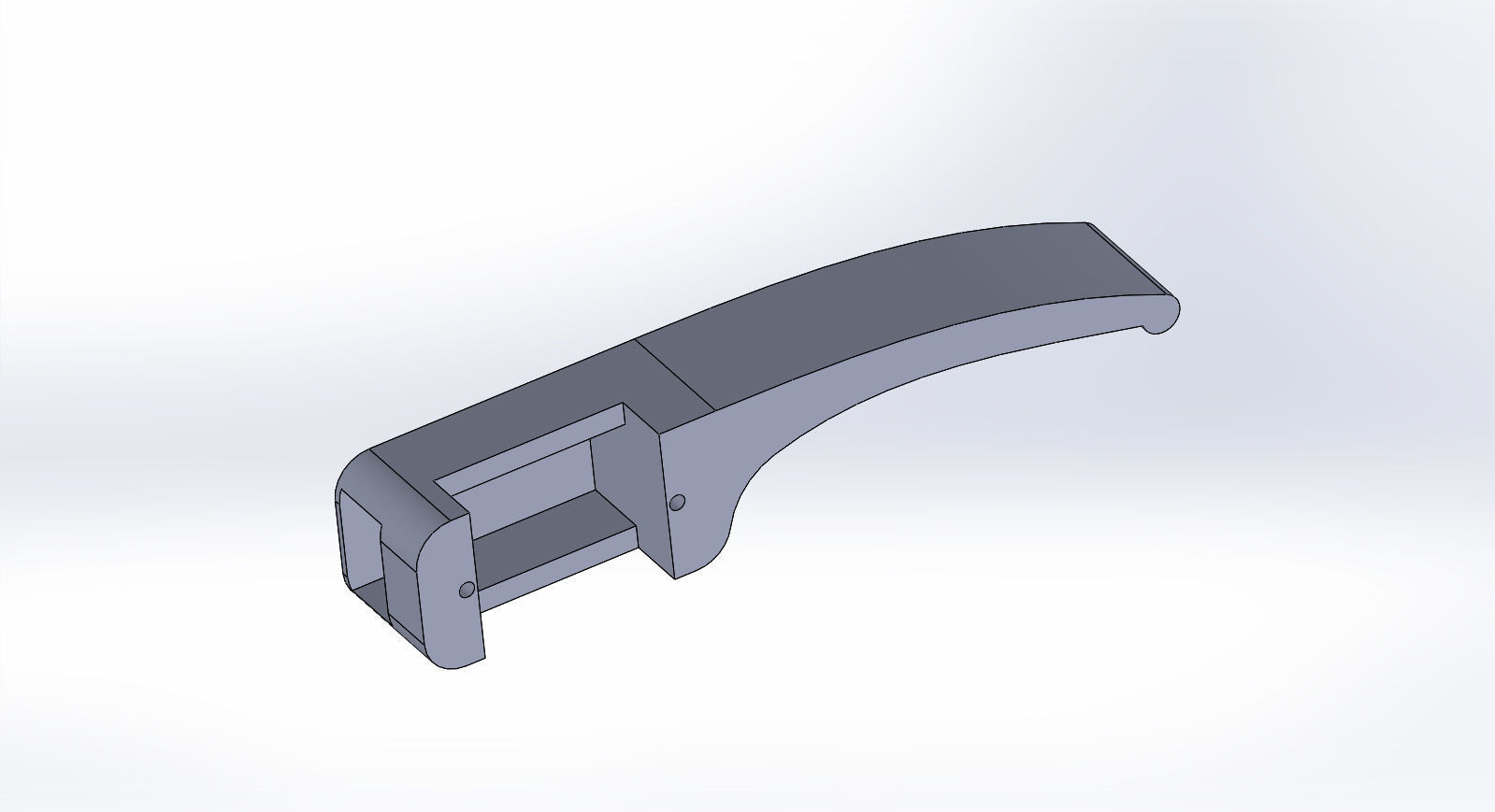

2 X LEFT LEG (WITH SUPPORT)

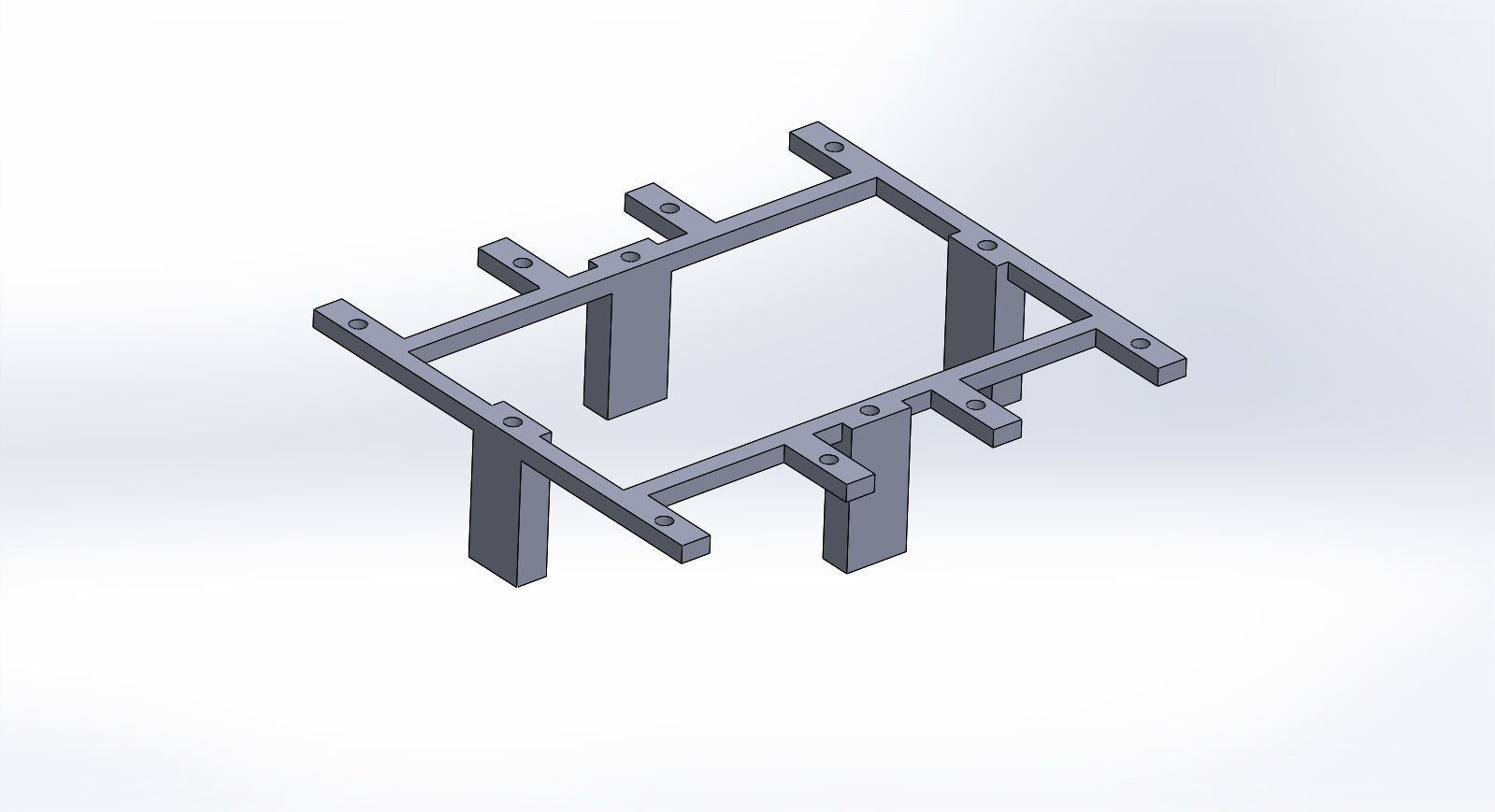

1 X MOTHERBOARD HOLDER

2 X RIGHT BEAM

2 X RIGHT FOOT

2 X RIGHT LEG (WITH SUPPORT)

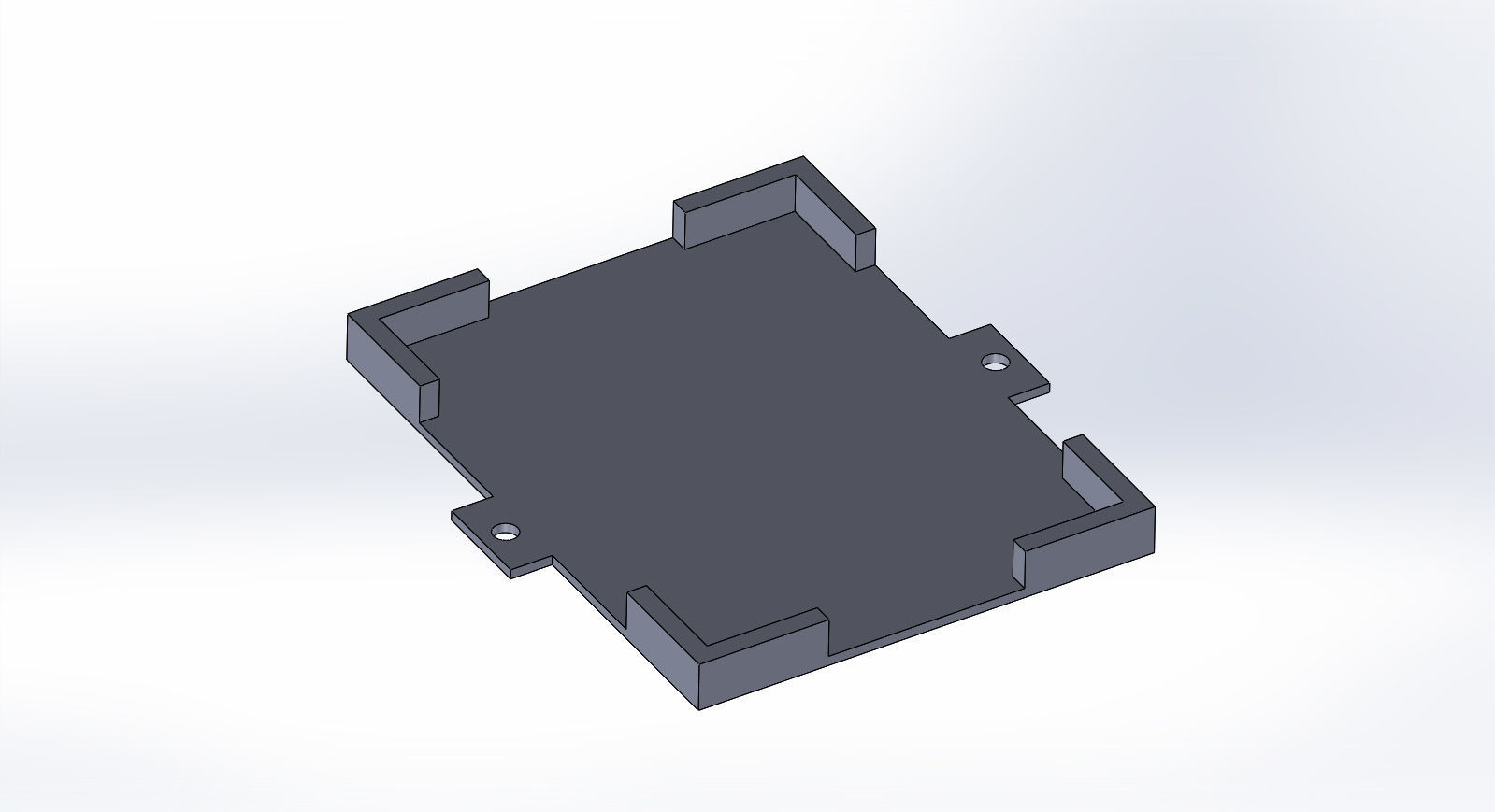

1 X TOP FRAME

PRINTER SETTING

Bottom/top thickness: 1mm
Shell thickness: 1.2mm
Layer height: 0.2mm fill
Density: 10%
Support: no
