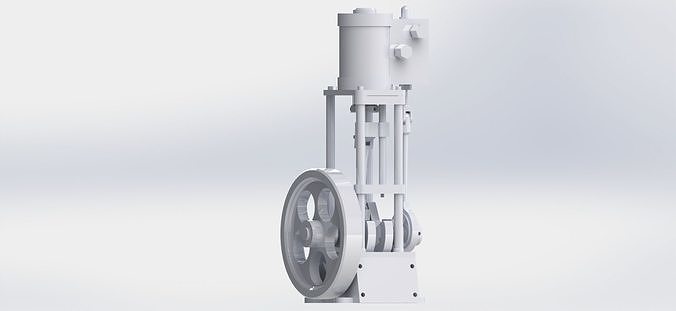

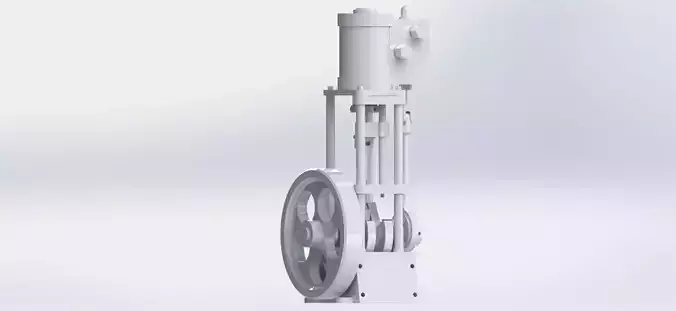

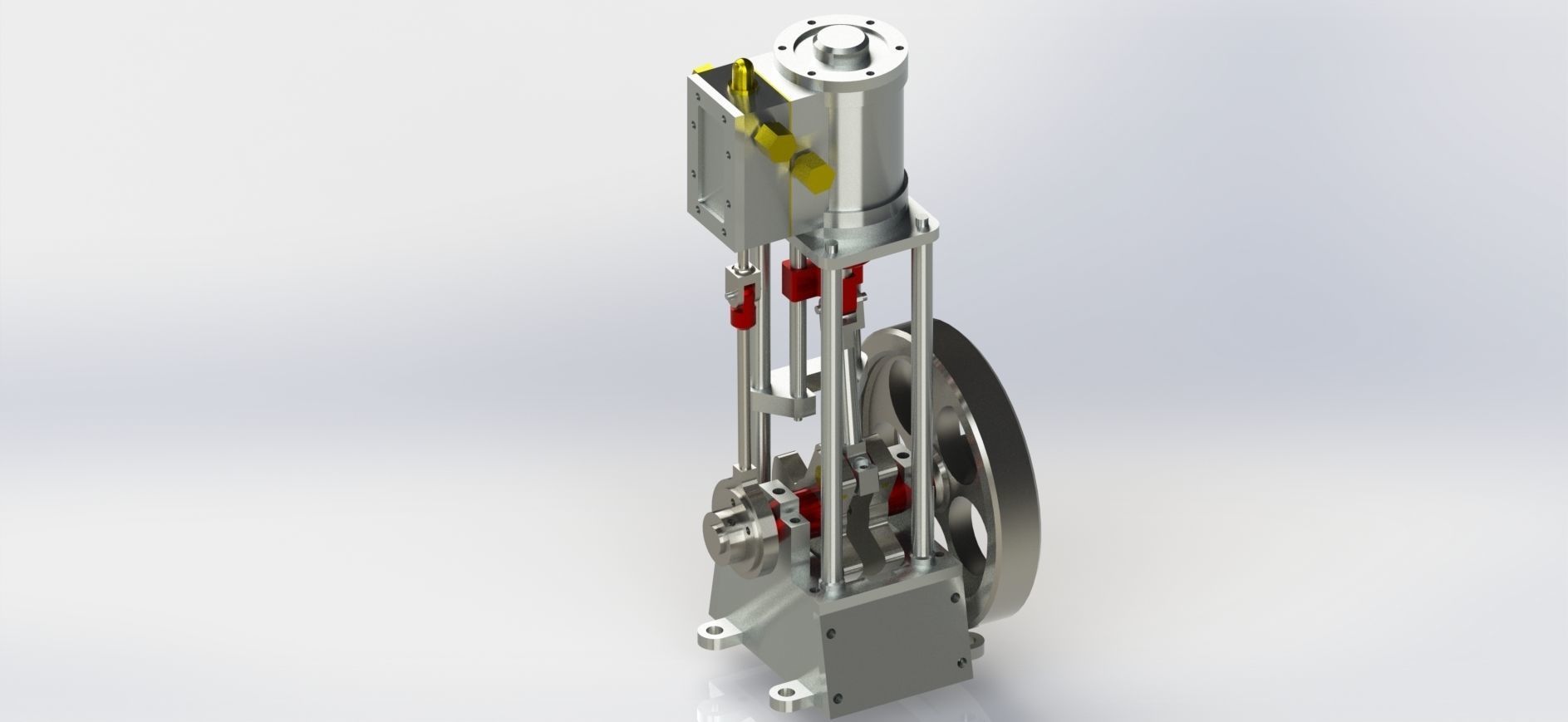

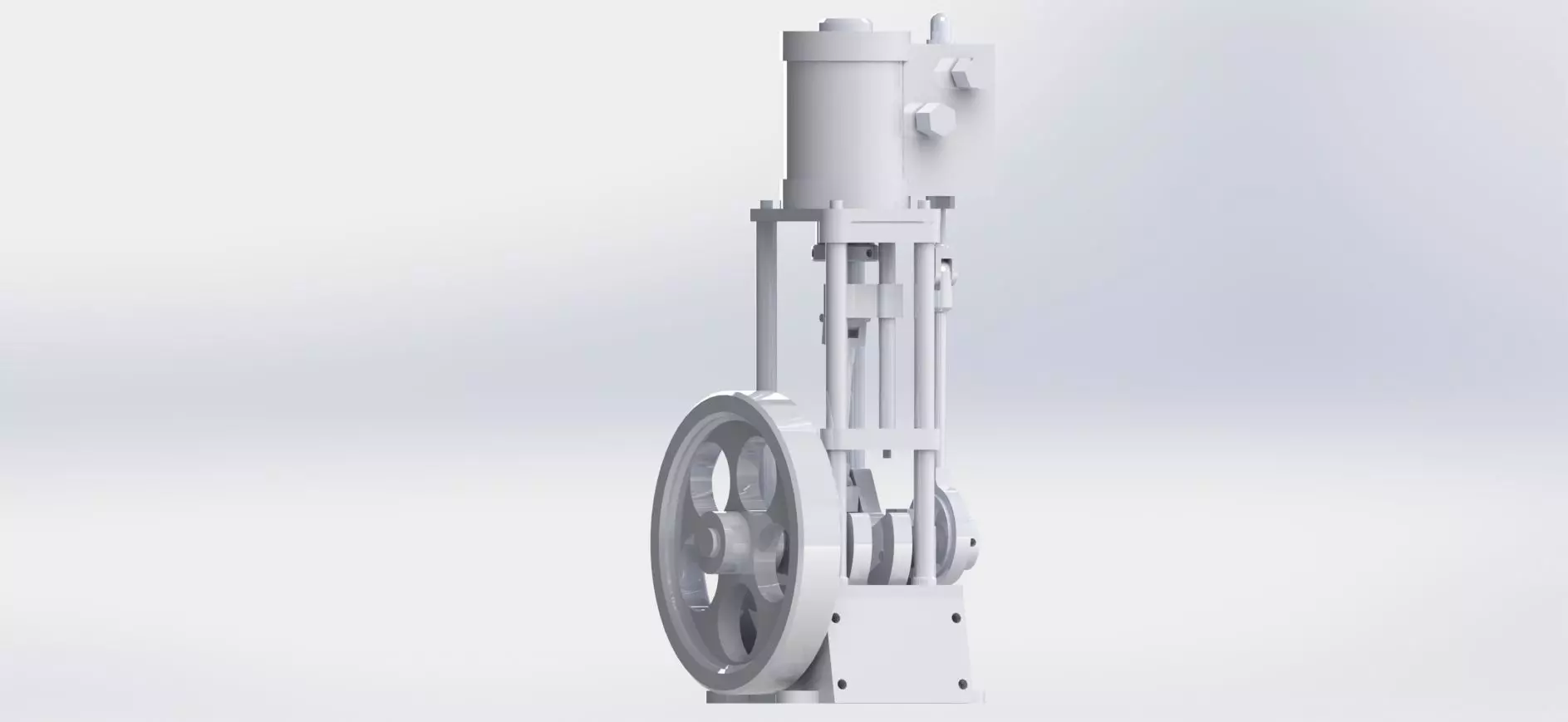

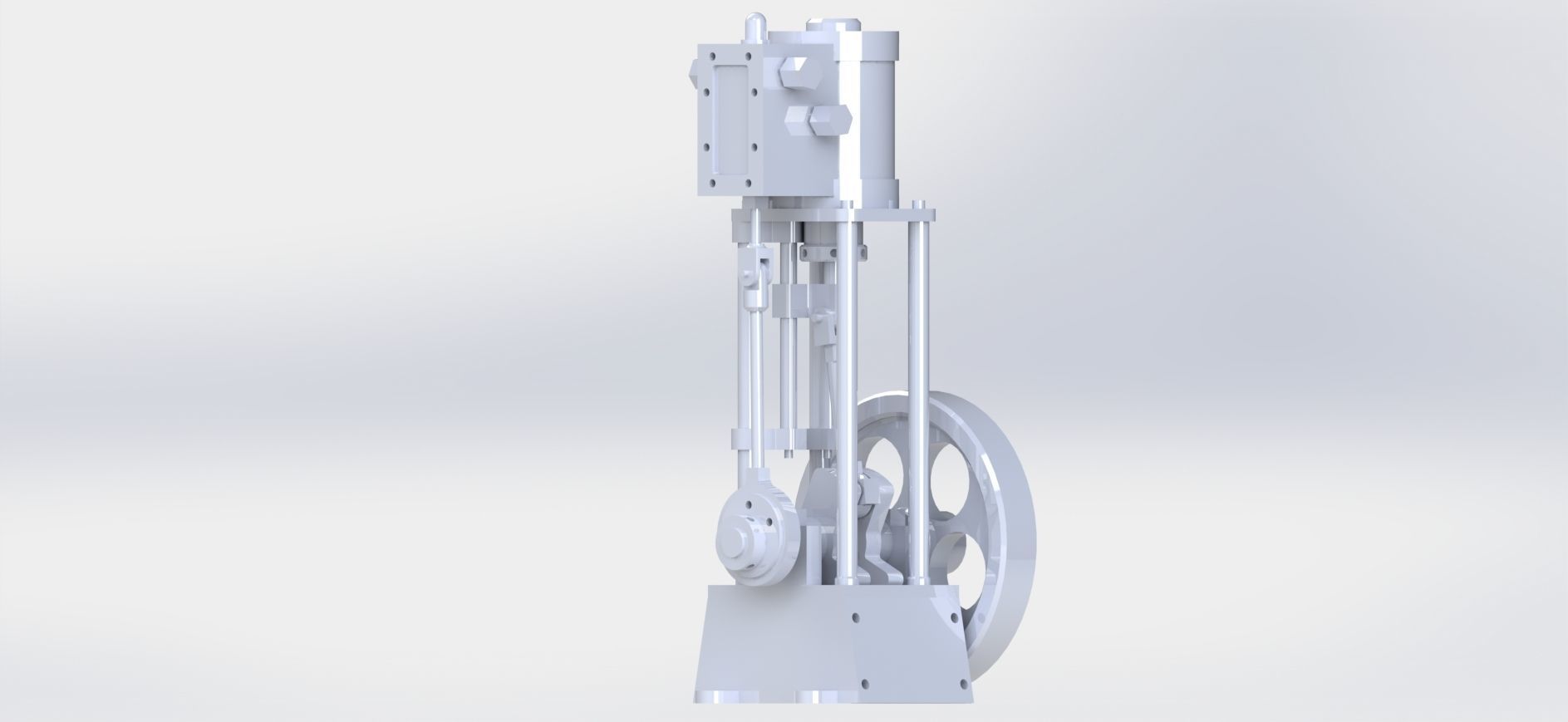

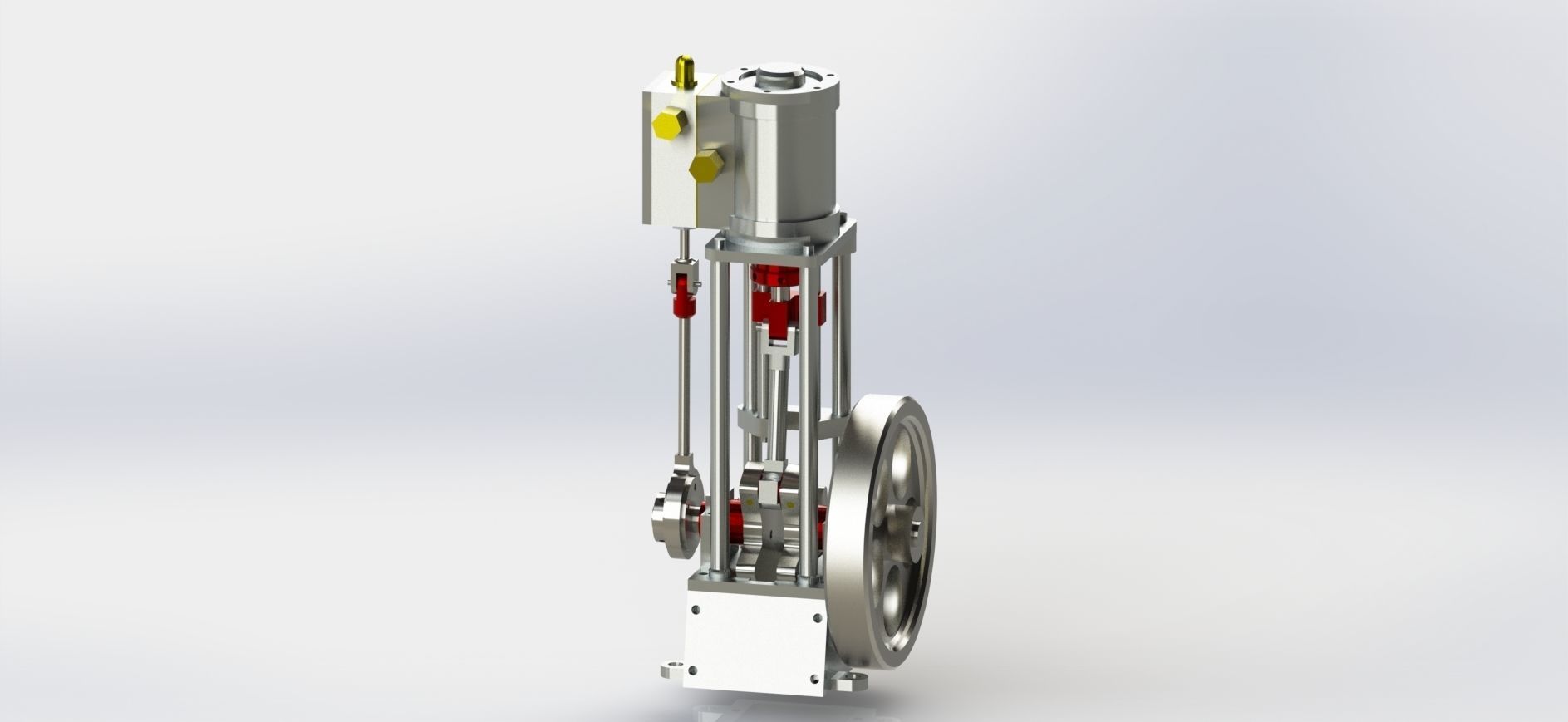

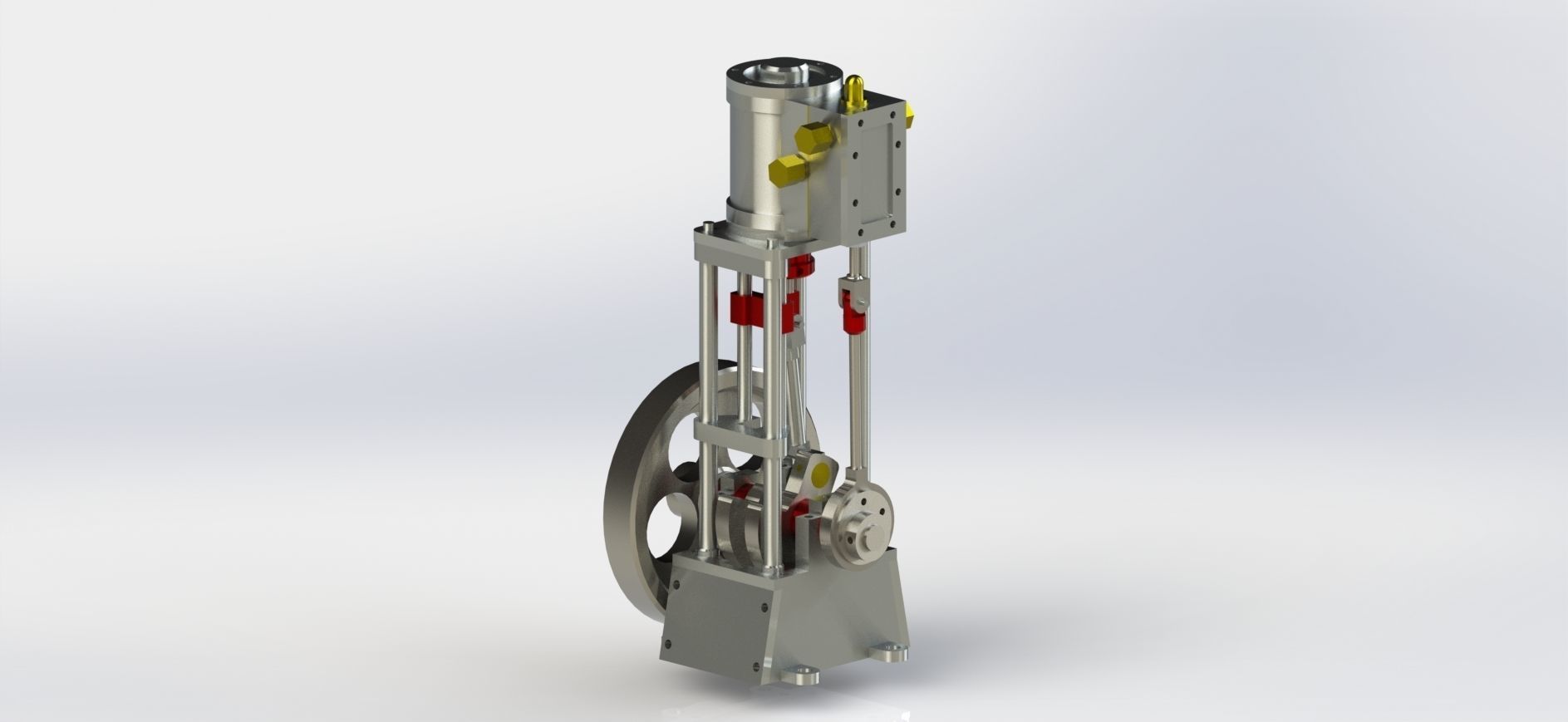

A SIMPLE 1 CYLINDER VERTICAL STEAM ENGINE WITH SLIDE VALVE 3D model

Creating a simple 1-cylinder vertical steam engine with a slide valve involves designing a vertical cylinder, a piston, a crankshaft, a connecting rod, a slide valve, and an eccentric mechanism to drive the slide valve. Here's a step-by-step guide to create a basic model:

Components:

Cylinder:

Create a vertical cylinder, which is the main housing for the piston and where steam will act.Piston:

Model a piston that fits inside the cylinder and moves up and down to convert steam pressure into mechanical motion.Crankshaft:

Design a rotating shaft connected to the piston. The up and down motion of the piston will be converted into rotary motion.Connecting Rod:

Model a rod that connects the piston to the crankshaft, transmitting the piston's up and down motion to the rotary motion of the crankshaft.Flywheel:

Create a flywheel connected to the crankshaft, storing rotational energy and providing smooth operation.Slide Valve:

Design a slide valve mechanism to control the flow of steam into and out of the cylinder. The slide valve moves back and forth to direct steam appropriately.Eccentric Mechanism:

Model an eccentric cam on the crankshaft. This eccentric cam will drive the slide valve's back and forth movement.Working:

Steam Inlet:

Steam is admitted into the cylinder through the slide valve, which is positioned to allow steam to enter one side of the cylinder.Power Stroke:

Steam entering the cylinder pushes the piston upward, creating the power stroke. The connecting rod transmits this upward motion to the crankshaft.Slide Valve Movement:

As the piston moves, the eccentric cam on the crankshaft causes the slide valve to shift, redirecting steam to the other side of the piston.Exhaust Stroke:

After the power stroke, the slide valve redirects steam to the other side of the piston, and the used steam from the previous stroke is expelled from the cylinder.Piston Return:

The momentum of the flywheel and the connecting rod's action return the piston to its original position, preparing for the next cycle.Steam Switch:

The slide valve mechanism and eccentric cam ensure that steam alternates between sides of the piston, driving continuous rotational motion of the crankshaft.Creating a 3D model of this engine involves using CAD (Computer-Aided Design) software like SolidWorks, Blender, or any other suitable tool to create the components and simulate their movement. Detailed dimensions, material properties, and accurate assembly of components are essential for a functional representation of the steam engine.
