Compact Minimalist Wallet Low-poly 3D print model

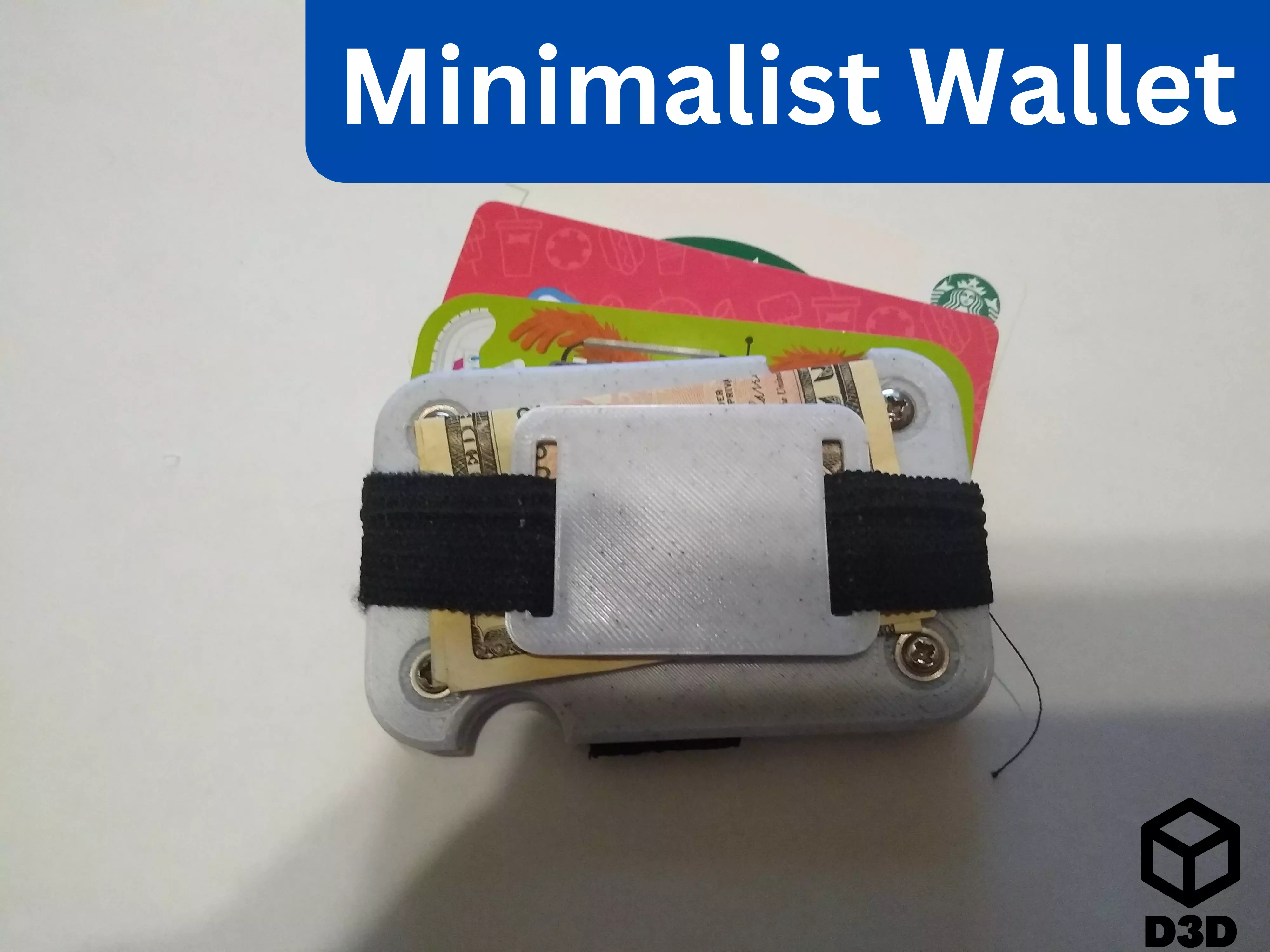

Are you in the mood to replace a bulky and giant wallet with a slim and sleek, minimalist design? This is a basic 3D printed minimalist wallet to solve that problem. This 3D printed wallet allows for storage of multiple cards with the option of also storing a few bills with the added cash strap.

Print Instructions

• Material: PLA
• Supports: Maybe
  • Nothing require supports if oriented correctly, but to get a better surface finish, you may want to support the countersunk holes on the top and bottom covers
• Orientation:
  • Print the top and bottom cover pieces on their back, where the least amount of bridging is required.
  • The orientation of the clip does not particularly matter

Parts

• Top Cover (two pieces that need to be screwed together) (included)
• Bottom Cover (two pieces that need to be screwed together) (included)
• Cash strap clip (included)
• Elastic band (no wider than 25 mm) (no thicker than 1 mm) (not included)
• Sewing thread (not included)
• Needle (not included)
• 8 screws (3 mm in shaft diameter) (the shaft itself can be no more than 4 mm long, but preferably slightly shorter) (not included)

Assembly

• Wallet assembly
  • Please the two bottom cover pieces together
  • Ensure that the elastic strap is running through the bottom cover correctly
  • Screw the bottom cover together (you may want to try heat setting the screws)
  • Assemble the top cover around the elastic strap
  • Screw the top cover together (you may want to try heat setting the screws)
• Elastic band assembly
  • Sew a band of elastic that is tight around the bottom cover and top cover pieces
  • Sew on another piece of elastic that loops from one side of the first band to the other that follows the channels in the printed pieces
  • Then sew another piece of elastic on top of the first band to make a sort of snowman shape
  • Before finishing the last step make sure to weave in the cash clip piece
  • Try to avoid placing three pieces of elastic on top of each other well creating the band as this may make it difficult to screw the wallet together

If you enjoy this model, please leave a like and a comment. If you have any questions, concerns, or problems, please personally contact me.
