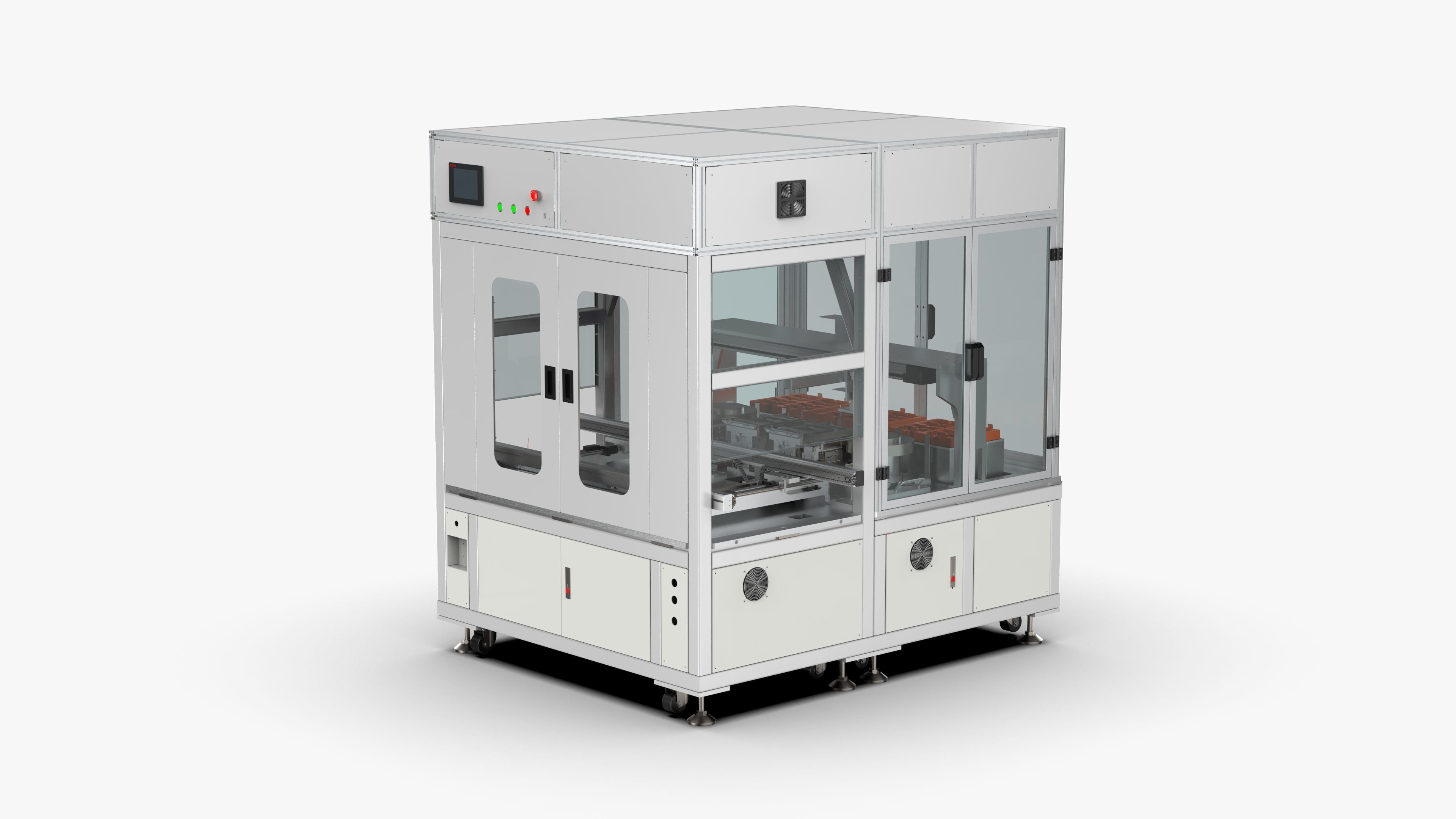

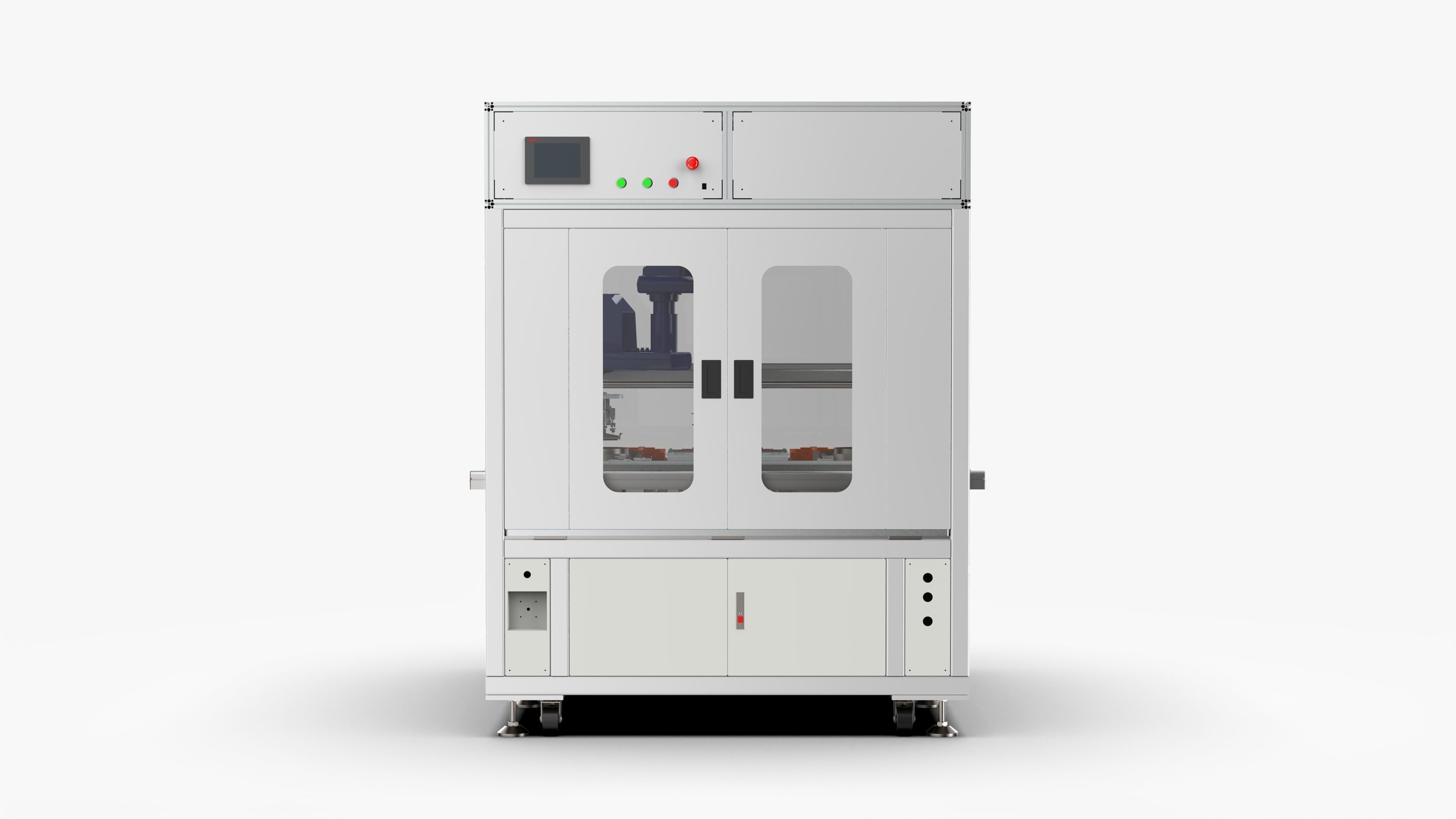

Automatic PCB Insertion Machine 3D model
Description
Automatic PCB Insertion Machine
Introduction

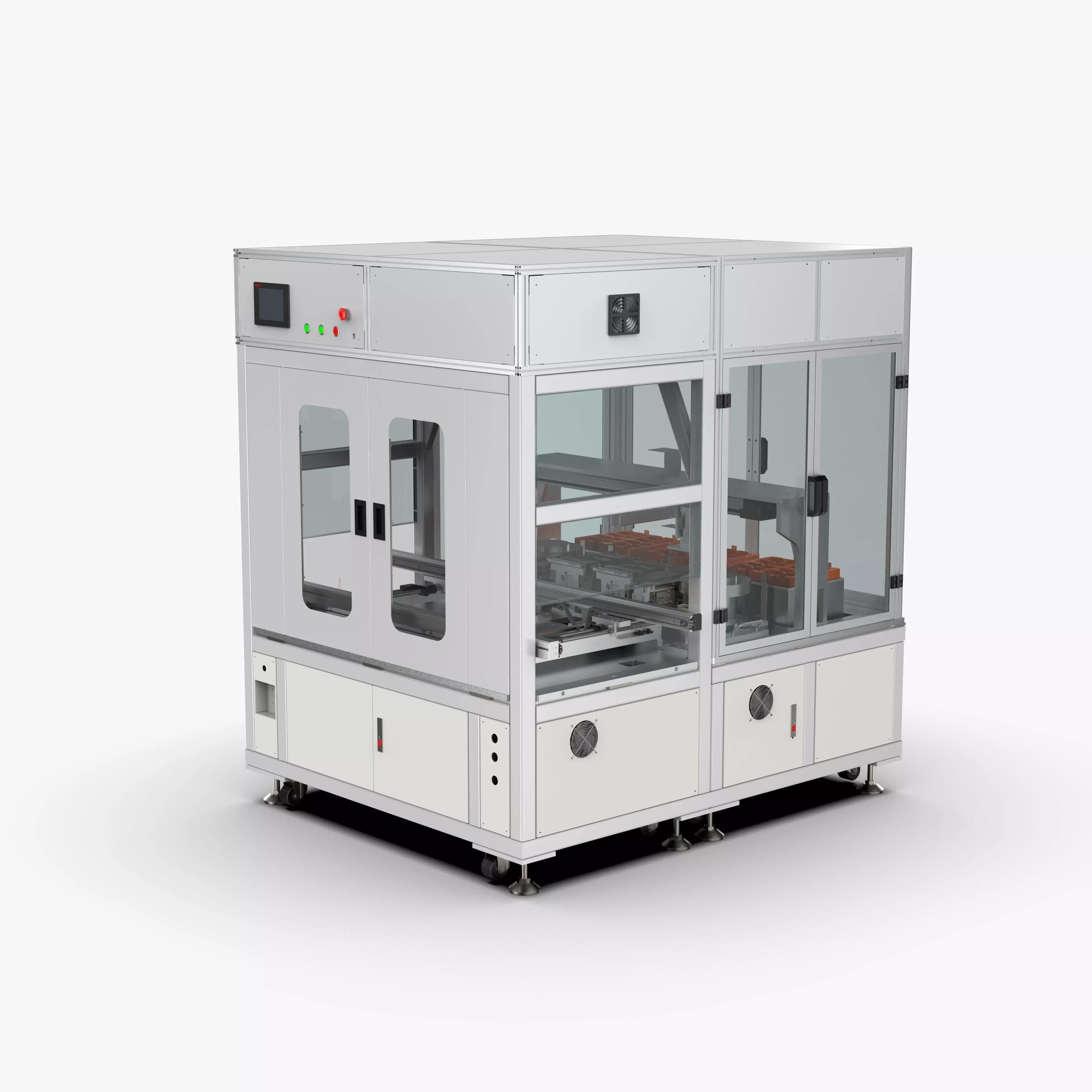

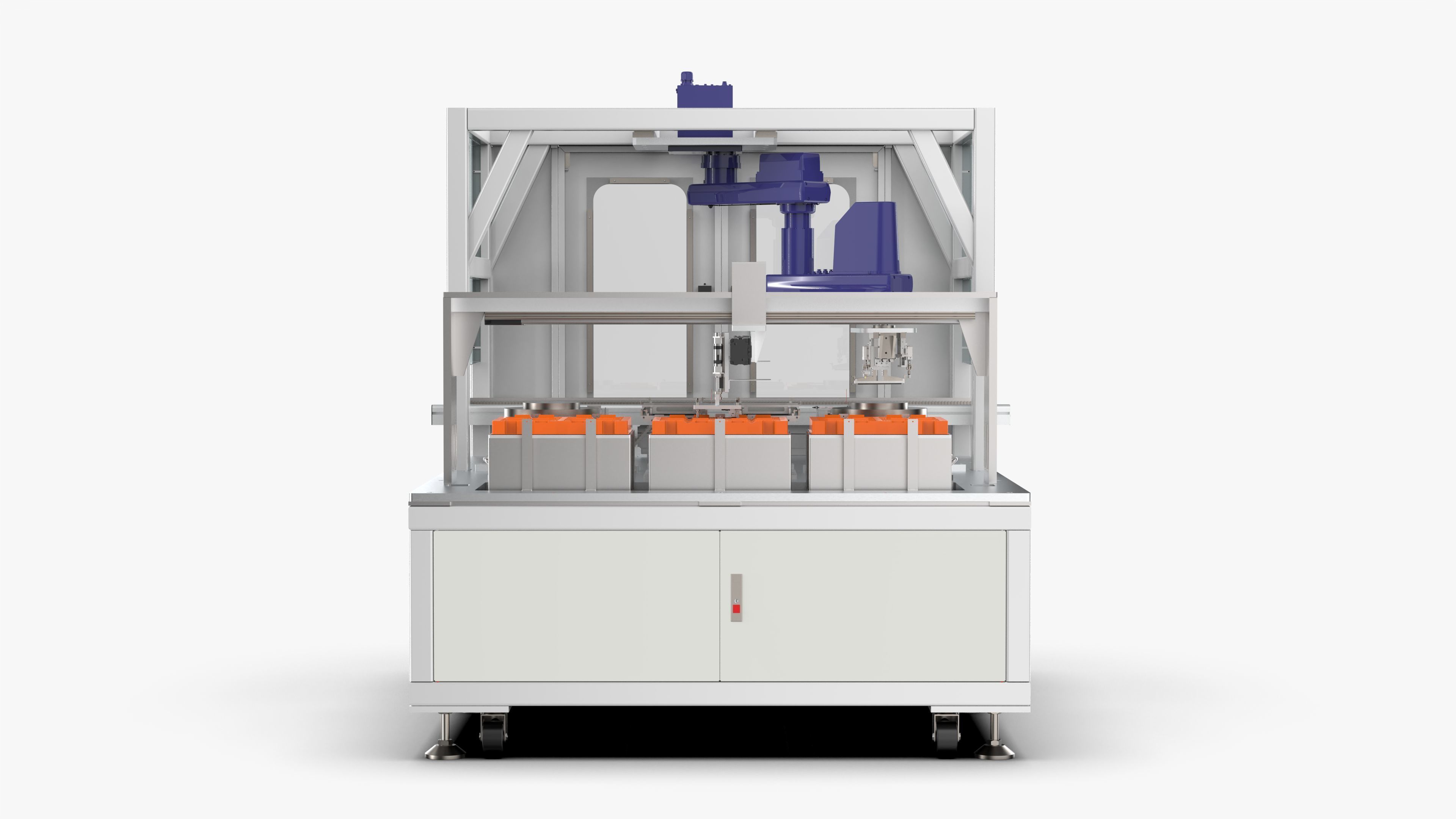

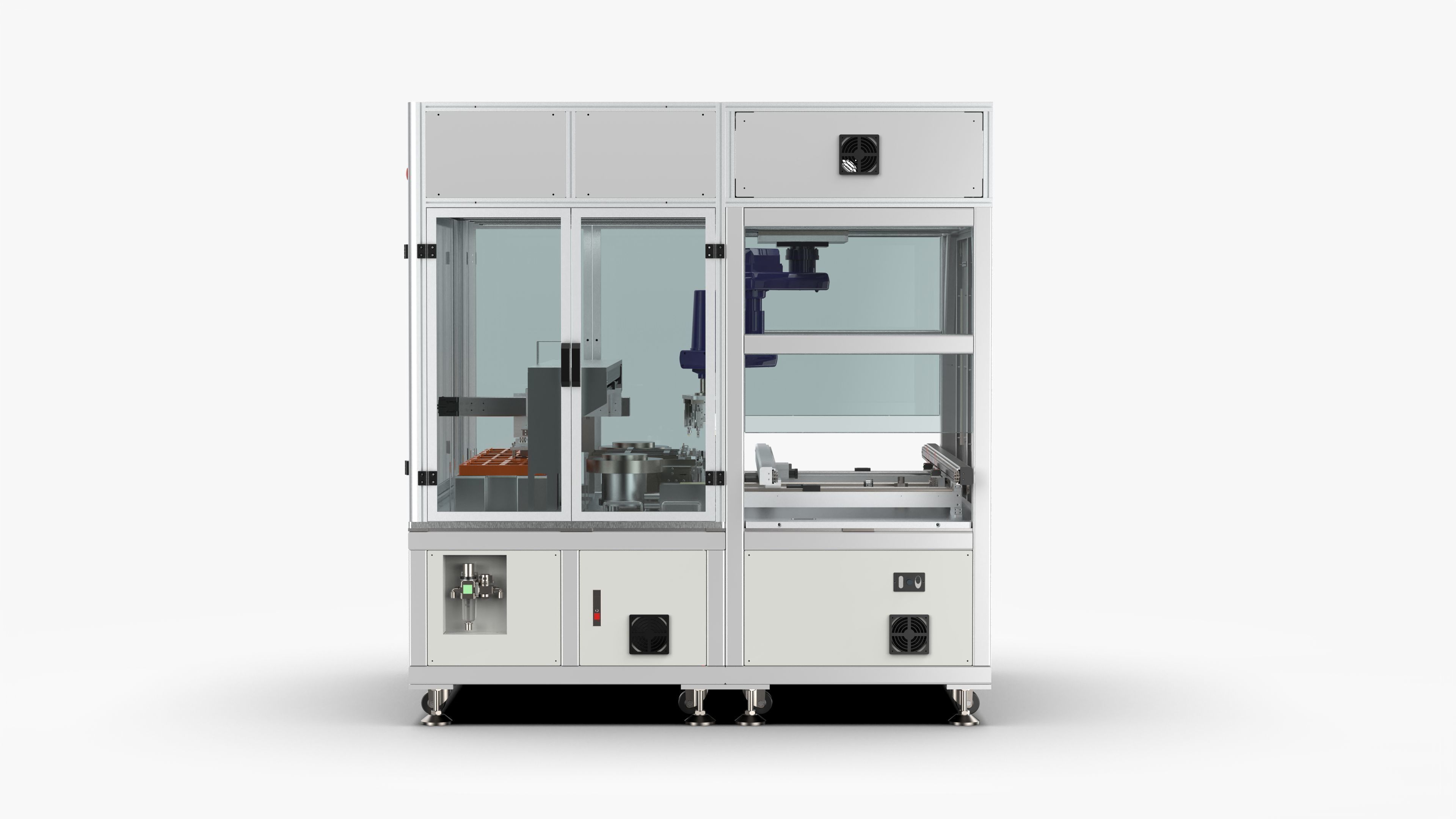

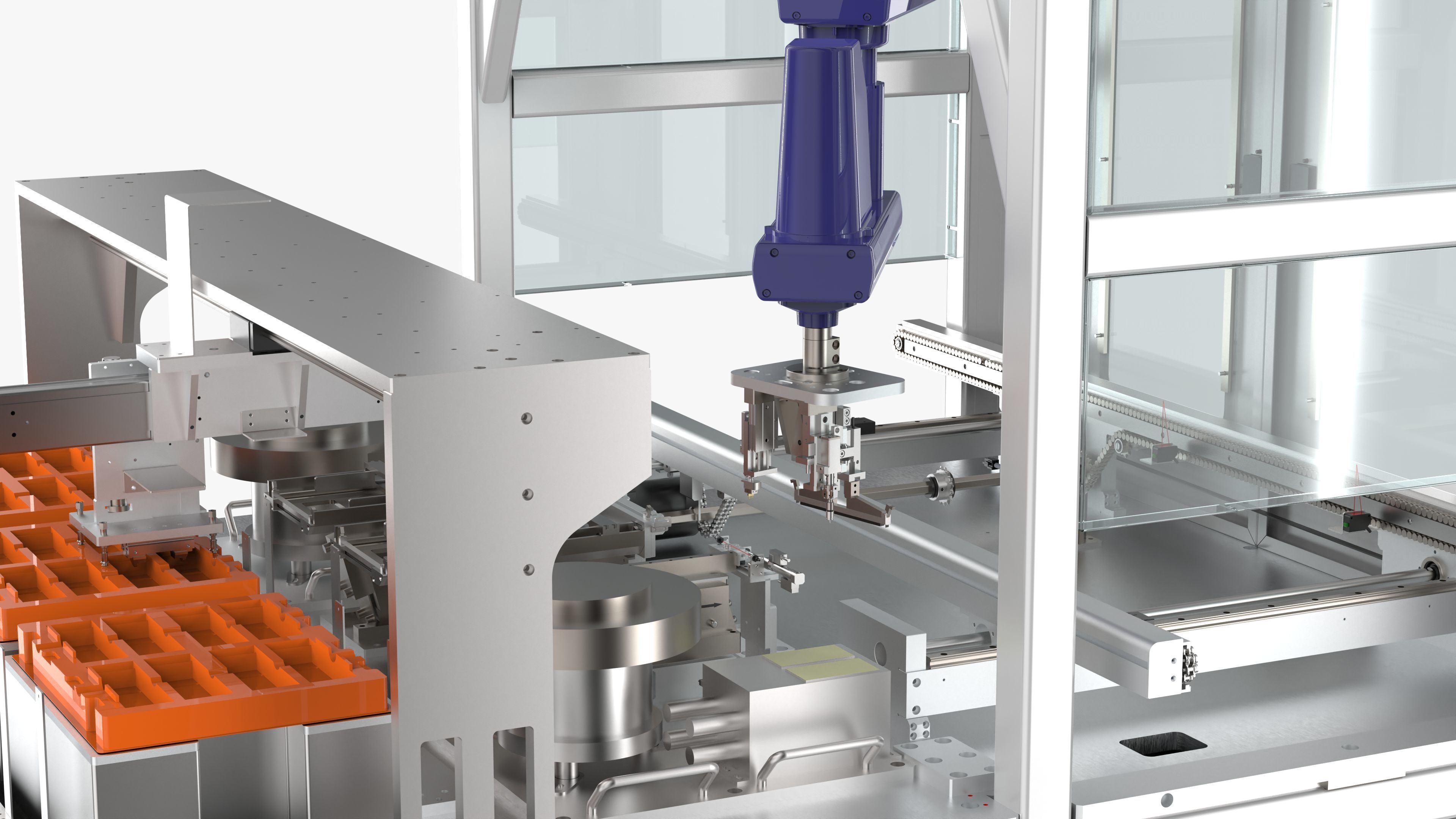

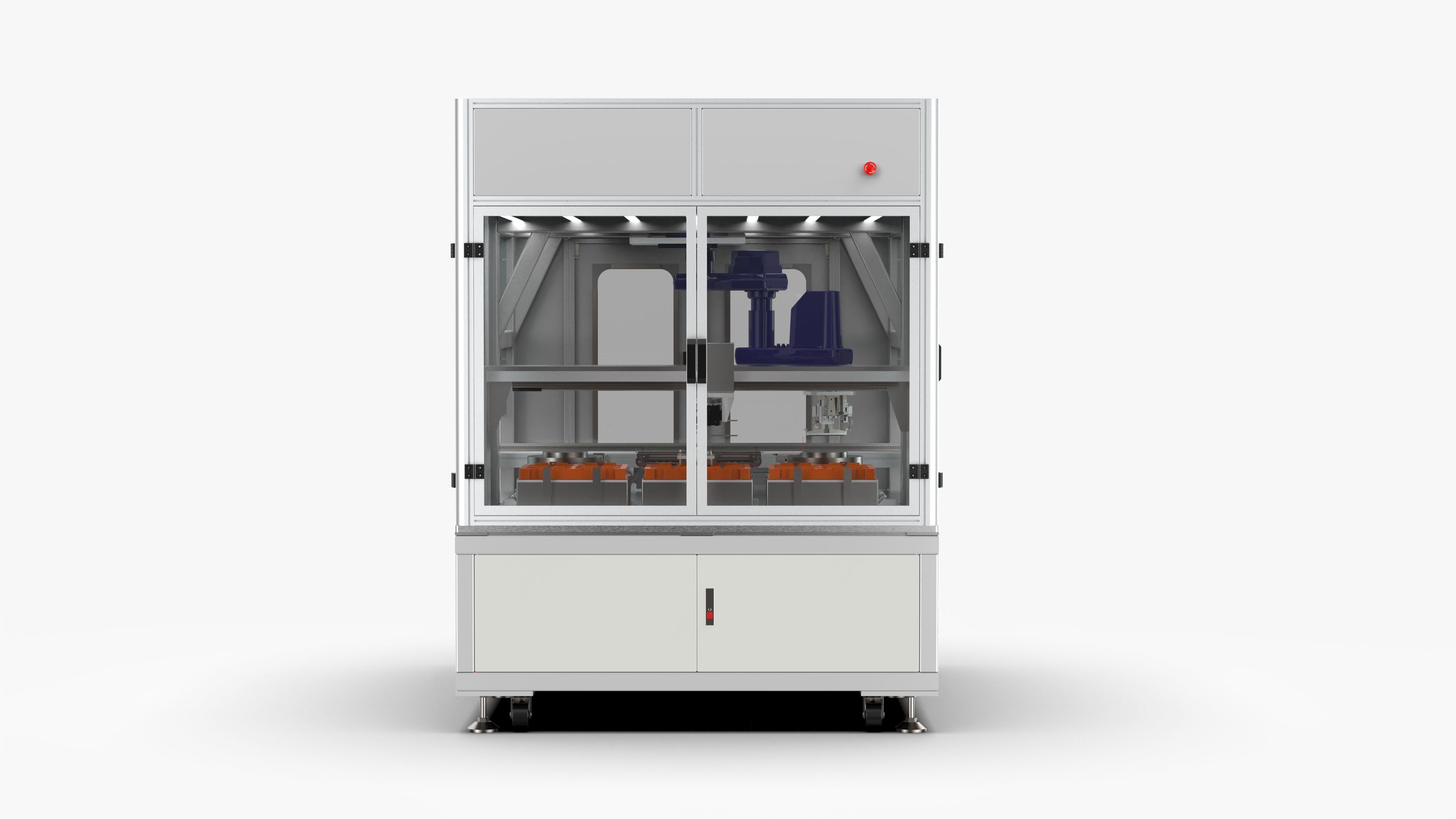

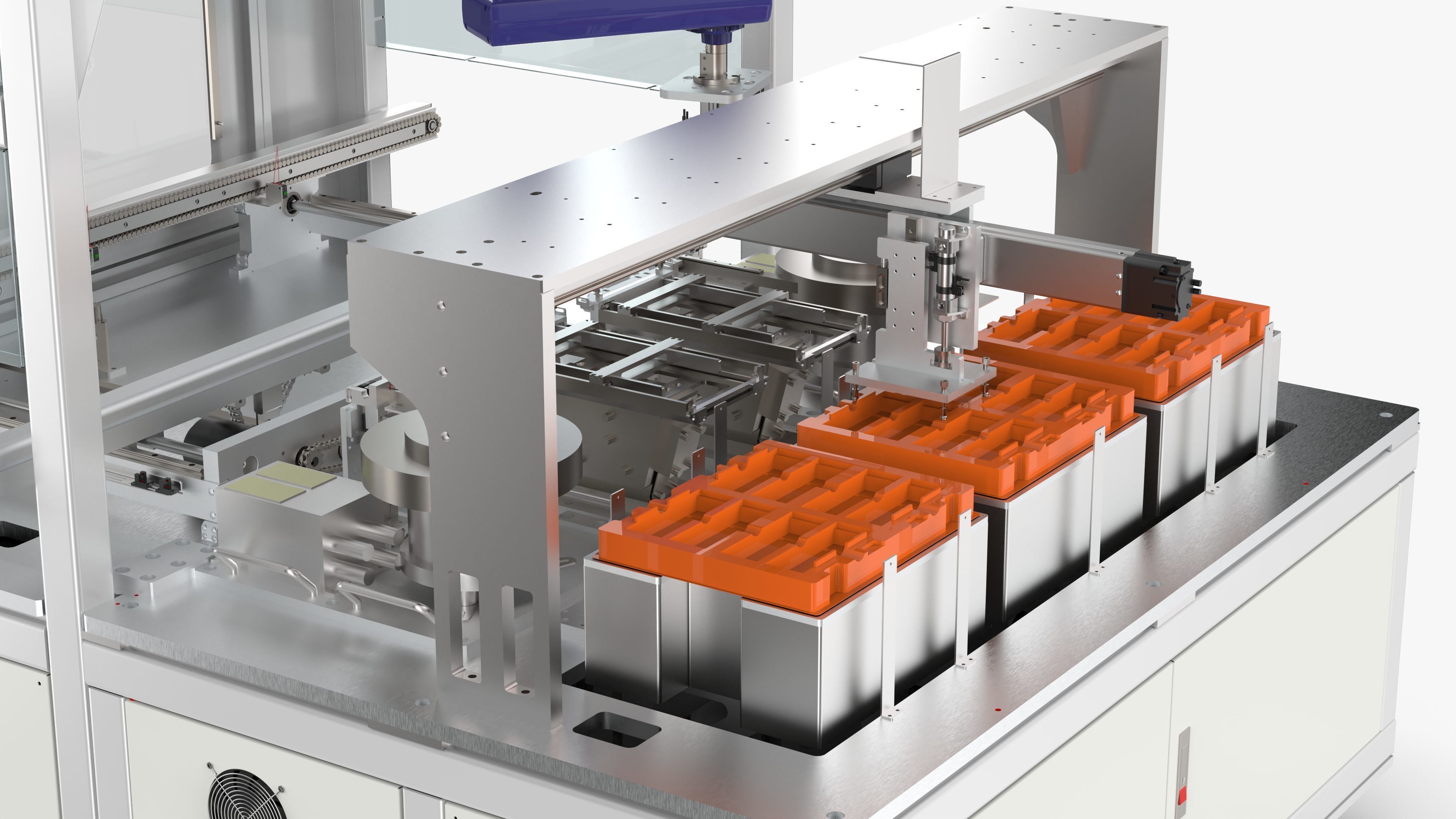

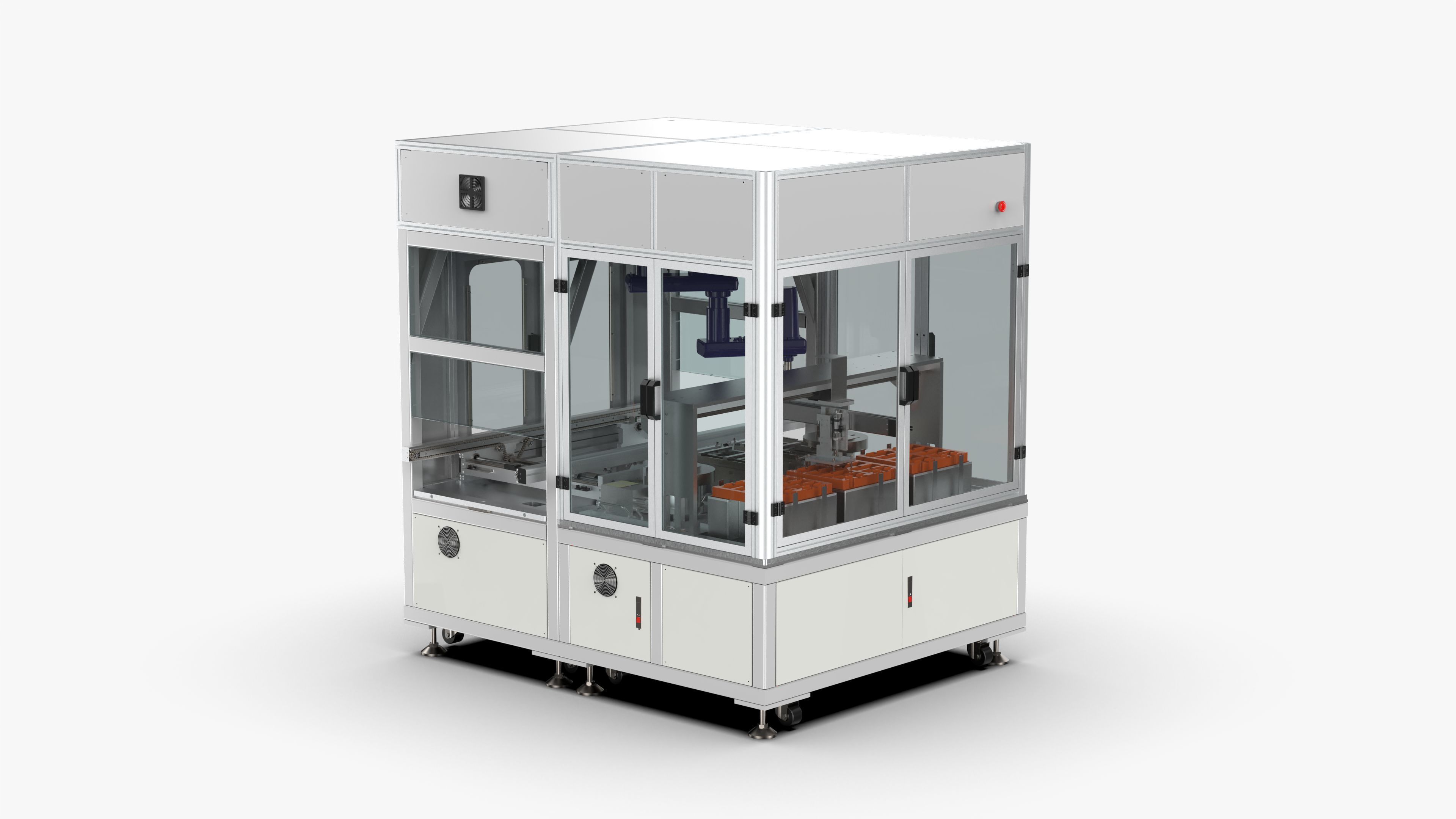

The PCB plug-in machine has all the structural details of the equipment, and can directly produce drawings for processing. The conveyor line can be compatible with a variety of products, and the width of the conveyor line can be adjusted by motor drive. Tray passes through the feeding mechanism, and the three-axis manipulator will pick up the products in the Tray and insert them on the PCB board. The servo motor is added with the screw to control the accuracy. The capacitor uses direct vibration feeding, and the four-axis robot + visual plug-in.
File Formats
- SolidWorks 2018 | Keyshot 10
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
- x_t (Parasolic Model Part File)
Geometry
- Polygons: 3,333,487
- Vertice: 10,000,461
Automatic PCB Insertion Machine
Royalty Free License
Automatic PCB Insertion Machine
Royalty Free License
3D Modeling
Rendering
Post Production
PBR modeling
3D Model formats
Format limitations
Native
- SolidWorks 2018 (.sldprt, .sldasm, .slddrw)104 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
- STEP (.stp)36.6 MB
- IGES (.ige, .igs, .iges)150 MB
- Stereolithography (.stl)159 MB
- Parasolid (.x_t, .x_b)54.1 MB
- OBJ (.obj, .mtl)243 MB
- KeyShot (.bip, .ksp)372 MB
3D Model details
- Publish date2024-04-11
- Model ID#5216732
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 3,333,487
- Vertices 10,000,461
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
