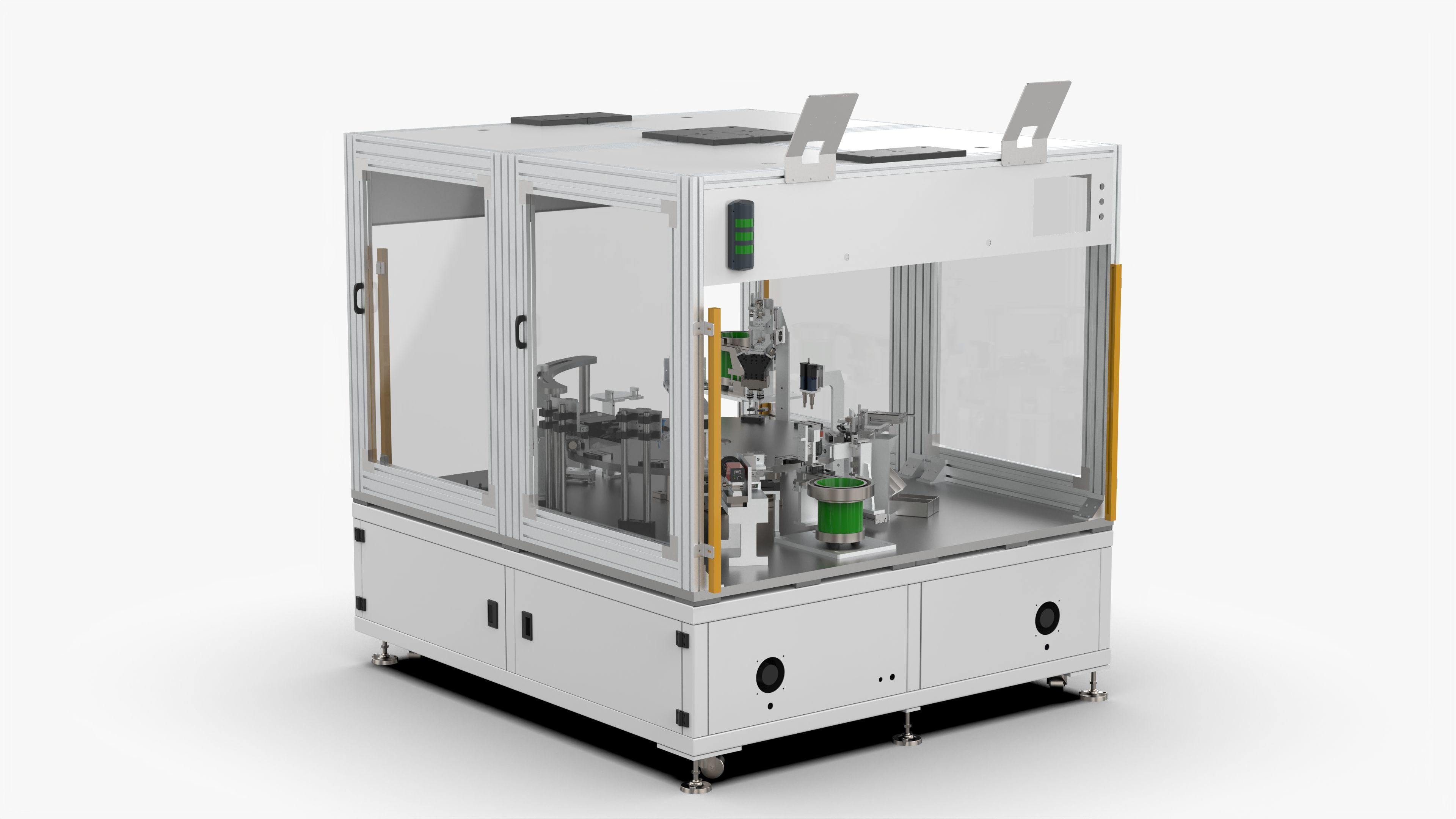

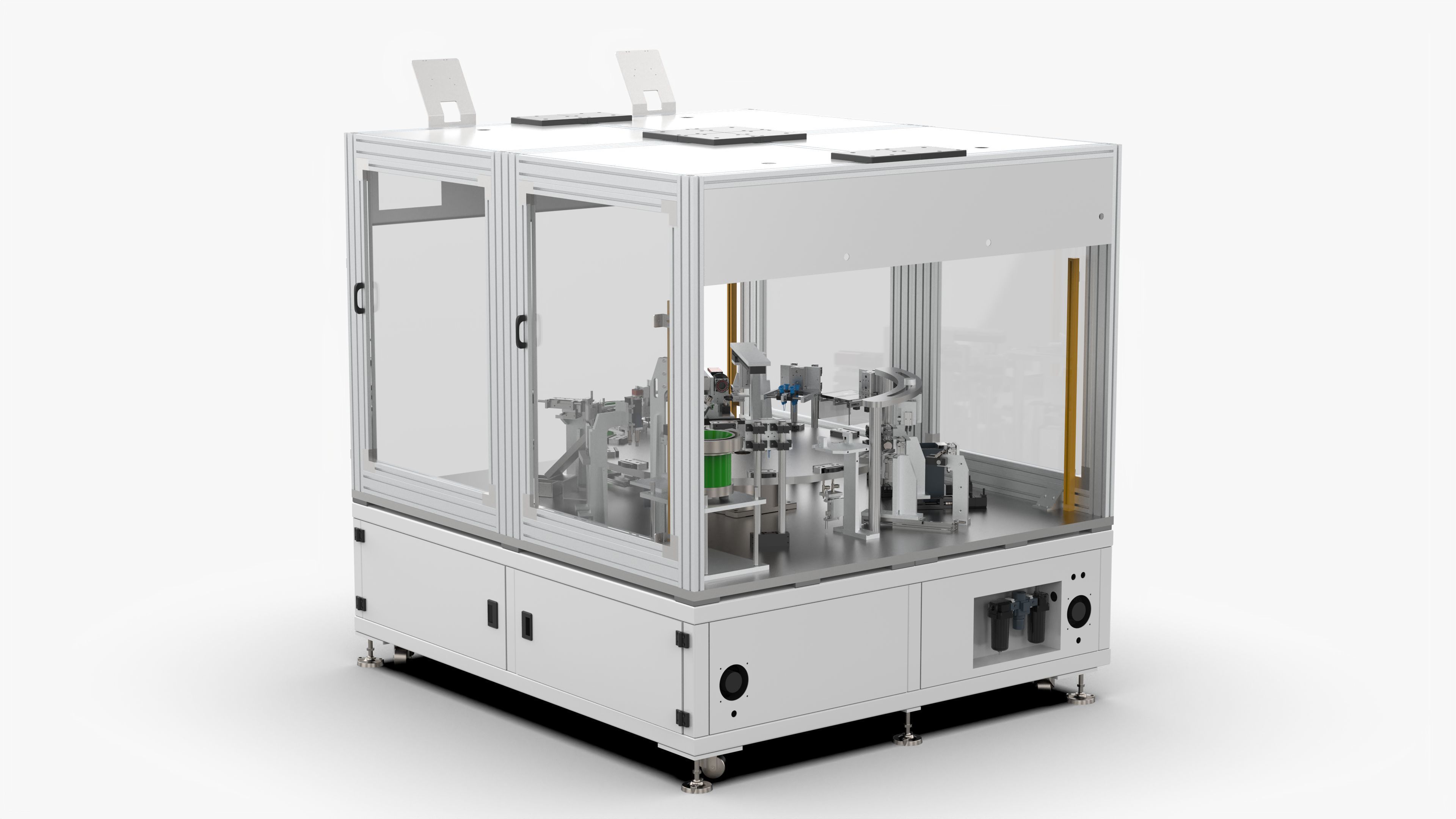

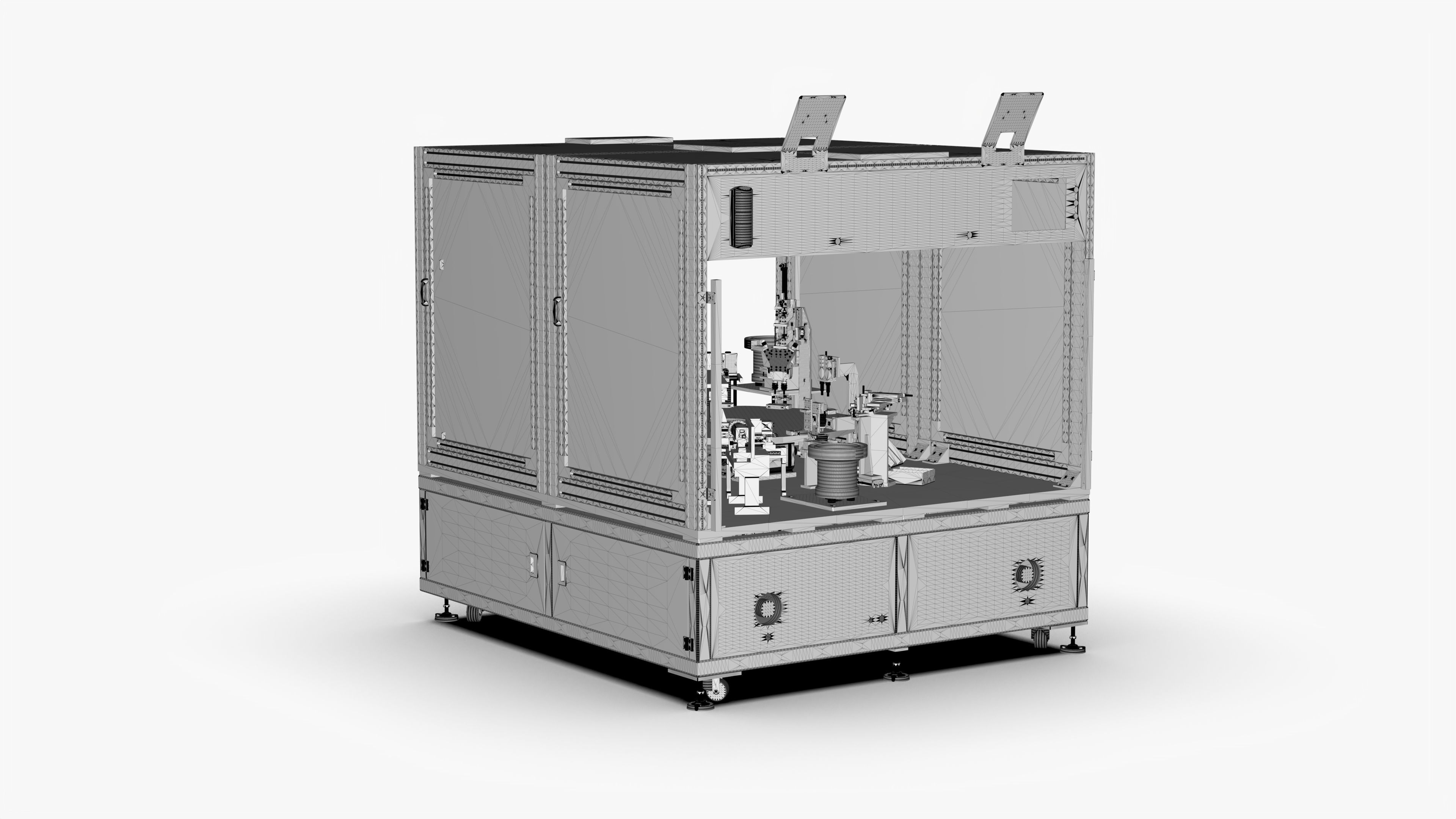

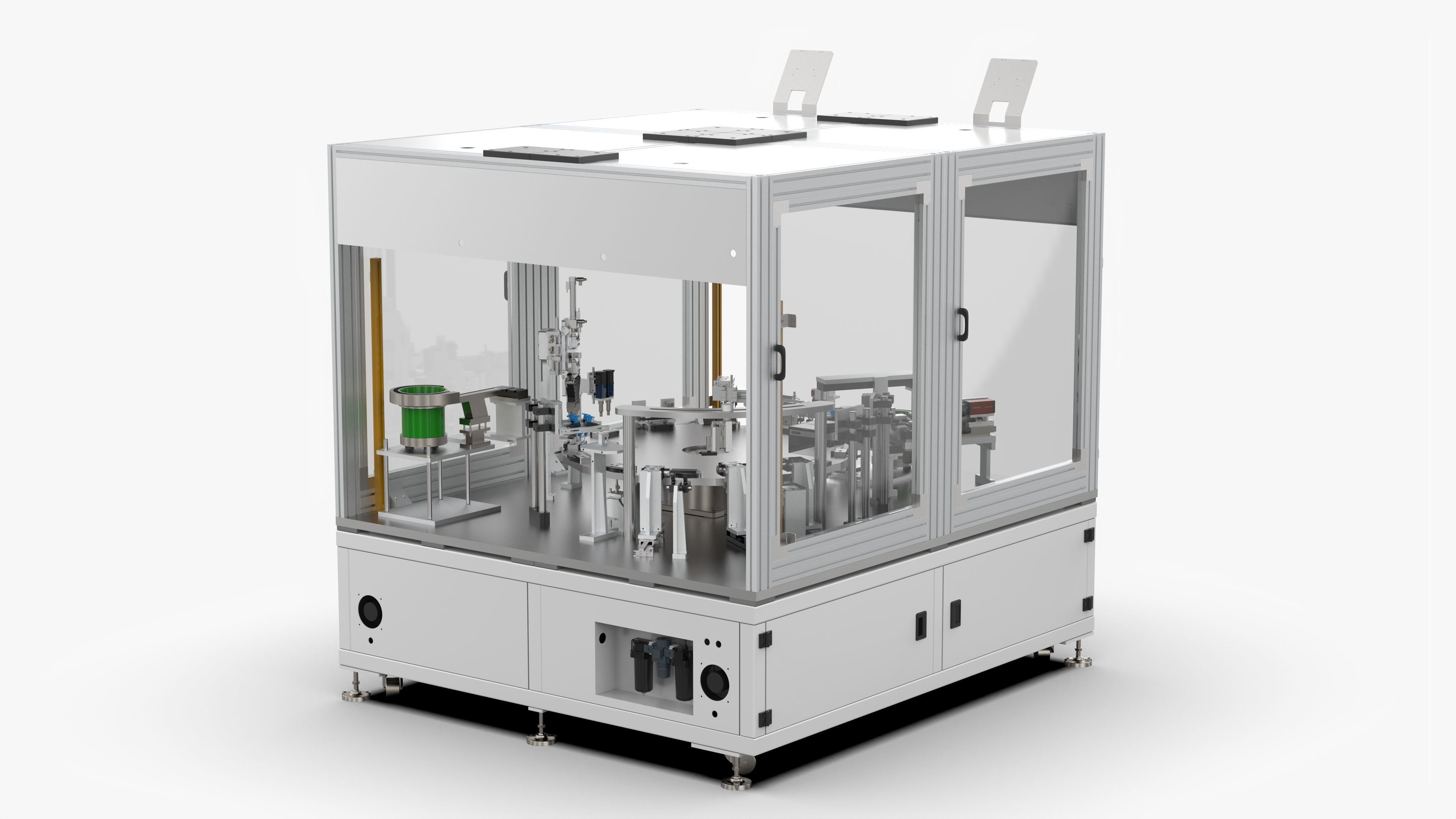

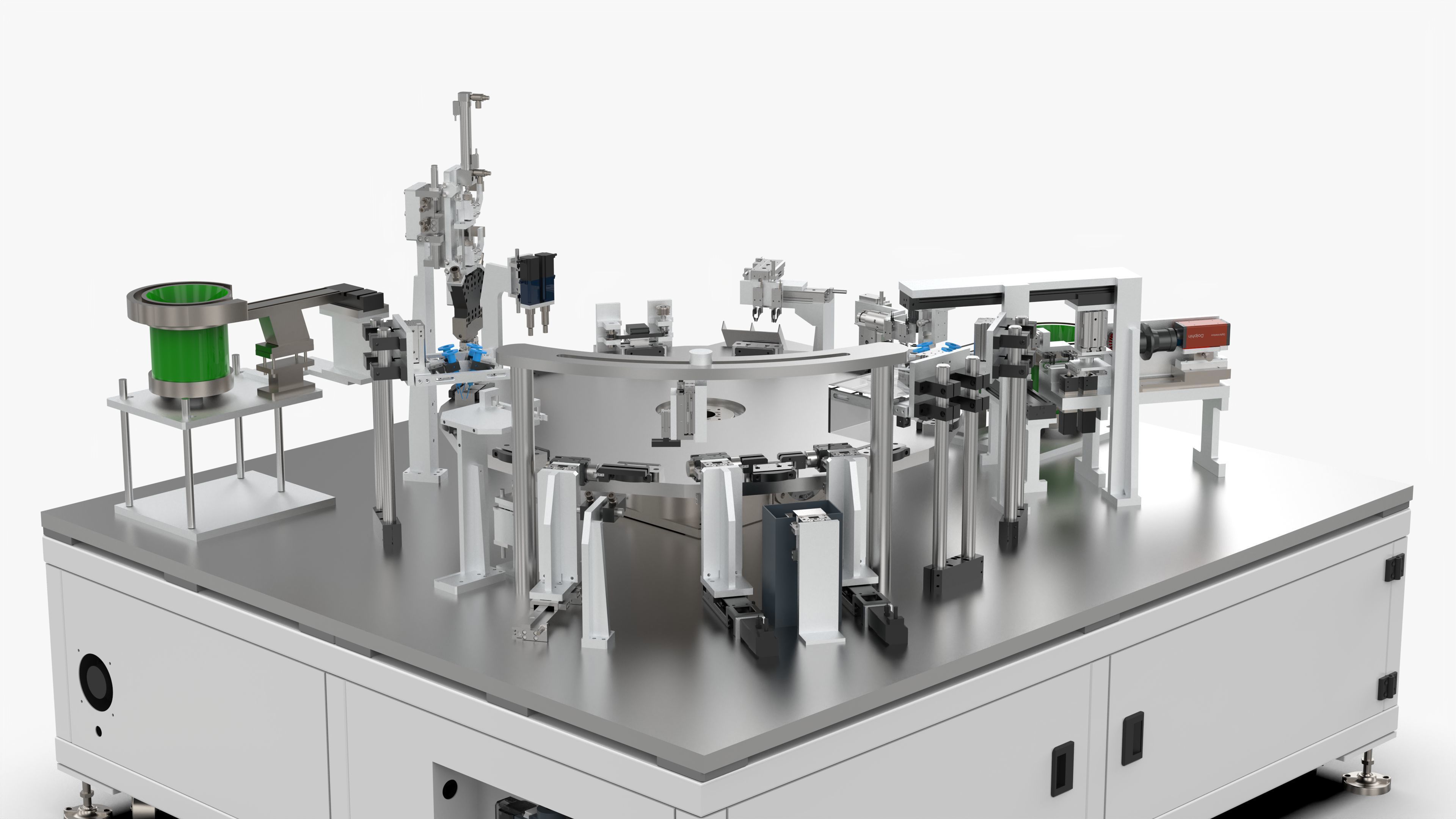

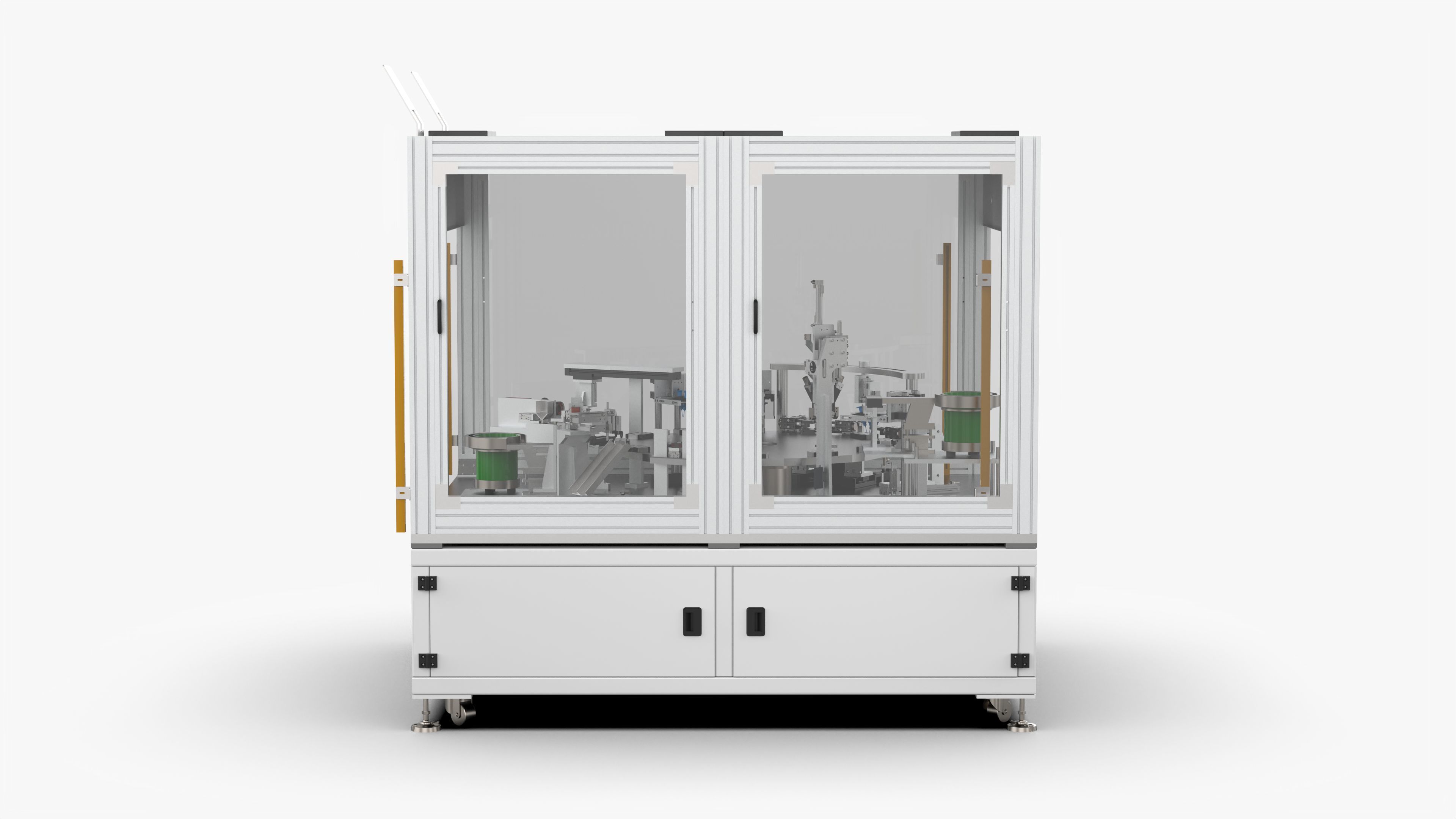

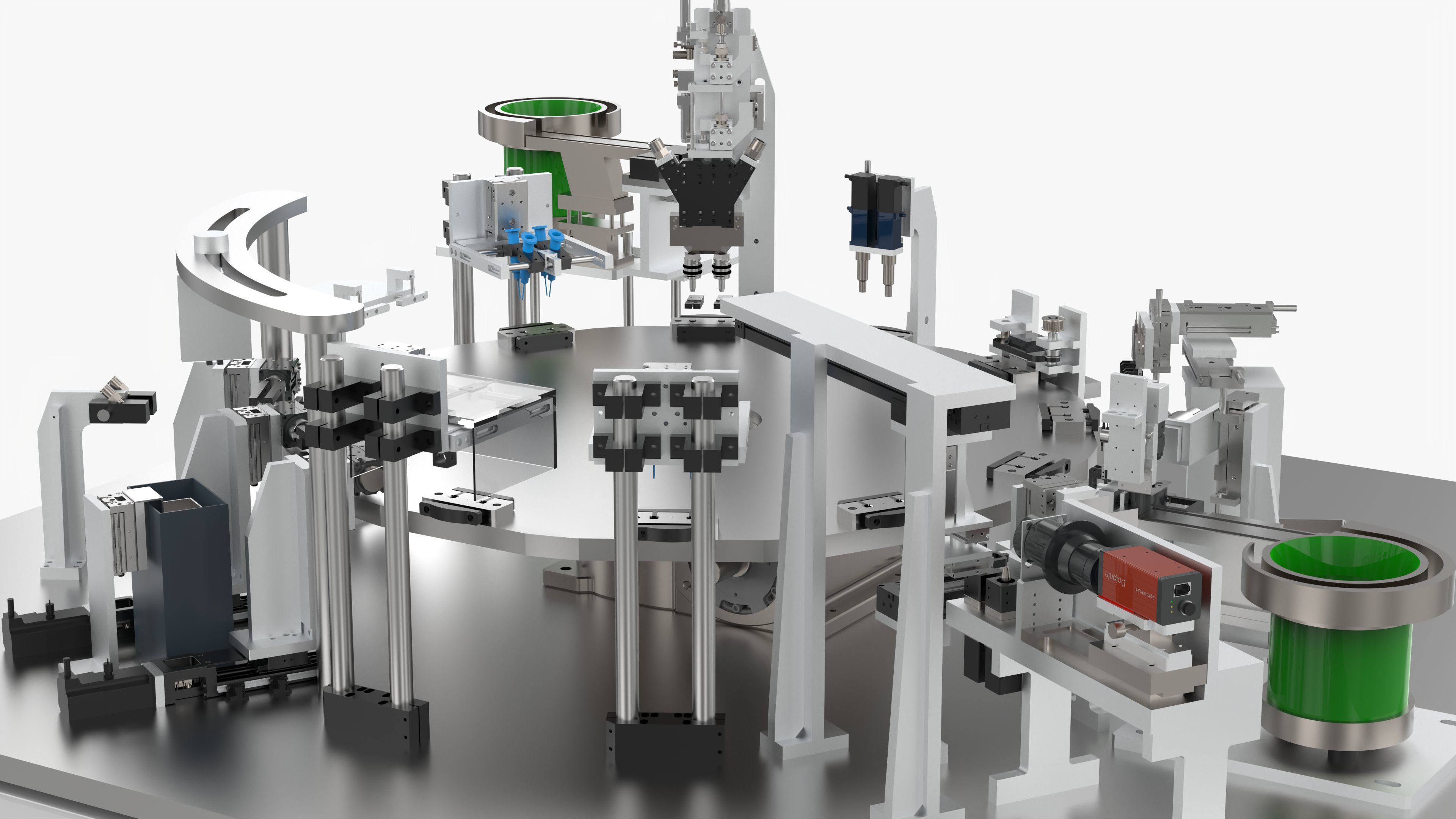

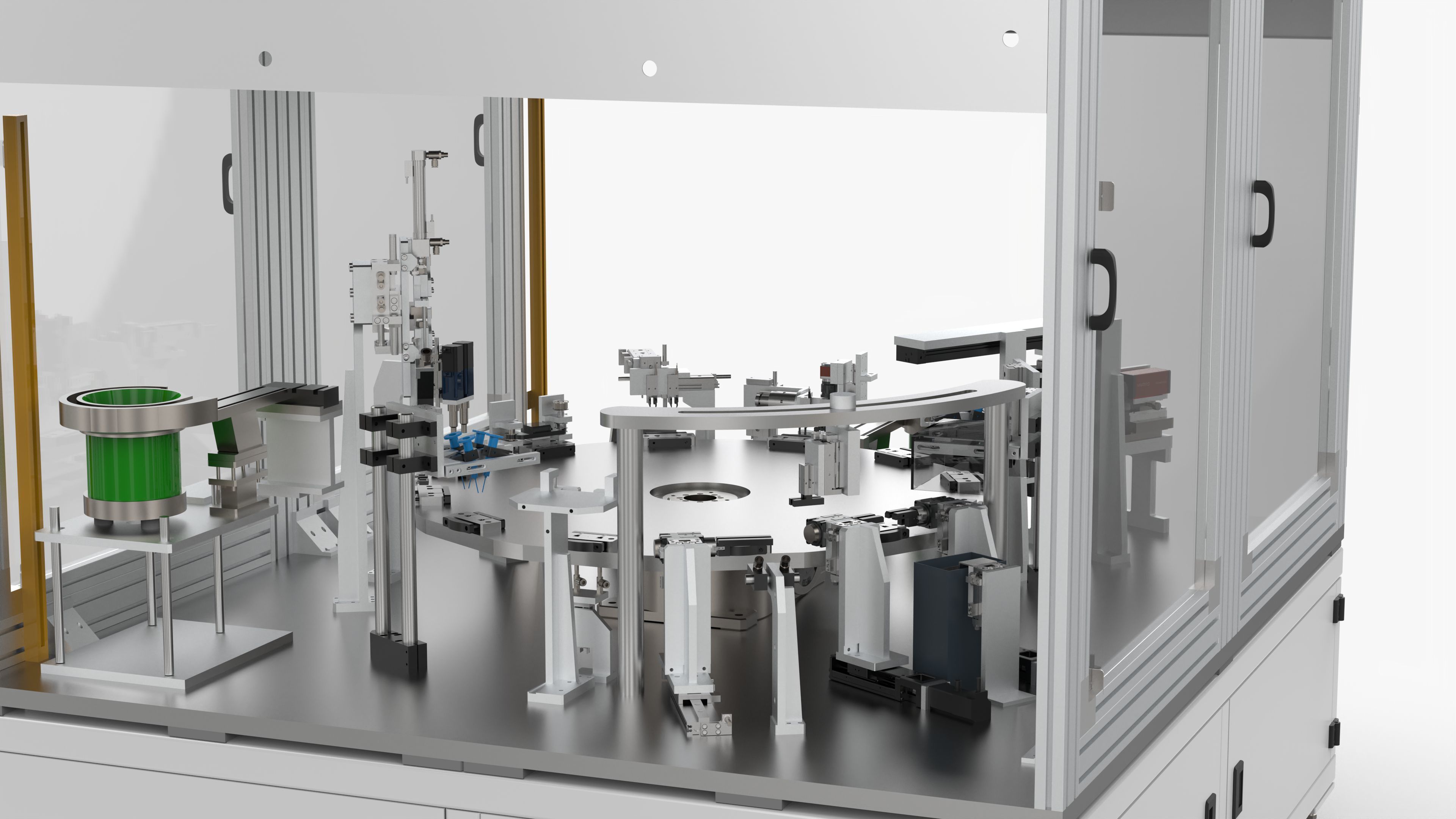

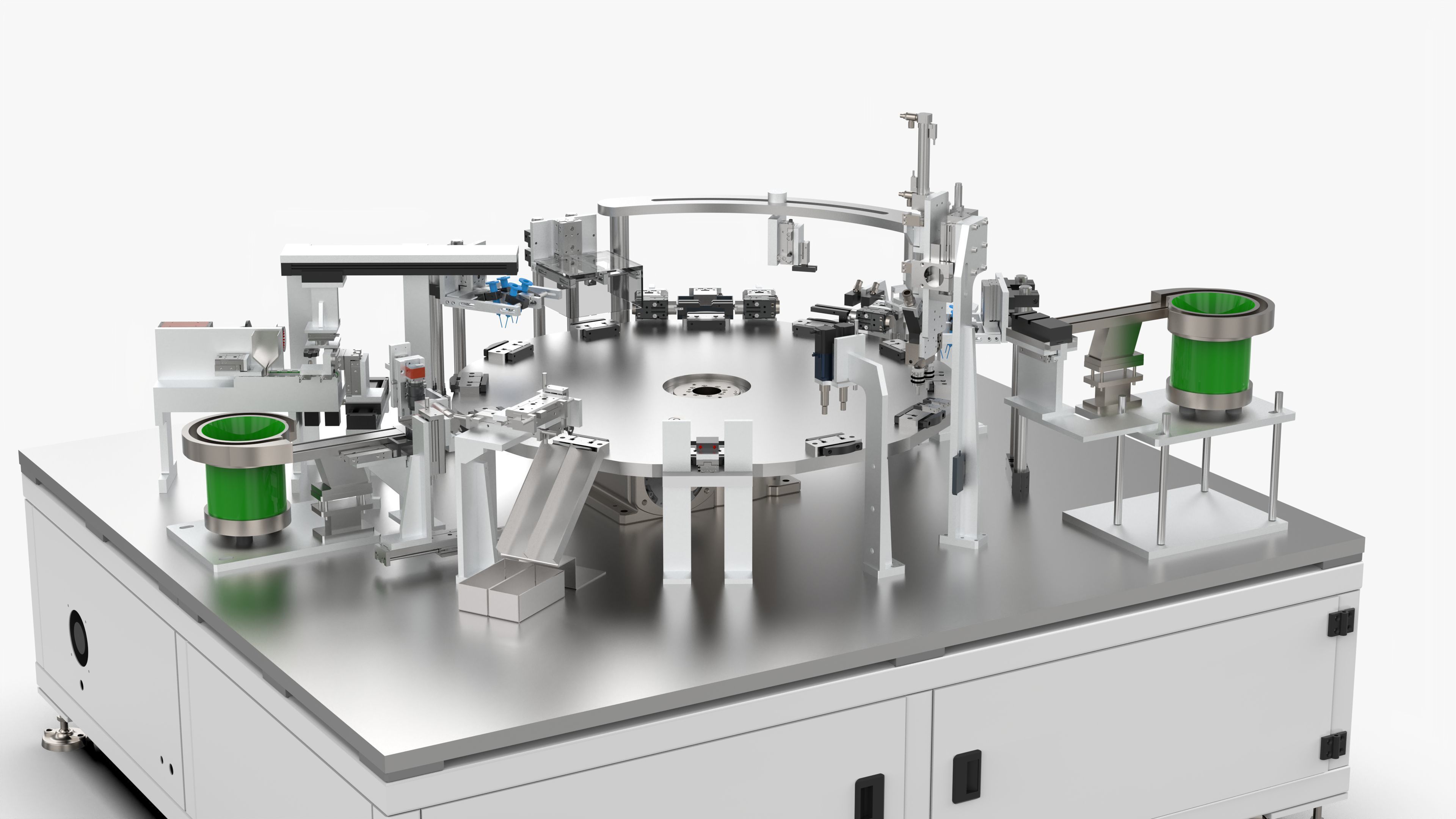

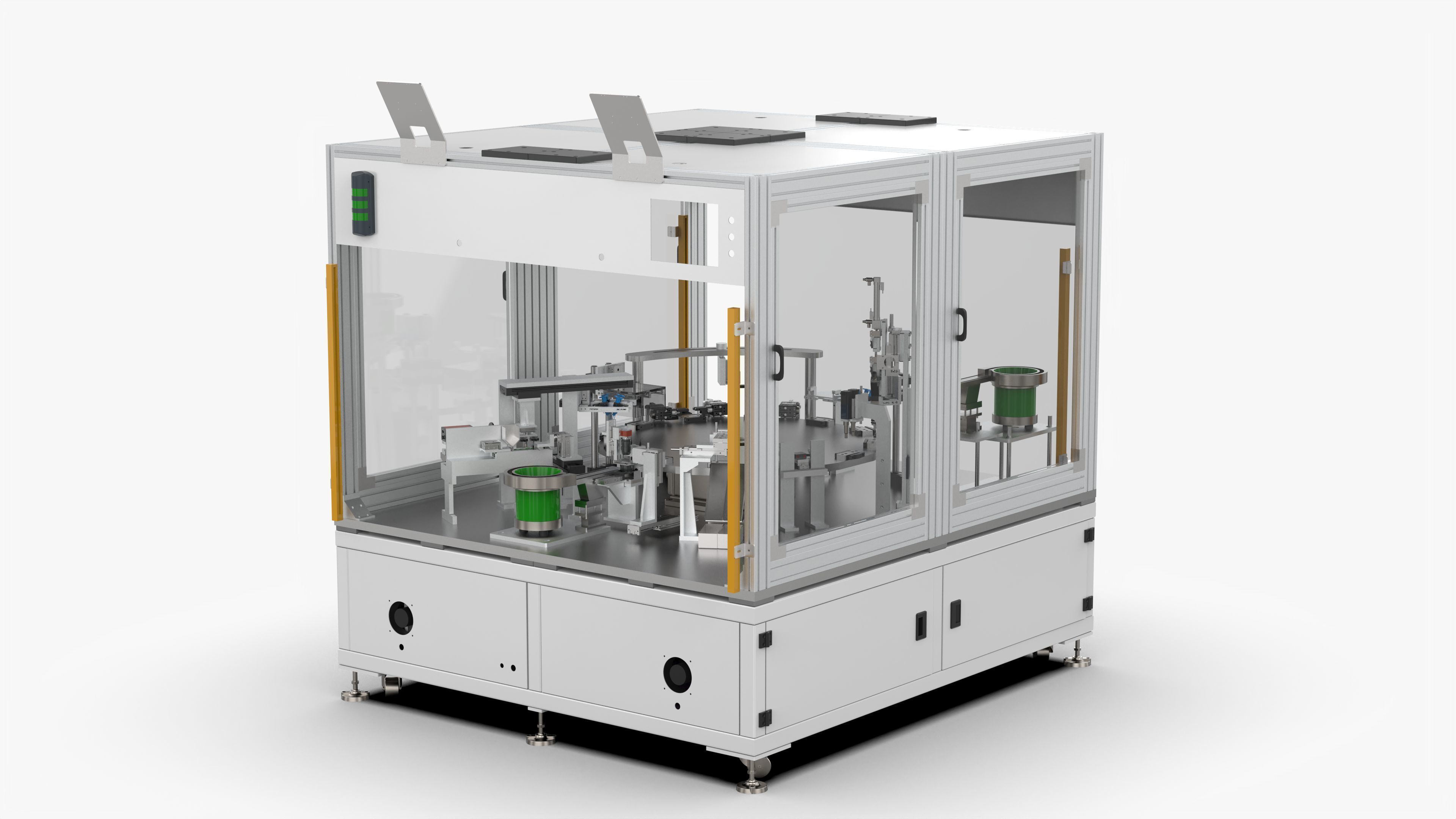

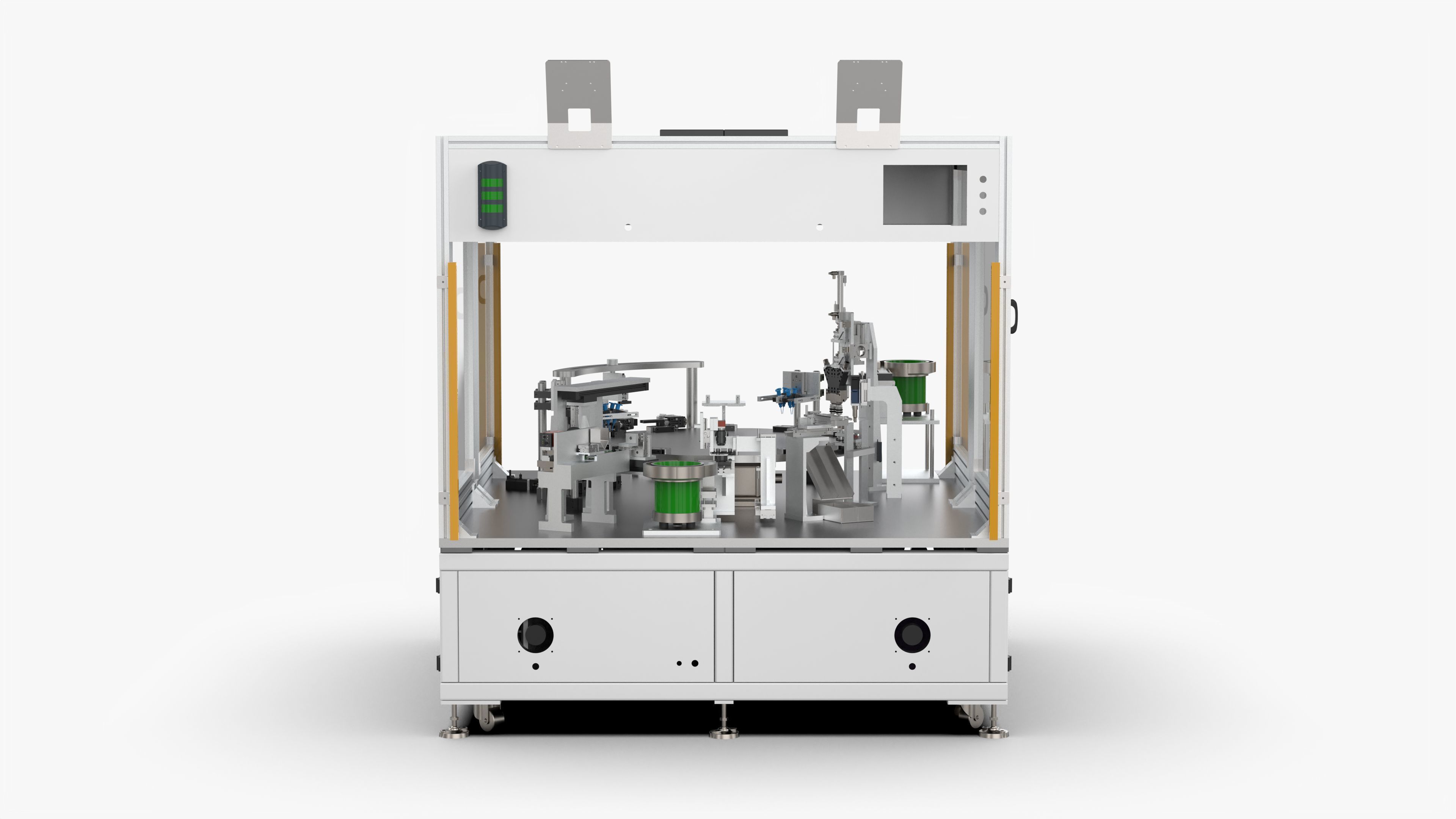

Automatic Injection Needle Assembly Dispensing Machine 3D model

Automatic Injection Needle Assembly Dispensing Machine

Introduction

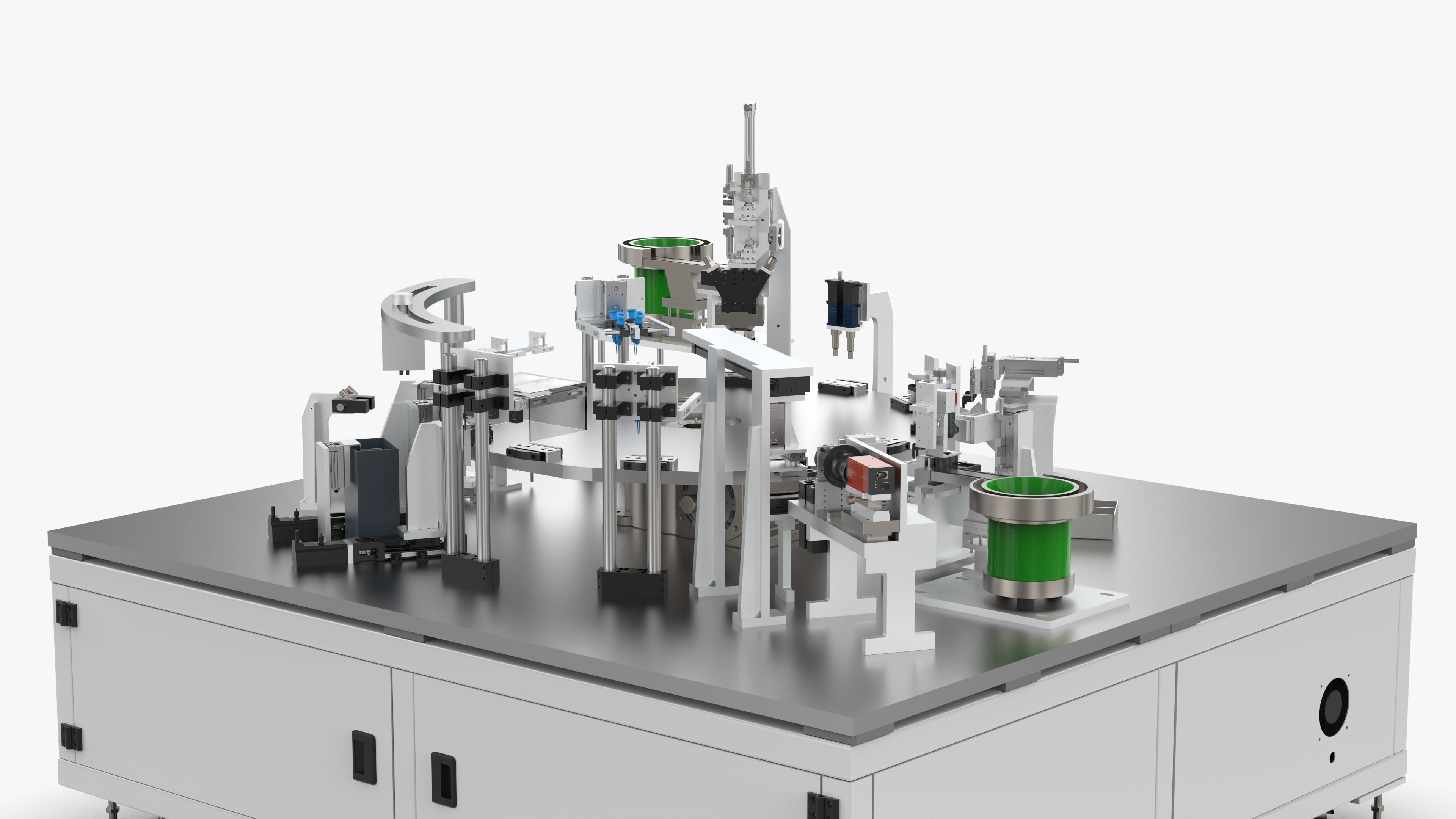

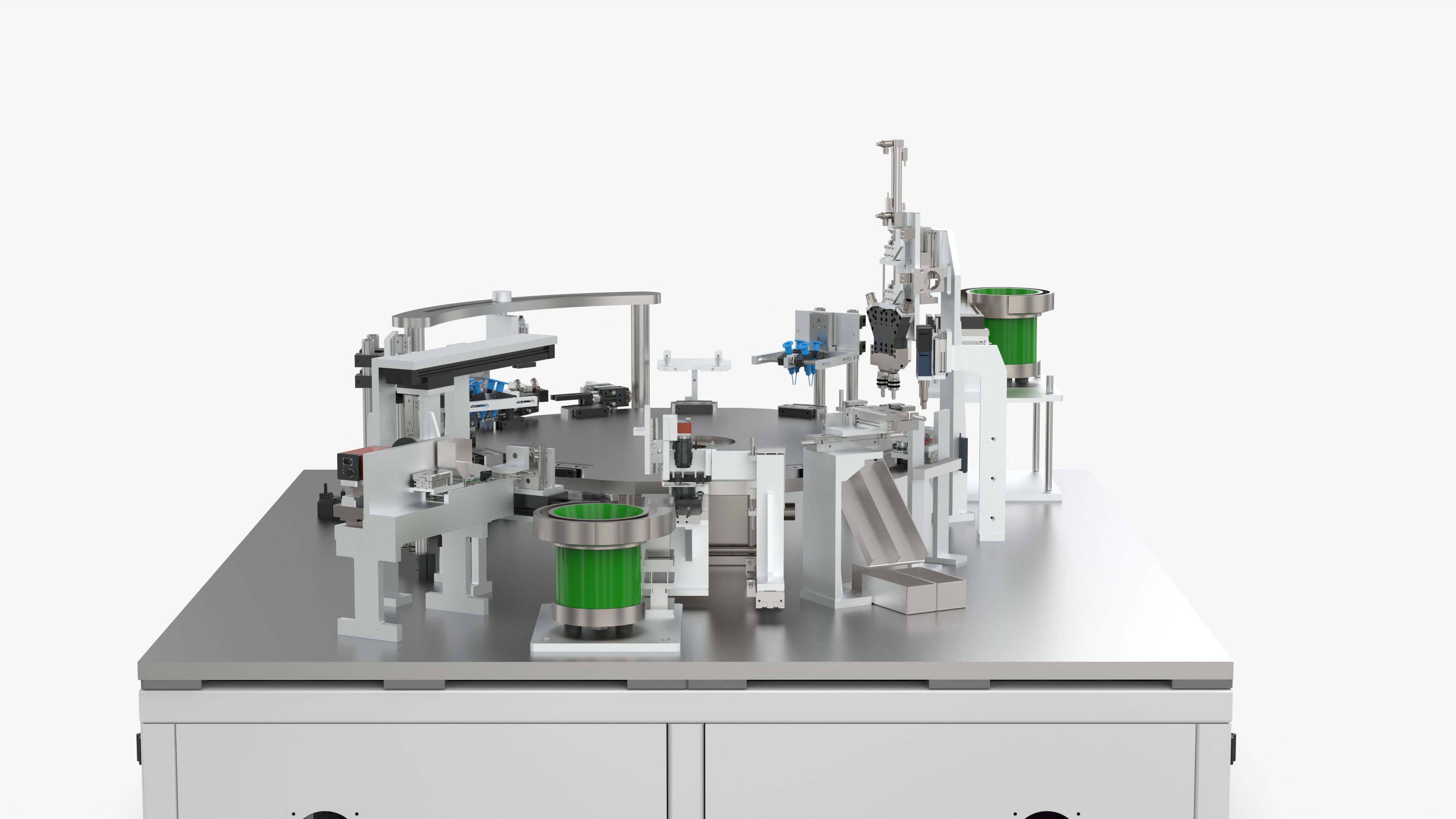

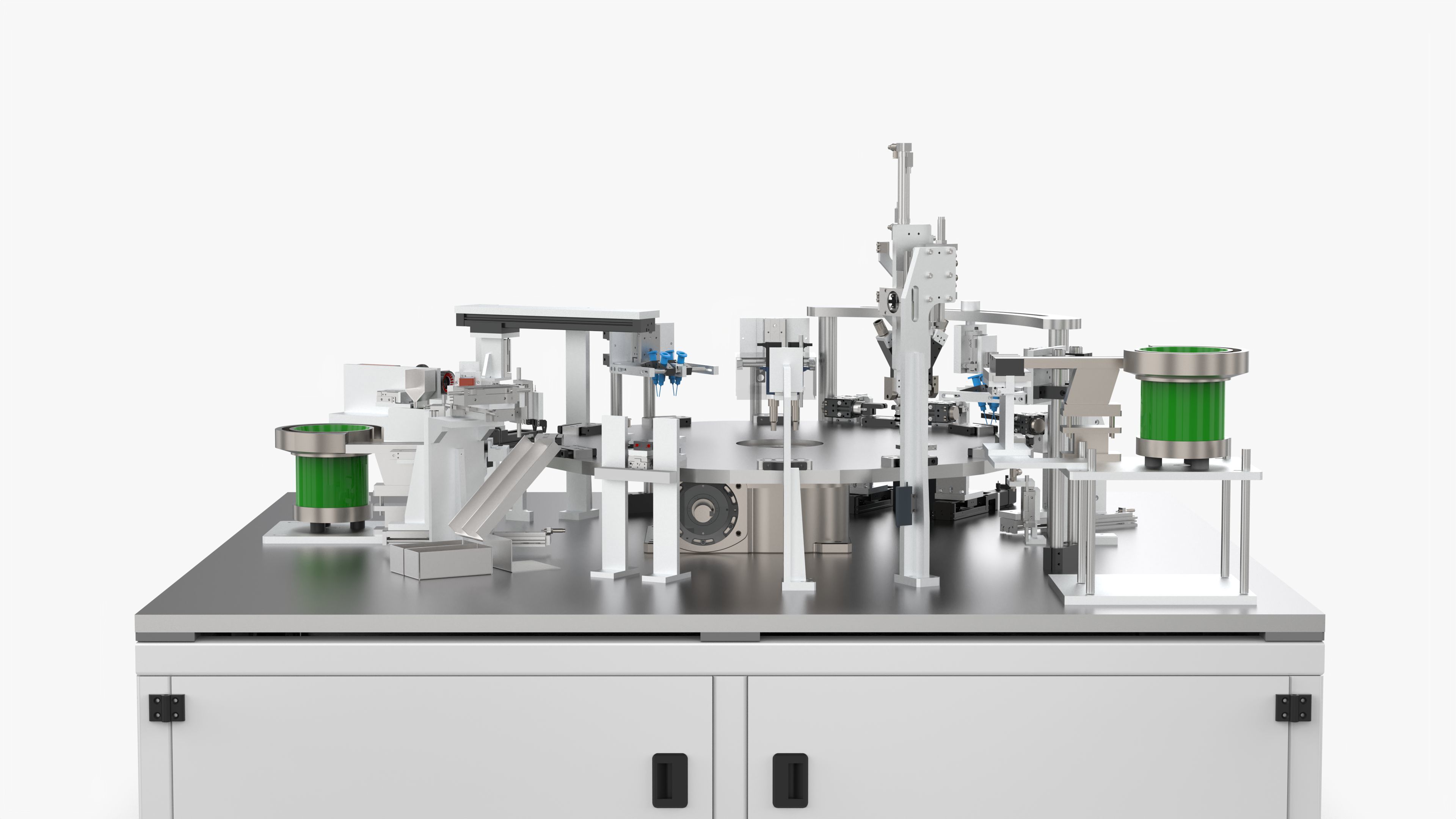

Automatic injection needle assembly and dispensing machine action description:

• Step 1: Base vibrating plate feeding, and a CCD to judge the front and back of the Base;
• Step 2: Insert the first needle tube, and a CCD to judge the front and back of the needle tube and whether it is present or not Bad;
• Step 3: Insert the second needle tube, and have a CCD to judge the forward and reverse of the needle tube and whether there is a defect;
• Step 4: Apply UV glue;
• Step 5: UV curing;
• Step 6: Apply airtight glue;
• Step 7: Strong air drying;
• Step 8: Silica gel on the nozzle;
• Step 9: Cover pre-installation;
• Step 10: Cover pressing;
• Step 11: Finished product discharge (automatically distinguish OK & NG);
• Step 12: Repeat the above actions;

The working purpose of the injection needle assembly machine: The machine automatically feeds materials (needles, Base and Cover), and automatically assembles them.

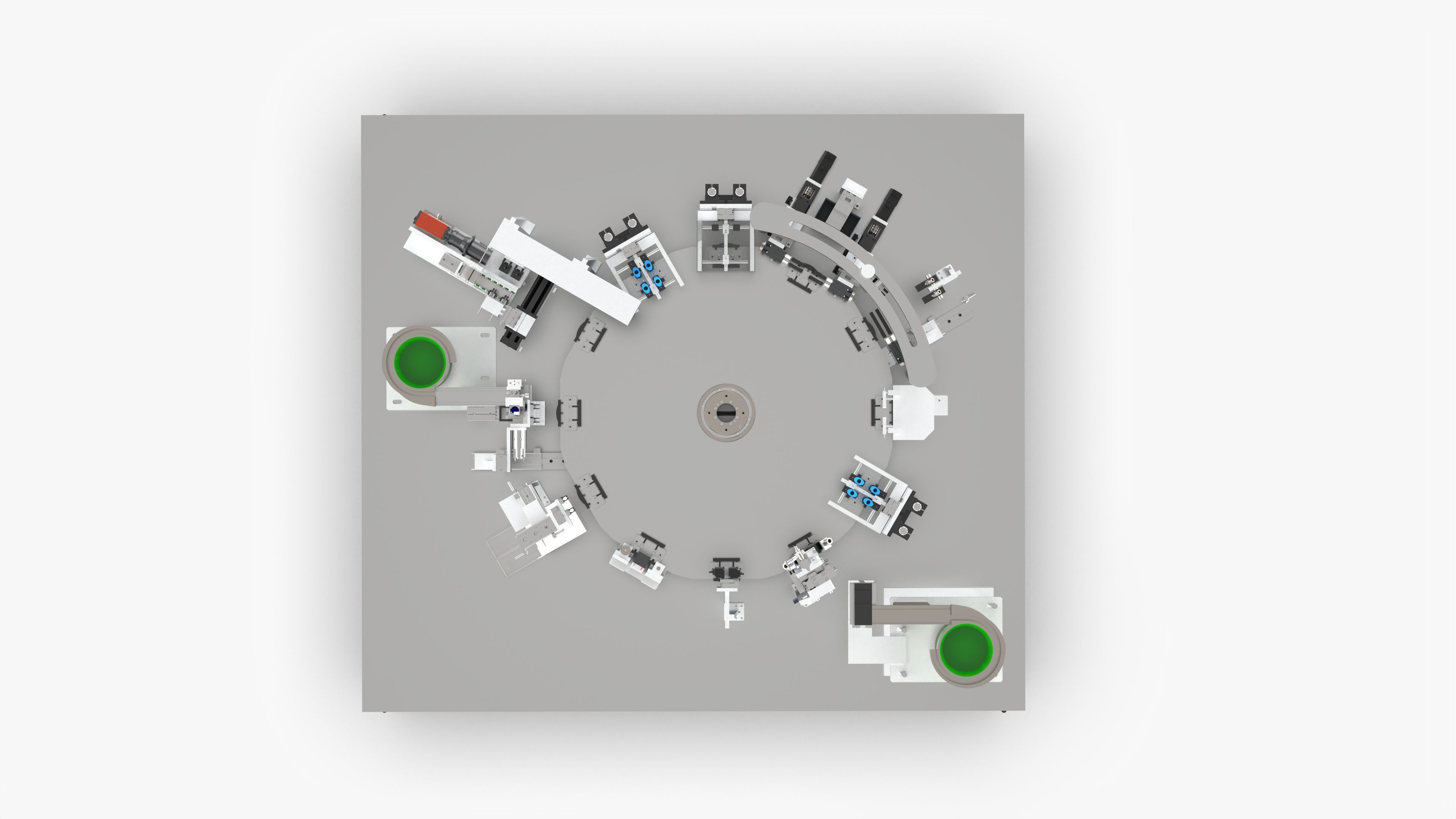

Operation mode: disc type operation:

• C/T: Estimated 2pcs/5sec;
• Estimated size of the machine: 2000(L)*1800(W)*1800(H)mm.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 1,770,867
• Vertice: 5,312,601
