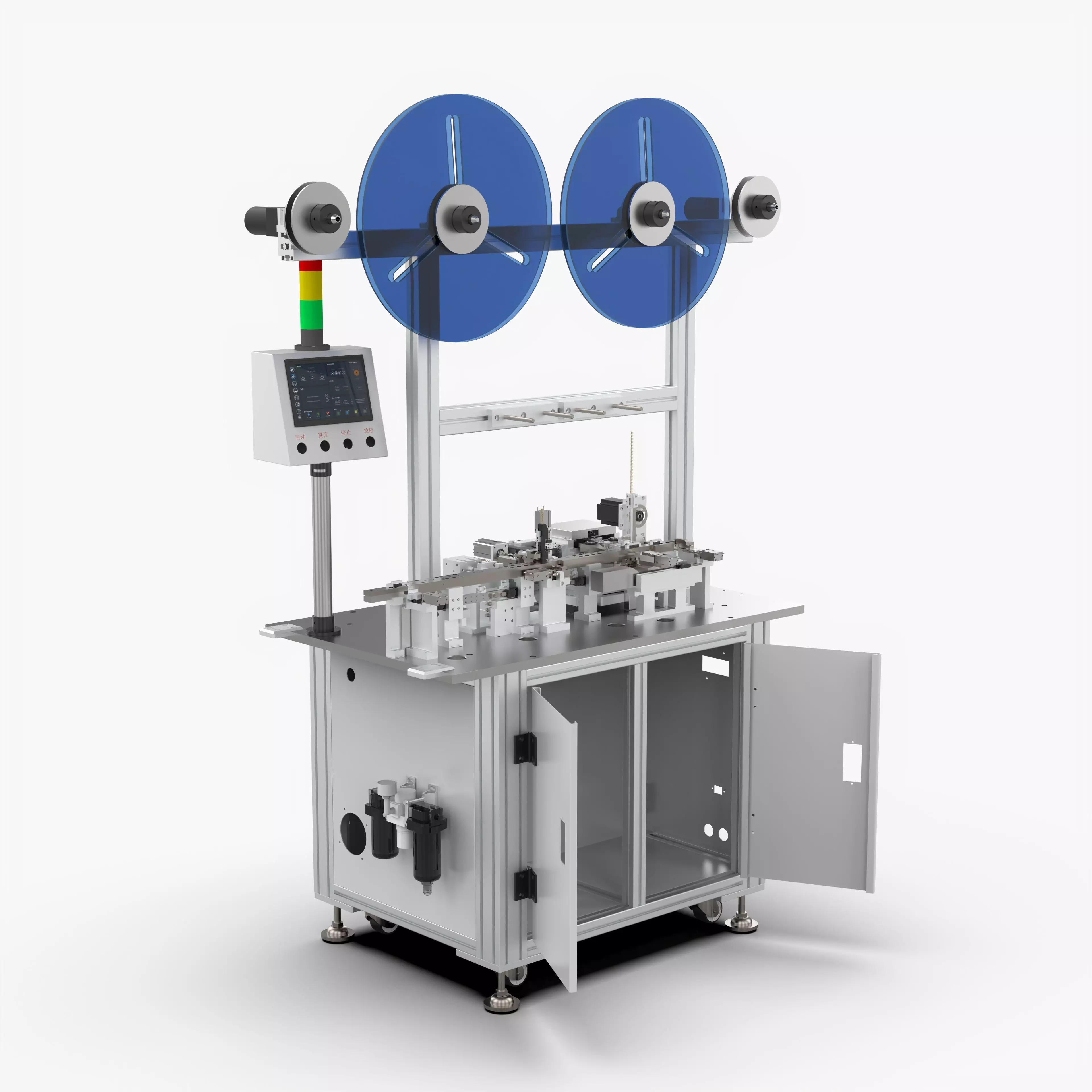

Automatic Needle Insertion Machine 3D model
Description
Automatic Needle Insertion Machine
Introduction
The equipment is used for the press-fitting machine of the inlet port of the valve body. The double lifter and the lower assembly line can be used for the circular feeding of the jig. The products in the jig are manually taken and placed, and the press-fitting action is completed automatically. The press-fitting height and pressure are possible, and the pressing is completed. After automatic grabbing and cleaning, the equipment has been running stably.
File Formats
- Inventor2018 | Keyshot 10
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
Geometry
- Polygons: 1,440,730
- Vertice: 4,322,190
Automatic Needle Insertion Machine
Royalty Free License
Automatic Needle Insertion Machine
Royalty Free License
3D Modeling
Rendering
Post Production
PBR modeling
3D Model formats
Format limitations
- Stereolithography (.stl)68.7 MB
- Autodesk Inventor 2018 (.iam, .ipt)63.8 MBVersion: 2018Renderer: Octane 3.0
- IGES (.ige, .igs, .iges)113 MB
- STEP (.stp)32.3 MB
- OBJ (.obj, .mtl)103 MB
3D Model details
- Publish date2023-03-10
- Model ID#4351767
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 1,440,730
- Vertices 4,322,190
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
