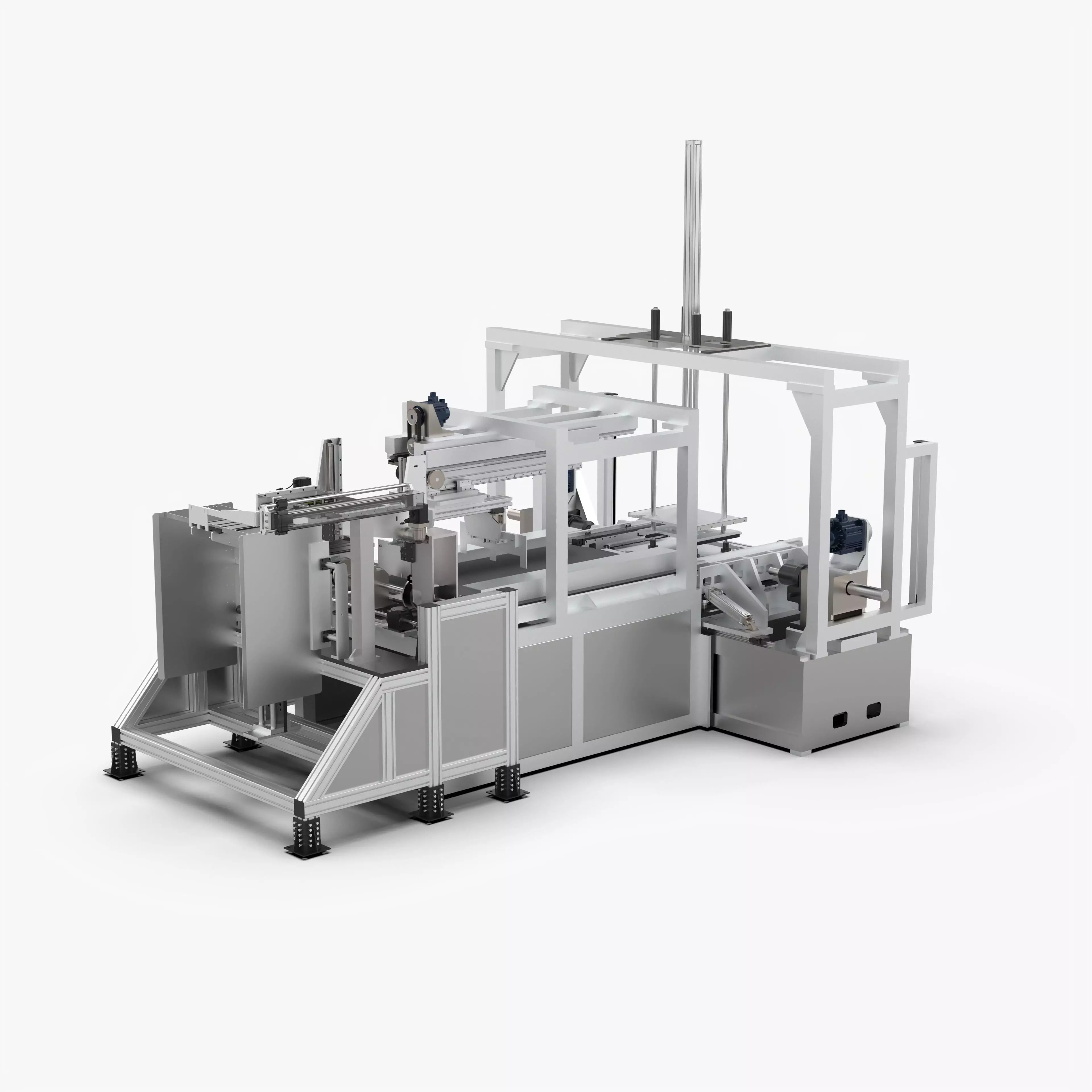

Automobile Radiator Assembly Machine 3D model

Automobile Radiator Assembly Machine

Introduction

Automobile Radiator Assembly Machine, Automobile Condenser Assembly Machine, Automobile Radiator

Production Line:

1. Main board distance (direction of main board): 350-800mm.
2. Core width (side direction): 350-800mm.
3. Fin wave height: 4.9-8mm. (Specific waveform: 4.9; 5.4; 6; 7.5; 8)
4. Fin width: 12-32mm. (Specific width: 12; 16; 18; 22; 26; 32)
5. Thickness of flat tube (condenser): 1.0-1.8mm, length within 800mm.
6. Flat tube width: 12-32mm. (specific width: 12; 16; 18; 22; 26; 32)

File Formats

• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 3,443,795
• Vertice: 10,331,385
