Single Opening Window 3D model

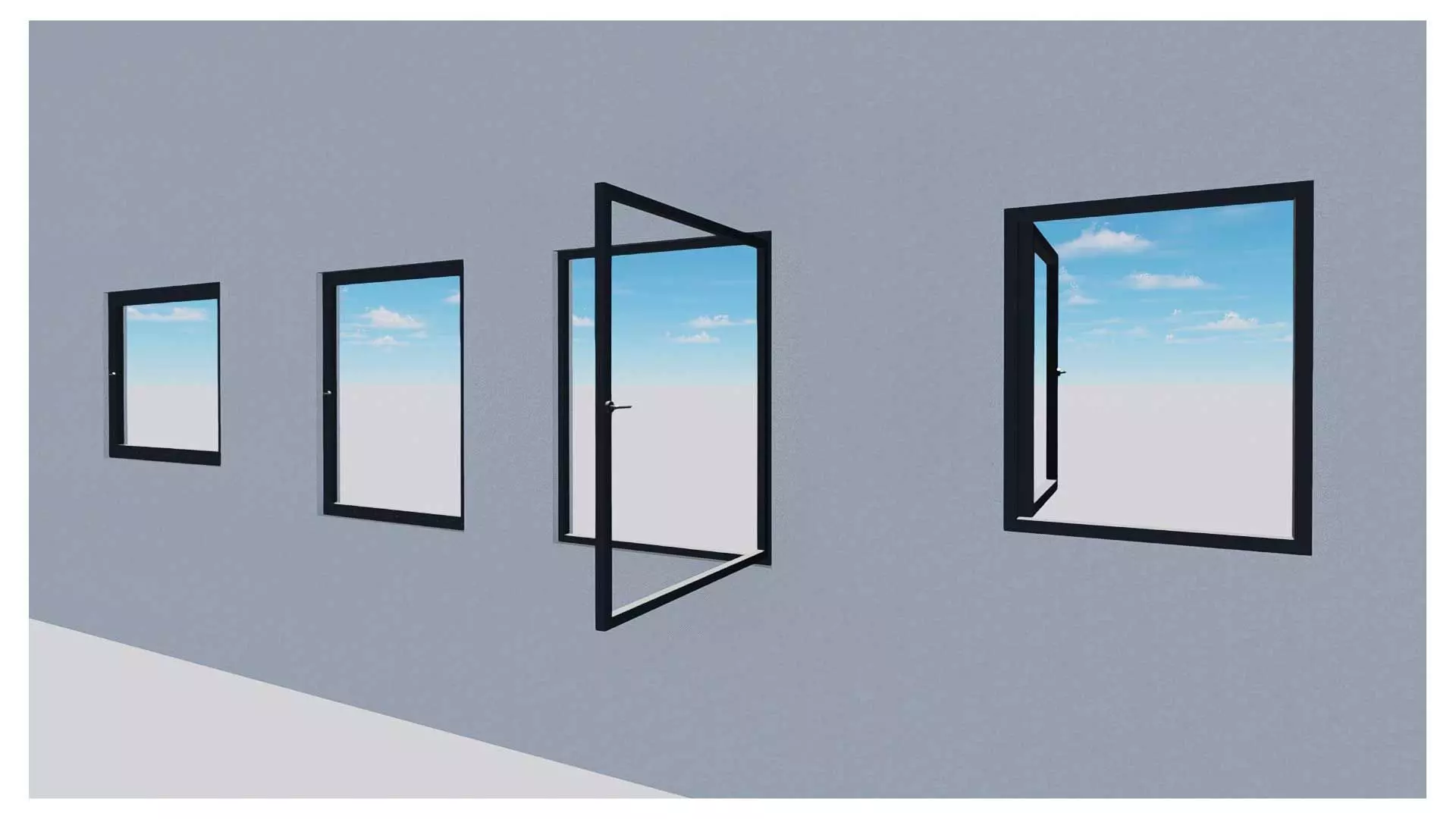

Fully Parametric Revit family model for a Single Opening Window. This is a window wall-based revit family that can be placed onto any thickness wall in any revit project.

Family has options for customising and matching any design criteria. Window can be flipped both on vertical and horizontal axes. One can flip the window on its axis for changing the opening side of the window either in the interior or the exterior side of a building.

Other parameters control whether or not a handle will be placed on the opening side or the opposite side or both. Sill height in relation tot he reference floor can be controlled as well as the option to turn on and off the window sill of 20mm thickness.

There is also a graphical represantation option to show the window either open or closed.

ATTRIBUTES:

• Revit Version : 2022
• Family Type : Window Wall-Based
• File Extension : .rfa

PARAMETERS:

• Window Width and Height
• Window Panel Frame Width and Depth
• Frame Width
• Glass Thickness
• Opening Side Window Offset in relation to wall face
• Handle option ( both sides )
• SIll Option ON/OFF
• Open / Closed Graphical Representation Option
• Sill Height from floor reference
• All Materials

FAMILY TYPES:W1200xH1000mm, Sill 1100mm, Open Inside, 20mm Glass, Frame 40mmW1000xH1200mm, Sill 900mm, Open Inside, 20mm Glass, Frame 30mmW1200xH1000mm, Sill 1100mm, Open Outside, 20mm Glass, Frame 40mmW600xH1300mm, Sill 900mm, Open Outside, 20mm Glass, Frame 40mmW600xH1500mm, Sill 900mm, Open Inside, 20mm Glass, Frame 40mm

Many more family types can be created by the user to match the architectural design.
