Parametric Revit Multiuse Table Chair Configuration Setup Family 3D model

Introducing the Fully Parametric Revit Multiuse Table and Chair Configuration Family – the ultimate solution for architects, designers, and professionals seeking versatile and customizable furniture layouts.

With our innovative Revit family, you can effortlessly create tables suitable for various settings such as dining areas, conference rooms, collaborative spaces, and more. This parametric system empowers users to select from a wide range of preset table sizes and chair configurations, or even create their own custom setups.

Automatic and Custom table size creation

Just select the number of chairs and the table size is automatically calculated for the optimised setup, or select to create a custom size table.

The flexibility of our product knows no bounds. Our Revit family allows you to seamlessly adapt the table size and chair arrangement to meet the specific requirements of any space.

Chair spacing option

With intuitive controls, you can easily adjust the spacing between chairs to ensure comfort and accessibility, while dynamically modifying the table size allows you to create a perfect fit for any space, empowering you to design functional and inviting environments with ease.

Multi-use table and chair configuration setups

Our Revit family integrates seamlessly into your workflow. Simply import the family into your Revit project, and you’ll have access to an extensive library of tables and chairs, fully customizable to suit your project’s needs.

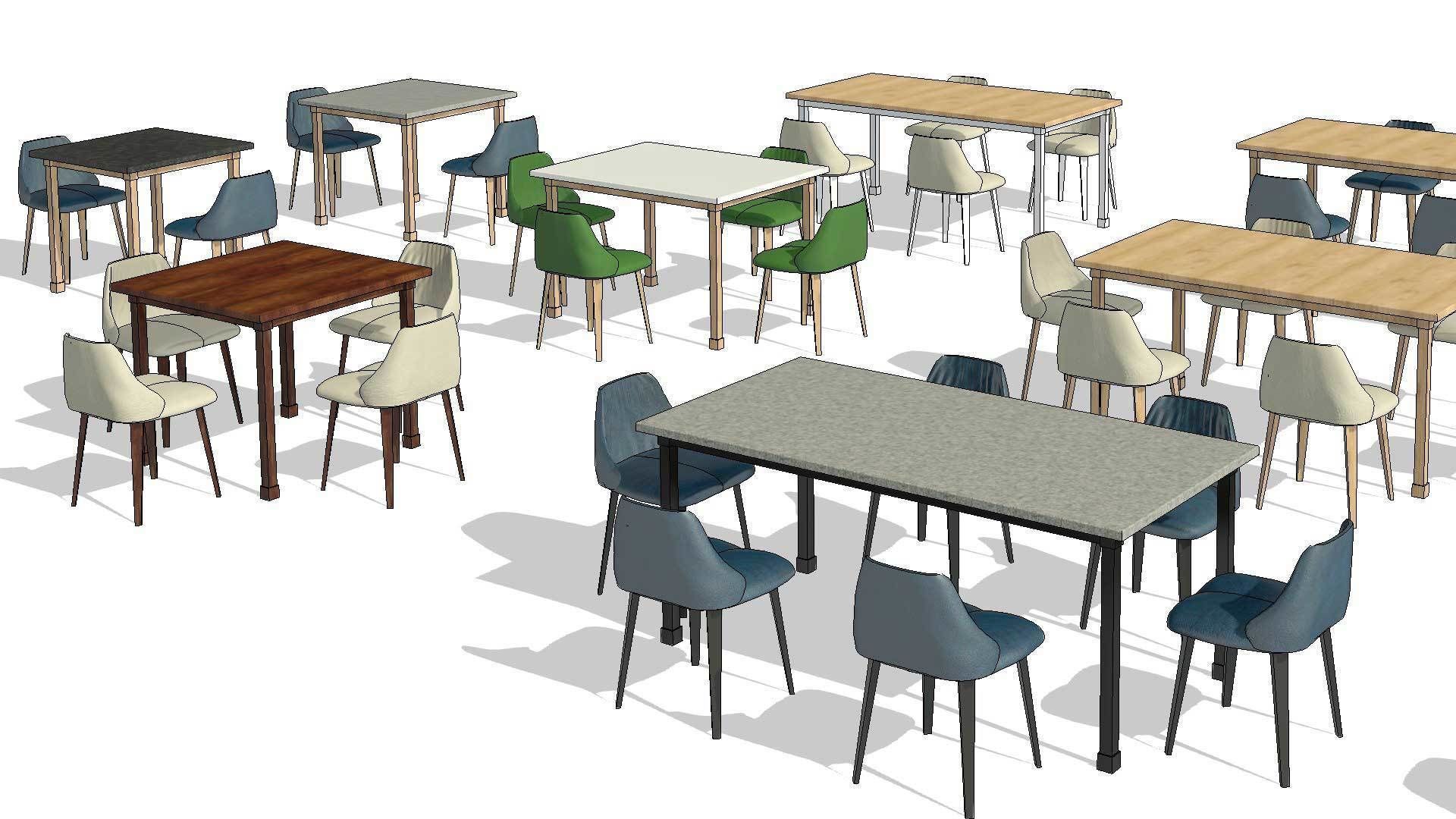

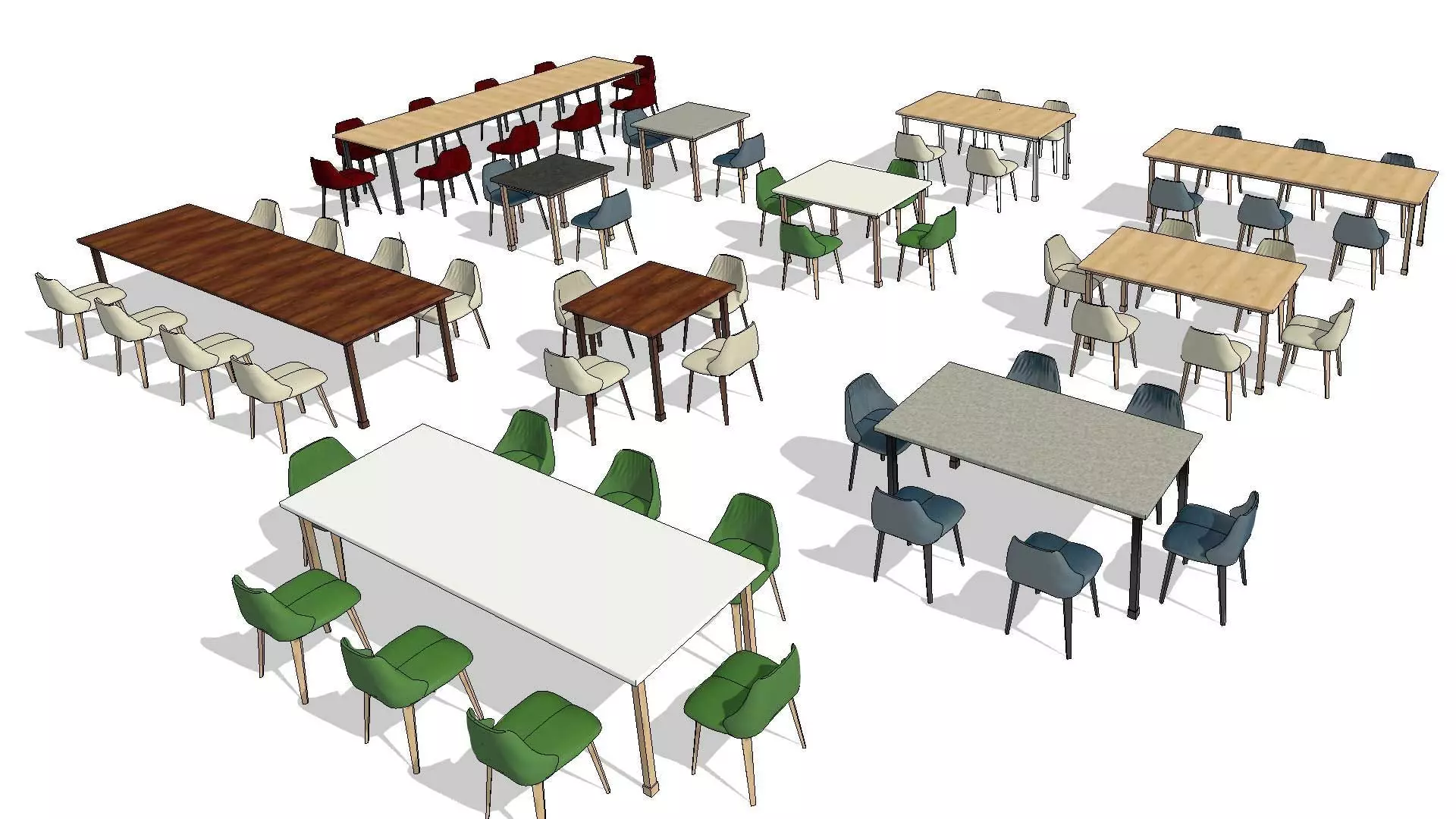

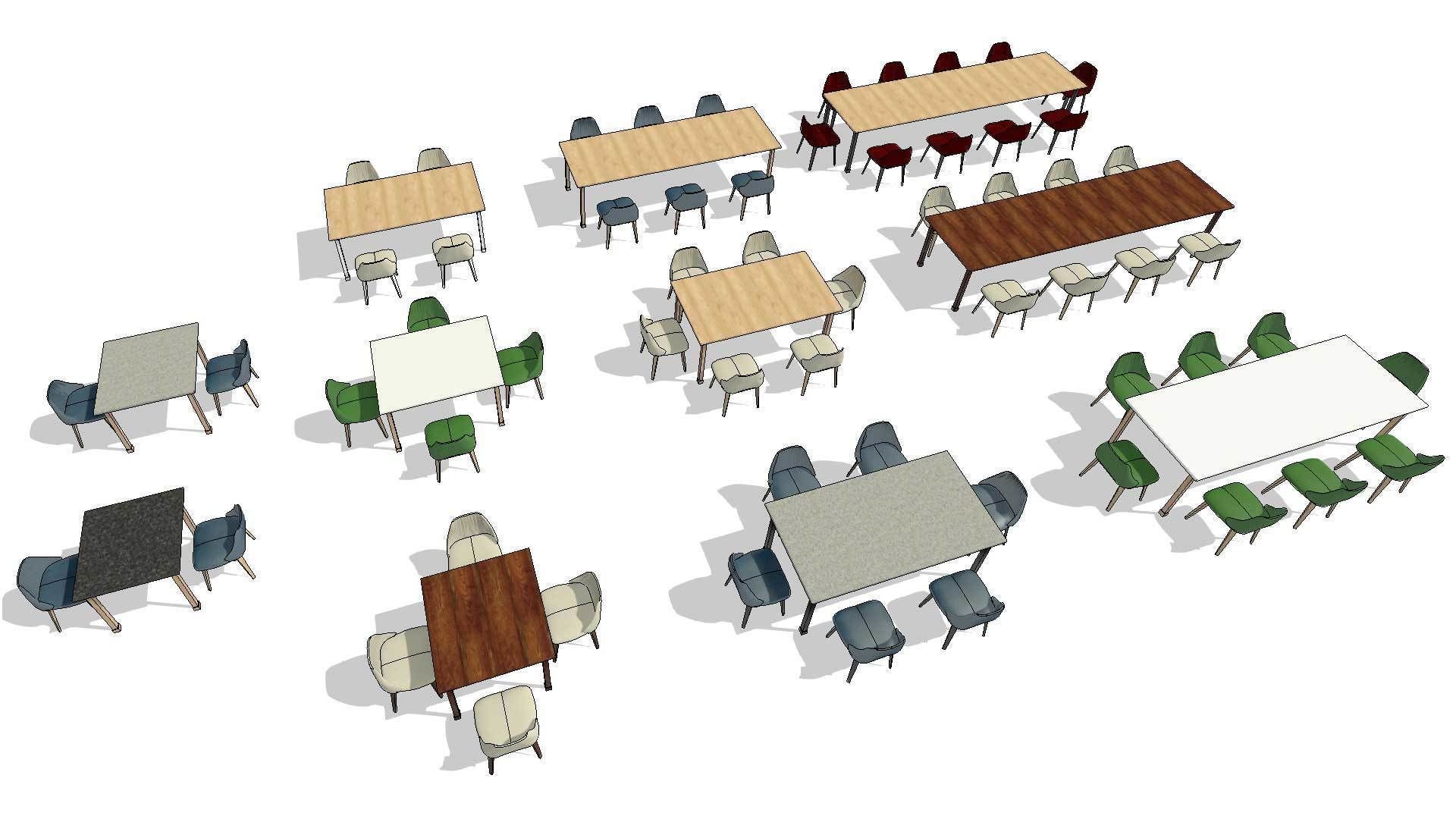

Either select one of the pre-made table setups from the family types selection, or create a unique custom setup that matches your project design. Effortlessly create tables suitable for various settings such as dining areas, conference rooms, collaborative spaces, and more.

The flexibility of our product knows no bounds. Need a large conference table with executive chairs? No problem. Planning a cozy dining area with intimate seating? Consider it done. Our Revit family allows you to seamlessly adapt the table size and chair arrangement to meet the specific requirements of any space.

PARAMETERS

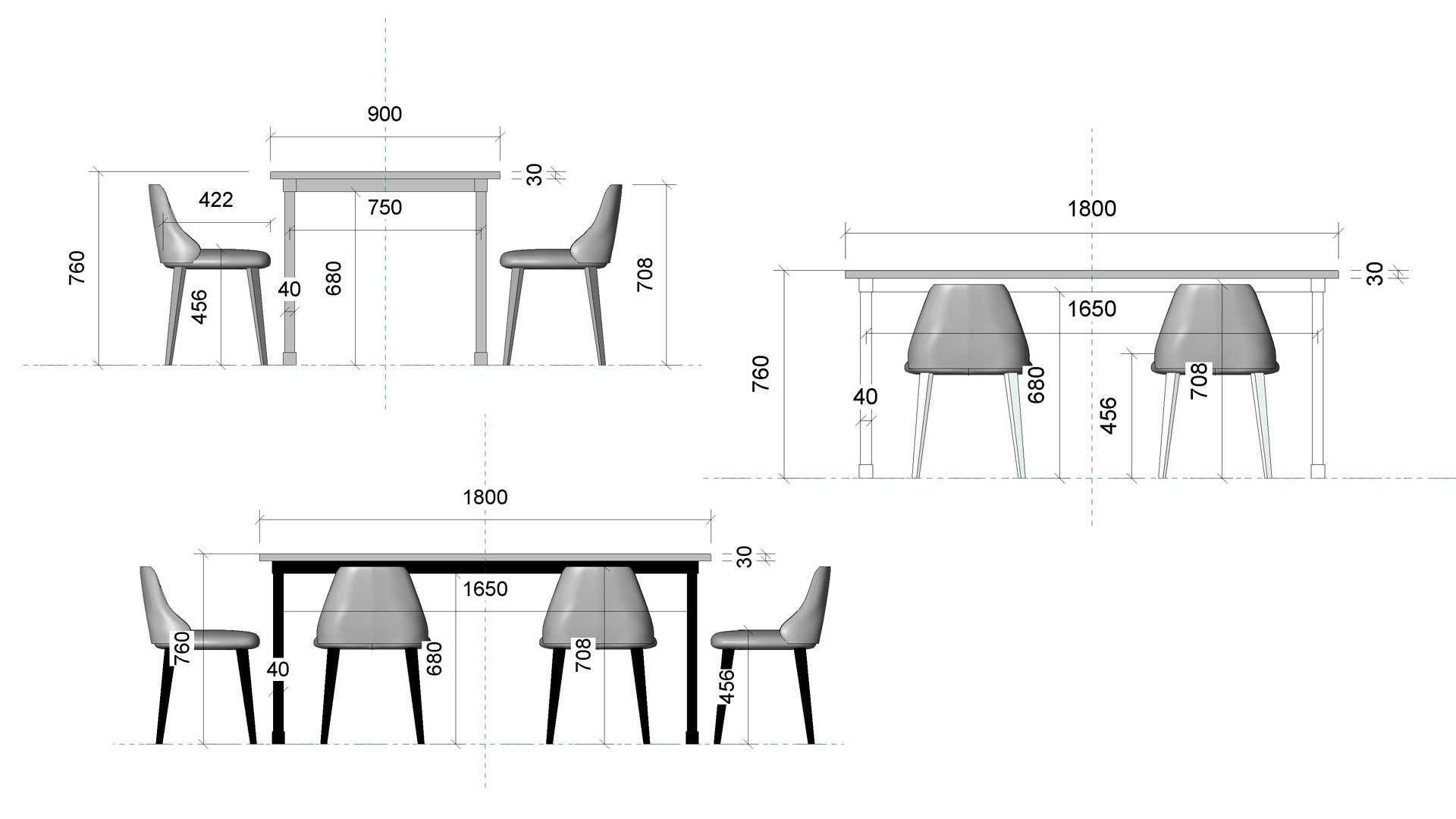

Turn on/off chairs at the head of table Number of chair sets Chairs spacing Selection for automatic or custom table length Table width Table top thickness Table legs width All materials *NOTE: Table height is set to 760mm which is the optimised height and cannot be altered.

ATTRIBUTES

Revit version : 2022 Family Type : Generic Model File Extension : .rfa PRESET FAMILY TYPES

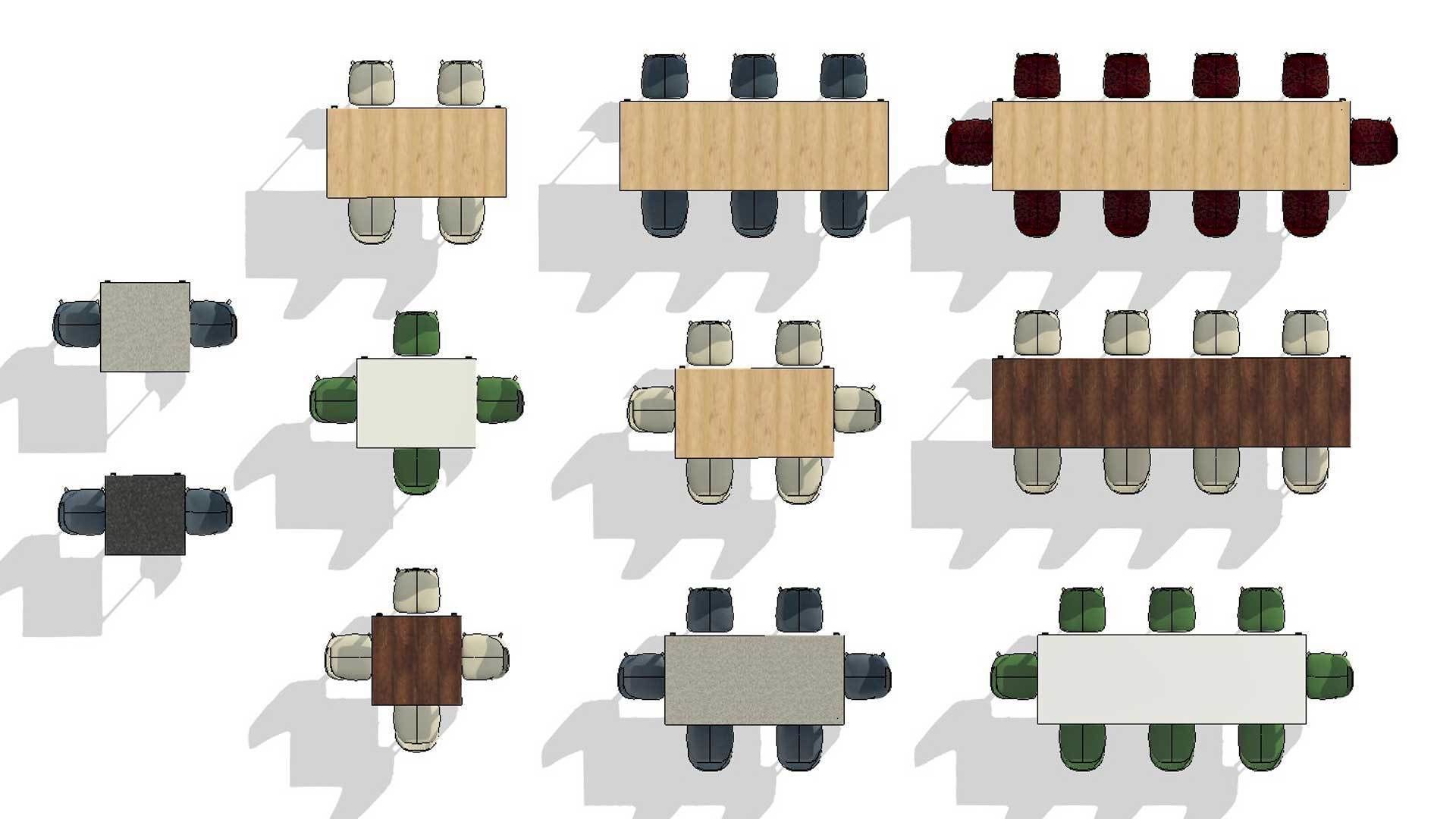

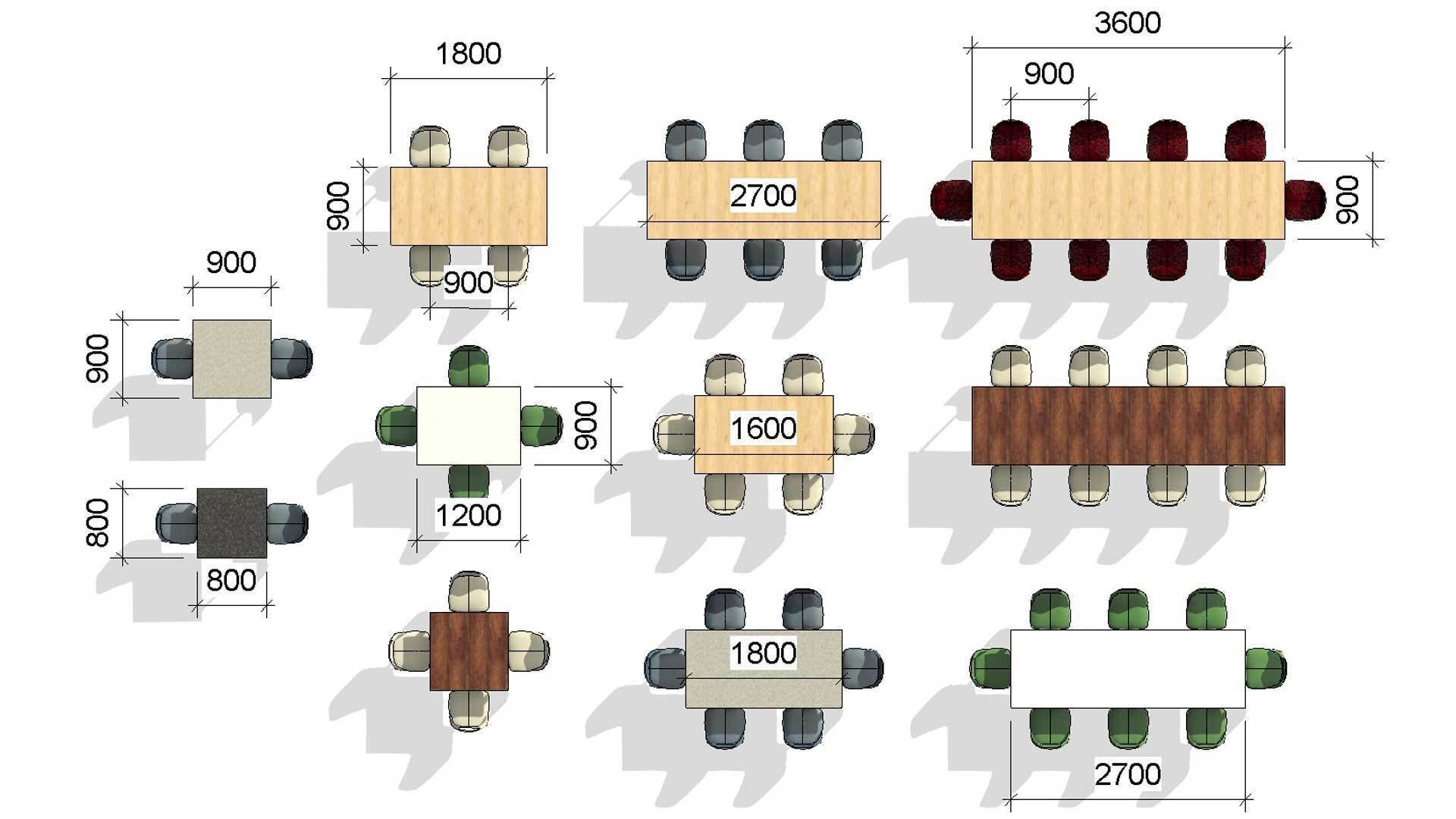

2 Seats Square 900x900mm 2 Seats Square 800x800mm 4 Seats Square 900x900mm 4 Seats, 2×2, 900x1600mm, 800mm Spacing 4 Seats, 900x1200mm 4 Seats,2×2, 900x1800mm, 900mm Spacing 4 Seats, 2×2, 900x1400mm, 650mm Spacing 6 Seats,2+2×2, 900x1800mm, 900mm Spacing 6 Seats, 2×3, 900x2700mm, 900mm Spacing 6 Seats, 2+2×2, 900x1600mm, 800mm Spacing 6 Seats, 2×3, 900x2100mm, 700mm Spacing 8 Seats,2+2×3, 900x2700mm, 900mm Spacing 8 Seats, 2×4, 900x3600mm, 900mm Spacing 8 Seats,2+2×3, 900x2250mm, 750mm Spacing 8 Seats, 2×4, 900x3200mm, 800mm Spacing 10 Seats, 2+2×4, 900x3600mm, 900mm Spacing
