Bath Shower Glass Screen 3D model

This is a REVIT family generic model for a bath and shower glass screen. The family is fully parametric with many options to match any design requirement.

Model can be placed on any project as a generic model on any work plane. The user can specify the height offset from the floor level to match any bathtub size and shower tray height. Model can be flipped on both horizontal and vertical axis for correct placement according to the design.

There are options to turn on and off the fixed part attached to a wall, option to turn on and off the inside and outside door handle, all dimensions are fully parametric.

ATTRIBUTES:

• REVIT VERSION 2022
• FAMILY TYPE: GENERIC MODEL
• FILE EXTENSION: .rfa

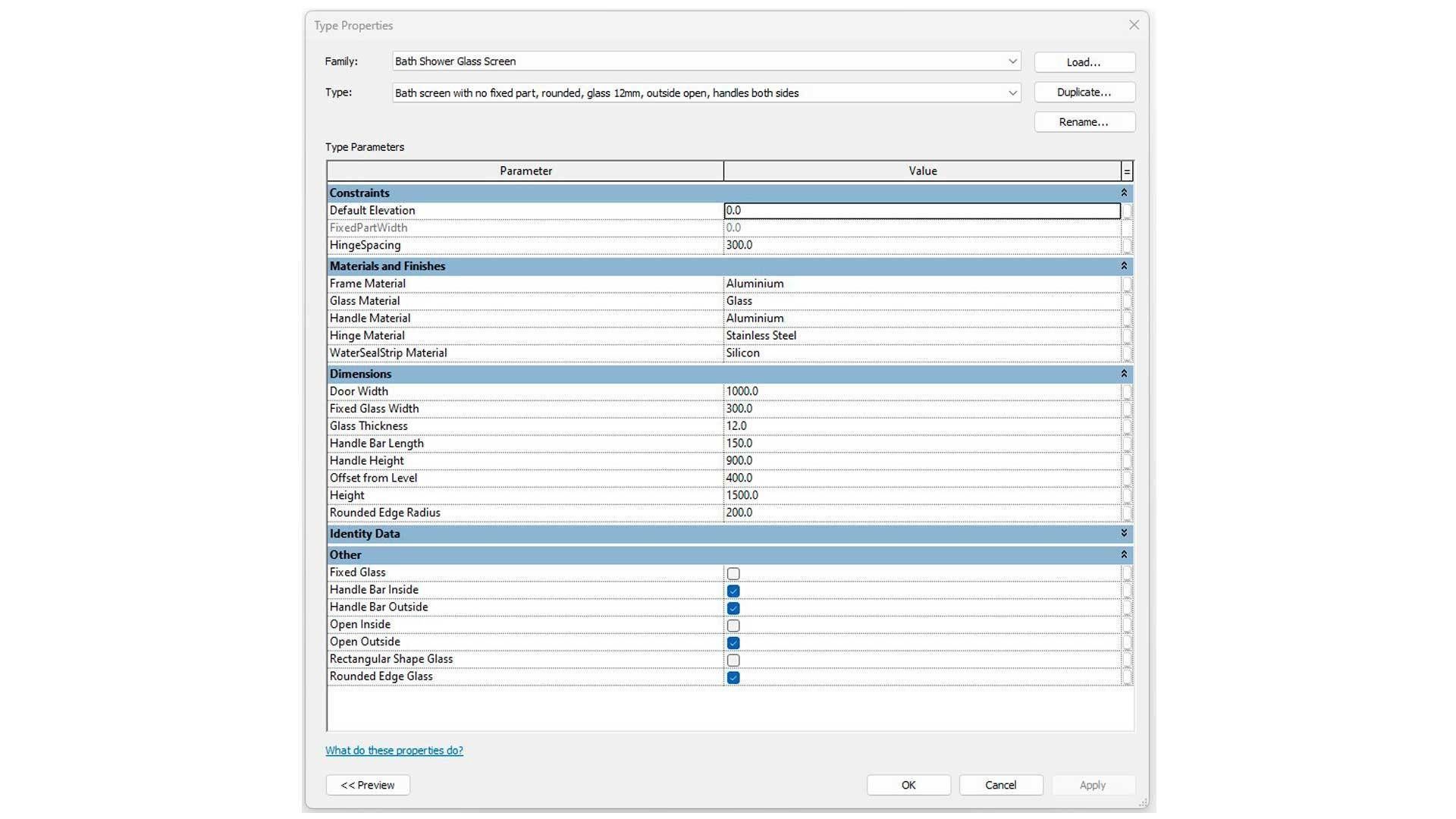

PARAMETERS:

• Fixed Screen Option to tunr on and off
• Fixed Screen Width
• Door Width
• Offset from floor level
• Screen Height
• Glass thickness
• Handle Bar Height
• Hendle Bar Length
• Rectangular and Rounder edge option with radius parameter
• Handle bar inside/outside option
• Swivel door open inside/outside option
• Materials ( frame, glass, hinge, handle, seal strip )

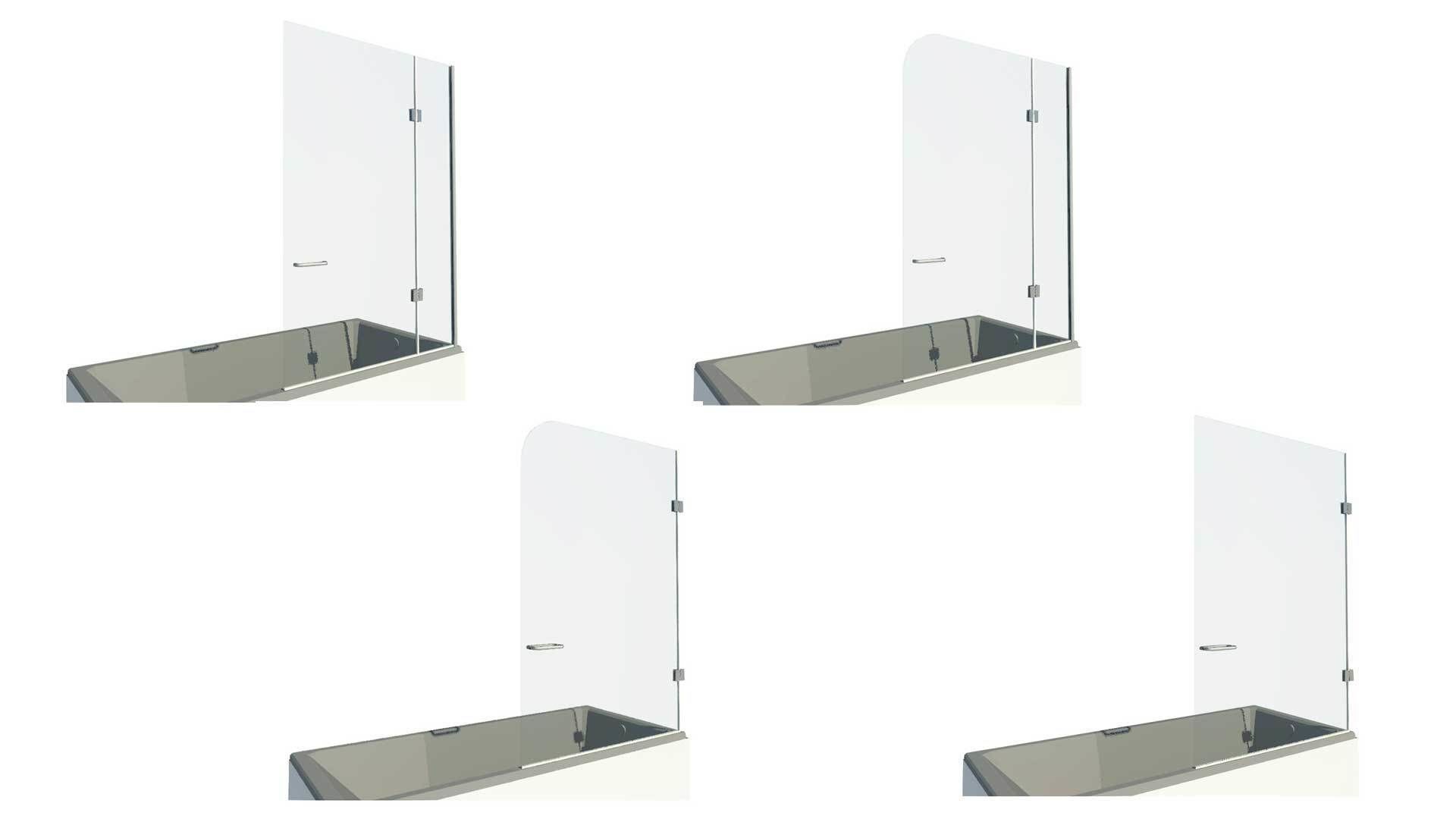

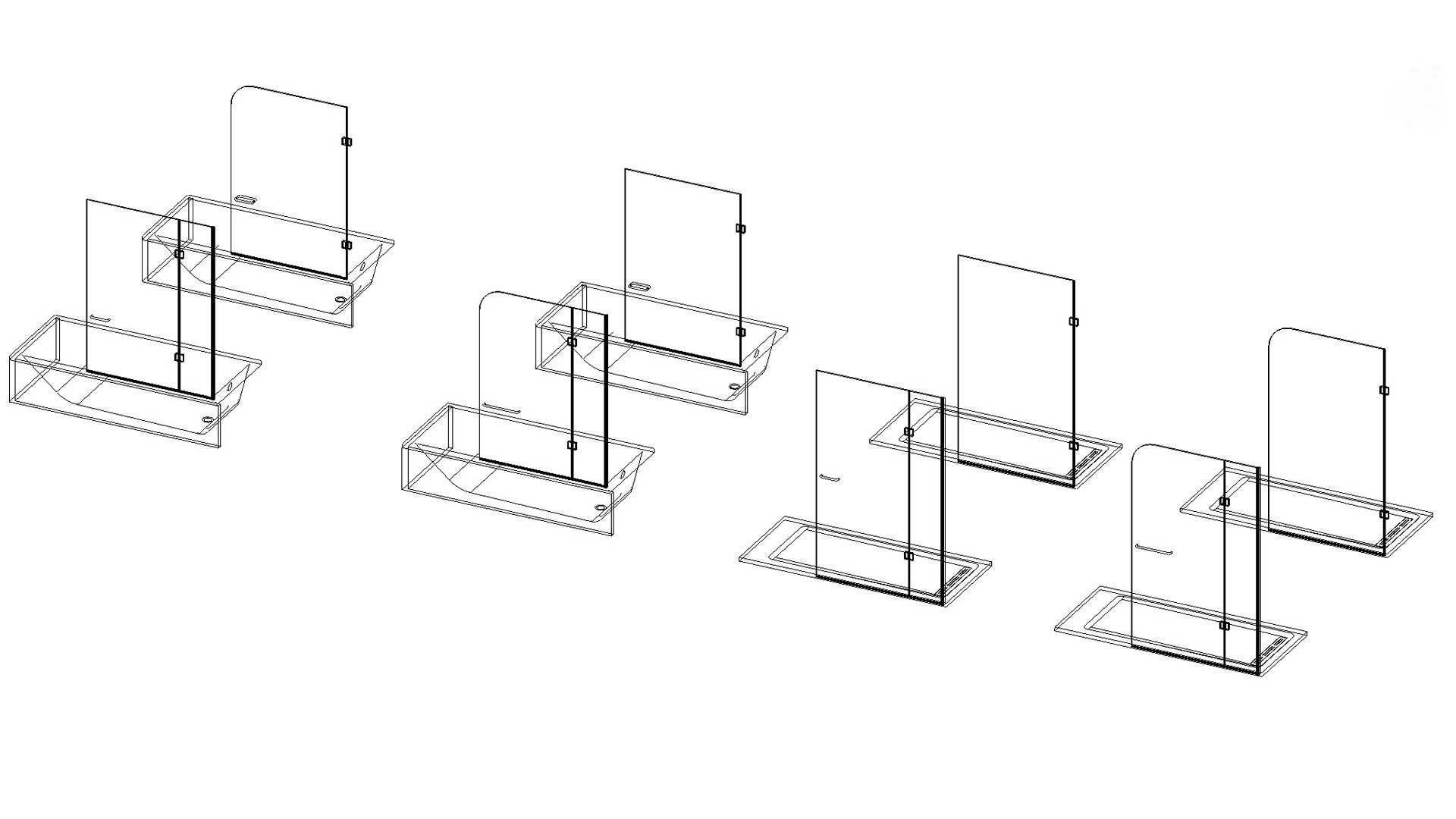

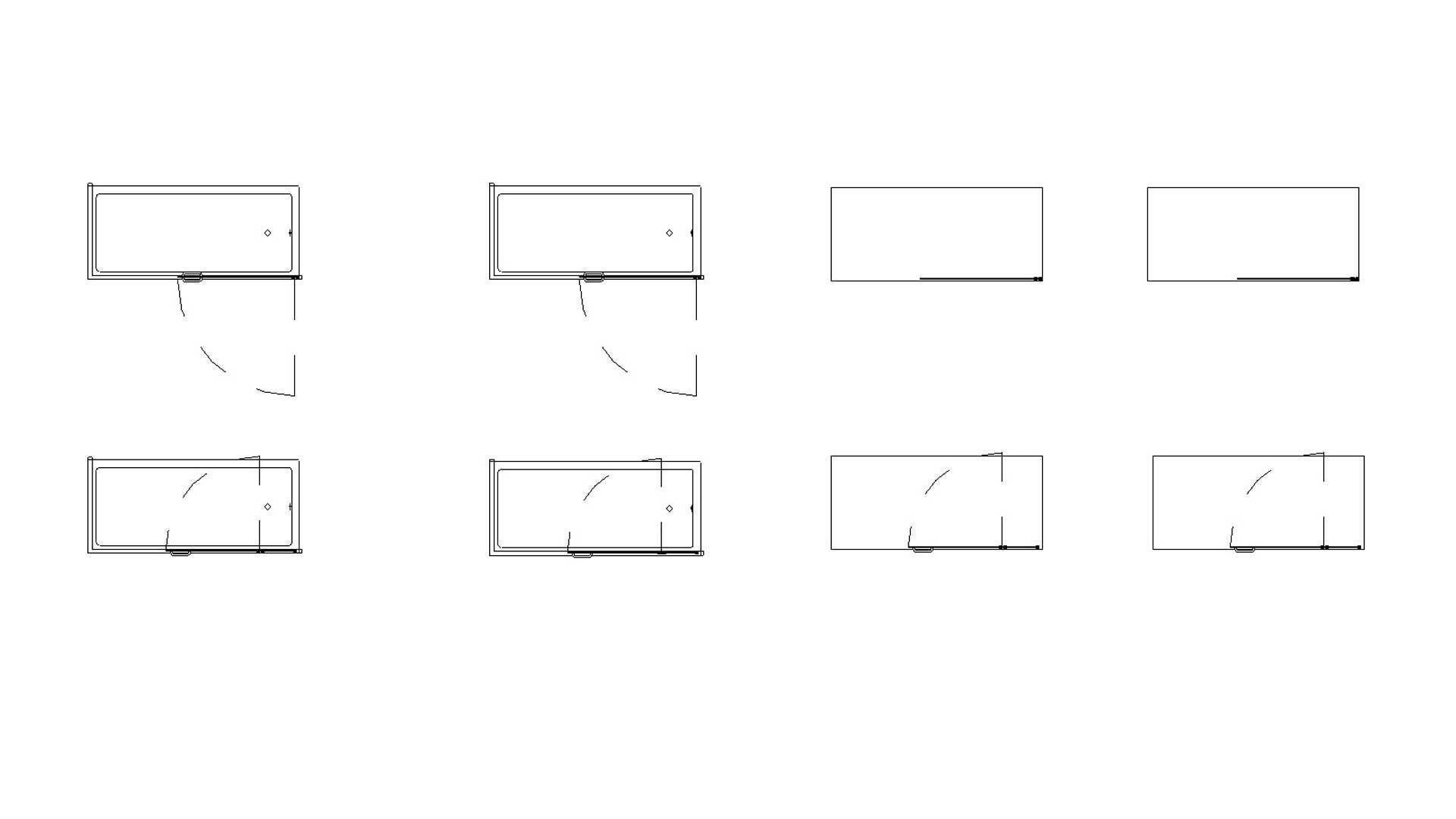

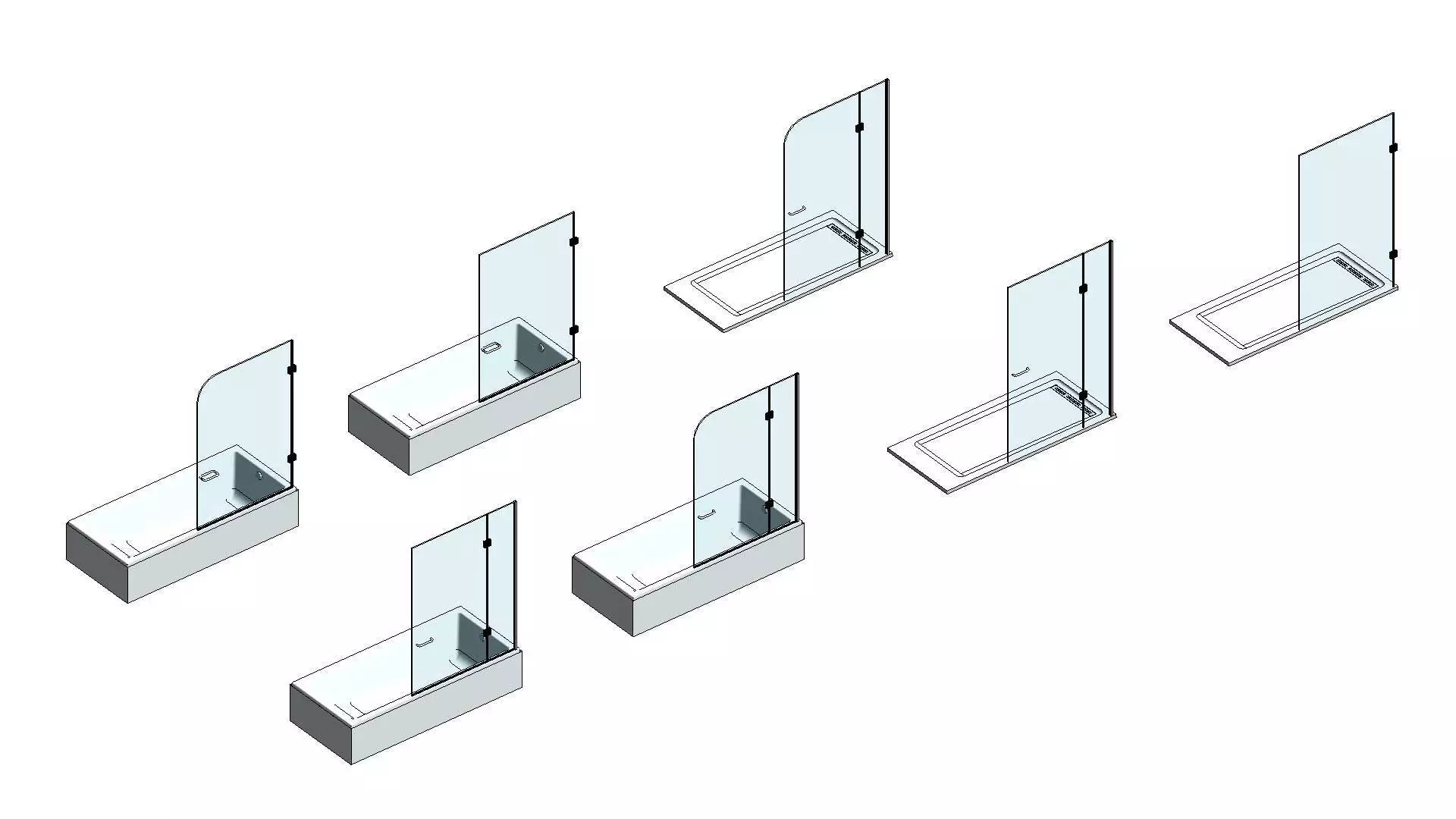

FAMILY TYPES:Bath screen with fixed part, Rectangular, Glass 10mm, Inside Open with handleBath screen with fixed part, Rounded, Glass 10mm, Inside Open with handleBath screen with no fixed part, Rectangular, Glass 12mm, Outside Open, handles both sides

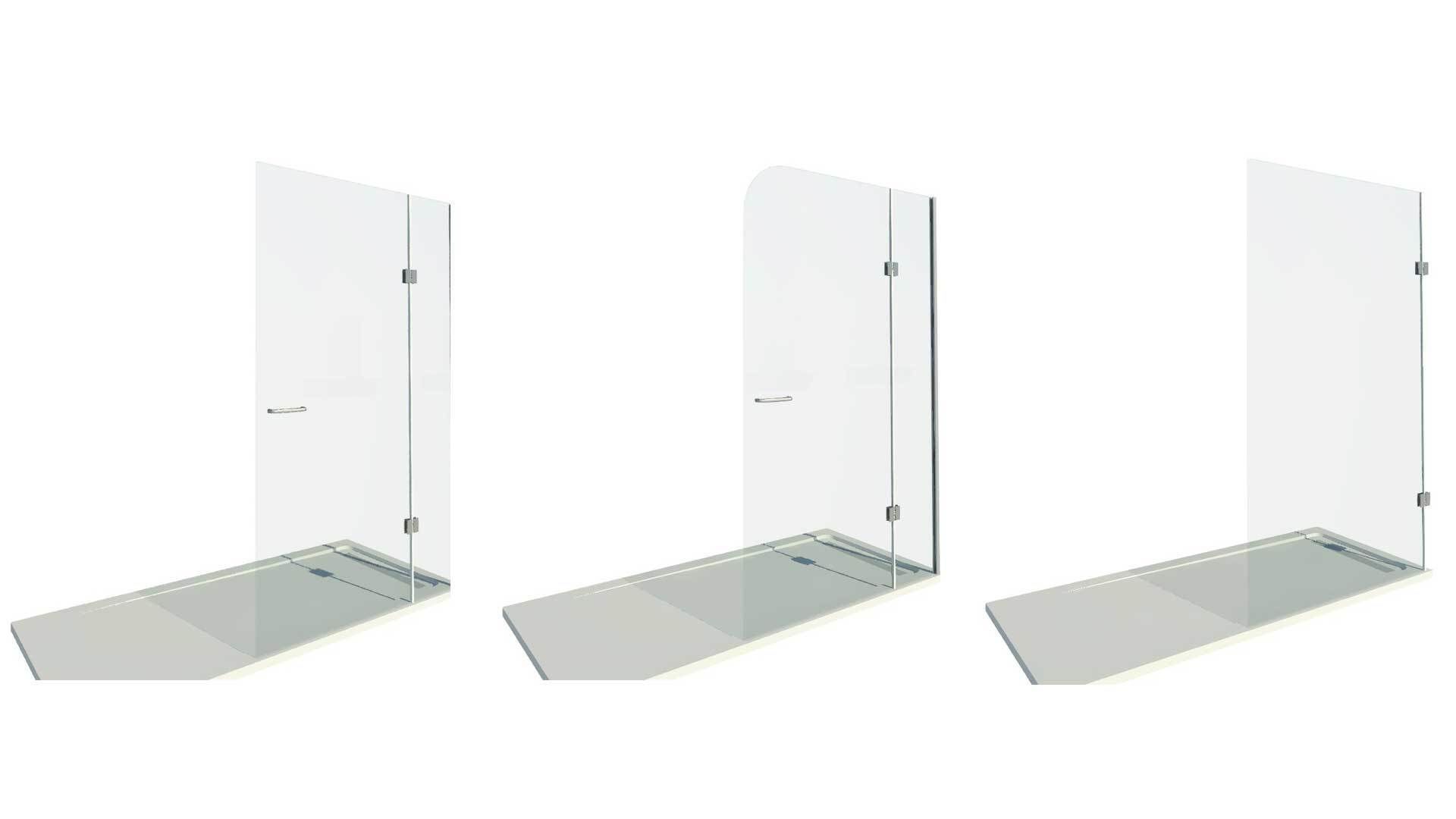

Bath screen with no fixed part, rounded, glass 12mm, outside open, handles both sidesShower screen with fixed part, rectangular, glass 12mm, inside open with handleShower screen with fixed part, rounded, glass 12mm, inside open with handleShower screen with no fixed part, fixed door, rectangular, glass 12mm, no handle

User can create many more variations using the parameters available to create any desired design to match every project.
