Steel Pedestrian Bridge - Two Columns-Pipe Rail-Straight Type-5

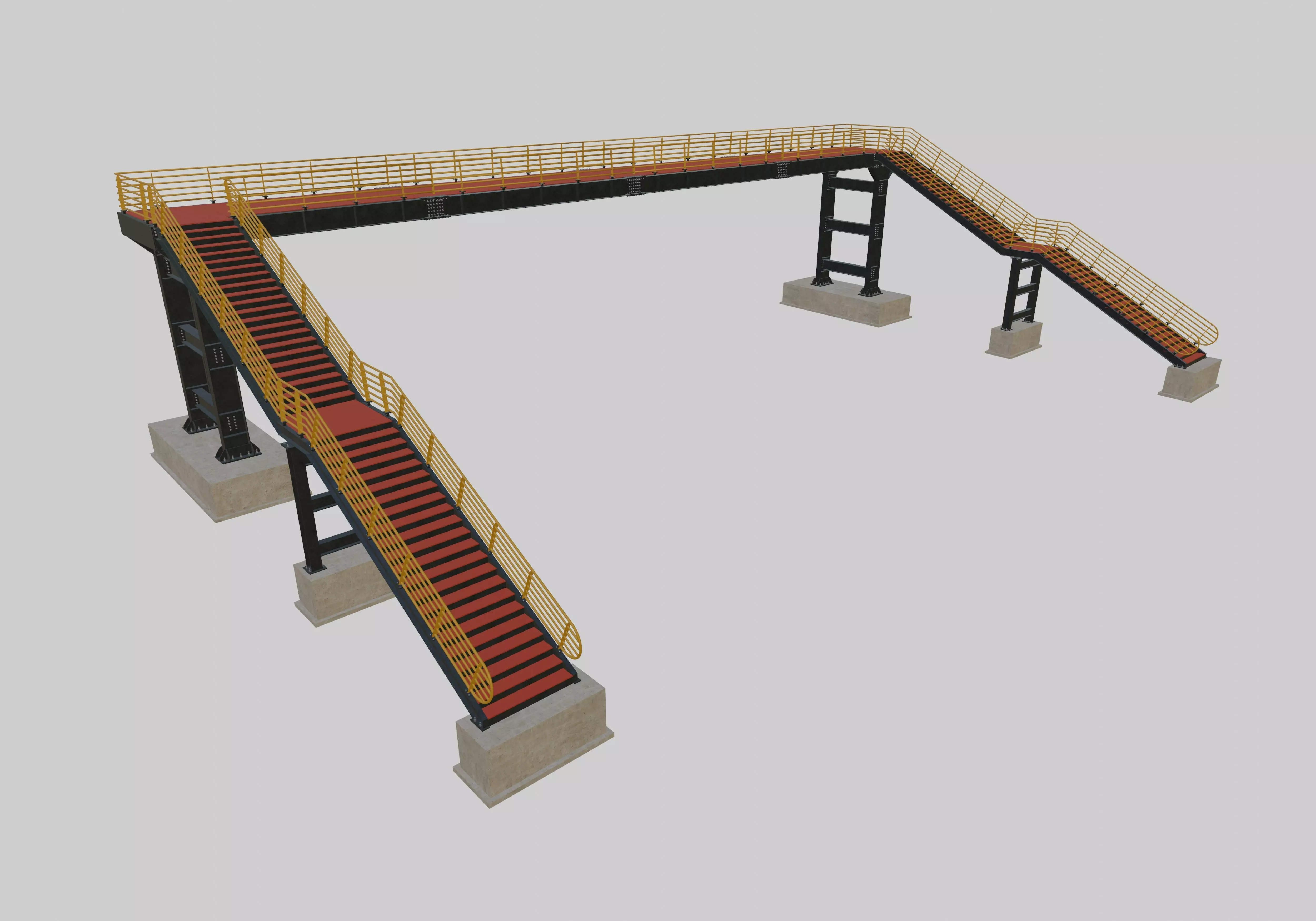

Steel Pedestrian Bridge - Two Columns-Pipe Rail-Straight Type-5 3D model

Description

Steel Pedestrian Bridge

Two Column Consruction

Open Top Construction

Straigth Beam Type

Straight Column Type

Named Objects

Largest Column Span : 30 mt.

Distance Between Two Columns : 30 mt.

Platform Asphalt Height : 6 mt.

Platform Width : 3 mt.

Column Raft Concrete : width 2,5 mt * length 6 mt. * height 1 mt.

Stairs Raft Concrete : width 1 mt * length 2,5 mt. * height 1 mt.

Stairs Straight Type

Stair Step Width : 1,8 mt.

Step Sizes : 300 mm. * 150 mm.

Pipe Railing Construction

Railings Pipe Profile

Platform And Columns With Bolted Connection

Walking Surface : 2 cm. Rubber Flooring

Prepared With BLENDER Version 2.93.5

Polygons : 97717

Vertices : 166168

Objects : 1914

Item rating
0 0
Steel Pedestrian Bridge - Two Columns-Pipe Rail-Straight Type-5
$16.00

Royalty Free License
Steel Pedestrian Bridge - Two Columns-Pipe Rail-Straight Type-5
$16.00

Royalty Free License
Available in these collections
Response 83% in 0.5h

3D Model formats

Format limitations
Native
  • Blender 2.93.5 (.blend)25.1 MB
Exchange

    3D Model details

    • Publish date2022-04-17
    • Model ID#3705381
    • Animated
    • Rigged
    • VR / AR / Low-poly
    • PBR
    • Geometry Polygon mesh
    • Polygons 97,717
    • Vertices 166,168
    • Textures
    • Materials
    • UV Mapping
    • Unwrapped UVs Unknown
    • Plugins used
    • Ready for 3D Printing
