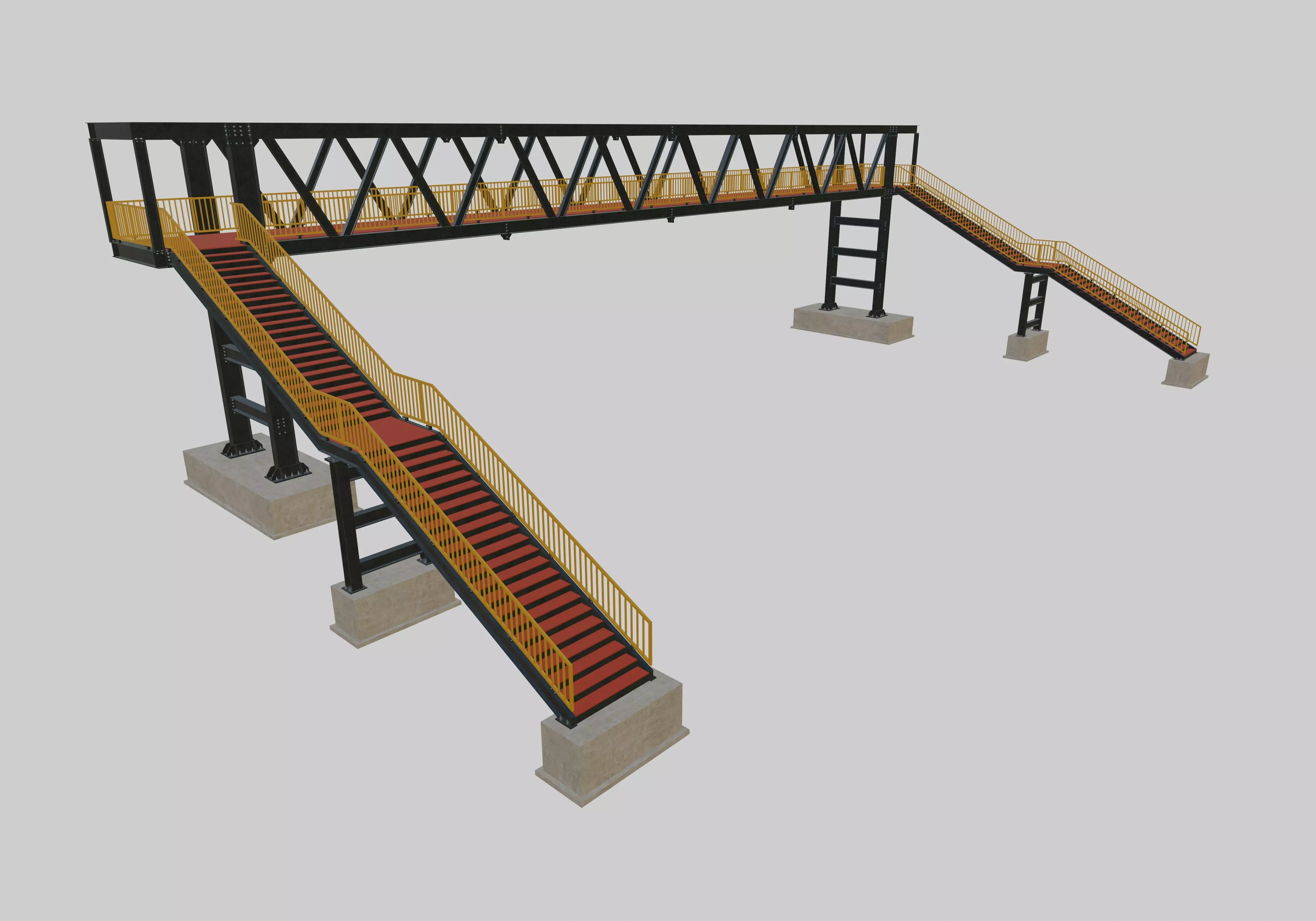

Steel Pedestrian Bridge - Two Columns - Truss Type-9 3D model
Description
Steel Pedestrian Bridge
Truss Type Platform Construction
Two Column Consruction
Open Top Construction
Straigth Beam Type
Straight Column Type
Named Objects
Largest Column Span : 32,76 mt.
Distance Between Two Columns : 32,76 mt.
Platform Asphalt Height : 6 mt.
Platform Width : 3 mt.
Platfrom Truss Heigth : 3 mt.
Column Raft Concrete : width 2,5 mt * length 6 mt. * height 1 mt.
Stairs Raft Concrete : width 1 mt * length 2,5 mt. * height 1 mt.
Stairs Straight Type
Stair Step Width : 1,8 mt.
Step Sizes : 300 mm. * 150 mm.
Flat Railing Construction
Railings Box Profile
Platform And Columns With Bolted Connection
Walking Surface : 2 cm. Rubber Flooring
Prepared With BLENDER Version 2.93.5
Polygons : 98657
Vertices : 165356
Objects : 3756
Steel Pedestrian Bridge - Two Columns - Truss Type-9
Royalty Free License
Steel Pedestrian Bridge - Two Columns - Truss Type-9
Royalty Free License
Available in these collections
- Steel Pedestrian Bridge Collection (31 items)$496.0$330.0save 33%
3D Model formats
Format limitations
Native
- Blender 2.93.5 (.blend)32.7 MB
Exchange
3D Model details
- Publish date2022-04-17
- Model ID#3705449
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 98,657
- Vertices 165,356
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
