Space-X Raptor BFR Engine Simplified Printable Model

Space-X Raptor BFR Engine Simplified Printable Model 3D print model

Description

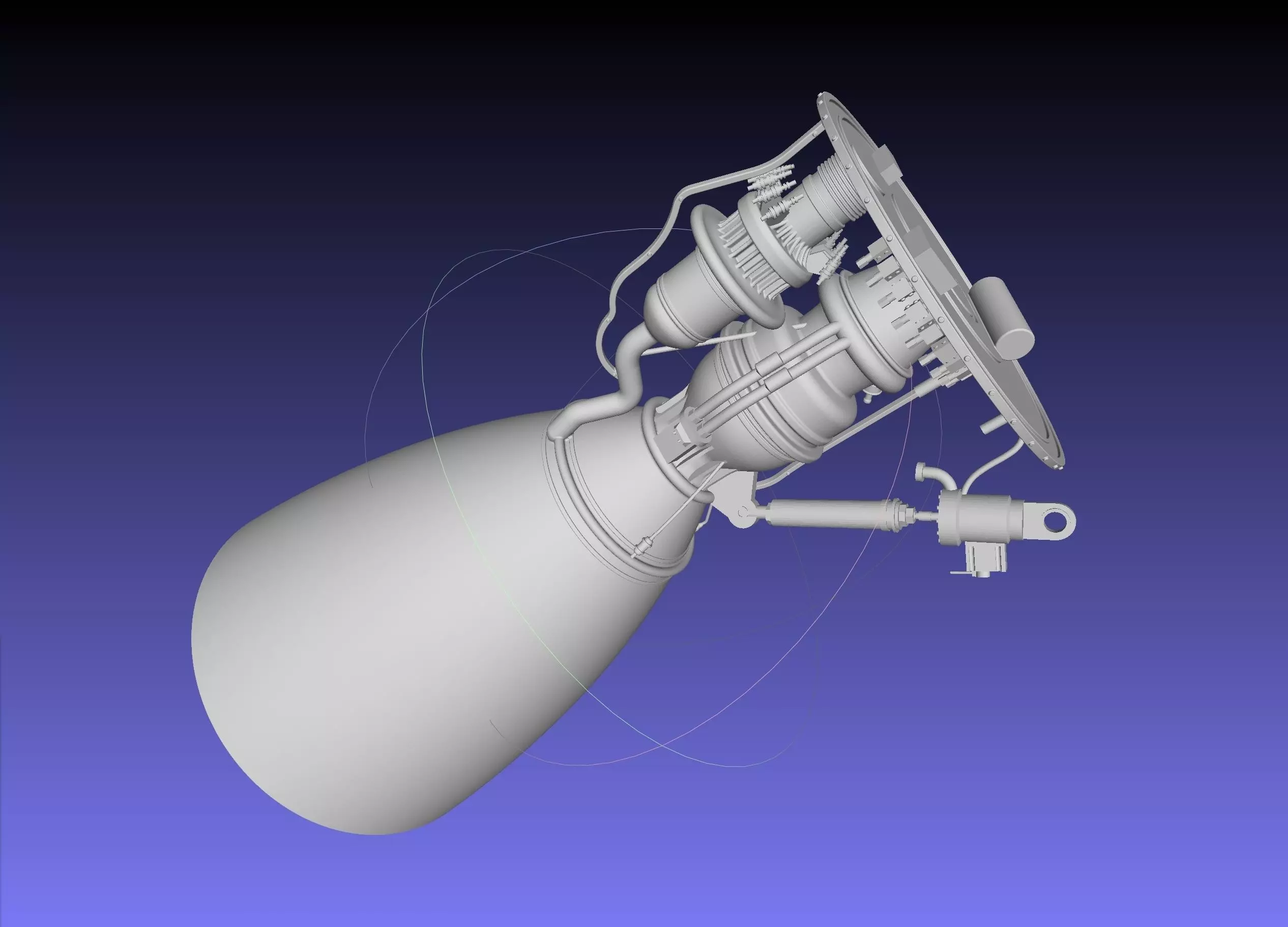

A rough model of the Raptor rocket engine developed by Space-X for the BFR/Starship system simplified and optimized for printing the model is true scale meaning the lower engine bell diameter is about 1.3 meters but it's designed to be printed at about 1/10 scale with a regular nozzle diameter, thus details have been thickened or left out if htey are too small for this The Raptor is a conceptually optimized rocket engine combining thrust to weight ratio and efficiency with relatively easy to store fuels (compared to hydrogen) which can be acquired on mars since it is powered by liquid methane and liquid oxygen - in order to increase efficiency compared to other designs it also uses two turbopumps burning oppositely saturated mixtures allowing it to use the full energetic potential of the fuel without overheating the turbopump

Item rating
2 0
P
plcarpenter 2020-06-01 02:02:18 UTC
Recommended
Excellent model with lots of detail. No problems printing.
Space-X Raptor BFR Engine Simplified Printable Model
$10.08

Royalty Free No Ai License
Space-X Raptor BFR Engine Simplified Printable Model
$10.08

Royalty Free No Ai License
Available in these collections
Response 86% in 0.4h
3D Modeling
3D Print Modeling
Hire meView all Designers Models

3D Model formats

Format limitations
Native
  • SolidWorks (.sldprt, .sldasm, .slddrw)8.51 MB
Exchange
  • Other 52.9 MB
  • OBJ (.obj, .mtl) (2 files)47 MB
  • 3D Manufacturing File (.3mf)1.82 MB
  • DXF (.dxf)35.8 MB
  • Stereolithography (.stl) (2 files)29.9 MB
  • IGES (.ige, .igs, .iges)33 MB
  • Collada (.dae)12.7 MB
  • 3D Studio (.3ds)2.44 MB

3D Model details

  • Publish date2018-12-19
  • Model ID#1852002
  • Ready for 3D Printing
