Crawler V306 Front Cab - 1-10 RC body 3D print model

PLEASE make sure your 3D printer is able to print a minimum size of 180x220x158mm before purchasing.

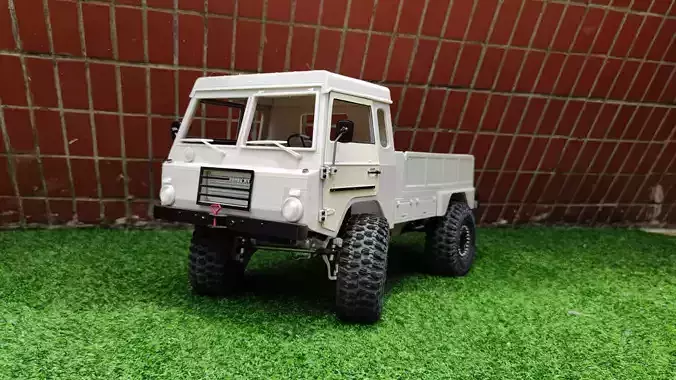

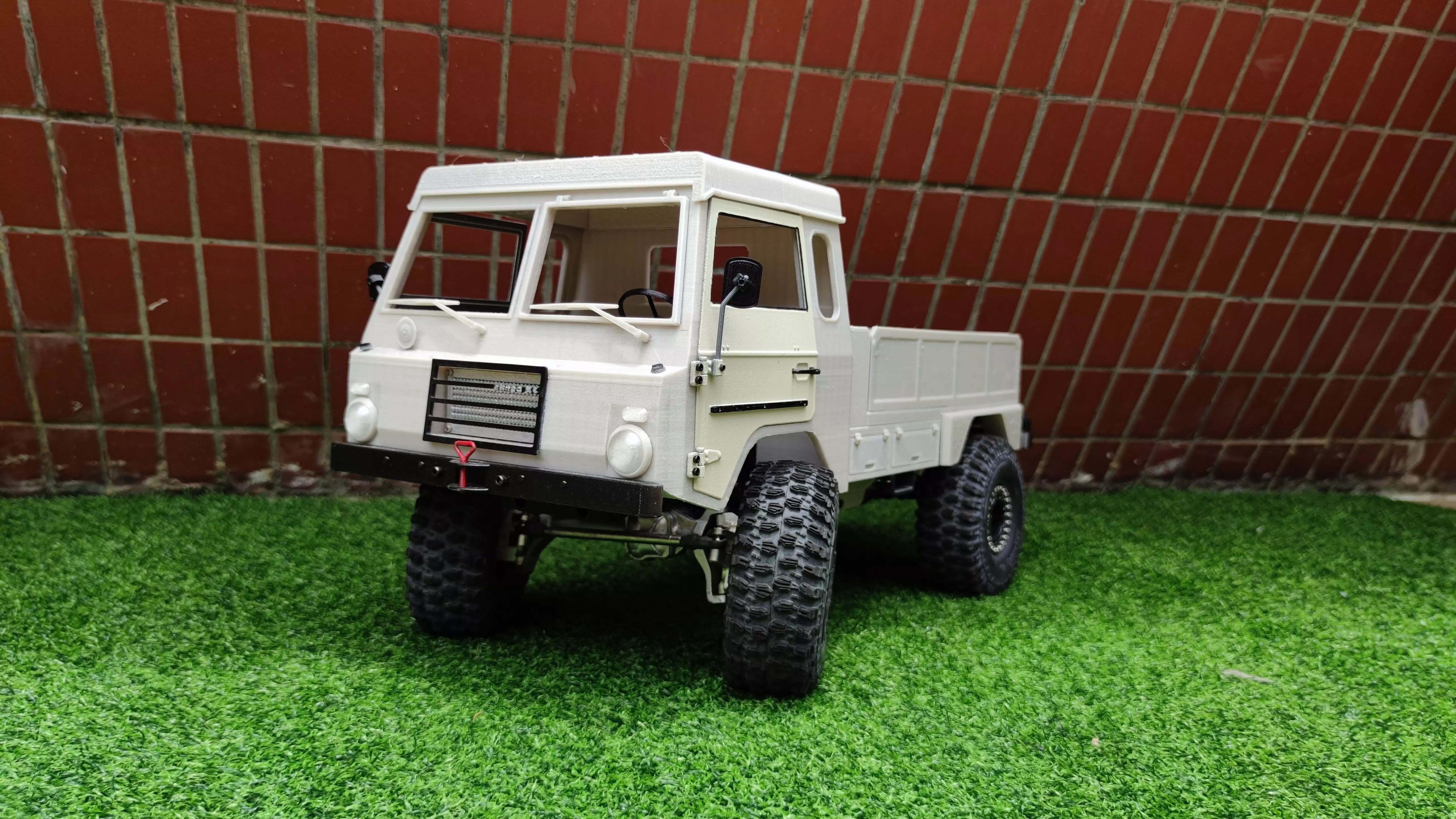

The V306 front cab is a variant of the V303, made to fit on the VS4-10 Pro, SCX10 iii, and TRX4 chassis with the provided mounts.

As this is a front cab only practically all wheelbases will work. The V306 front cab on its own therefore is a good body option for full custom builds. However it was also designed to work together with the 4x4 Flatbed for the V306 (sold separately).

Ideally 110-115mm diameter tyres and 230mm outside tyre to tyre width would give the best scale proportions, however 120mm tyres would also work for a more aggressive off-road setup.

Be sure to check out the instruction manual and gather all required hardware for assembly.

As always features and details are the most important with our designs.

• The doors have in-built hinges, so no need to source your own hinges.
• Windshield can be flipped up or down just like in real life.
• Front bumper towing recovery pin
• Rear bumper towing hook.
• High clearance bumper also included.
• All light buckets are functional, use 5mm and 3mm LEDs.
• Interior door panels with handles.
• Sidesteps.
• Detailed exhaust system.
• Detailed interior dashboard.
• Adjustable mirrors
• Mounts have storage compartments.

Please ensure your printer can print a volume of 180x220x158mm.

It is highly recommended to read the instruction manual before purchasing, to ensure you have all the required tools and hardware to assemble this body.

Assembly instructions:View the link below to download the assembly instructionshttps://www.aheadrc.com/manual

.DXF files for all windows can be found here:https://www.aheadrc.com/dxf-files

Should you need any help, please do not hesitate to contact us!

FDM printing:

Requires a printer that can print a minimum volume of: 180x220x158mm.

PETG filament0.2mm-0.3mm (0.4mm nozzle) layer heights20-30% infill densitySupports are necessary

Finished and assembled size:328*218*177mm (All parts assembled excluding rear bumper and mirrors)
