Parametric Wavy Wooden Panels with Grasshopper

Parametric Wavy Wooden Panels with Grasshopper 3D model

Verification details of the FBX file
Files
Binary FBX
Scene
No unsupported objects
Geometry
No N-gonsNo faceted geometryManifold geometry
Textures and Materials
PBR texturesNo embed texturesSquare texturesPower of 2 texture sizesAssigned materials
UVs
No UV overlapsUV unwrapped model
Naming
Allowed characters
Description

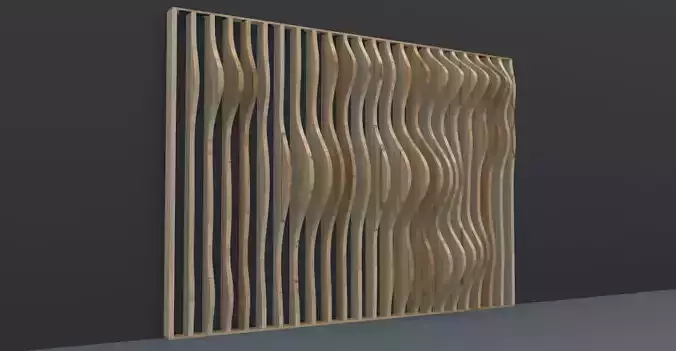

Interior place sculpture (especially in office entrance walls), parametric design on wood panels.

Panels' height, frequency, size, or any features are editable on grasshopper file which I added. You can change the main surface which is connected to the panels (I showed last image), and can create your own design as well.

I can resize the model and cutting files optionally. Feel free to contact me :)

Or you can use this model directly, as you wish.

All models and grasshopper file are in the same zip file. Also it has Dwg and Dxf files for cutting.

3
3dbuyer 2020-07-30 21:07:09 UTC
nice interesting waves!
Item rating
0 0
Parametric Wavy Wooden Panels with Grasshopper
$15.00

Royalty Free License
Parametric Wavy Wooden Panels with Grasshopper
$15.00

Royalty Free License
Response 100% in 0.1h

3D Model formats

Format limitations
Native
  • Rhinoceros 3D 5 (.3dm)4.19 MB
Exchange
  • 3D Studio (.3ds)4.19 MB
  • AutoCAD (.dwg) (2 files)4.24 MBVersion: 2004
  • Autodesk FBX (.fbx)4.19 MB
  • OBJ (.obj, .mtl)4.19 MB
  • Stereolithography (.stl)4.19 MB
  • DXF 2004 (.dxf)233 KB

3D Model details

  • Publish date2020-06-28
  • Model ID#2490225
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry -
  • Polygons 0
  • Vertices 0
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
