2 Different Parametric Wavy Wooden Panels

2 Different Parametric Wavy Wooden Panels 3D Model Collection

The collection consists of:2 models total
3D Model
.3ds
.dwg
.fbx
.dxf
.obj
.3dm
.skp
.dae
.stl
.mtl
.pdf


Description

First of all, I can resize the model and cutting files optionally. Feel free to contact me :)

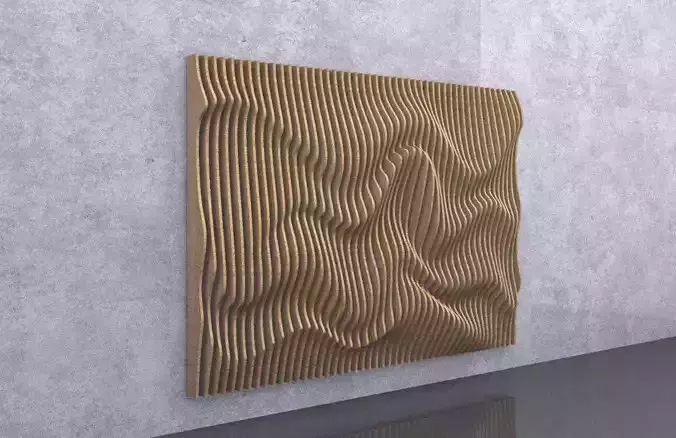

These two models are different alternatives of my parametric wavy wood panels design. Parametric wavy wooden panels which look like sand dunes can be used in interior places (especially in offices). Parametric design on wood panels.

Panels' height, frequency, size, or any features are editable on grasshopper file which I added . You can change the main surface which is connected to the panels, and can create your own design as well.

Or you can use this model directly, as you wish.

First model

Dimensions: 4730 x 3210 x 475 mm (length-height-depth) - Wood thicknes: 30 mm - Clear space between panels: 70 mm

Also I added one more resized model, dimensions: 1620x1100x160 mm (length-height-depth) Wood thickness: 10 mm

Second model

Model dimensions: 4730 x 3210 x 445 mm (length-height-depth) - Wood thicknes: 30 mm

I resized model for cnc cutting and added 3 types of dimensions for dxf and dwg, these are in one dxf and dwg file.

1420 x 1070 x 160 mm (length - height - depth) Wood thickness: 10 mm Spaces: 20mm

2840 x 2140 x 320 mm (length - height - depth) Wood thickness: 20 mm Spaces: 40mm

4260 x 3210 x 480 mm (length - height - depth) Wood thickness: 30 mm Spaces: 60mm

Item rating
0 0
2 Different Parametric Wavy Wooden Panels
$20.00

Royalty Free License
2 Different Parametric Wavy Wooden Panels
$20.00

Royalty Free License
Response 100% in 0.1h

3D Collection formats

Format limitations
  • 3D Studio(.3ds) 2/2
  • AutoCAD(.dwg) 2/2
  • Sketchup(.skp) 2/2
  • Autodesk FBX(.fbx) 1/2
  • OBJ(.obj) 2/2
  • OBJ(.mtl) 2/2
  • Stereolithography(.stl) 2/2
  • Rhinoceros 3D(.3dm) 2/2
  • DXF(.dxf) 2/2
  • PDF(.pdf) 2/2
  • Collada(.dae) 1/2

3D Collection details

  • Publish date2020-10-31
  • Collection ID#2683197
  • Animated 0/2
  • Rigged 0/2
  • VR / AR / Low-poly 0/2
  • PBR 0/2
  • Ready for 3D Printing
