Luffing Jib Tower Crane 2 with External Climbing Frame

Luffing Jib Tower Crane 2 with External Climbing Frame 3D model

Description

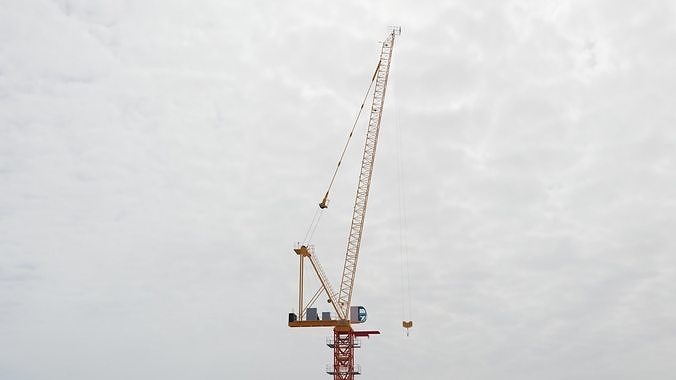

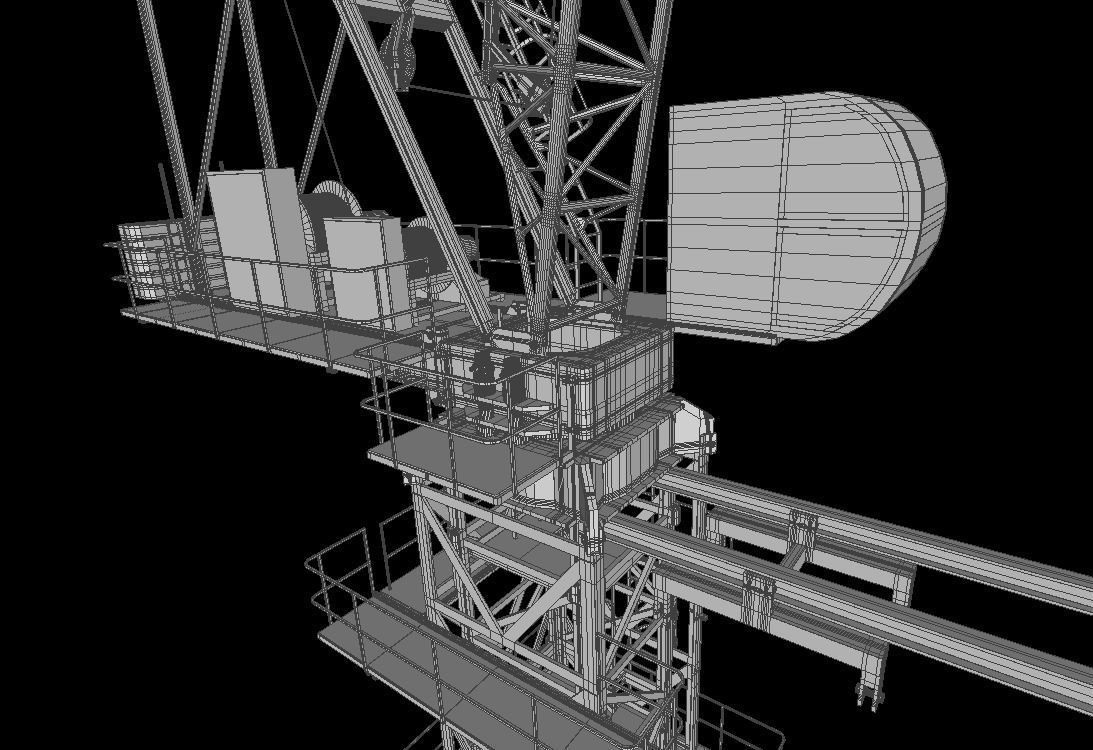

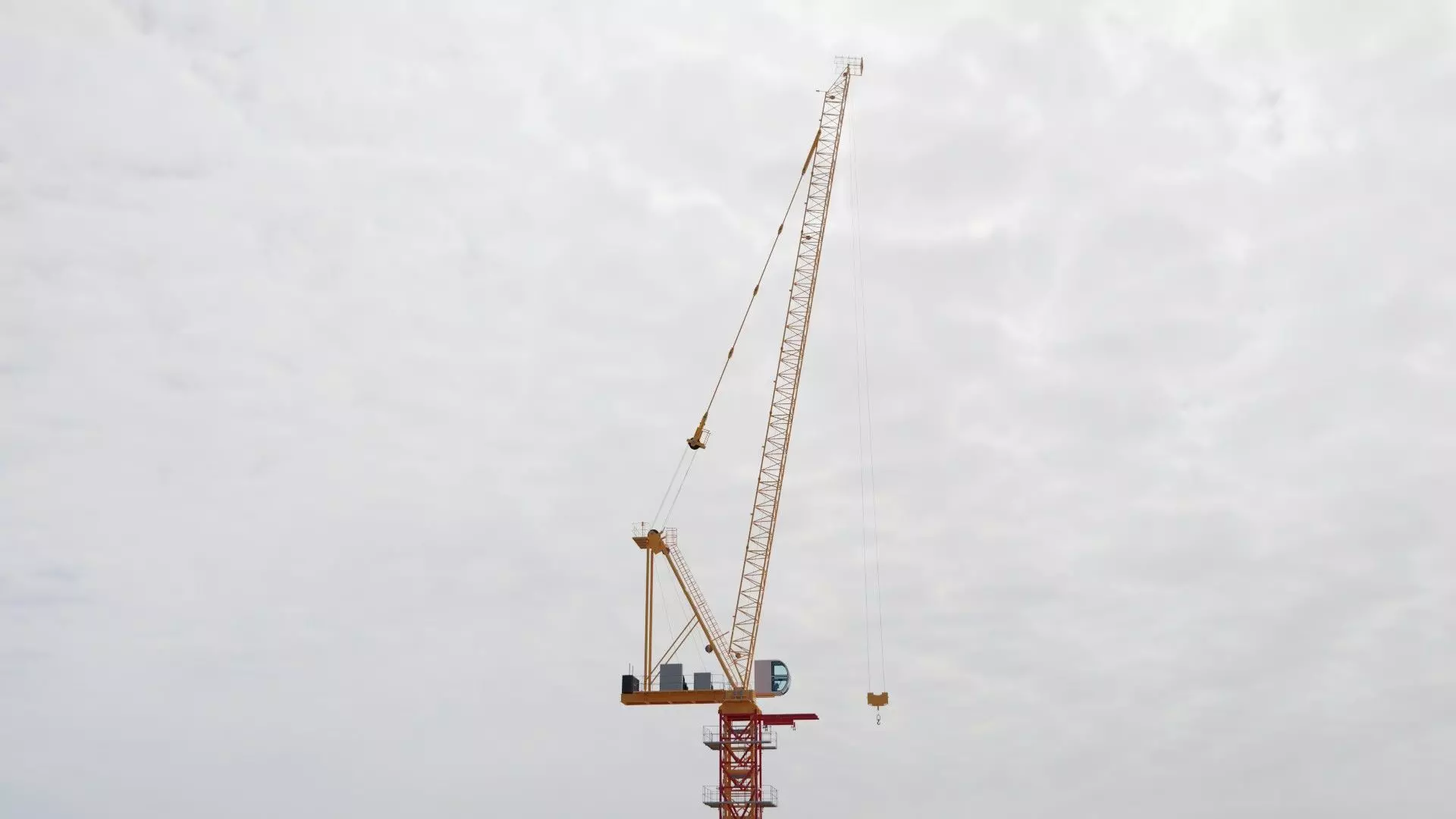

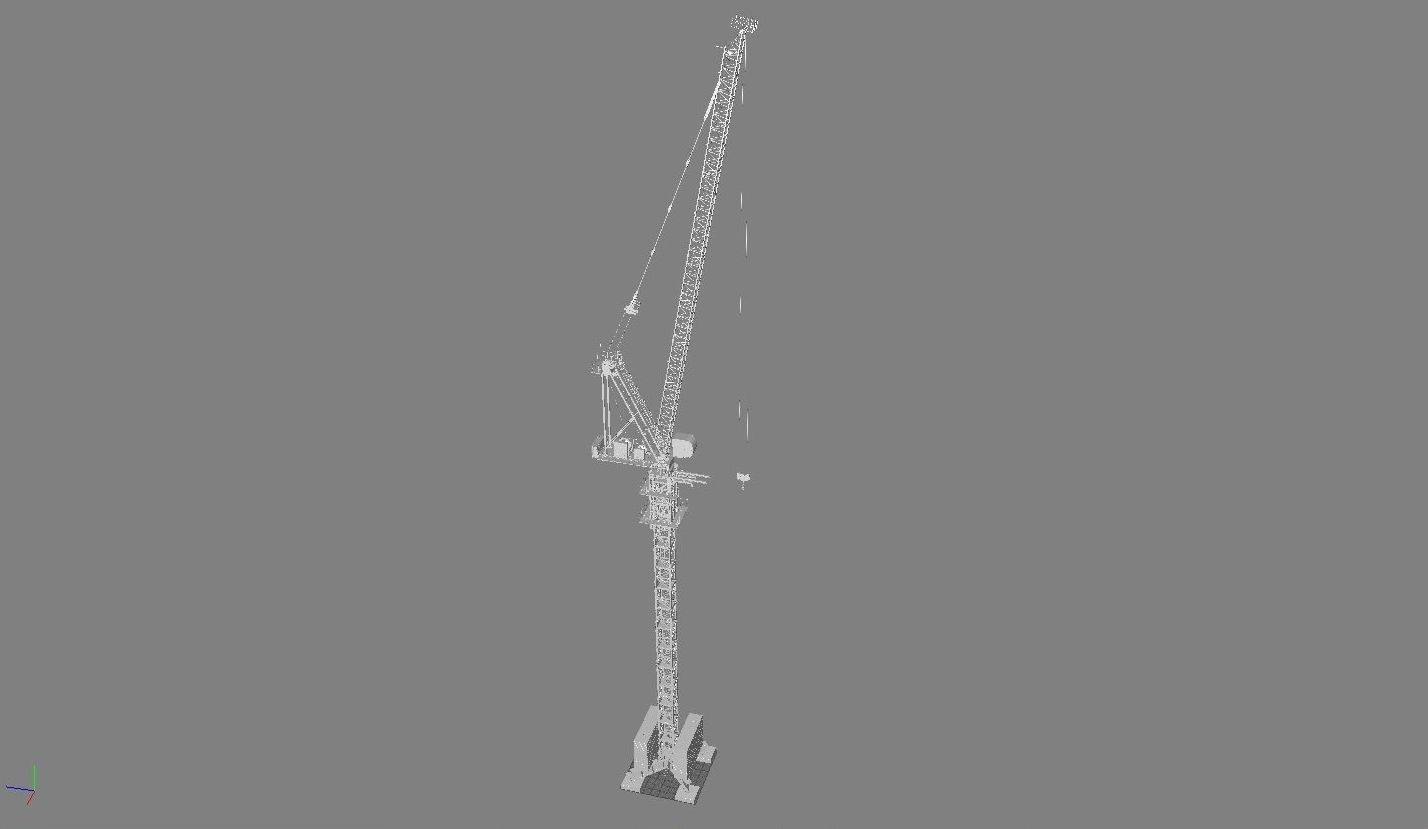

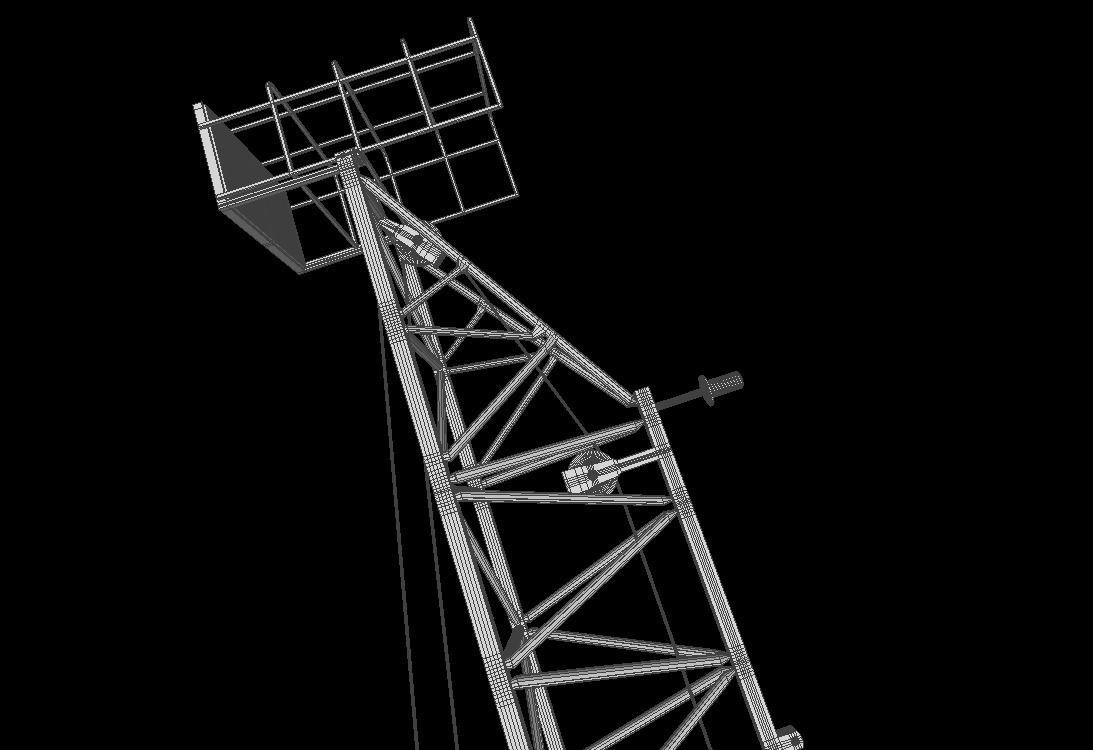

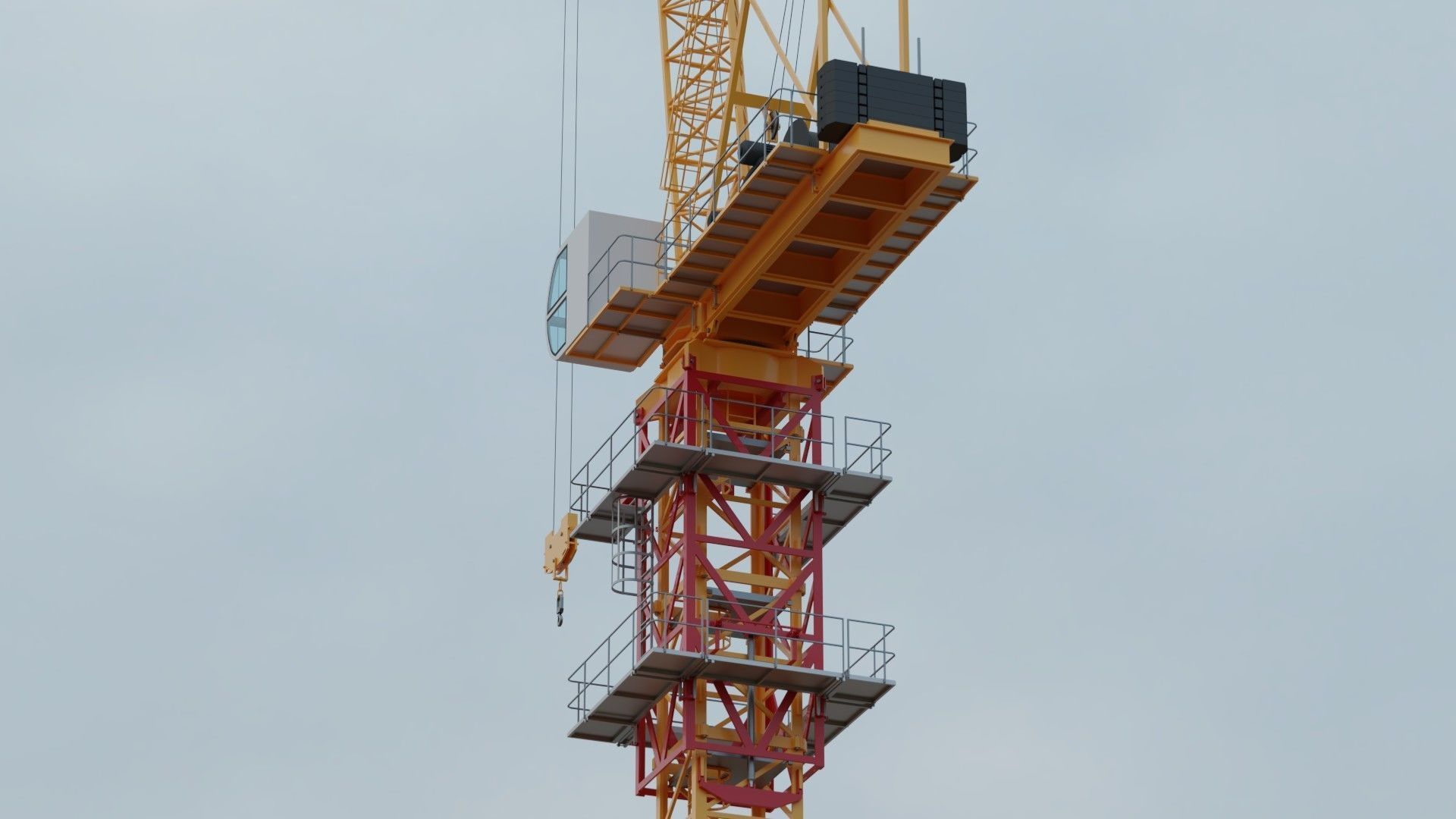

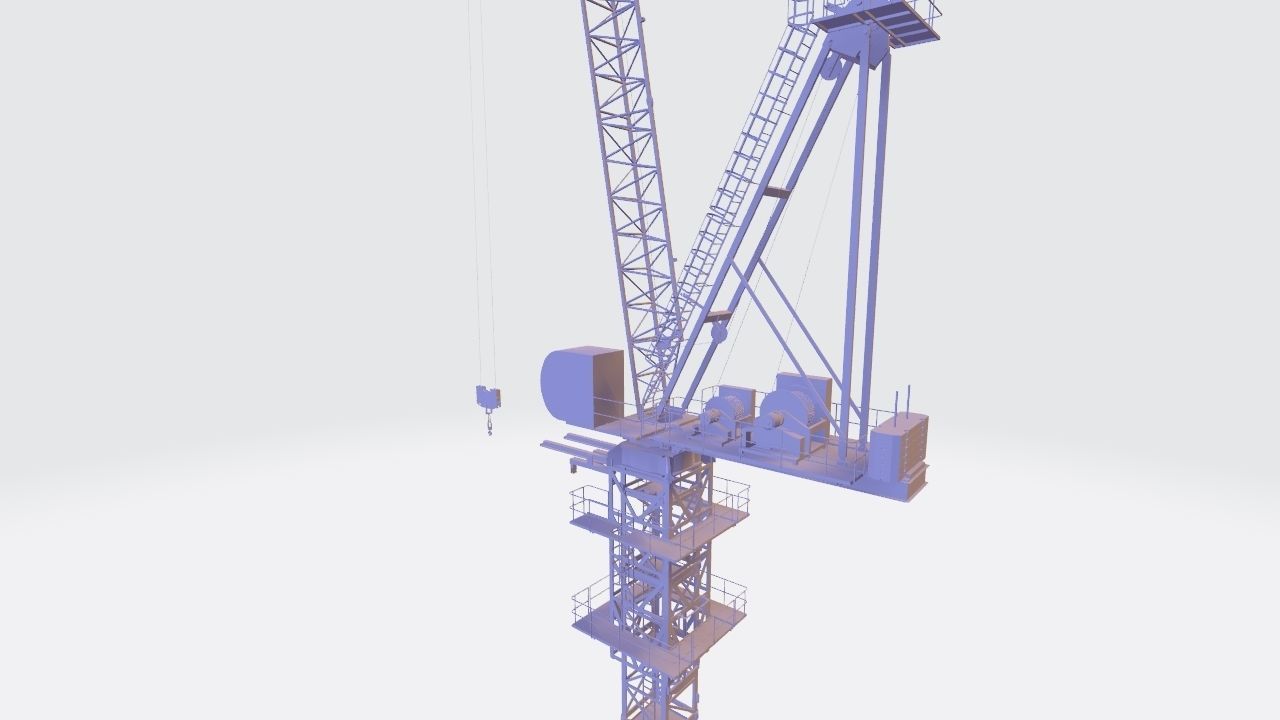

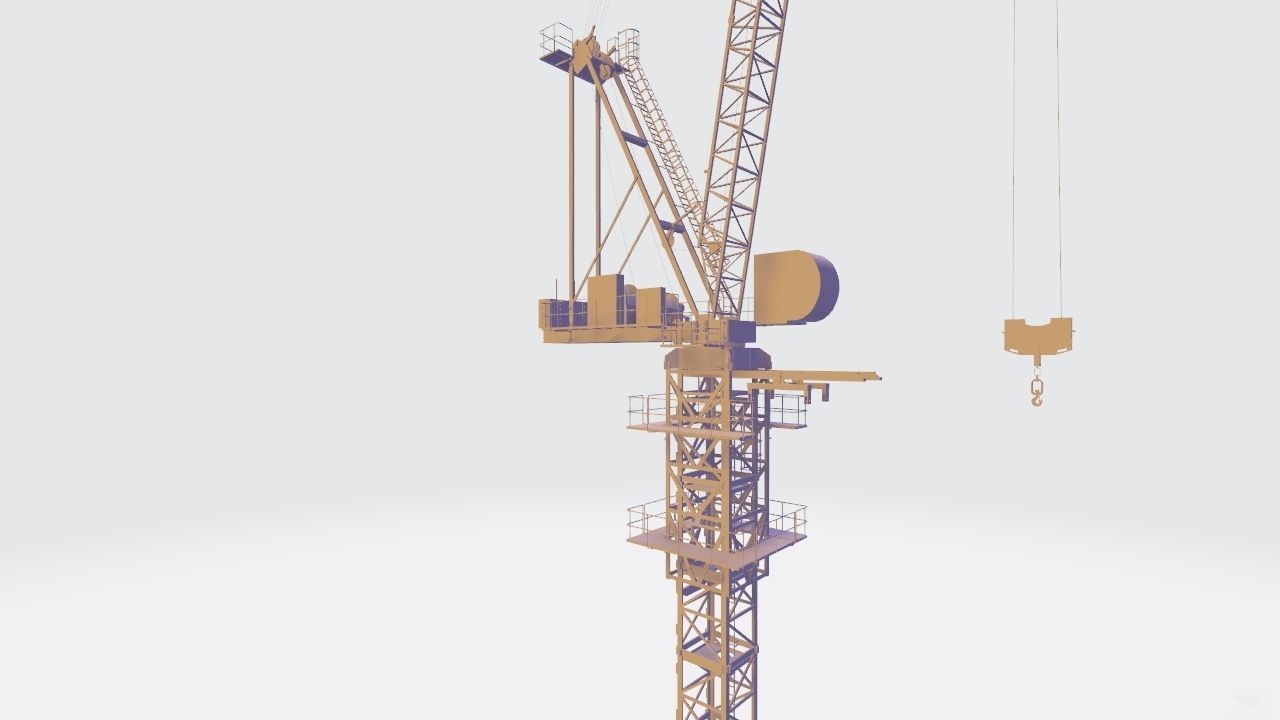

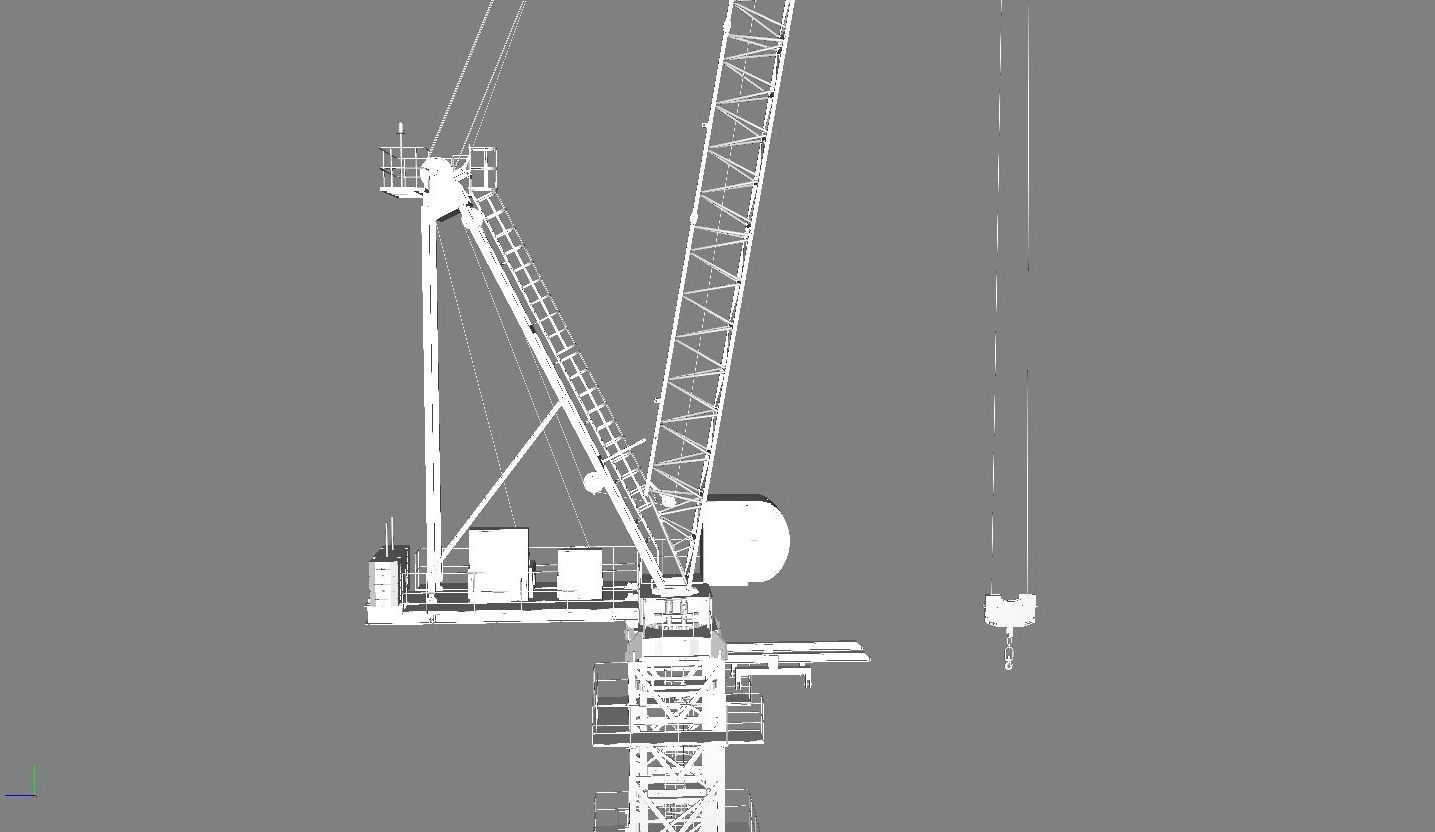

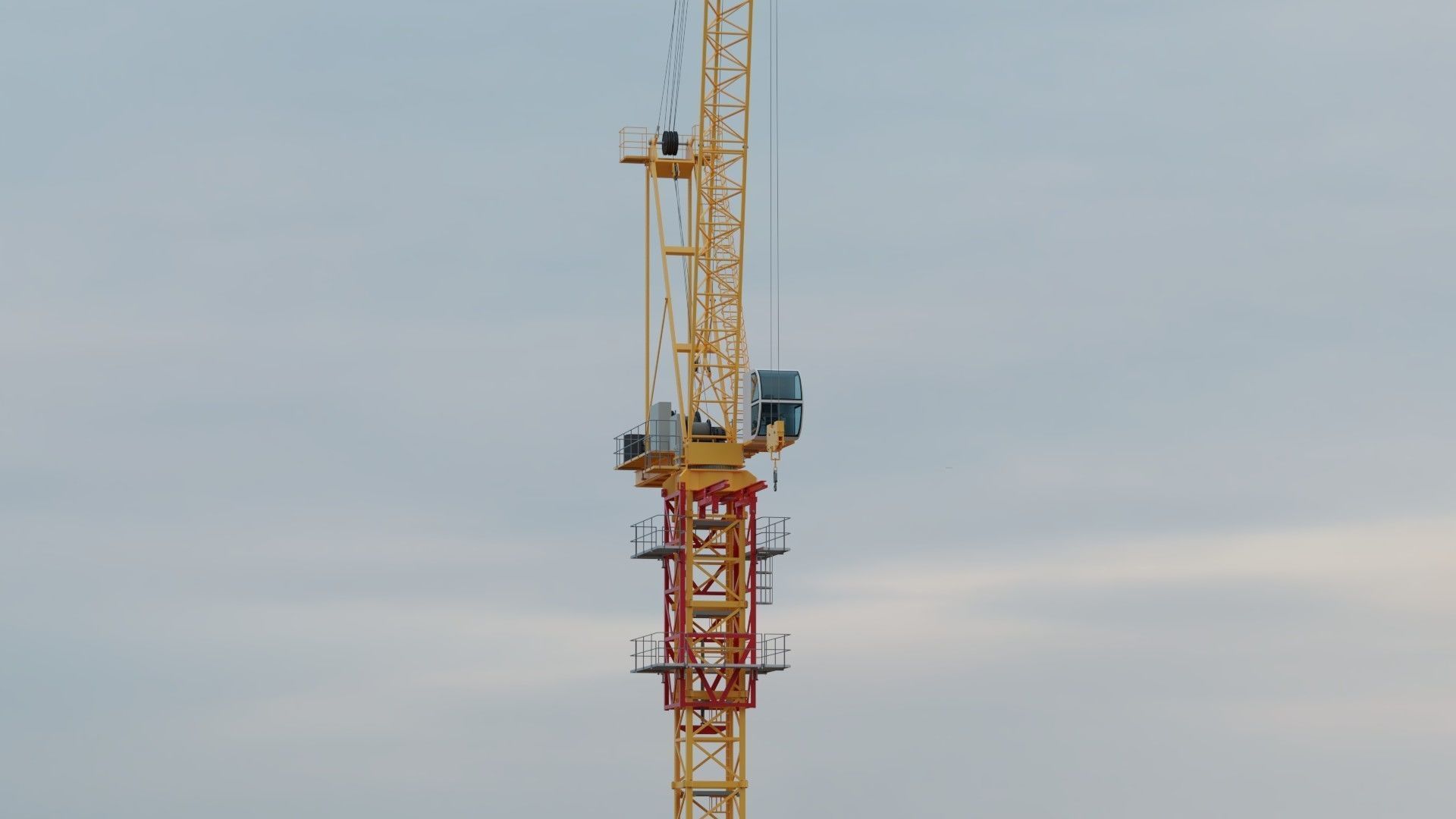

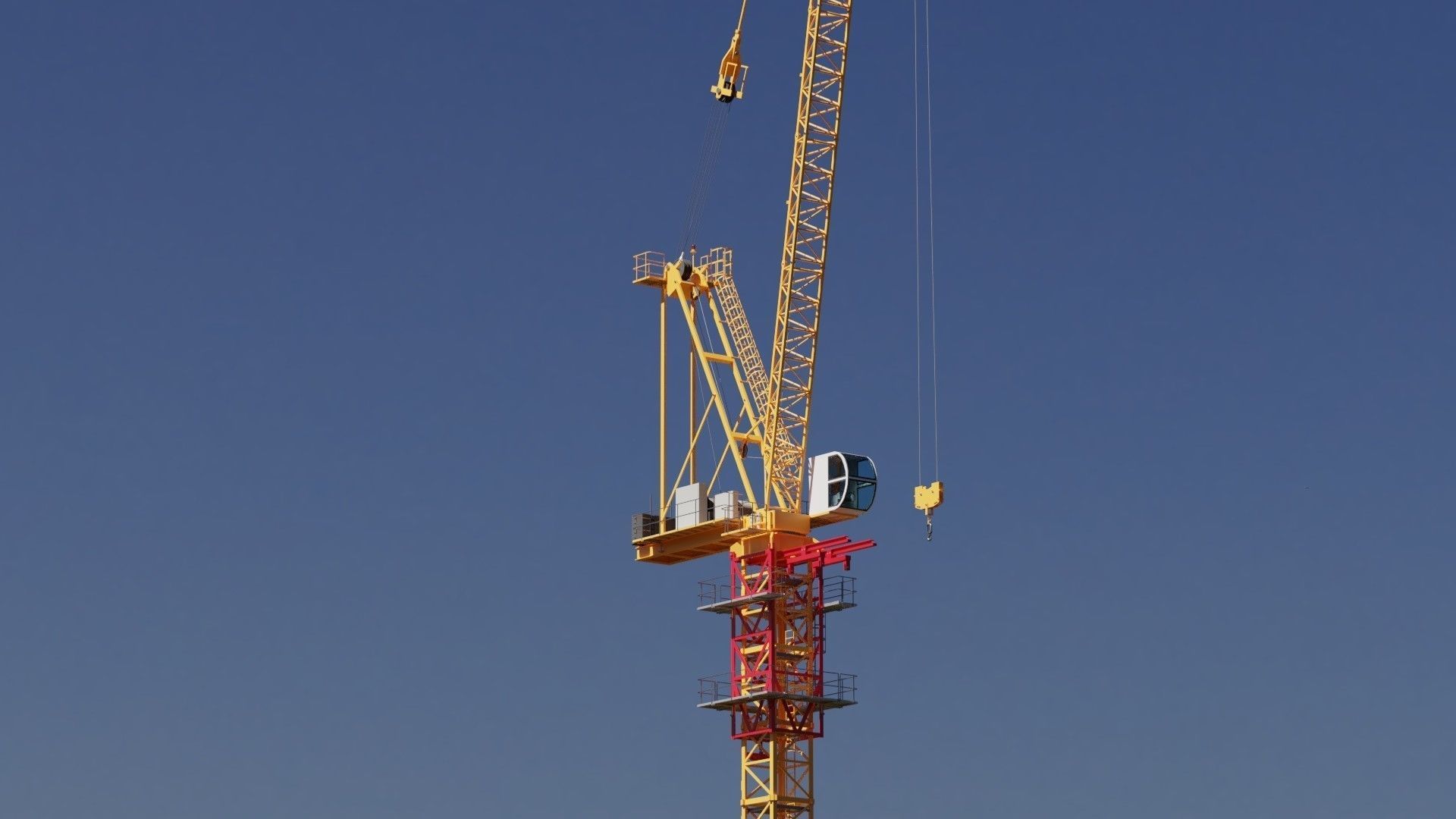

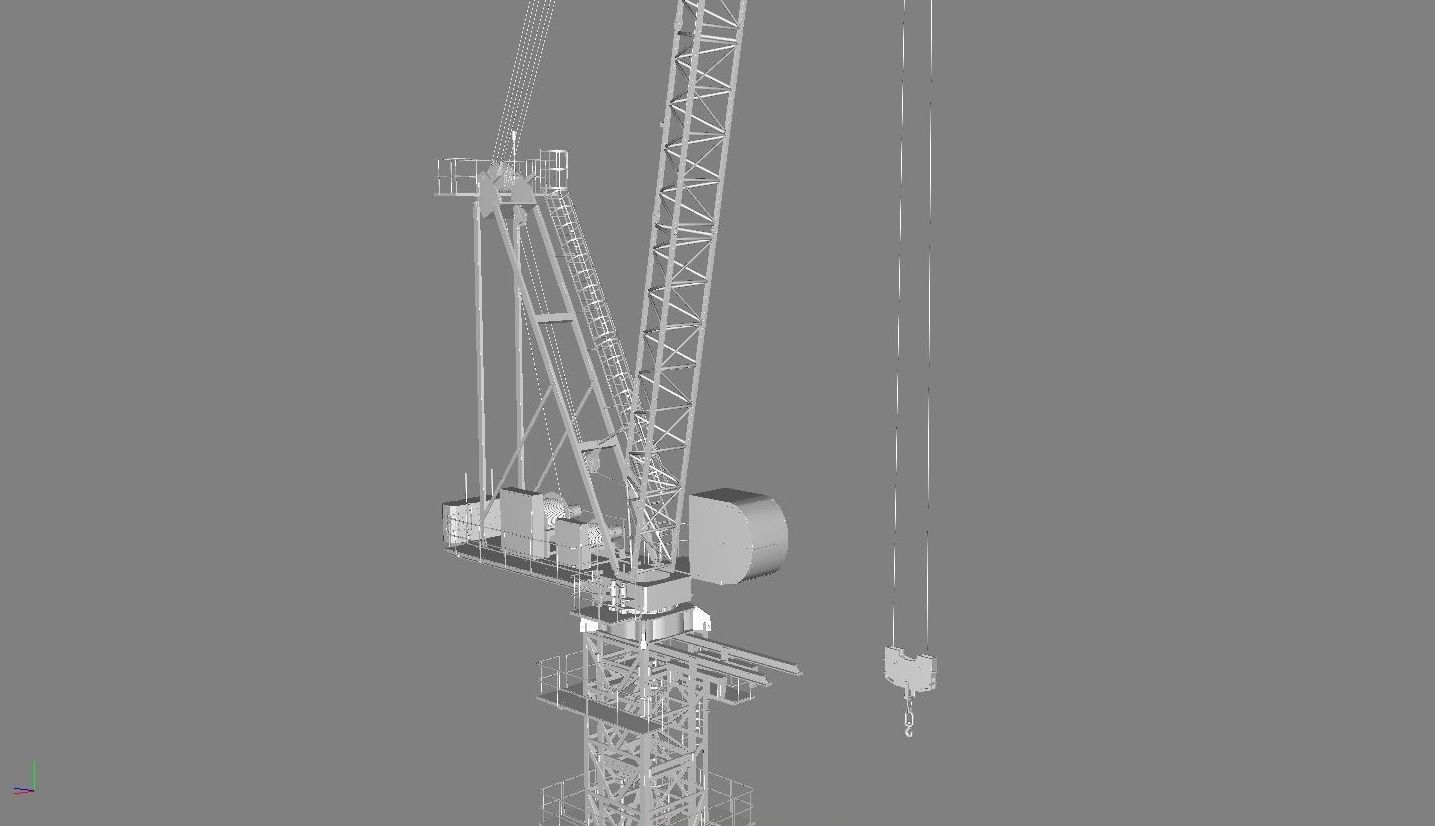

Luffing Jib Tower Crane 2 - 3D Model

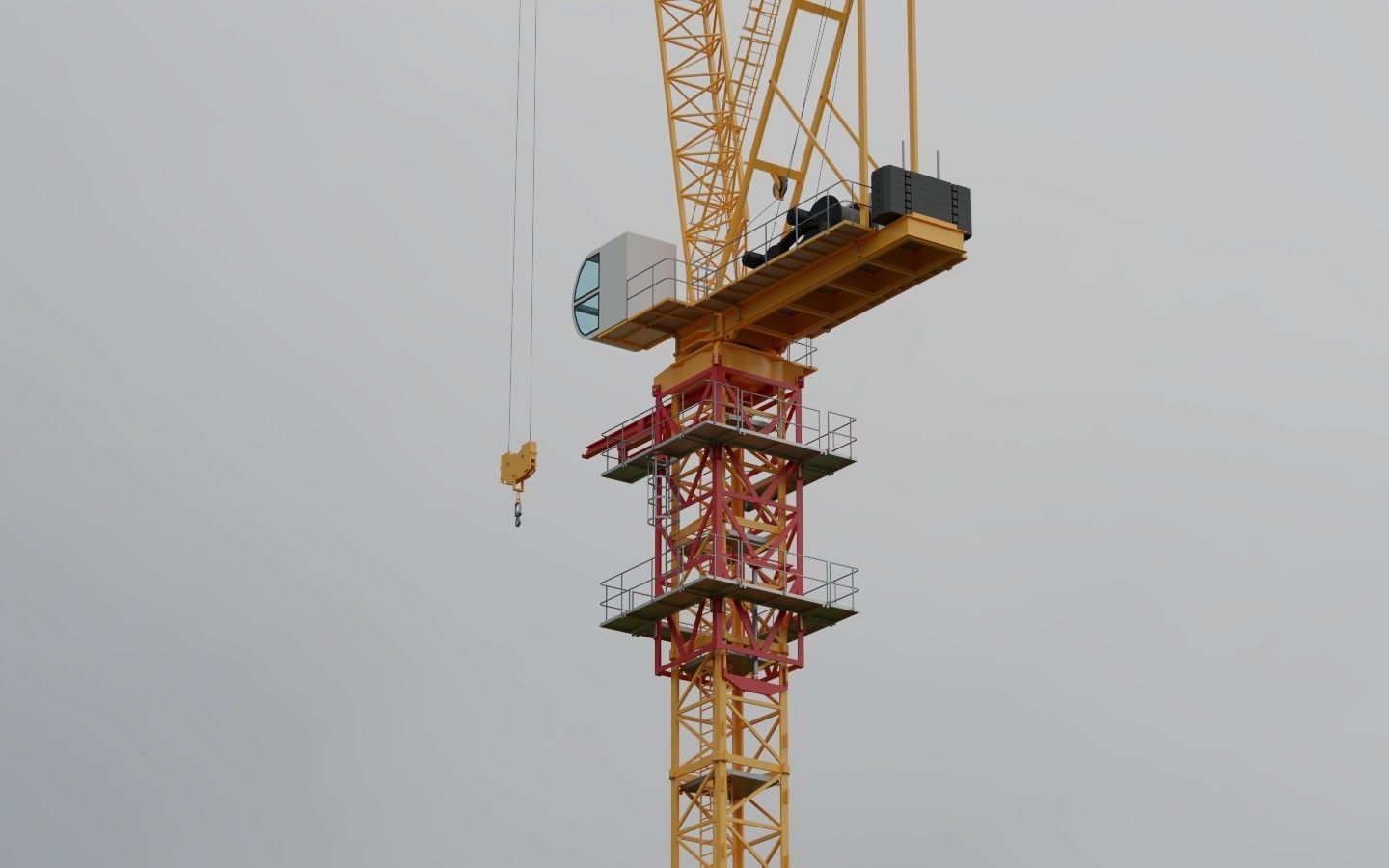

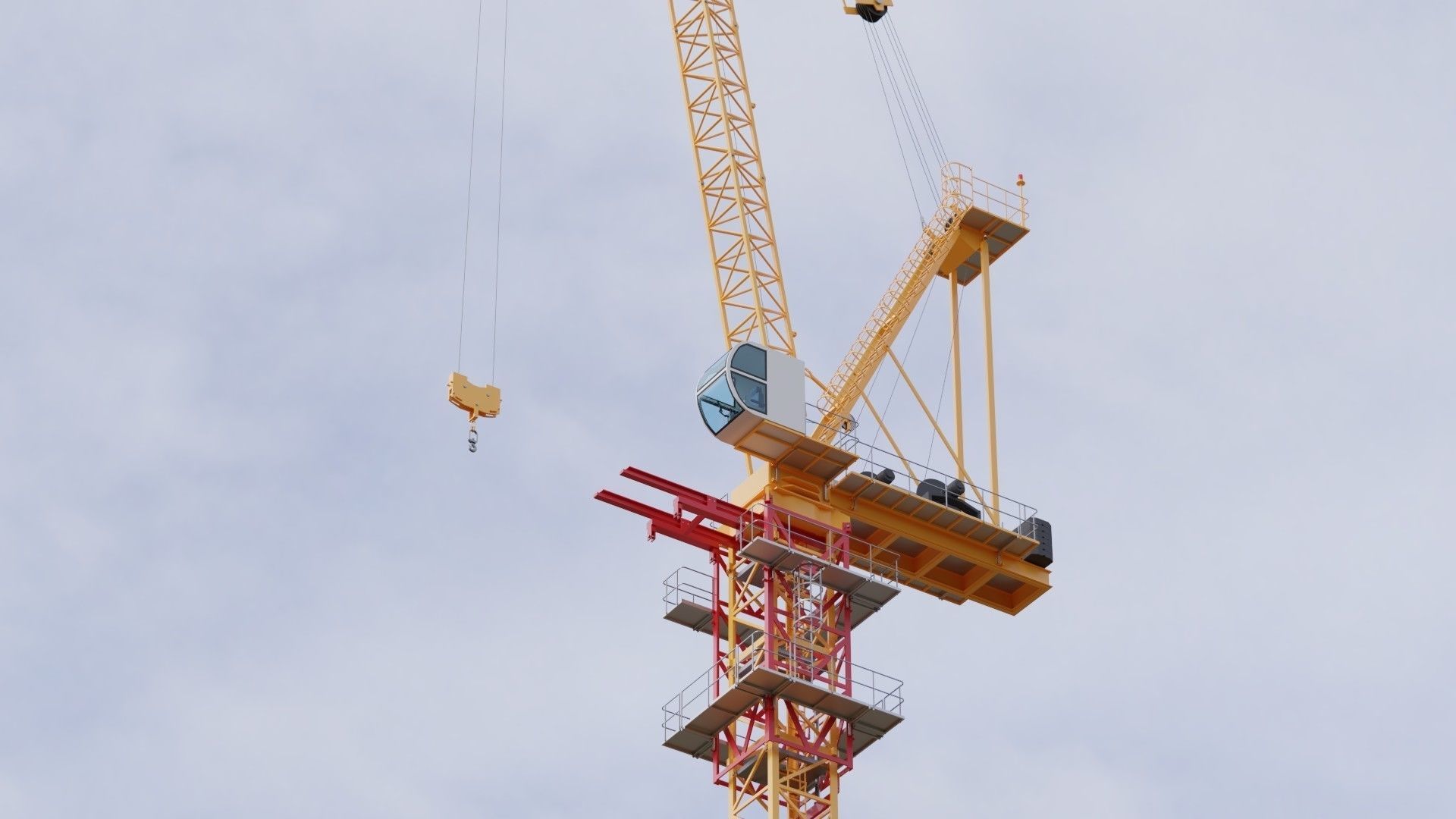

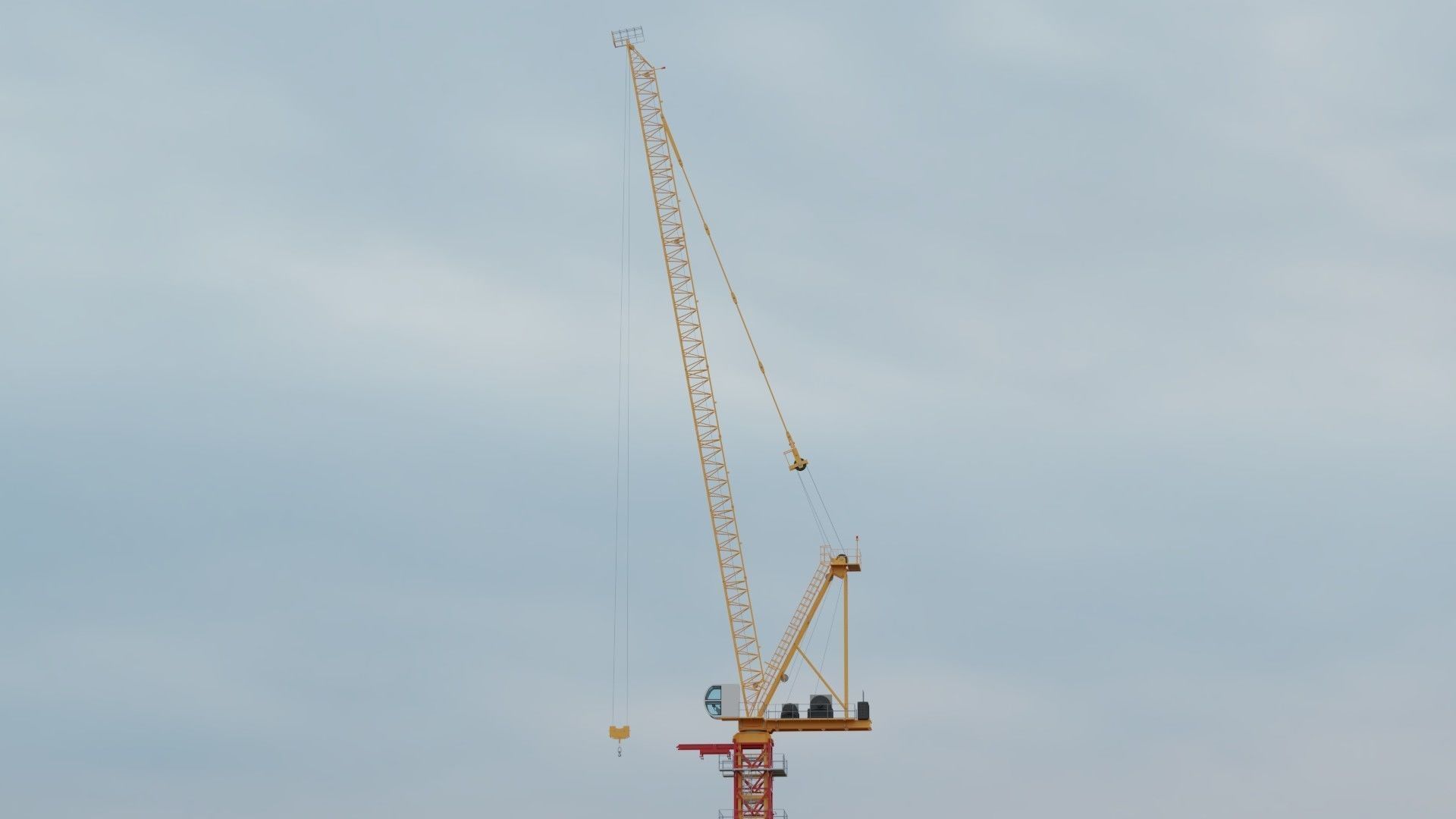

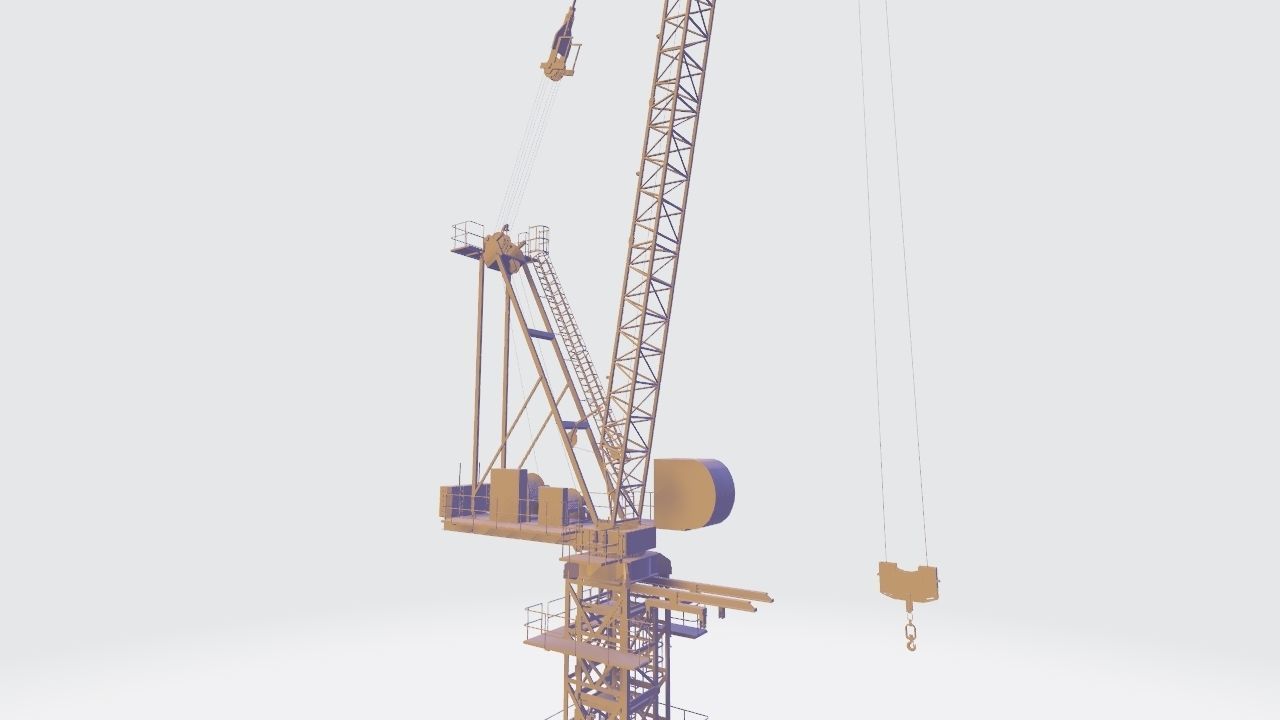

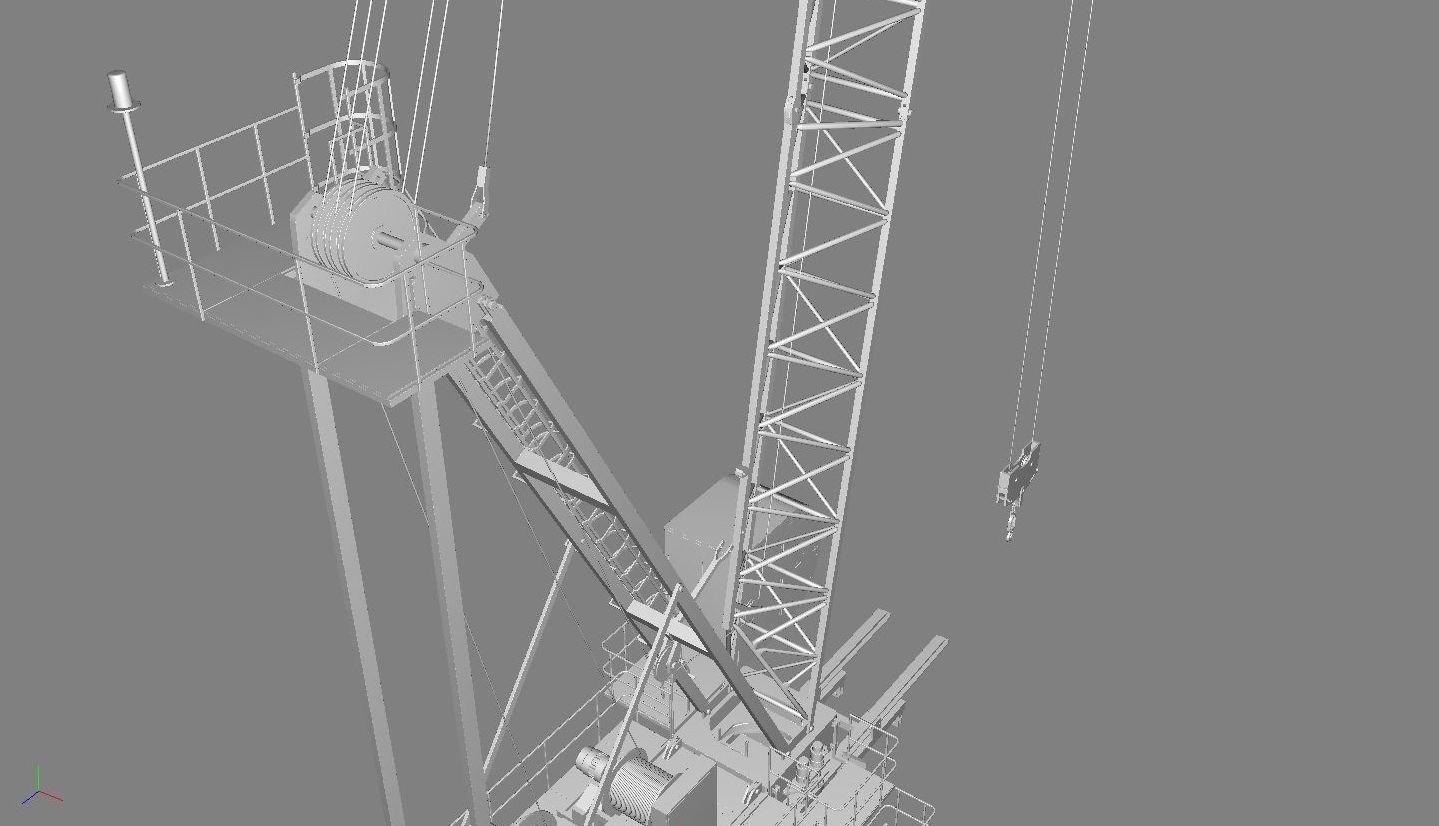

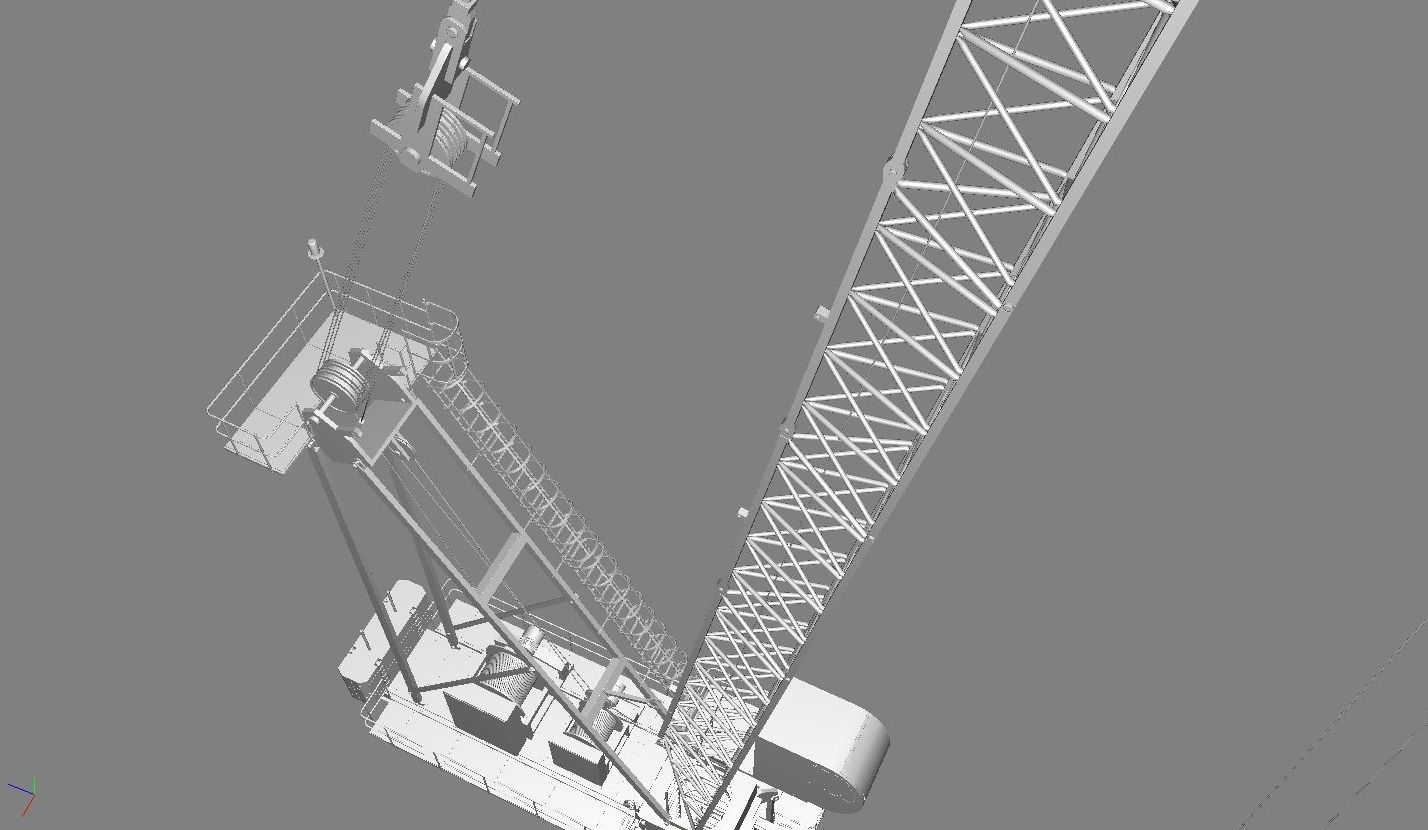

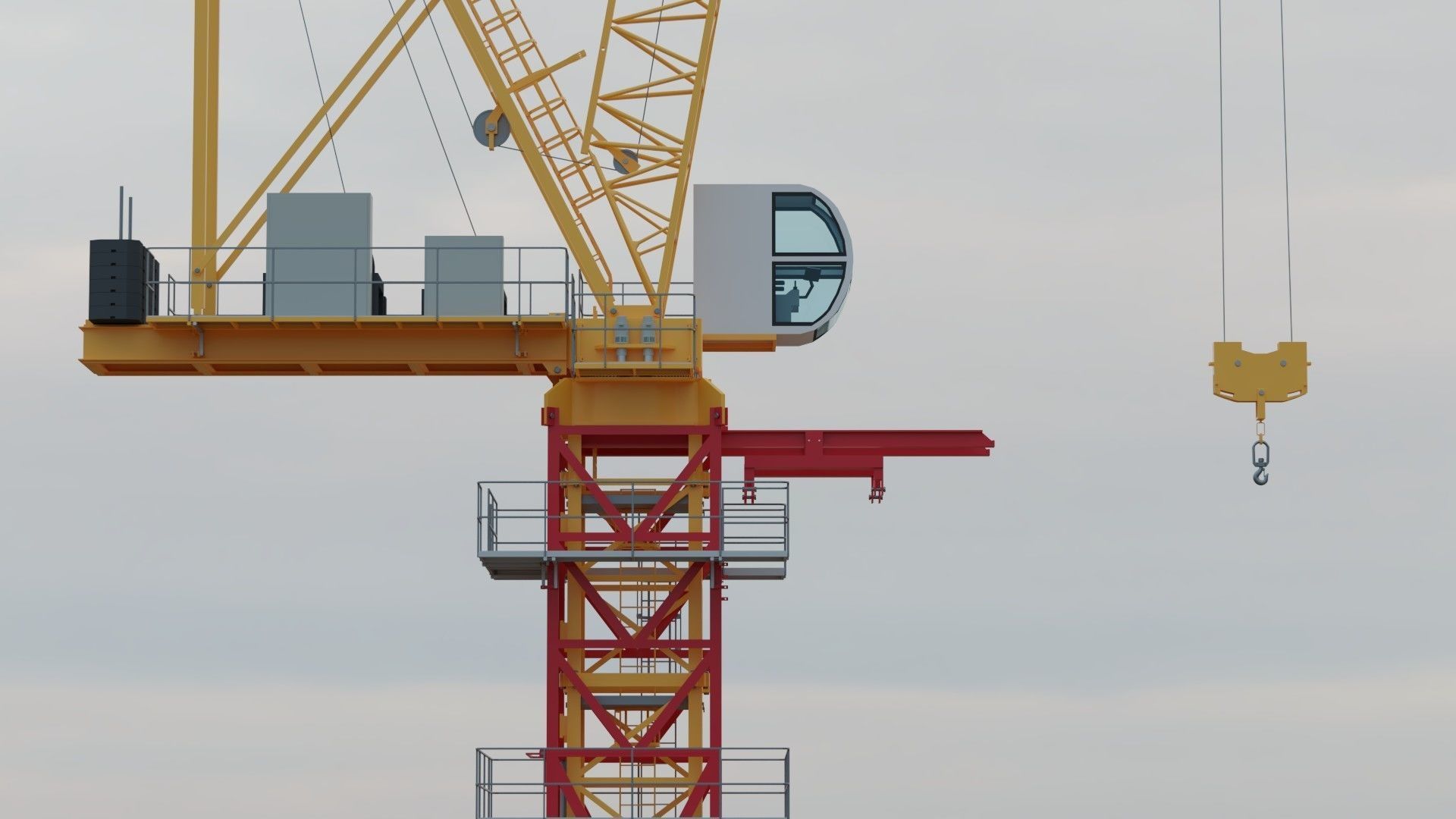

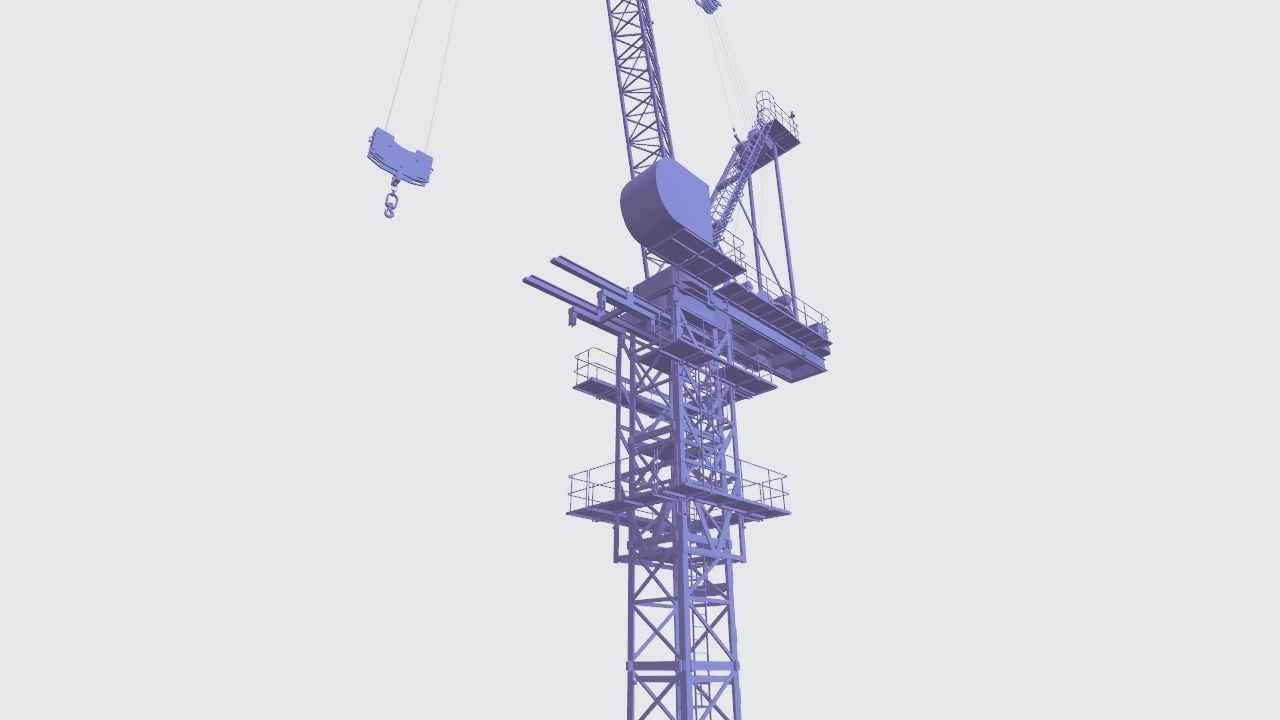

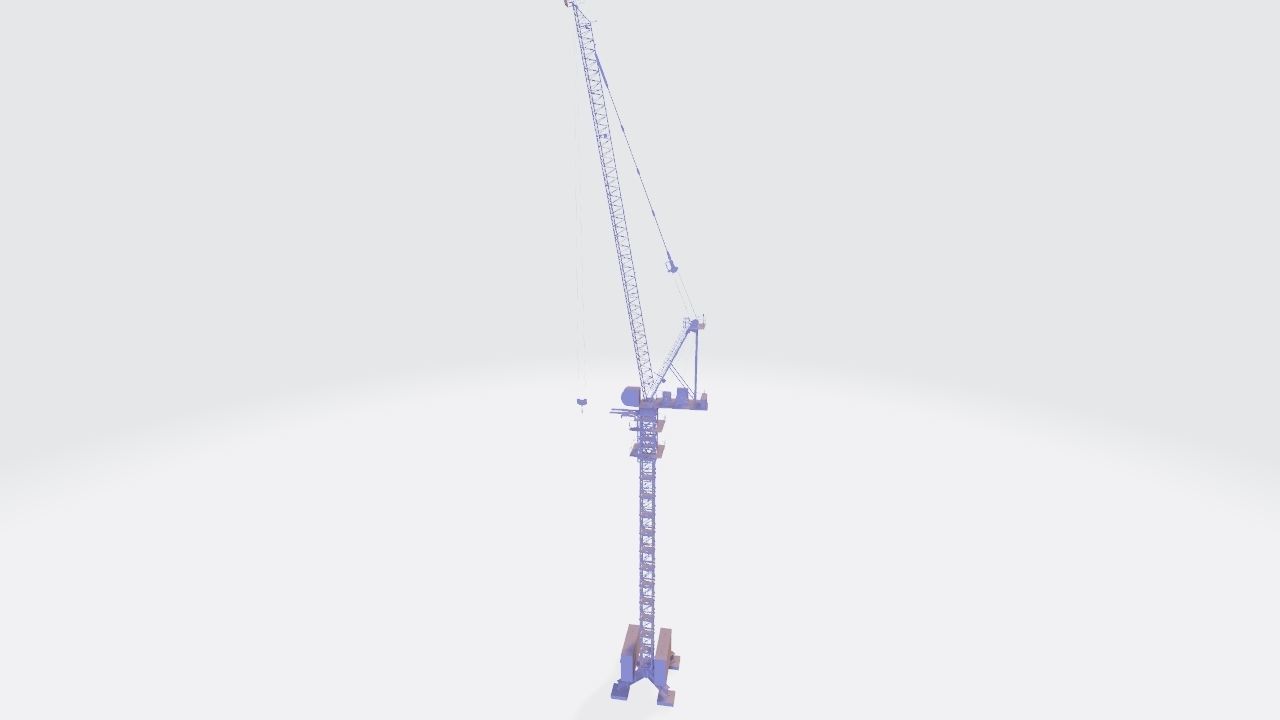

Luffing Jib tower crane, very detailed and realistic. Really tall crane, with long boom and good lifting capacity. The External climber (or climbing frame) has one powerful hydraulic piston that allows the crane to self-erect. This machine is ideal for skyscrapers and urban construction sites. Realistic size and proportions. Almost all the objects have beveled edges (in Blend file the bevel modifier is uncollapsed) This model is meant for 3D visualization and other 3D scenes, not for 3D print. 3D model only, no textures.

Available file formats:

Blend 2.79 (native file)

FBX 7.4 Binary (exported file)

OBJ (exported file)

Tower crane technical info:

Mast Section: 2 x 2 x 3 m

Height (top of the A Frame): 59 m

Height (with boom at 80 Degrees): 98 m

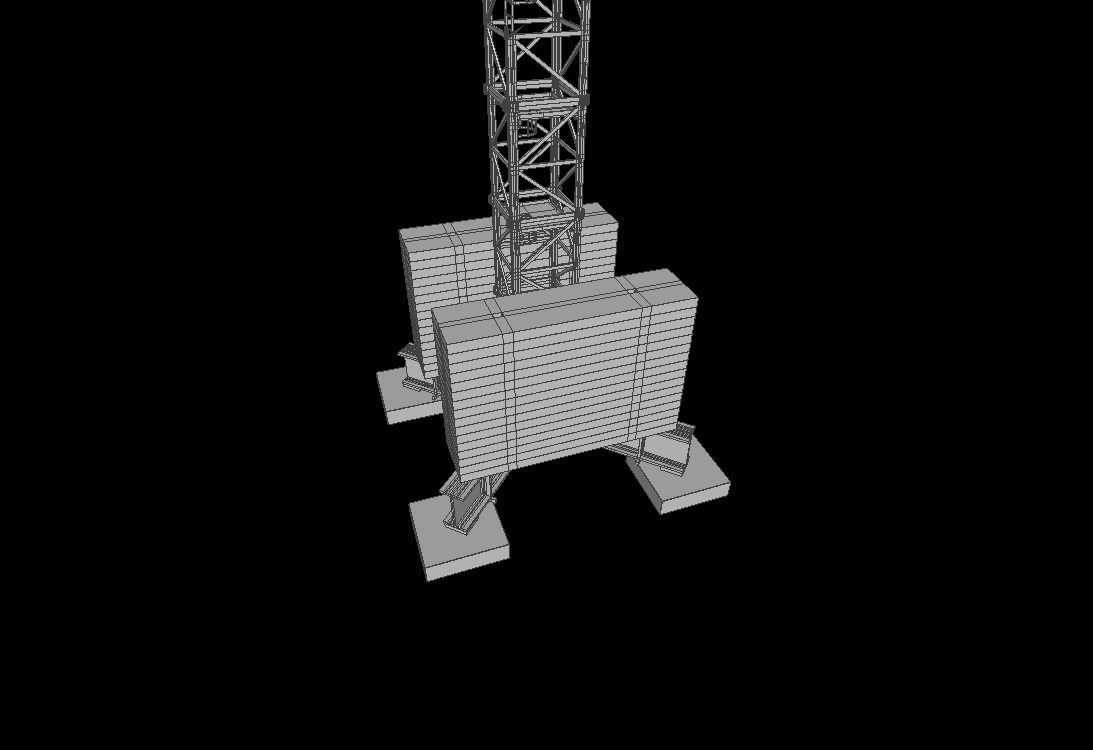

Ballast: 120000 Kg

Counterweights: 16800 Kg

Boom Length: 51 m

Tip Load (Main Hoist Rope): 3200 Kg

Info:

Centered at the origin

1:1 Real world scale

Units: cm

Great level of detail

Every part is properly named in english

Every object is separated

Textures are not included

Materials are included only in Blend file (basic Cycles shaders)

HDRI lighting not included

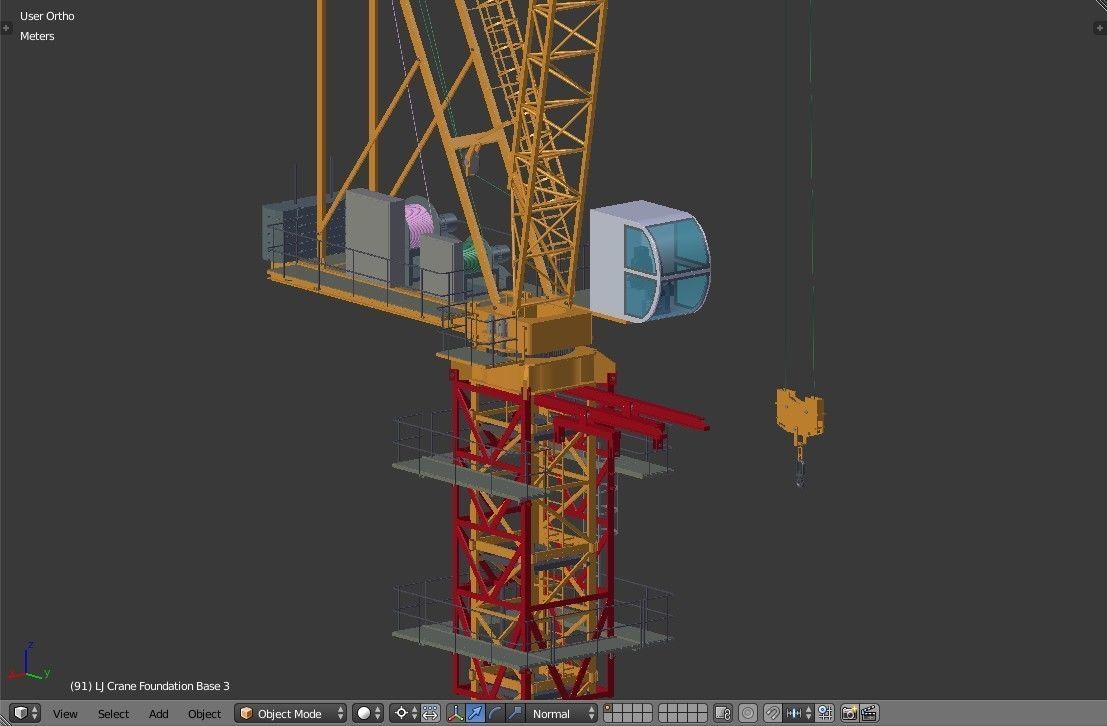

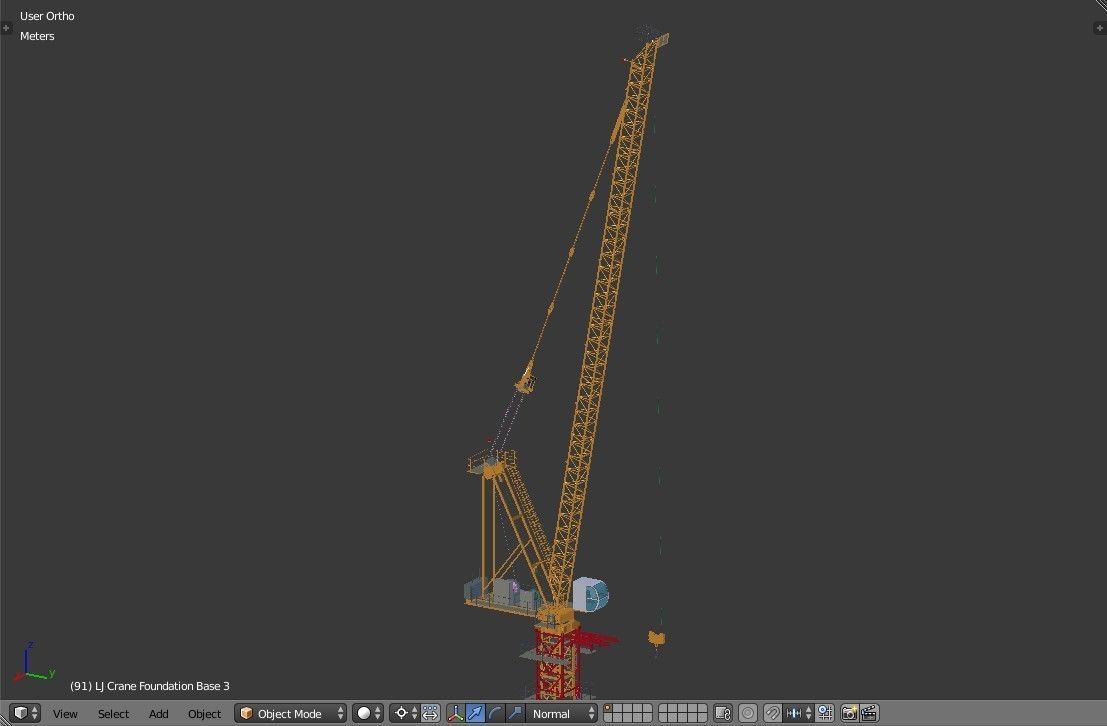

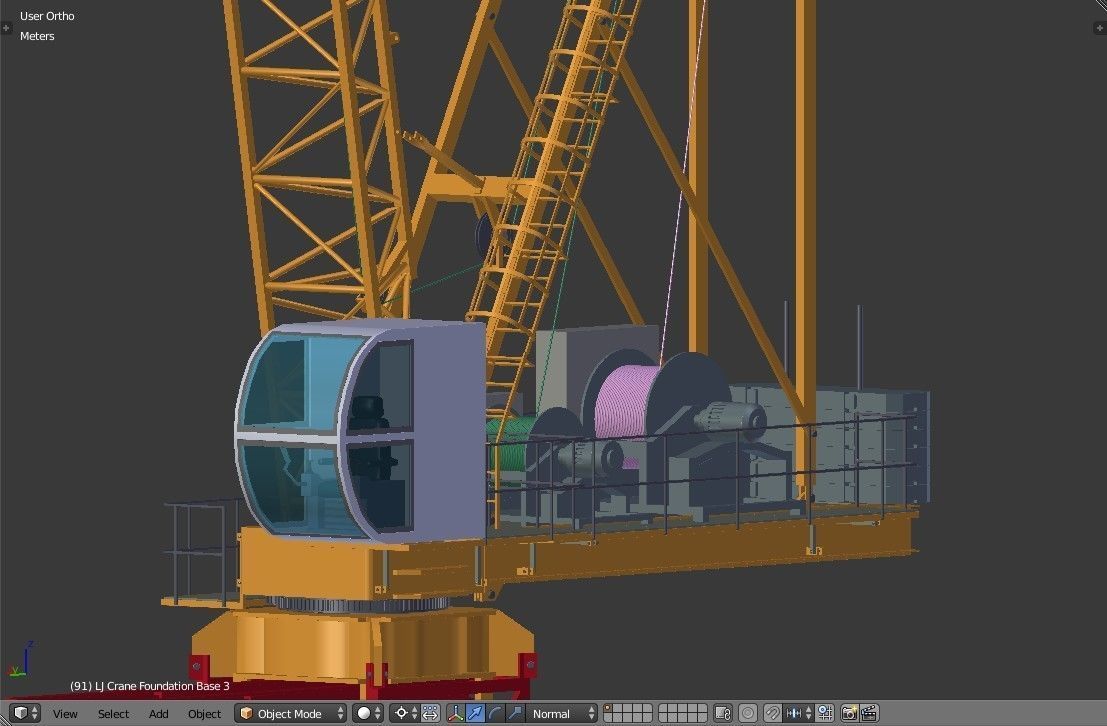

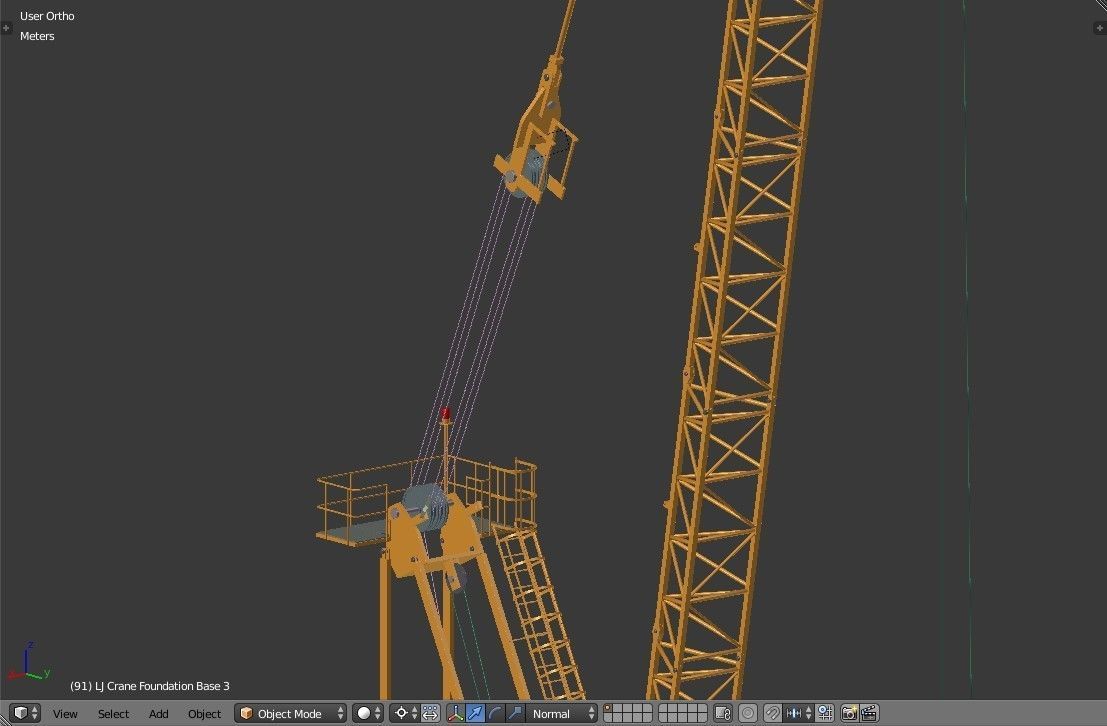

Modeled in Blender 2.79

Tested in Blender 2.79, 3ds Max 2013, FBX Review, Windows 10 3D Viewer, MeshLab 2016.

Polygon count (high poly - Blend file):

Verts: 546198

Faces: 574320

Item rating
0 0
Luffing Jib Tower Crane 2 with External Climbing Frame
$30.00

Royalty Free License
Luffing Jib Tower Crane 2 with External Climbing Frame
$30.00

Royalty Free License
Response 93% in 1.7h
3D Modeling
Low-poly Modeling
Lighting
Rendering
Texturing
Shaders
Post Production
View all Designers Models

3D Model formats

Format limitations
Native
  • Blender 2.79 (.blend)23.2 MBVersion: 2.79Renderer: Cycles
Exchange
  • Autodesk FBX 7.4 (.fbx)26 MB
  • OBJ (.obj, .mtl)26 MB

3D Model details

  • Publish date2020-02-17
  • Model ID#2277705
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 574,320
  • Vertices 546,198
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
