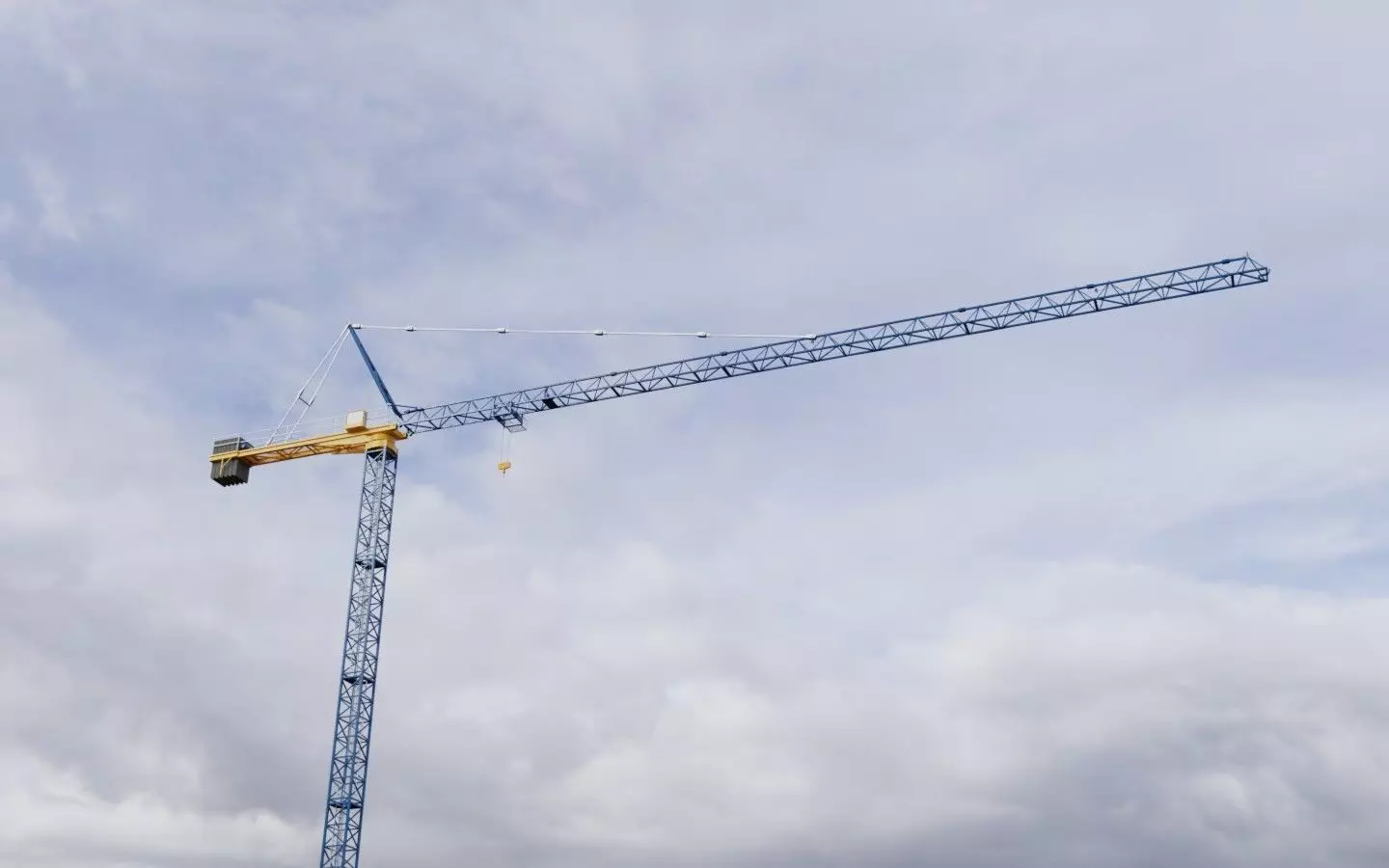

Construction Crane 2 - Hammerhead Tower Crane

Tower crane with unique design, based on a real model.This crane is 45m tall (37m at the jib level) and 53m wide (total jib length is 42m)Mast is divided in 6 sections. Every section measures 1,2x1,2x6mYou can easily add or remove sections to make the crane taller or shorter.The crane have good level of detail, including couterweights, ballast blocks, ladders, hoist line,trolley line, hook block, lights, etc.The model is highpoly, but most of the polygons come from the metal walkways. You can eventually reduce the polygon count by swapping my walkways with your favorite low-poly walkways.Please note that some parts (especially pins and bolts) overlap.This model is not ready for 3D print.

Technical info:

Ballast weight: 49000 kg

Counterweight: 8800 kg

Tip Load: 1300 kg

This model includes 3 concrete JPG textures (Diffuse, Normal Map and Specular Map) 3968x2976Textures are inside the Textures.zip file. I made all the textures from scratch.

Available file formats:

Blend 2.79 (Native file)

FBX 7.4 Binary (Exported)

OBJ (Exported)

Info:

1:1 Scale for Blend and FBX

Units: cm

Good level of detail

Centered at the origin

Every part is properly separated (more than 140 objects)

Every object is named in english

Materials included only in Blend file (Cycles shaders)

Made in Blender 2.79

Tested in Blender 2.79, 3ds Max 2013, MeshLab 2016 and Windows 10 3D Viewer

Polygon count (Blend file):

Verts: 889779

Faces: 1035417
