Fully automatic USB TYPE-C Welding Inspection Machine

Introduction

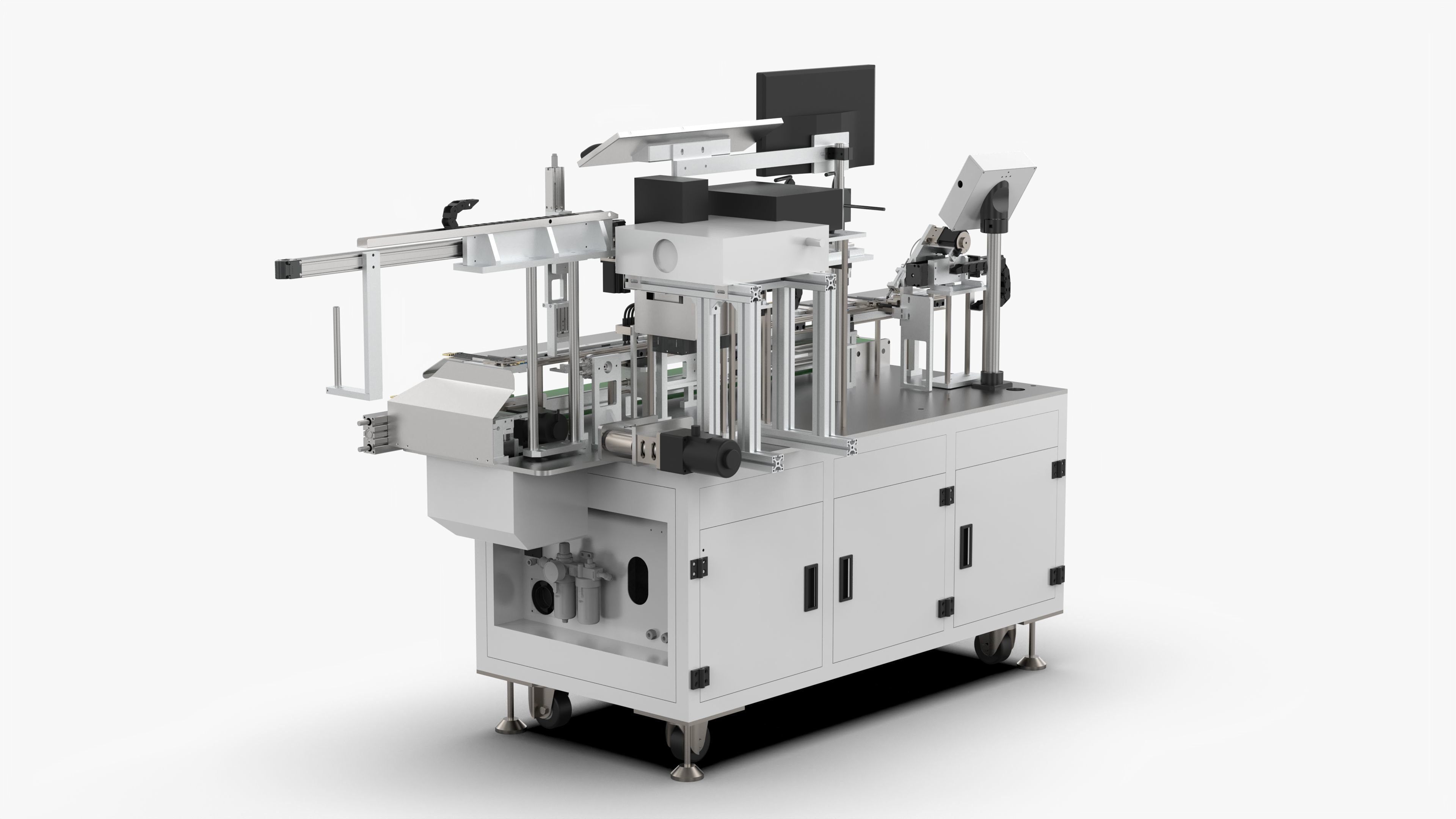

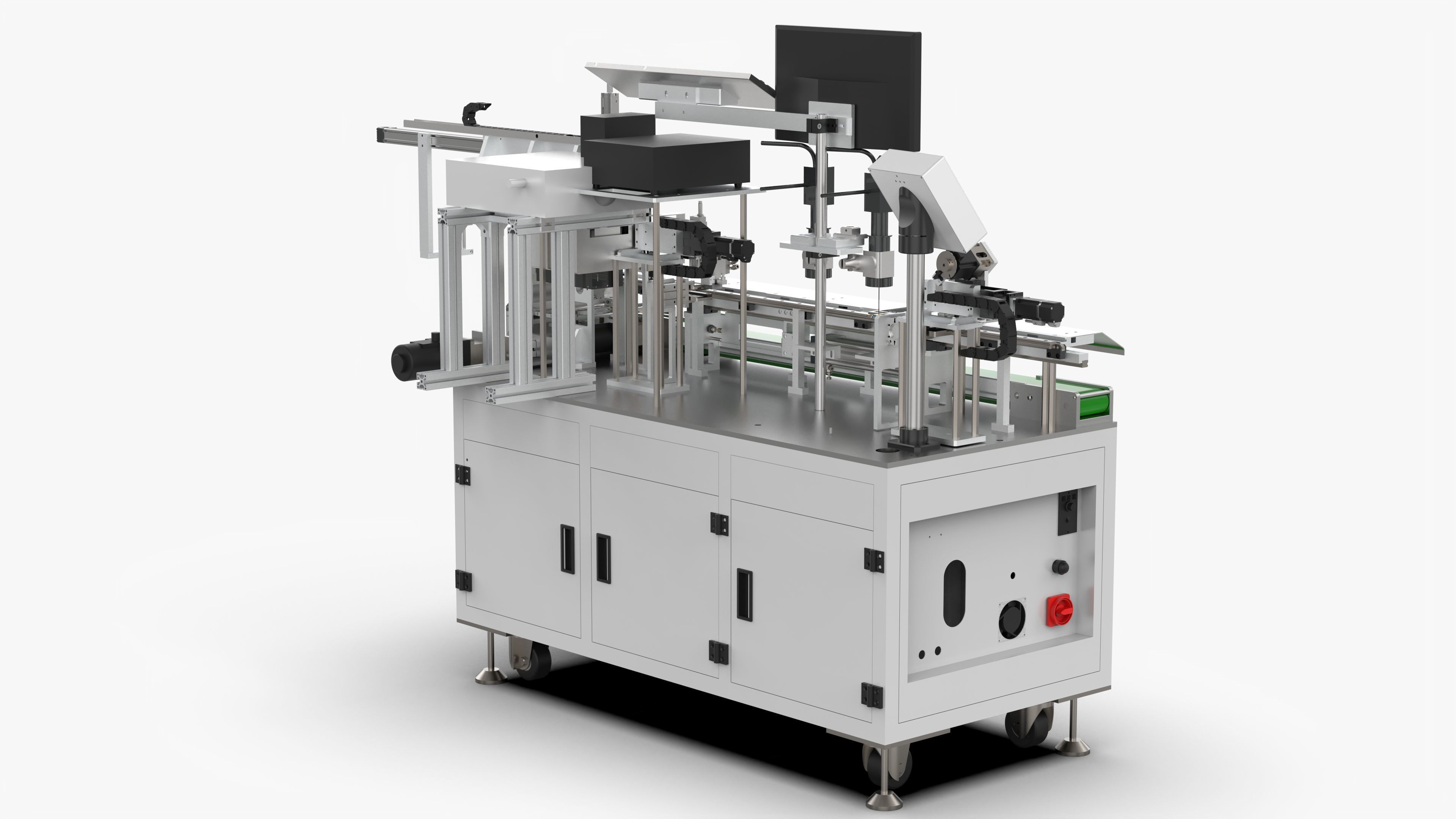

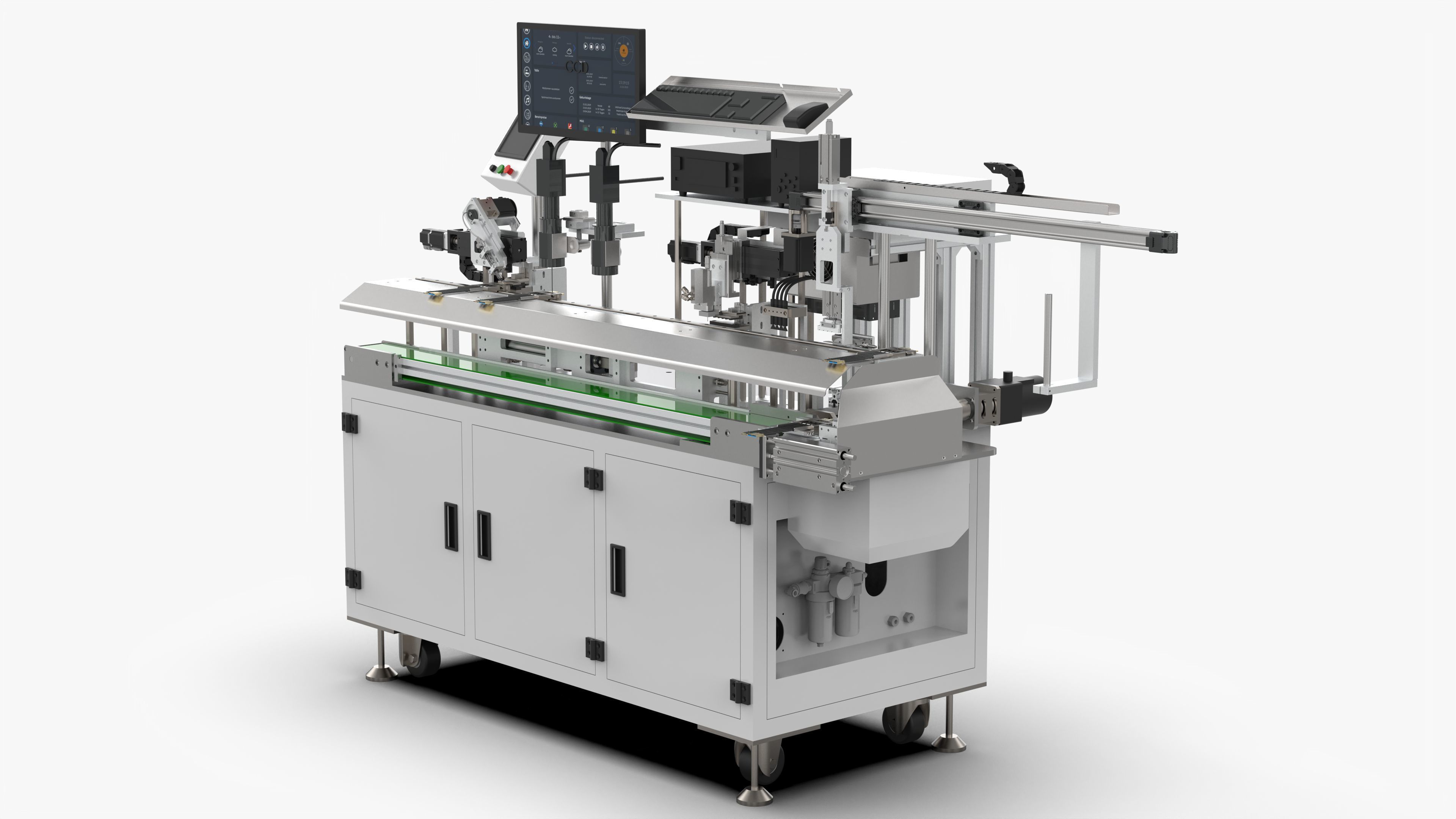

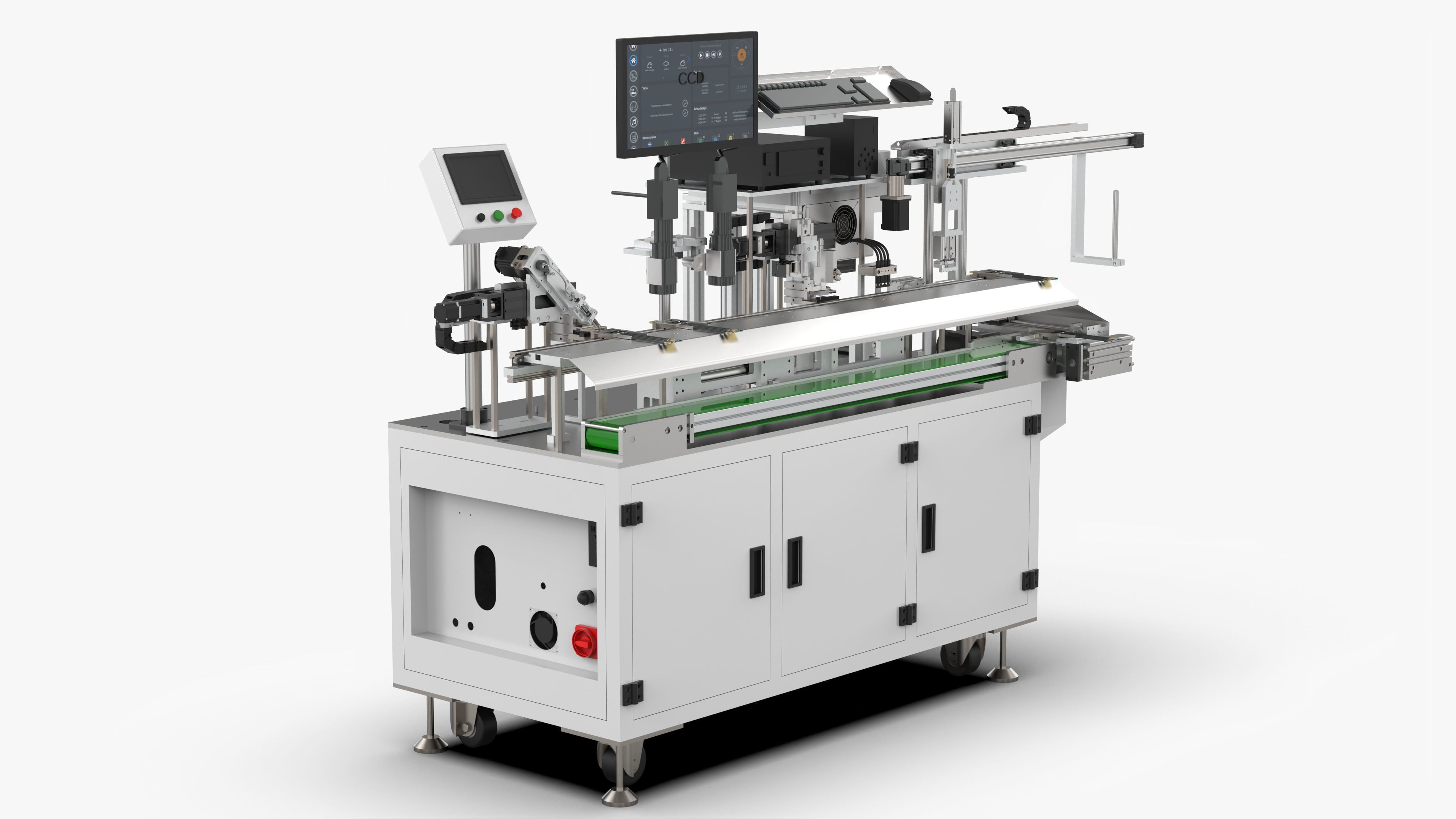

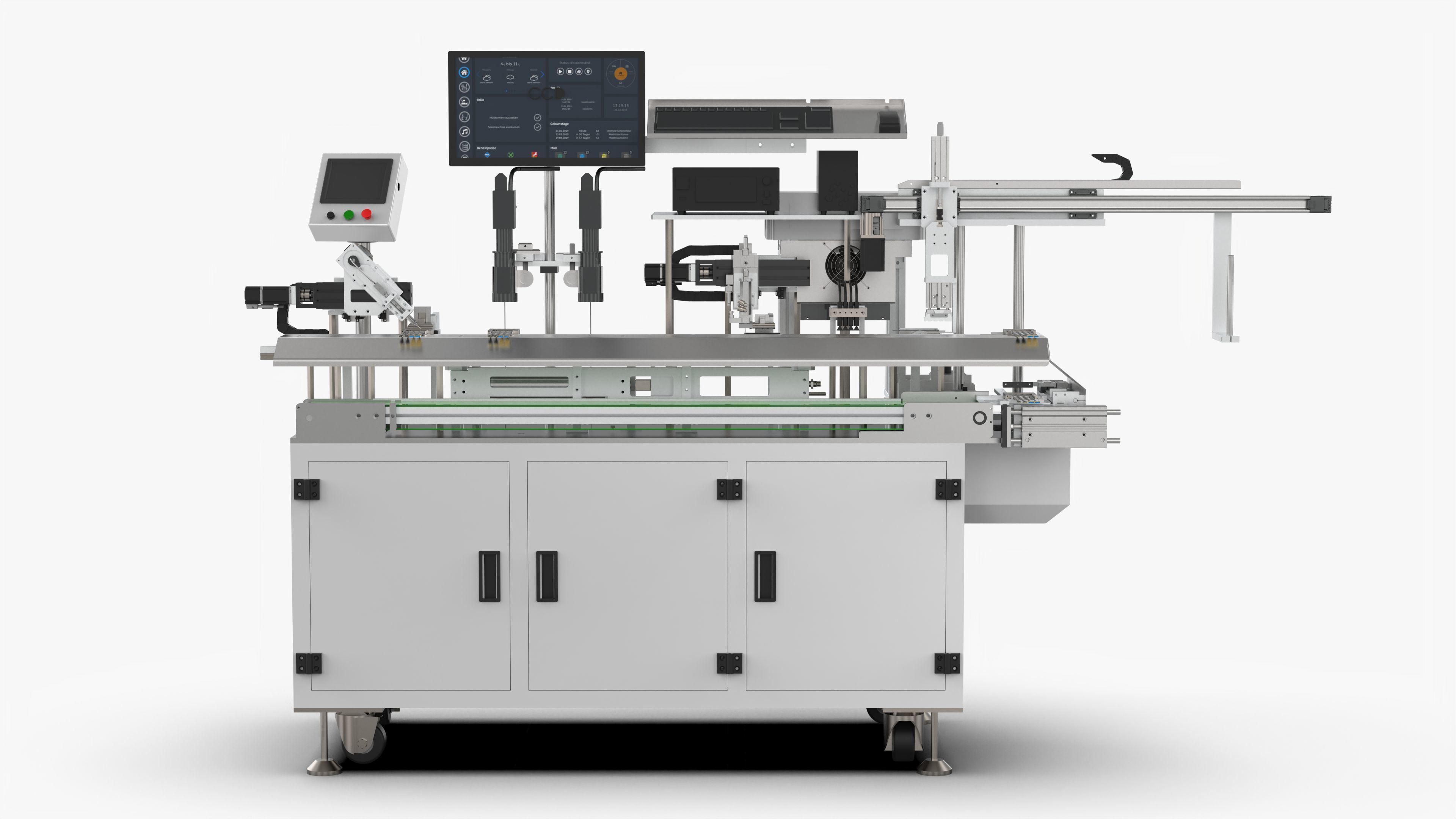

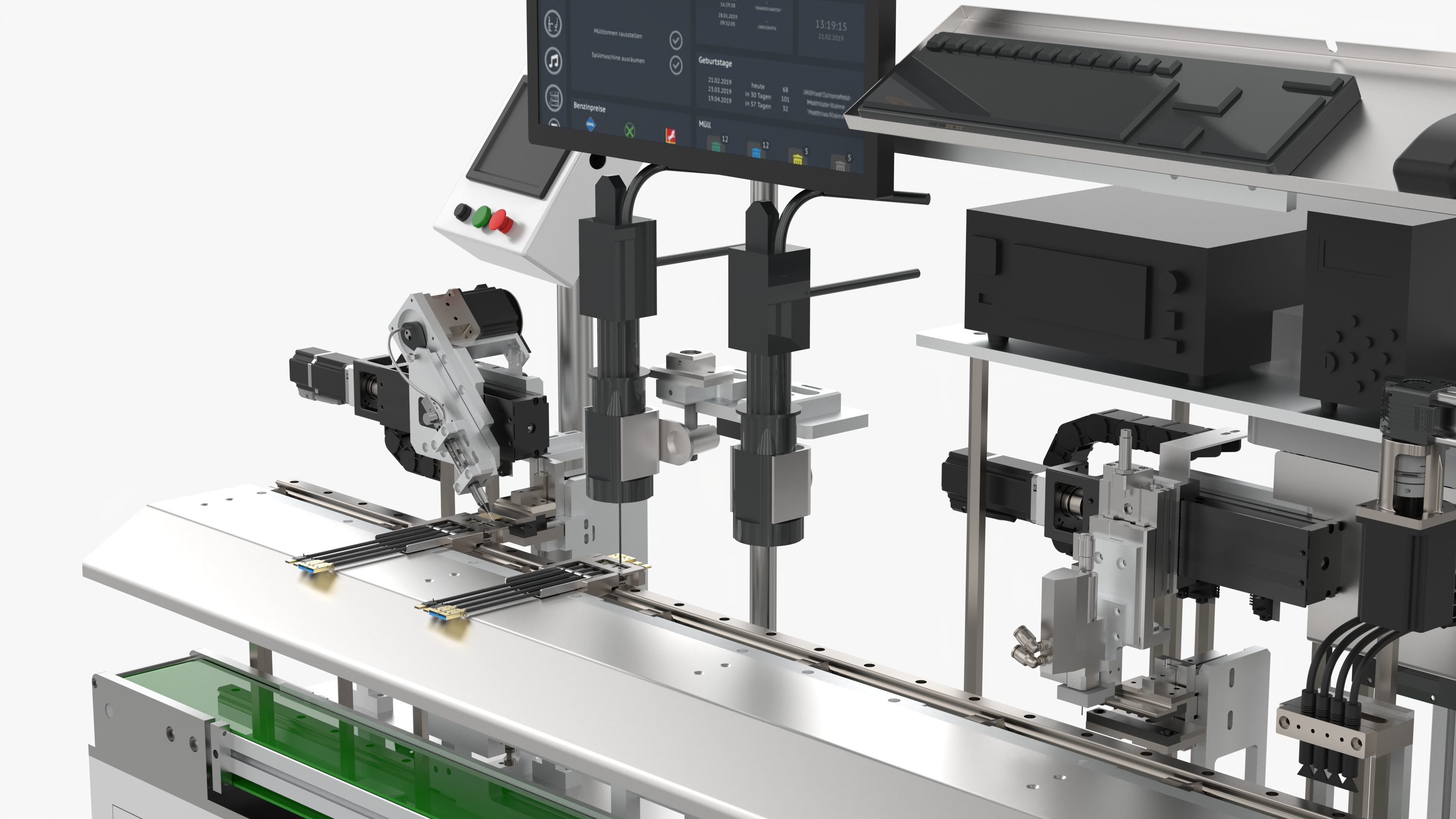

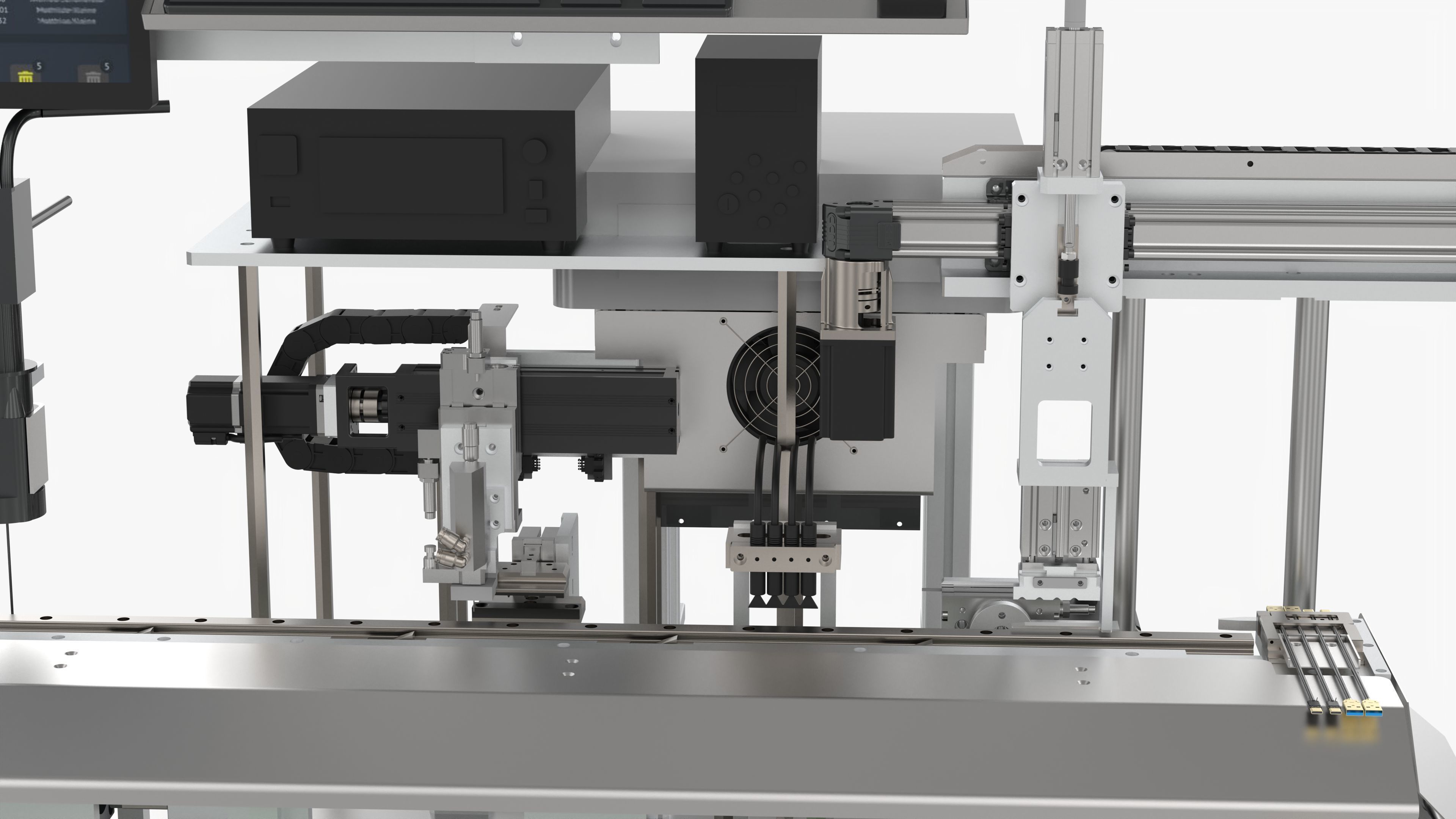

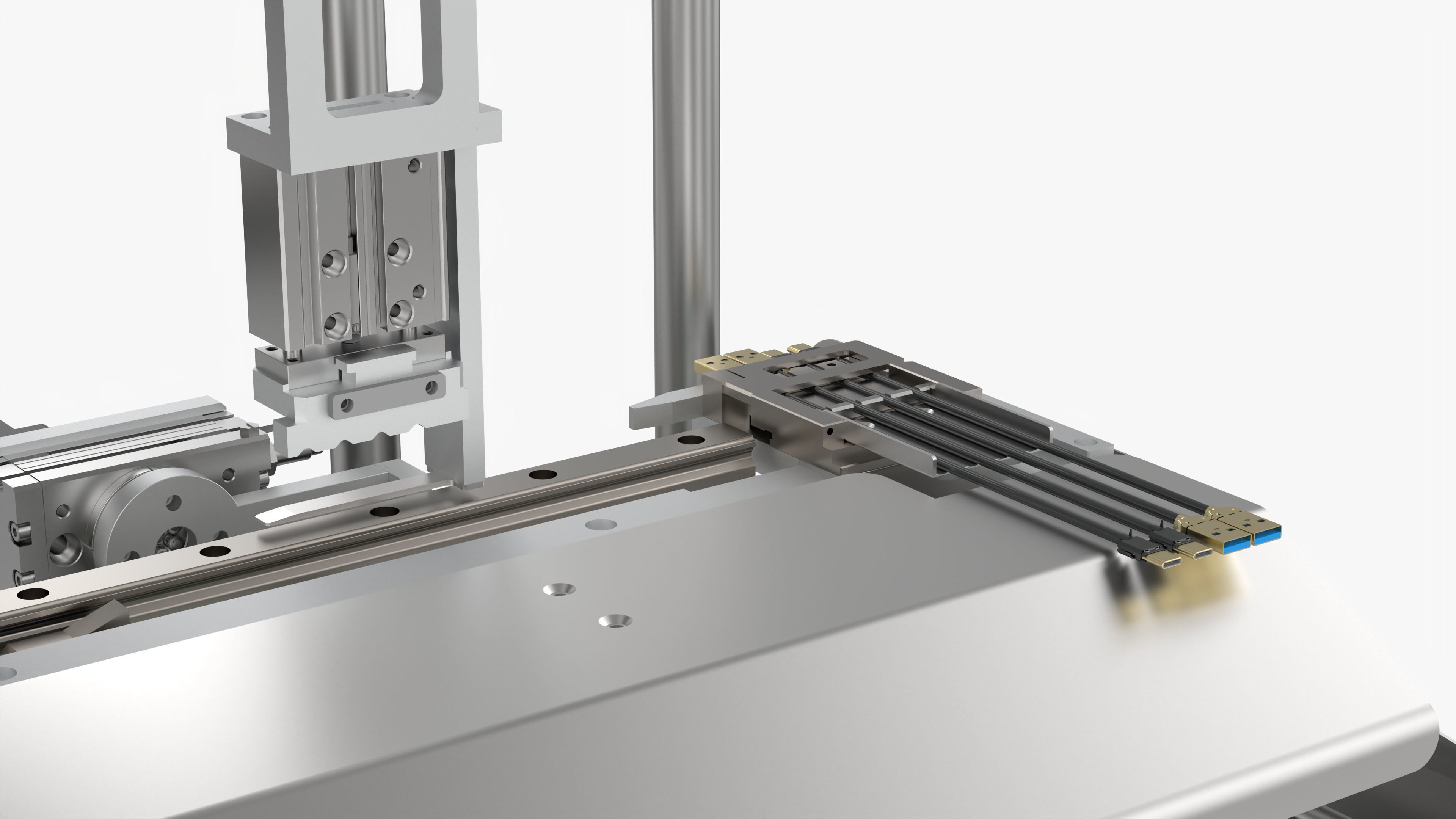

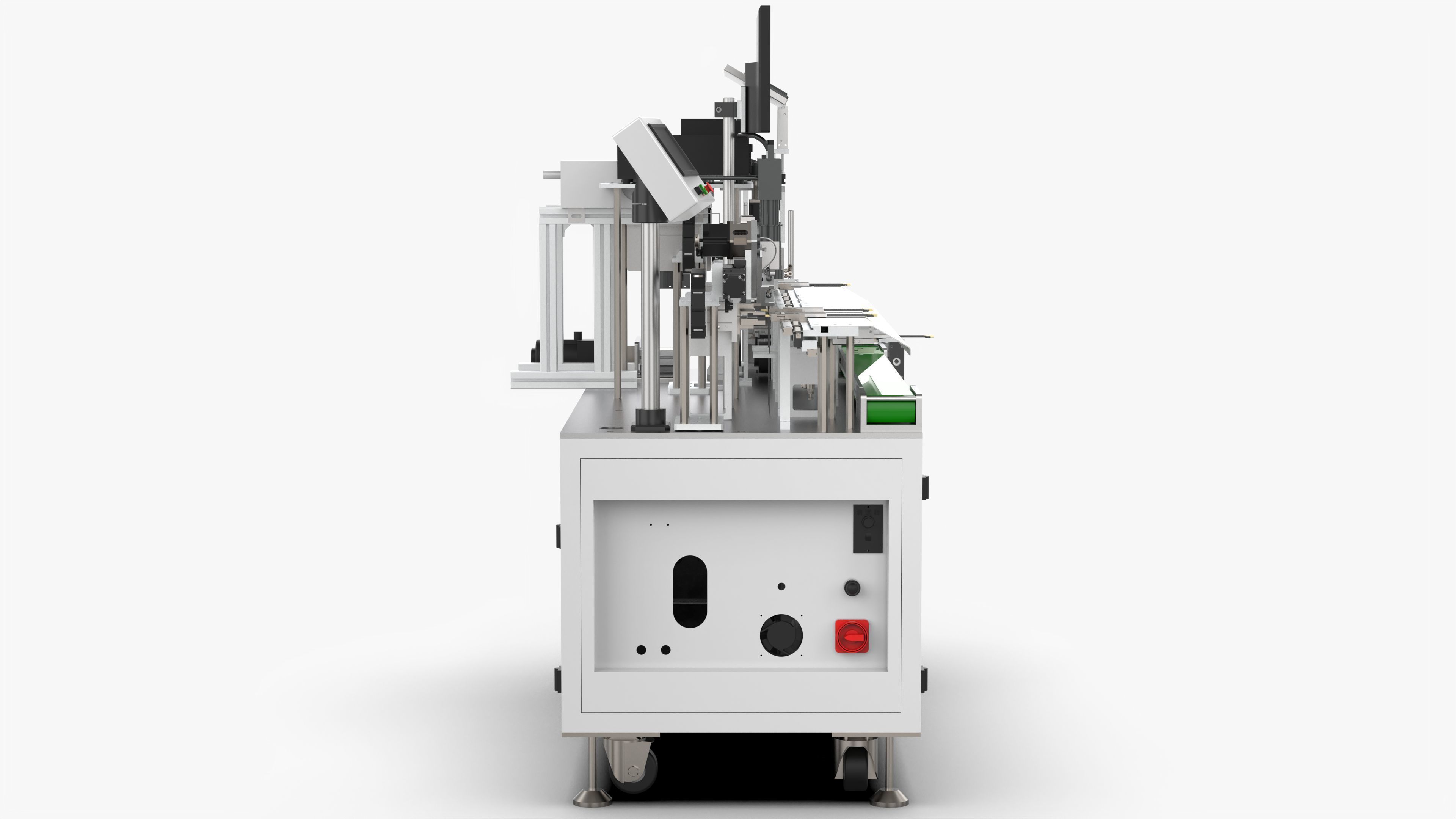

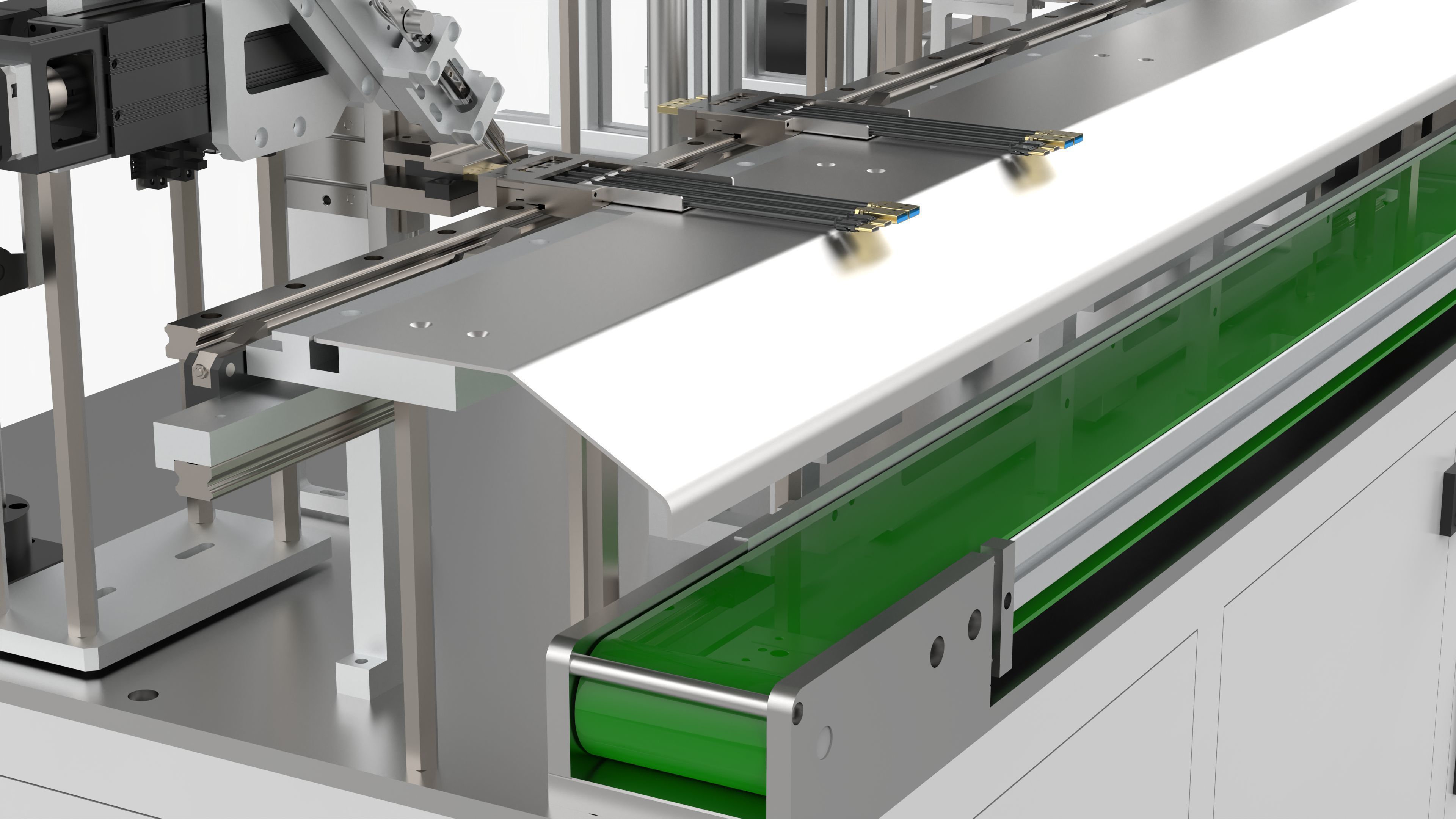

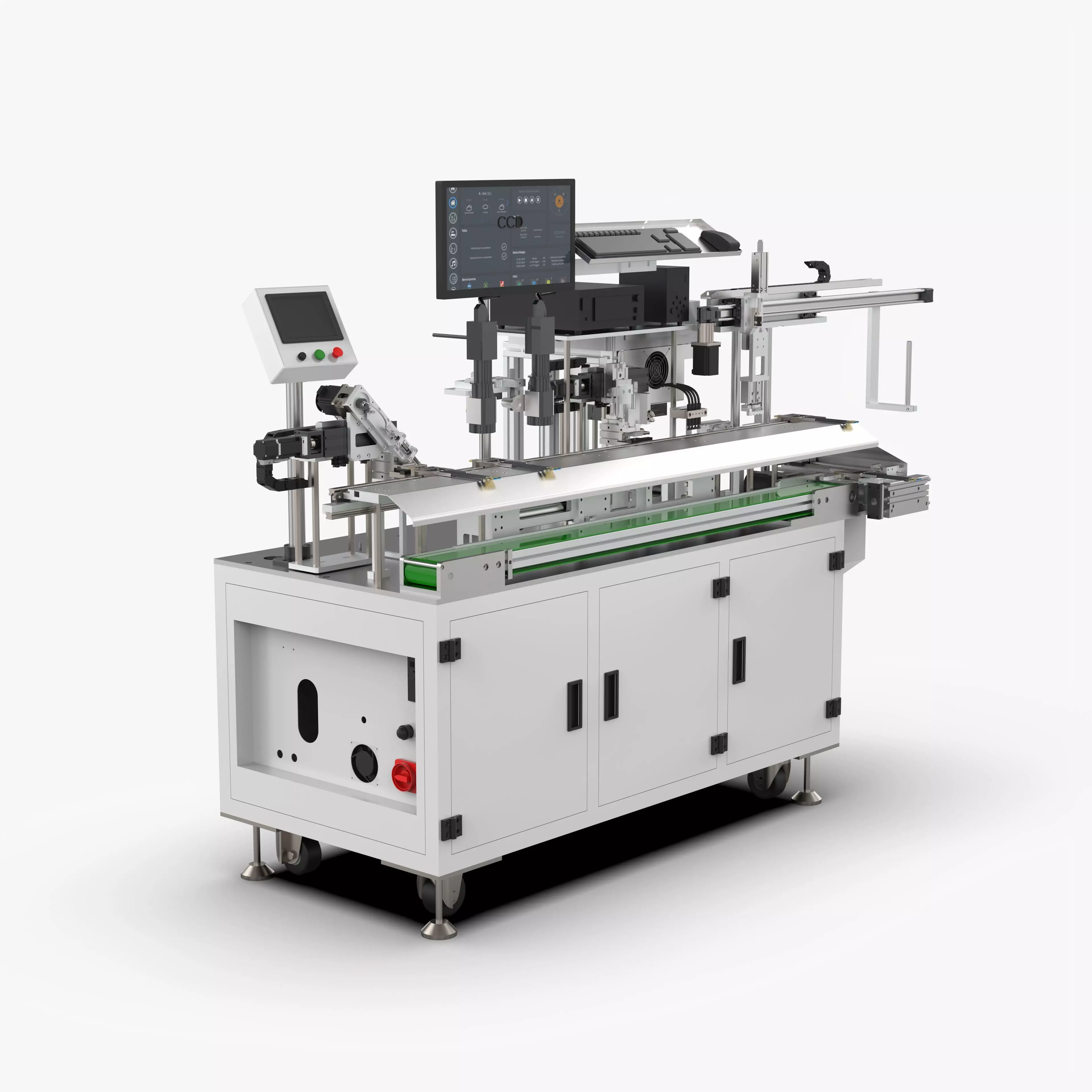

USB+TYPE-C wire solder joint firmness inspection, UV glue spraying, light curing, fixture automatic reflow 100% original, each mechanism diagram in this design drawing is a very mature mechanism, as follows:

  • Stop pushing material ,
  • Glue spraying device

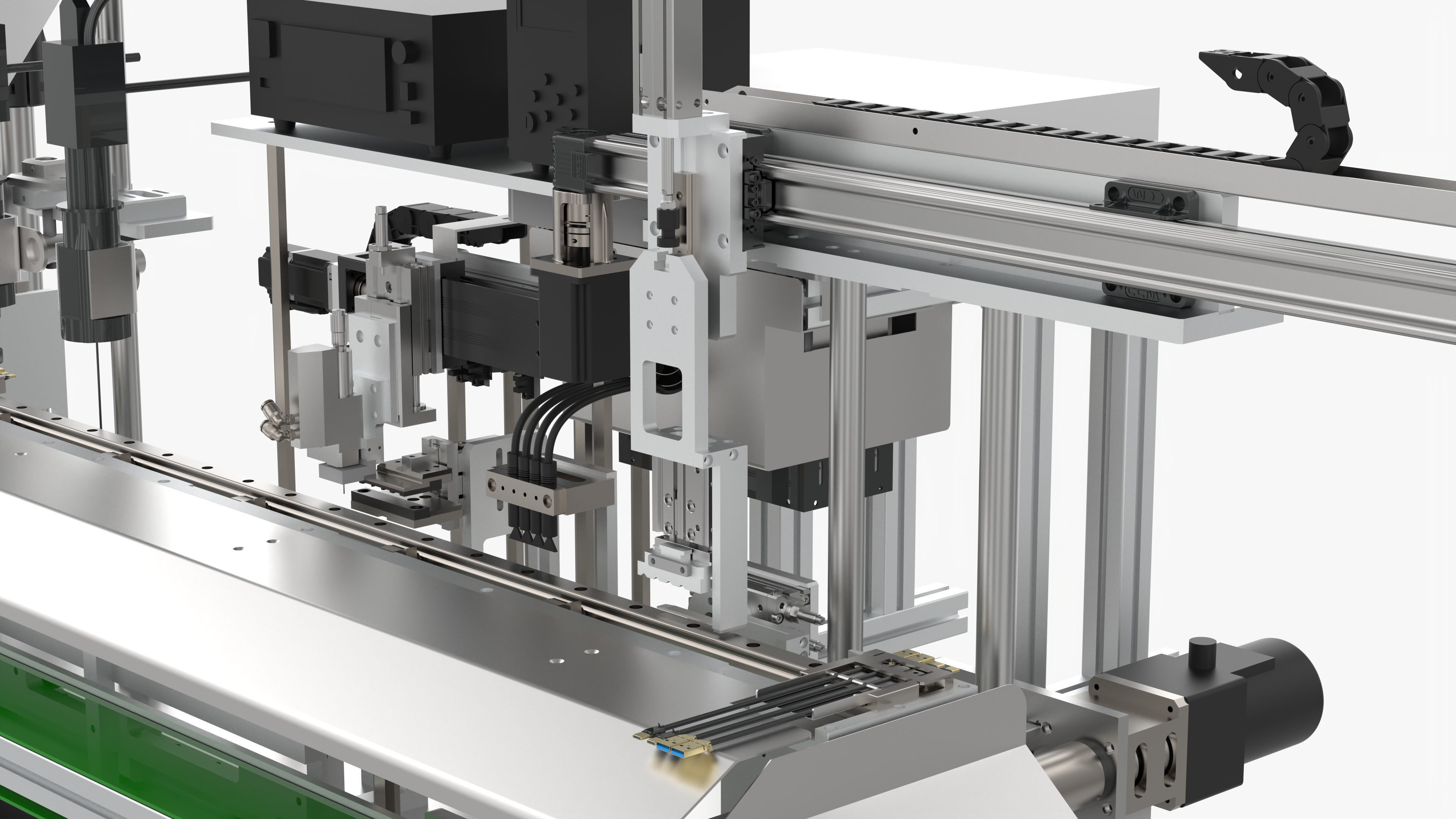

  • Pick up material Modules

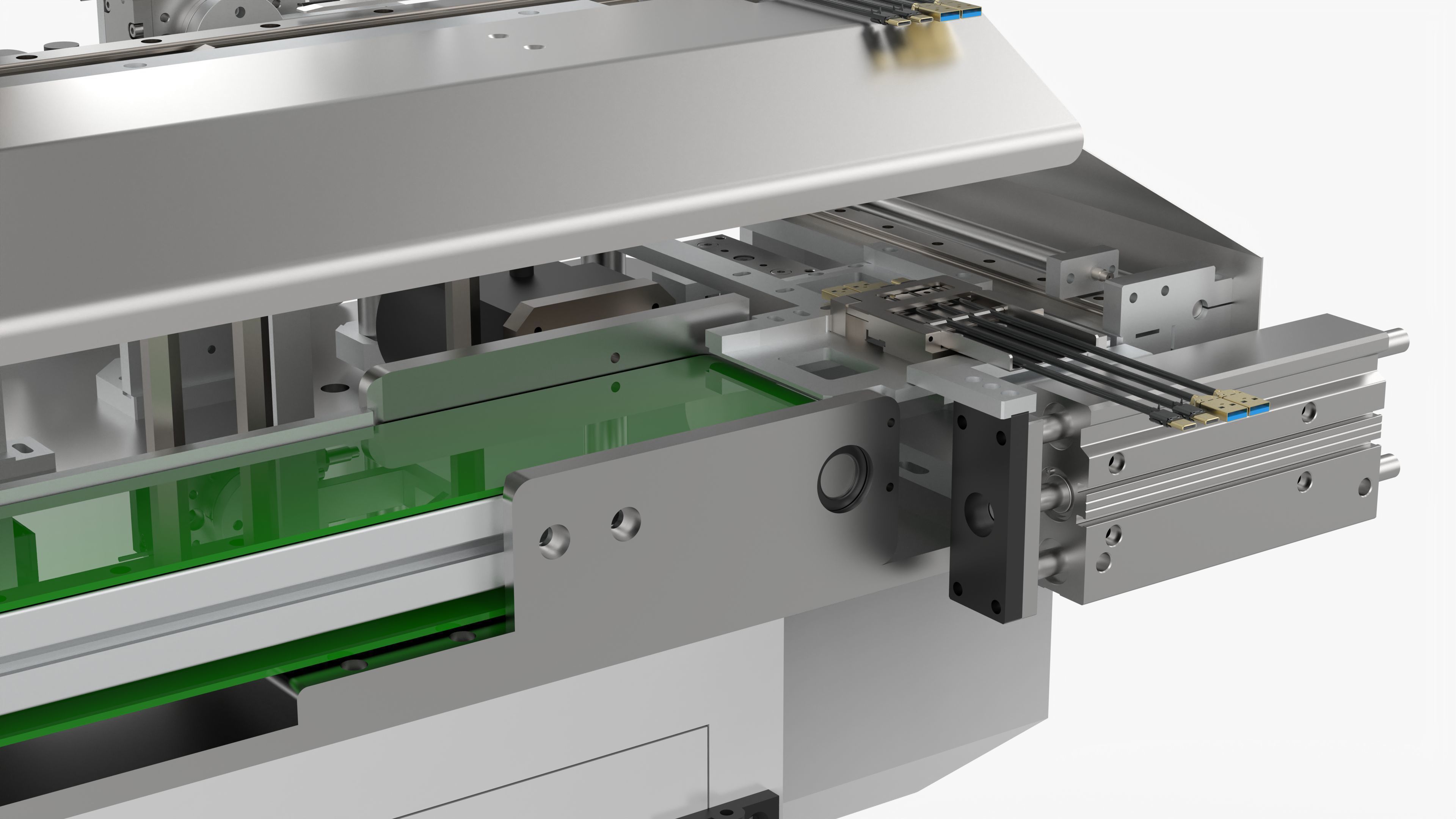

Fixture automatic reflow mechanism The above are classic and practical mechanisms, not just models or conceptual drawingsAll standard parts are the actual size of the actual object, which is very detailed and clear.

File Formats

  • SolidWorks 2020 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 3,341,659
  • Vertice: 10,024,977
