This is a Revit Family for Wooden Column Decor Screens that can also be used as a room divider. Wooden columns can either have top and bottom support pivot legs or fixed directly on the floor and ceiling.

Wooden columns can be rotated at any angle using available parameter and have their size and distance between them adjusted and changed to match any required design. User can also change the number of columns from 1 to any number. Materials are also parametric allowing the user to choose any material needed.

ATTRIBUTES:

• Revit Version 2022
• Family Type : Generic Model
• File Extension : .rfa

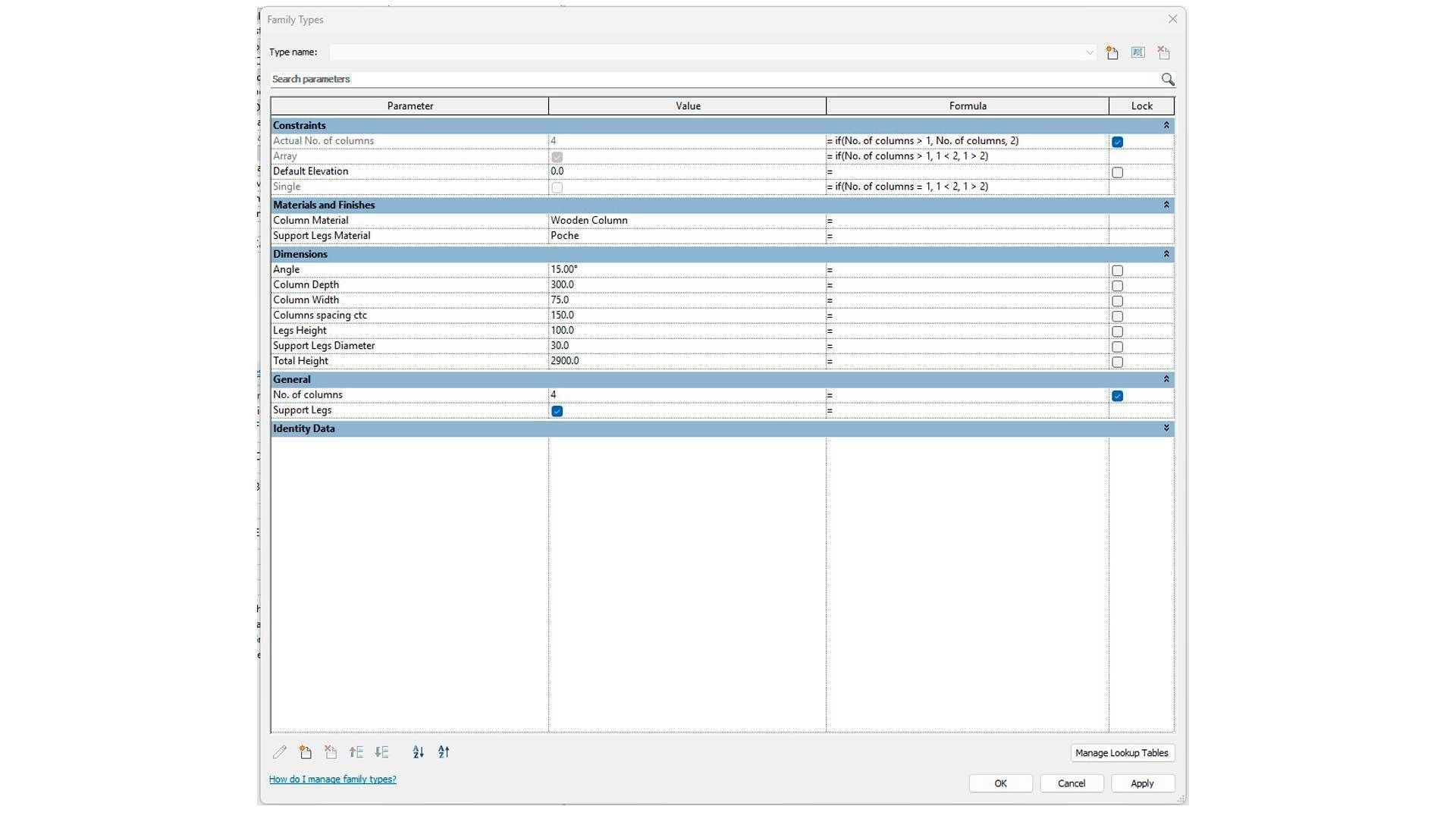

PARAMETERS:

• Column Width and Depth
• Columns Spacing center-to-center distance
• Pivot/rotation angle
• Support Legs Option ON/OFF
• Support Legs Height & Diameter
• Total Height
• Number of columns
• Materials ( column, support legs )

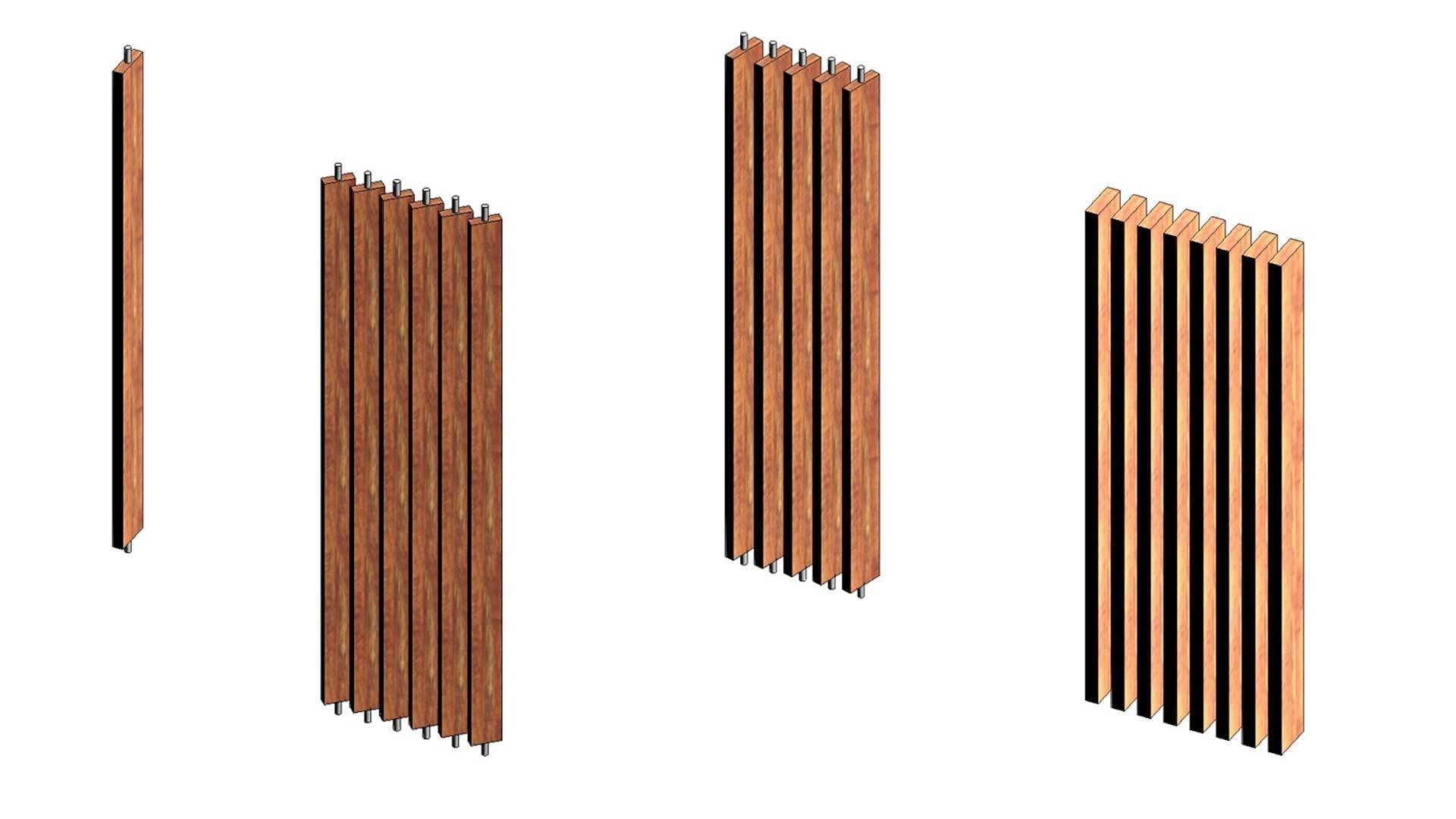

FAMILY TYPES:

• 1 Column – 50x200mm, Support Legs, 0 degrees, H=2700mm
• 5 Columns – 50x200mm, Spacing 150mm, Support Legs, 15 degrees, H=2900mm
• 8 Columns – 75x250mm, Spacing 150mm, No Legs, 0 degrees, H=3000mm
• 6 Columns – 50x150mm, Spacing 150mm, Support Legs, 45 degrees, H=3000mm
• 10 Columns – 25x100mm, Spacing 75mm, No Legs, 0 Degrees, H=1500mm

User can create unlimited number of family types.
