Kitesurf board Exhibitor

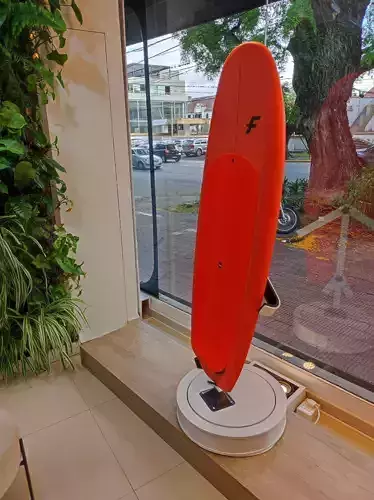

Rotary stand made for kitesurf boards. To make this you will need access to a 3d printer. A CNC router, a CO2 laser machine, and a lathe were used to make this prototype but they are not strictly necessary.
BOM:
MAIN MAST:Aluminum rectangular tube (40mm*20mm) Length: 900mm.
ARMS: Aluminum flat bar 1/4" x 2"Length: 1.5m
STRUCTURE: 30mmx30mm steel square tubing (3 units of 80mm long)
ROTATING AXIS: 1" round tubing (70mm long)
ENCLOSURE: 1.6mm steel sheet 1670mm x 79mm (this can be also a plastic sheet)
CUSHIONS FOR ARMS: EVA foam 10mm
BEARINGS:
-608 bearings (5 units)
-6005 bearings (2units)
MOTOR: 1 Microwave motor (see photo atached
TRANSMISION: 1 gt2 belt (width: 6mm Length: 400mm)
1/4 x 1.5" bolts and nuts for knobs (2 units)
M8x35mm bolts (3units)
M8 nuts (6units)
M5*20mm screws (10 units)
M5 nuts and washers (4 units)
Wood screws Length :15mm (35units)
M6x12mm set screw (This is for locking the mast to the 3d printed base)
Extra-Wide Rounded Head Drilling Screws for Metal, Zinc-Plated Steel, Number 8 Size, 3/4" Long | McMaster-Carr - 18 units
