Model for Mechanism and Kinematics Practice Free 3D print model

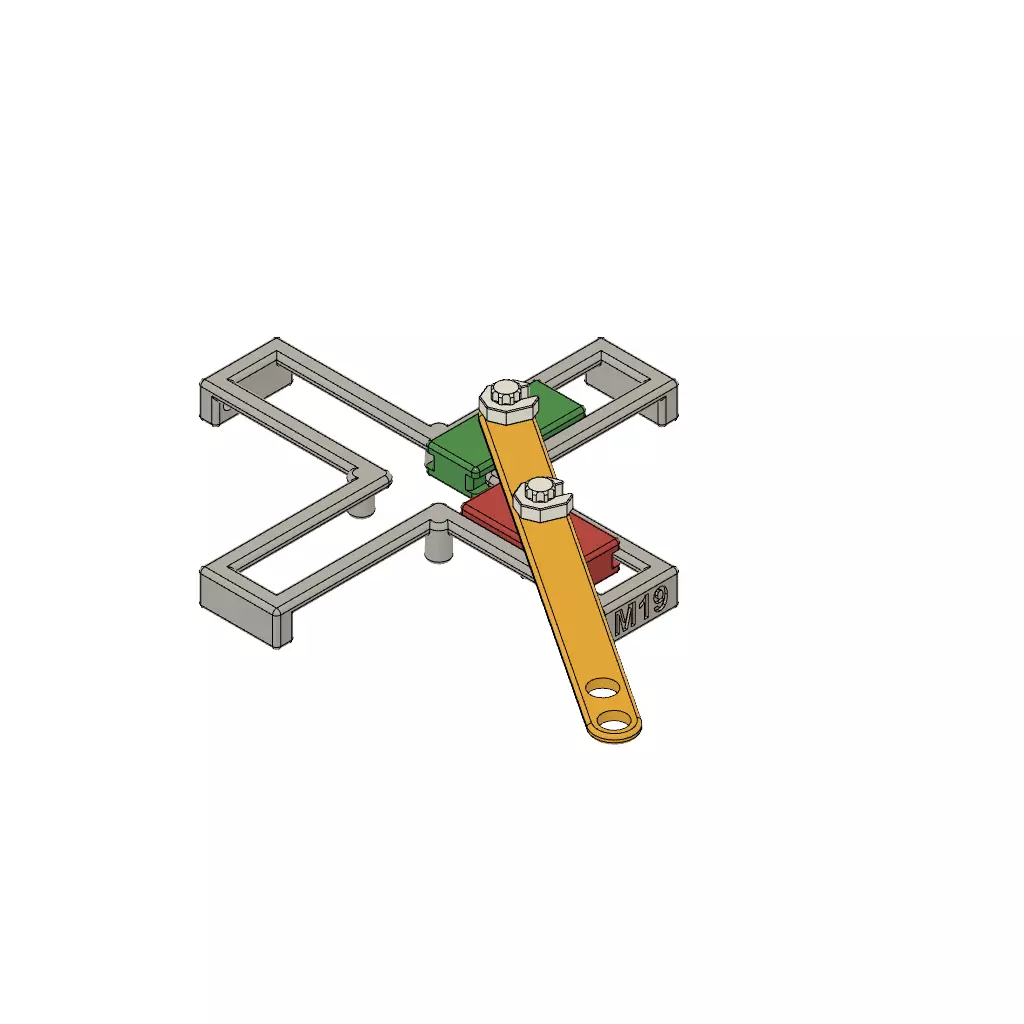

Fixed Double Slider Crank model for Mechanism and Kinematics Practice

[3D printing setting example]

• Printer brand: prusa, FFF(FDM)
• Printer: I3 MK3S, etc
• Rafts: No
• Brim : No
• Supports: No
• Resolution: 0.2 or 0.1
• Infill: 25%(link, slider), 95%(snap ring, spline shaft)
• Filament brand: all
• Filament color: Green Yellow, Red, Gray
• Filament material: PLA

note:

1. For settings not specifically mentioned, it is recommended to use the default values provided by the slicing software.
2. The output quality is much better if the stacking thickness is set to 0.1 or if the output is divided into parts.
