Respirator - Breathing Mask With HEPA Filter

Respirator - Breathing Mask With HEPA Filter Free 3D print model

Description

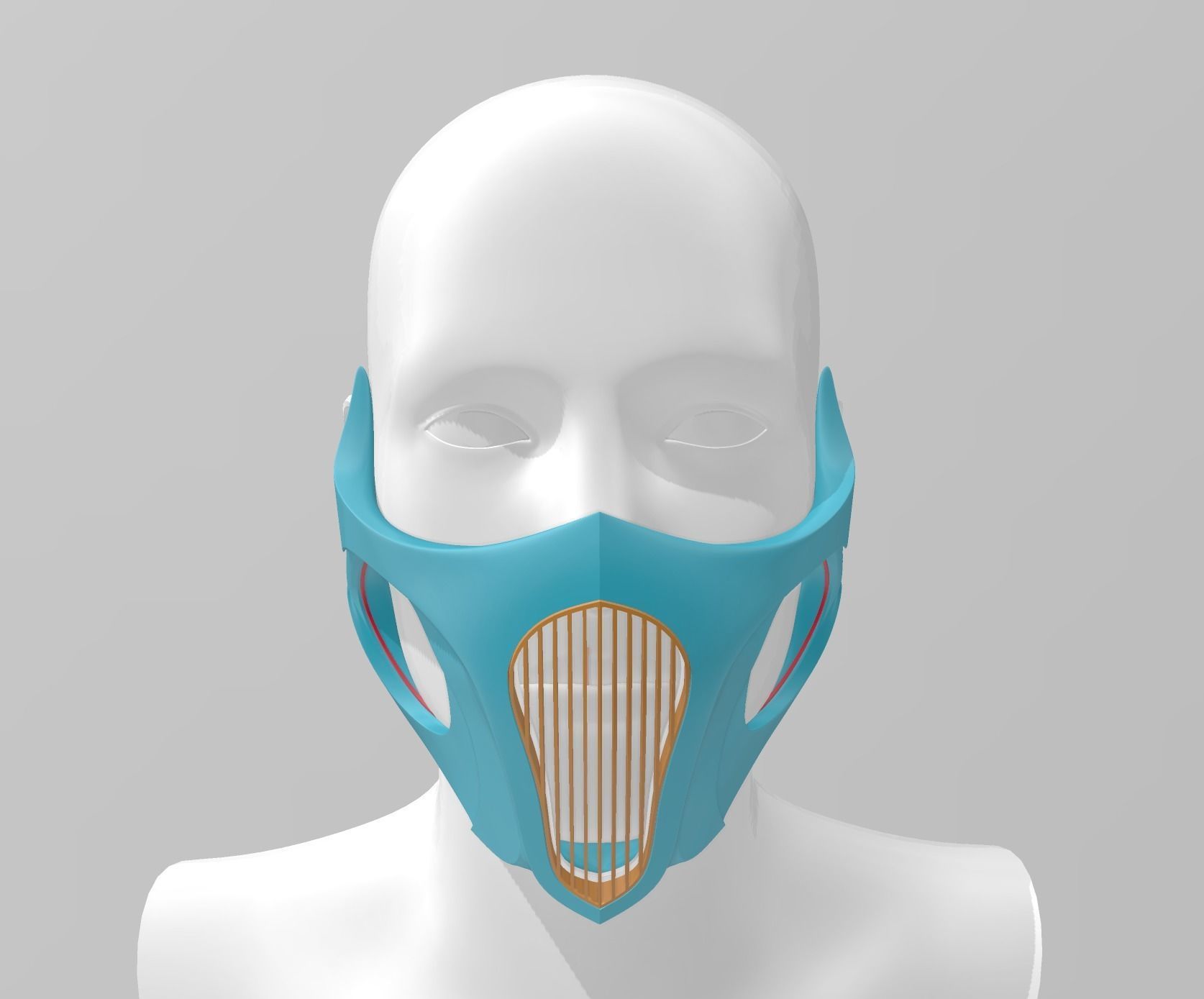

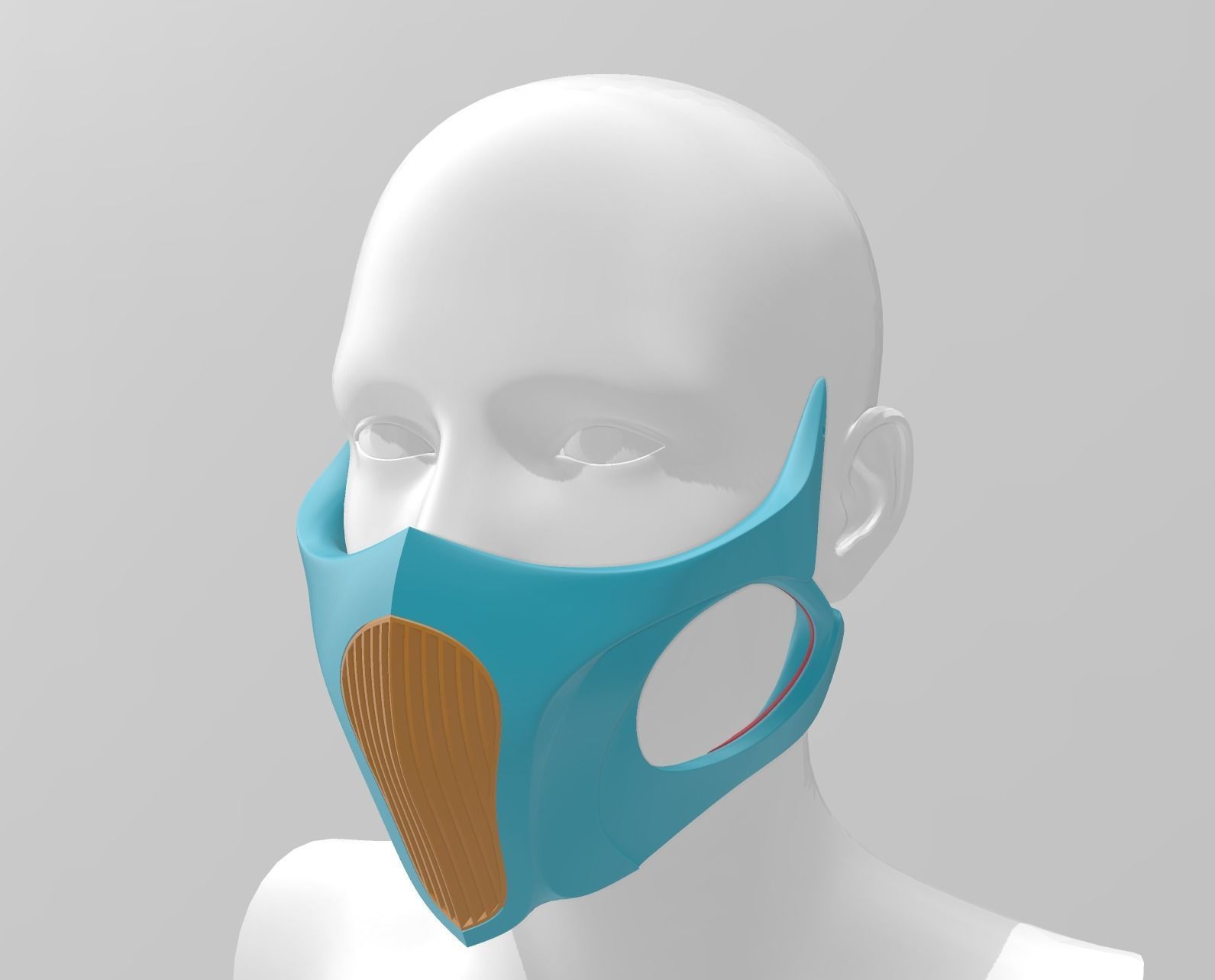

This is a wearable respirator that uses vacuum bag HEPA filters to protect from the spreading of viruses and bacteria. Have a look at the post printing section for more information. At 100% scale the mask is made for the average head width of 155 mm. You can scale it how you want to make it fit better, don't forget to scale all the parts the same.

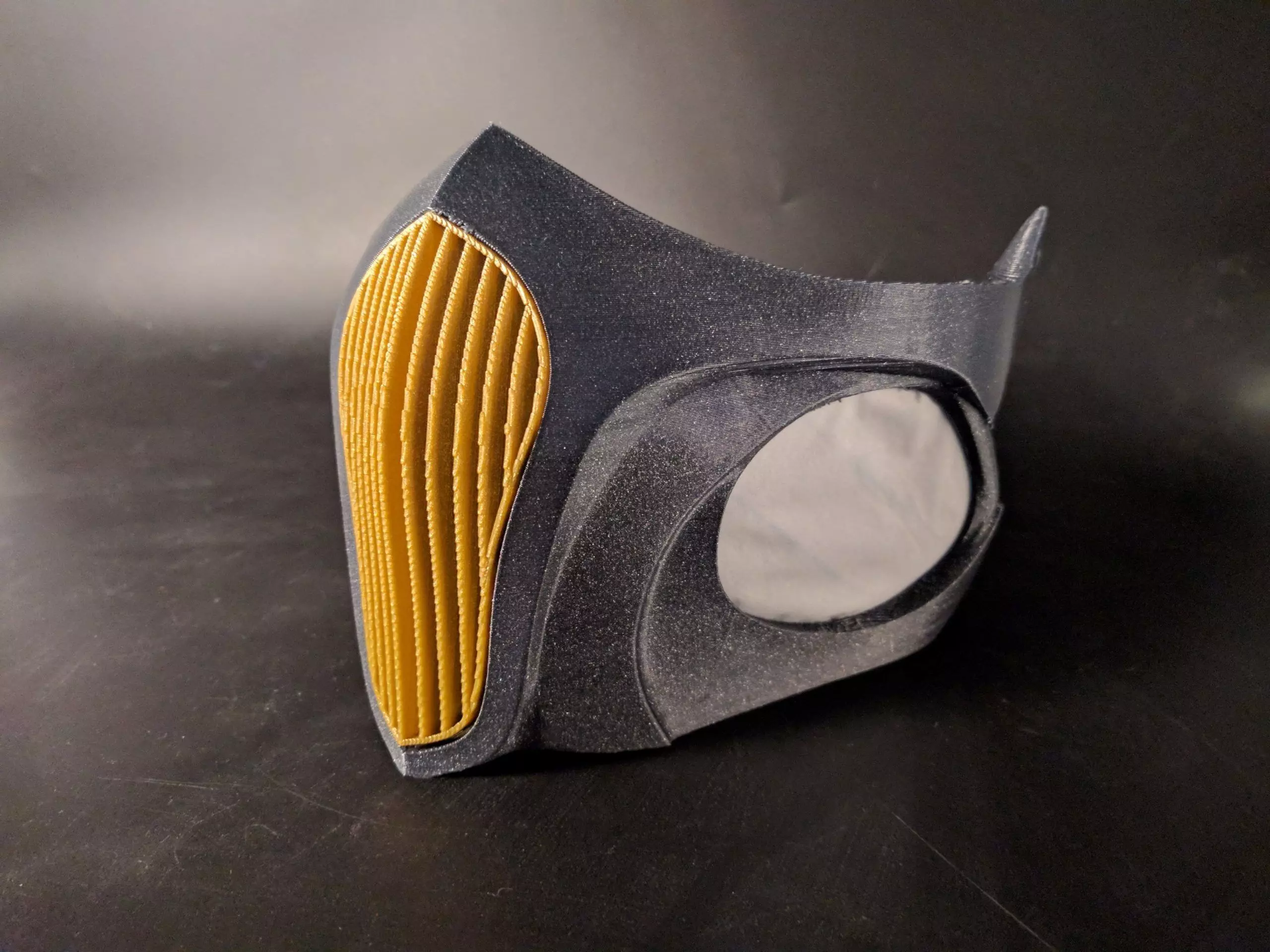

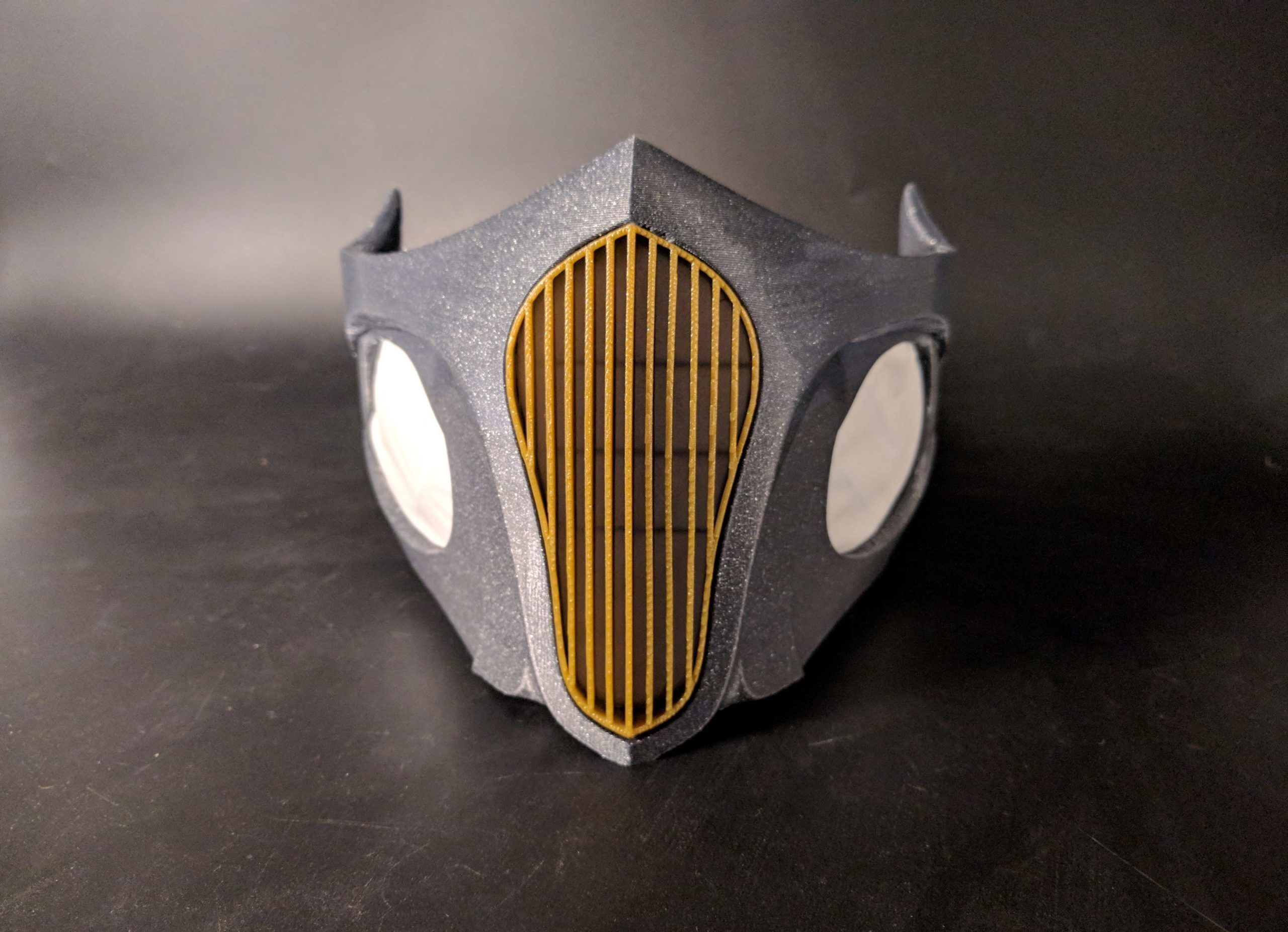

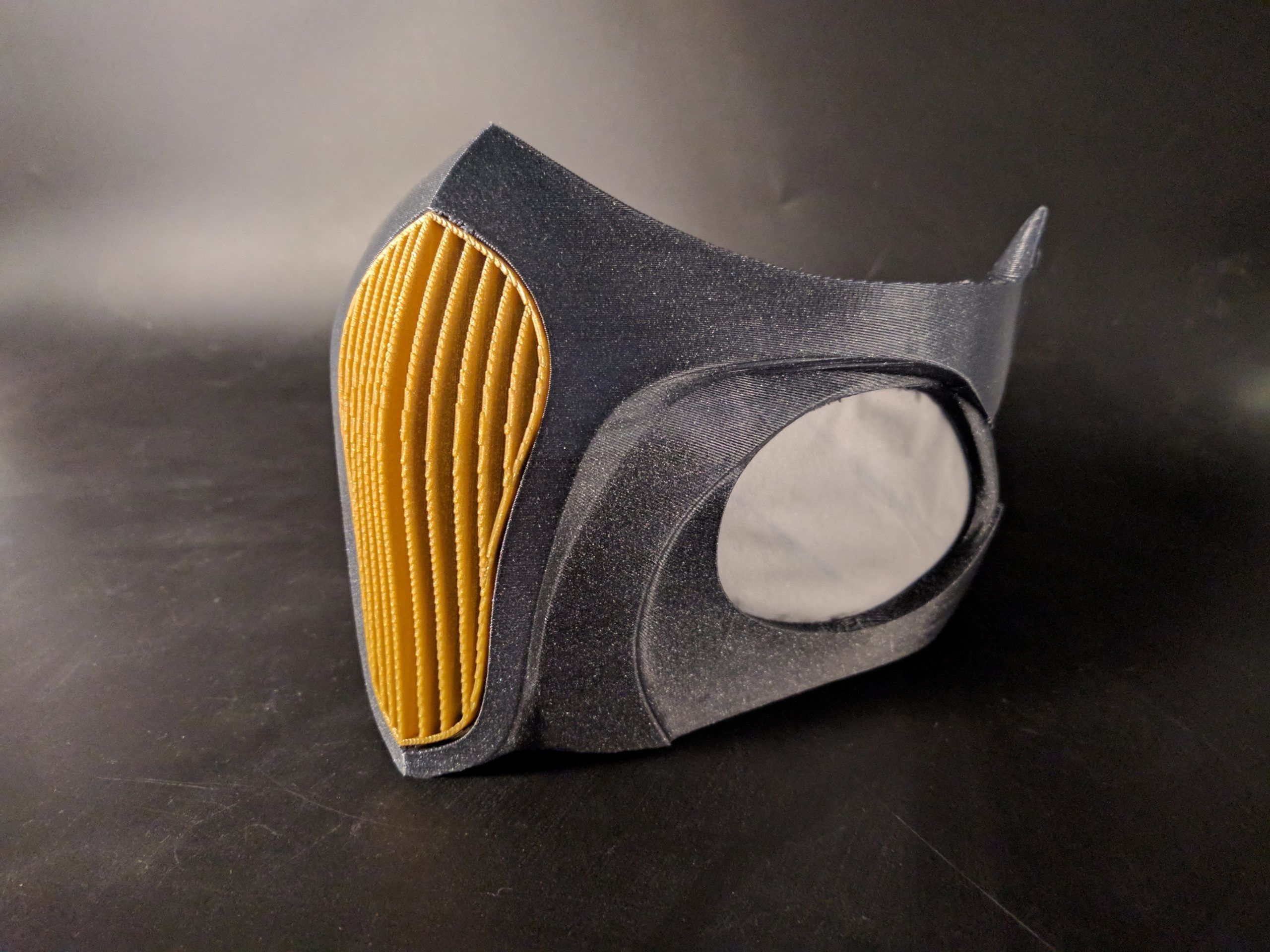

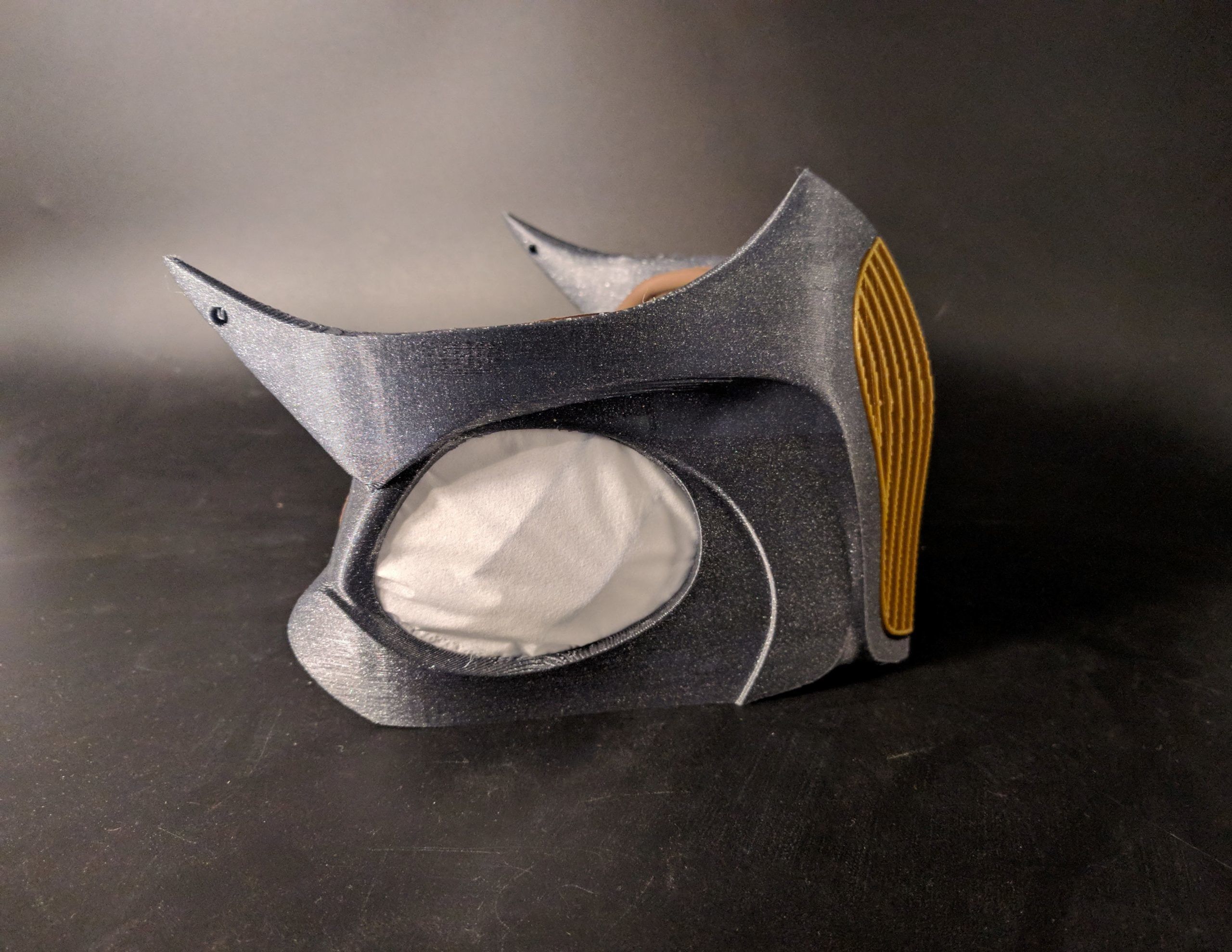

Printed from Fillamentum PLA Vertigo Grey, Melon Yellow

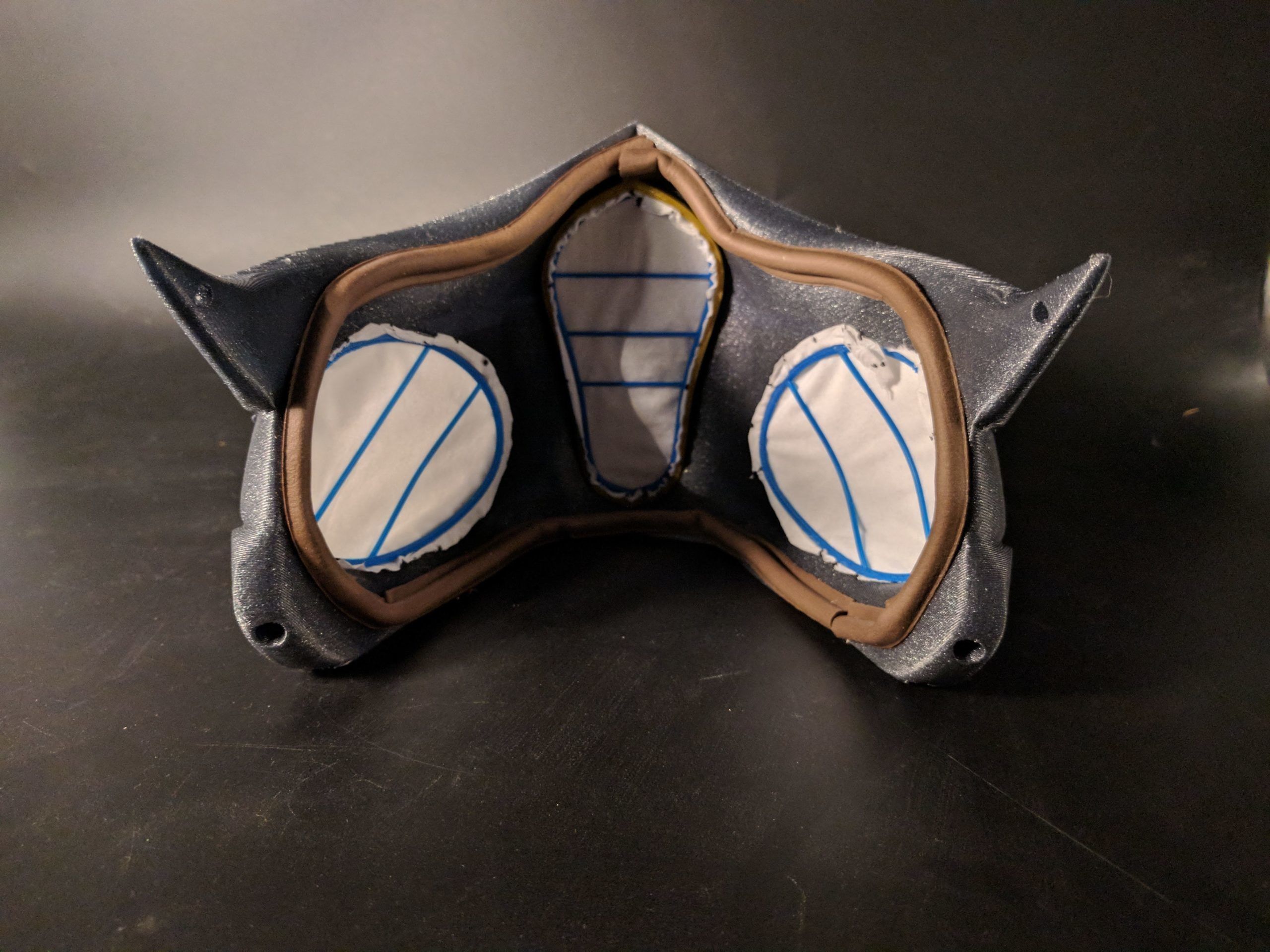

Post-Printing Cut out pieces of a HEPA filter vacuum cleaner bag and snap them into the breathing openings. Seal the edges of the mask with EPDM window seal (a 60 cm long strip should be enough) for good air tight adhesion. Then just thread elastic bands through the 4 holes to hold it on your face. Each person's face shape is different so you might need to scale the mask a bit or use a double layer of the window sealer in some places. But with an airtight seal should provide equivalent filtration to a FFP3 mask filtering 99.97 % of particles.

Use at your own risk.

The aesthetic of the design was based on Scorpion's mask from Mortal Combat.

Do you like the model and don't have a 3D printer? There are lots of people who offer 3D printing services these days. Try searching for someone who offers them in your area.

This fan-made model was brought to life by 3Demon. We are a group of modeling and 3d printing enthusiasts based in Prague, Czech Republic. Here are some links to our website and social media where you can see more of our creations:

https://3d-mon.com/links/
