Description

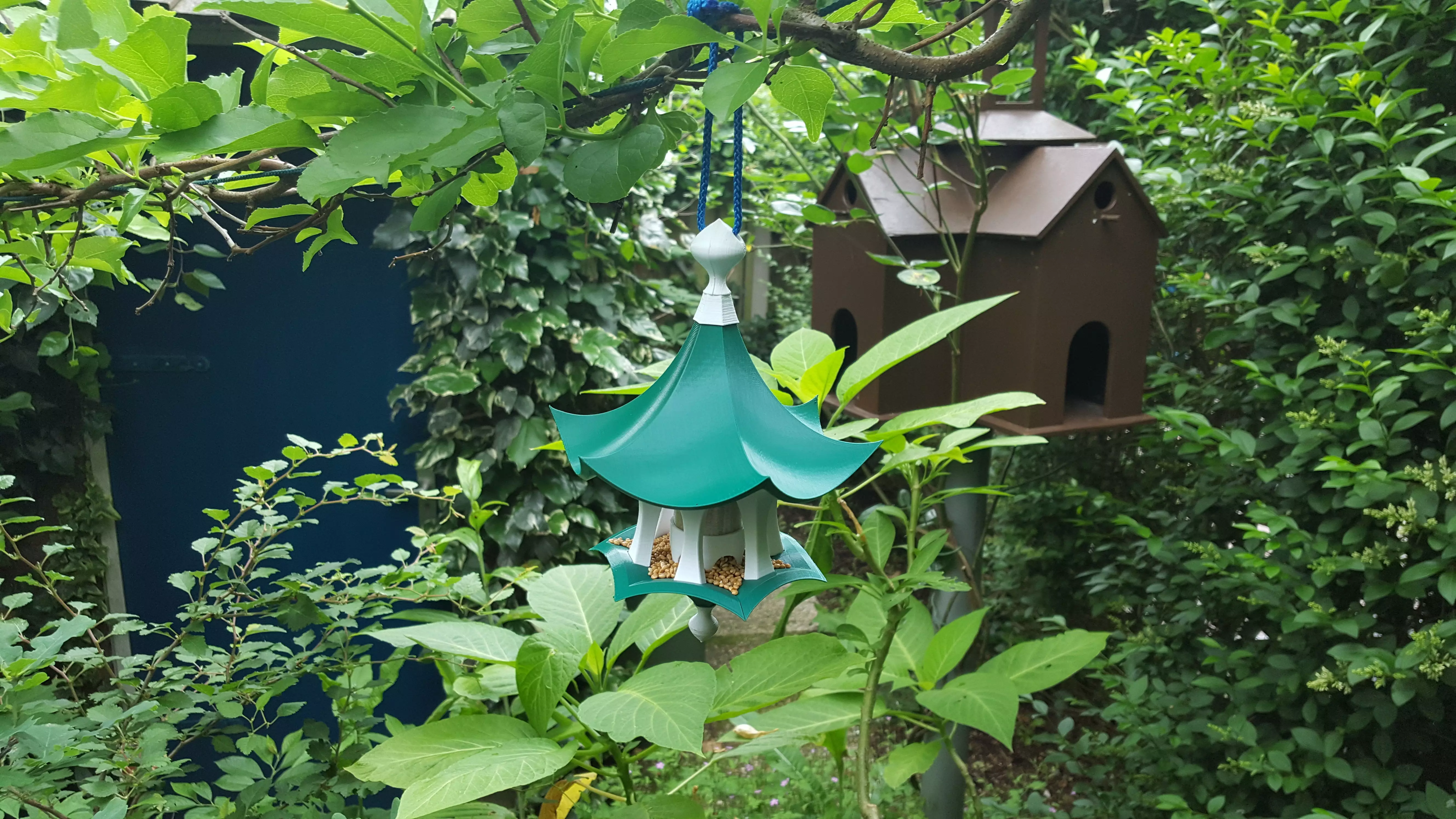

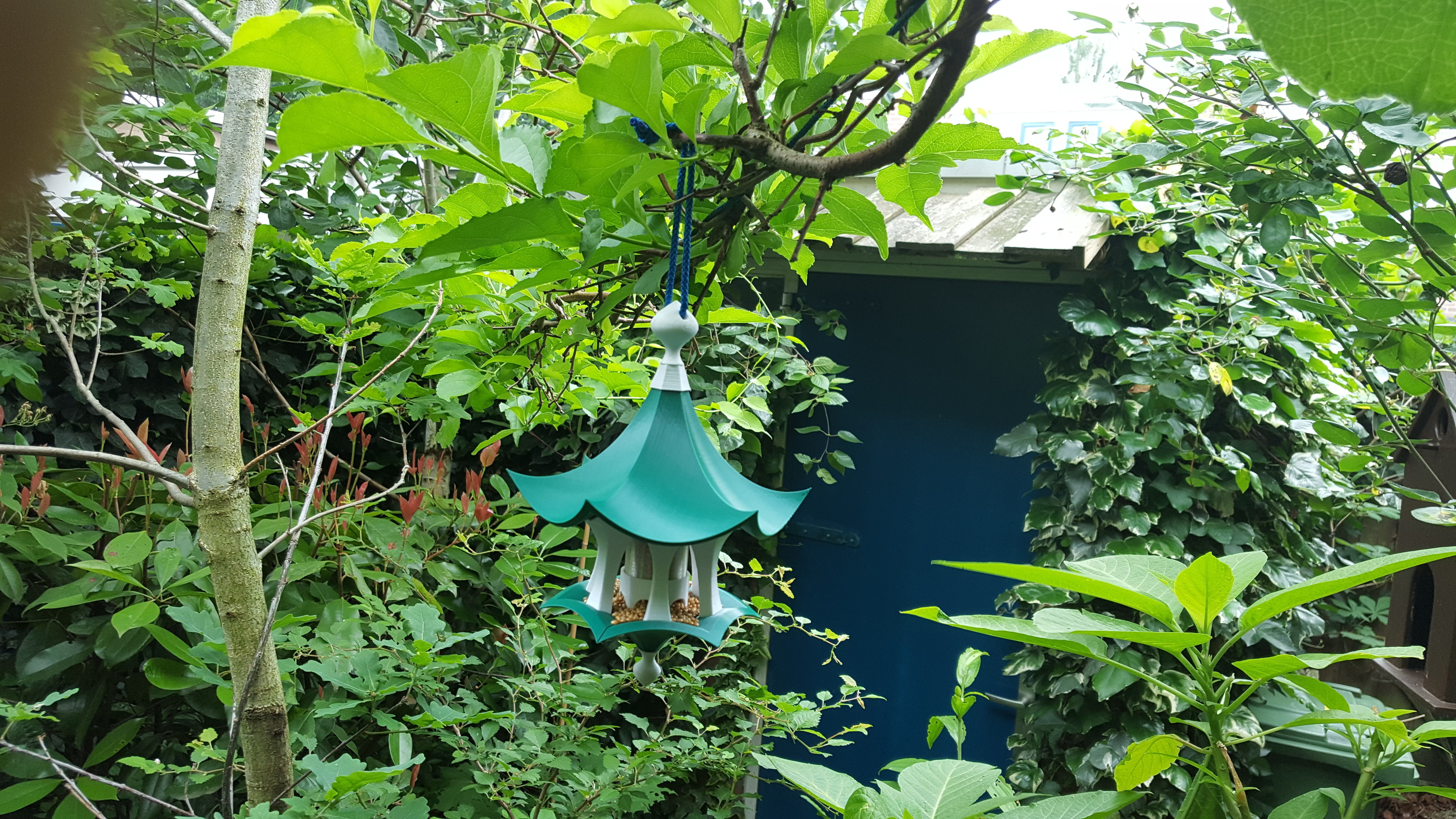

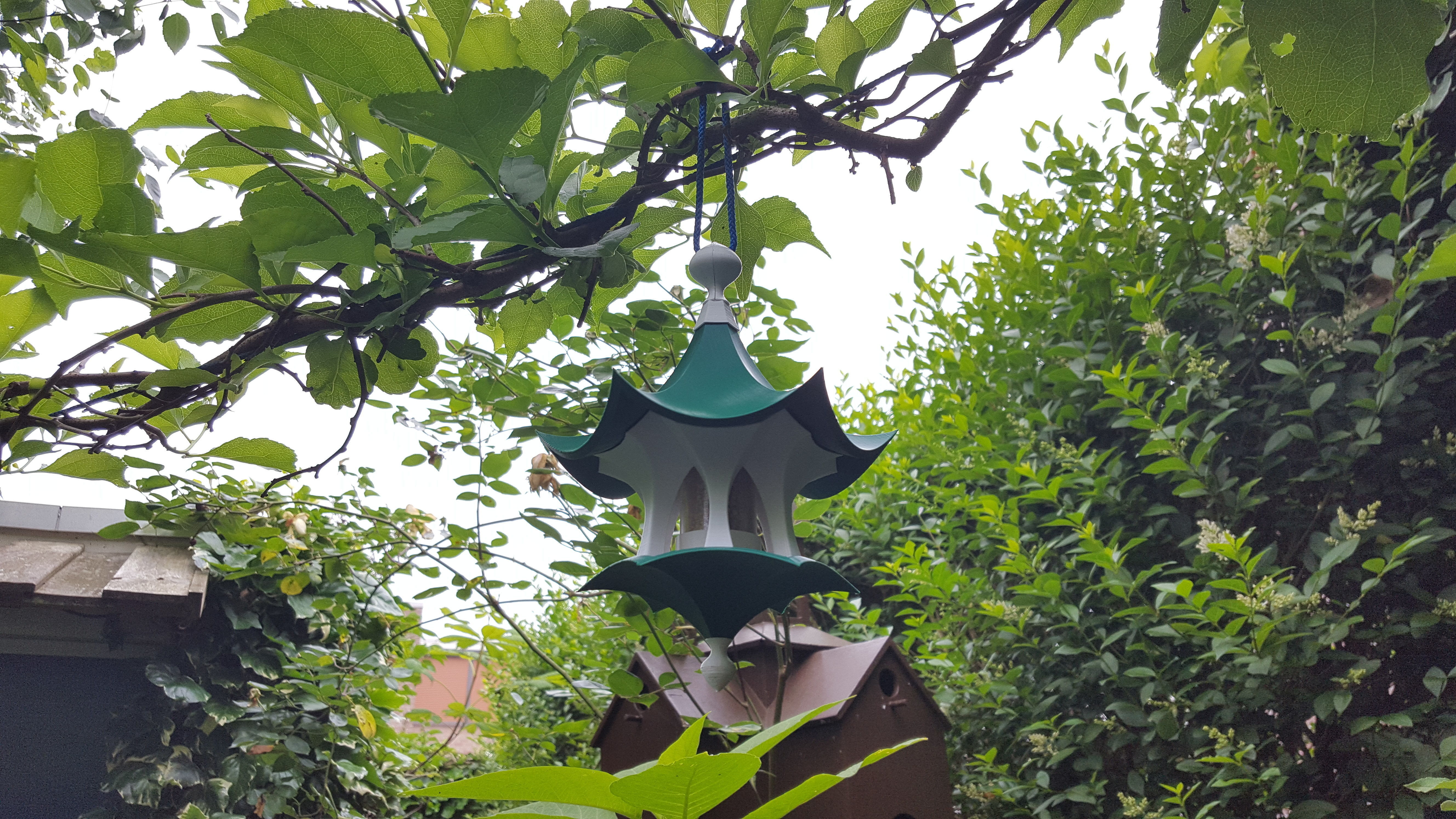

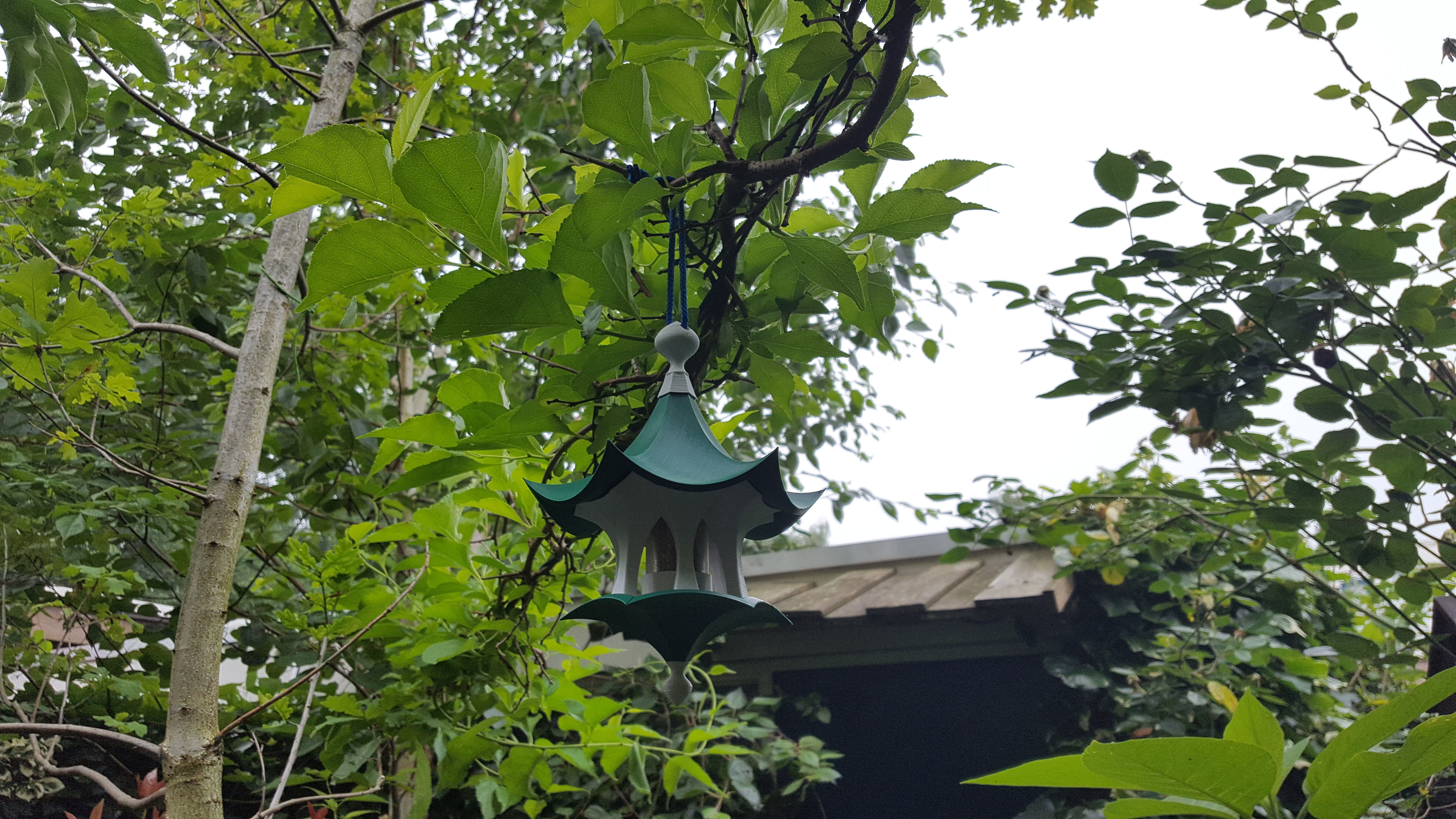

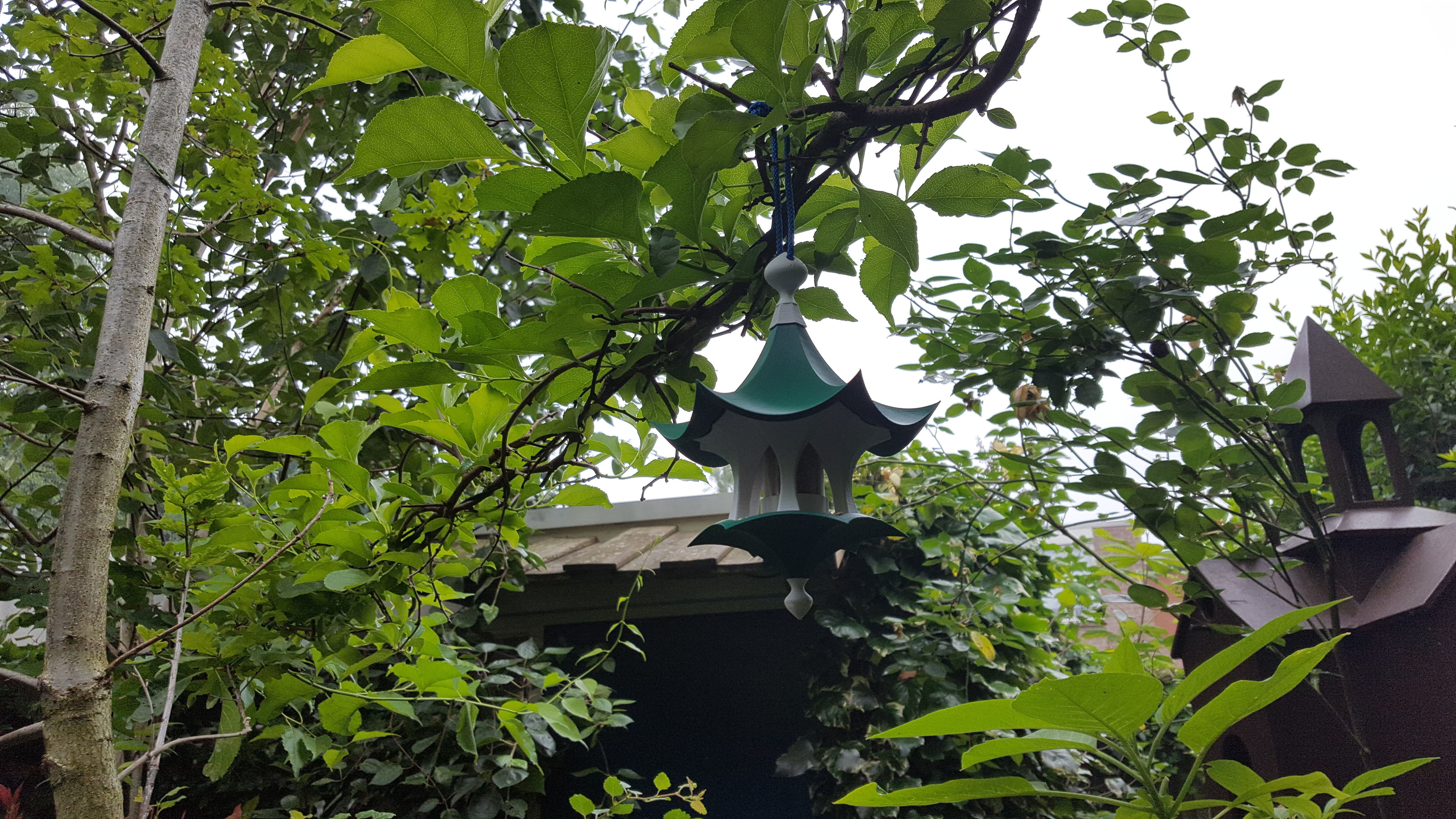

FDM Printer tested. Also tested on birds. It took them about one day to figure it out :-)

All parts are printed in PLA except for the “dispenser mid VASE MODE NO BOTTOM.stl”. That one is printed in translucent PET-G. This part is printed using the “spiral outer contour mode” in Cura without a bottom (zero bottom layers). The other parts are printed normal with 20% infill and 4 wall, top & bottom layers with a 0,4mm nozzle. Support material is not needed and the parts are already in the right position to print.

parts also needed:1X M3x160mm threated rod2X M3 nut1X tube of super glue

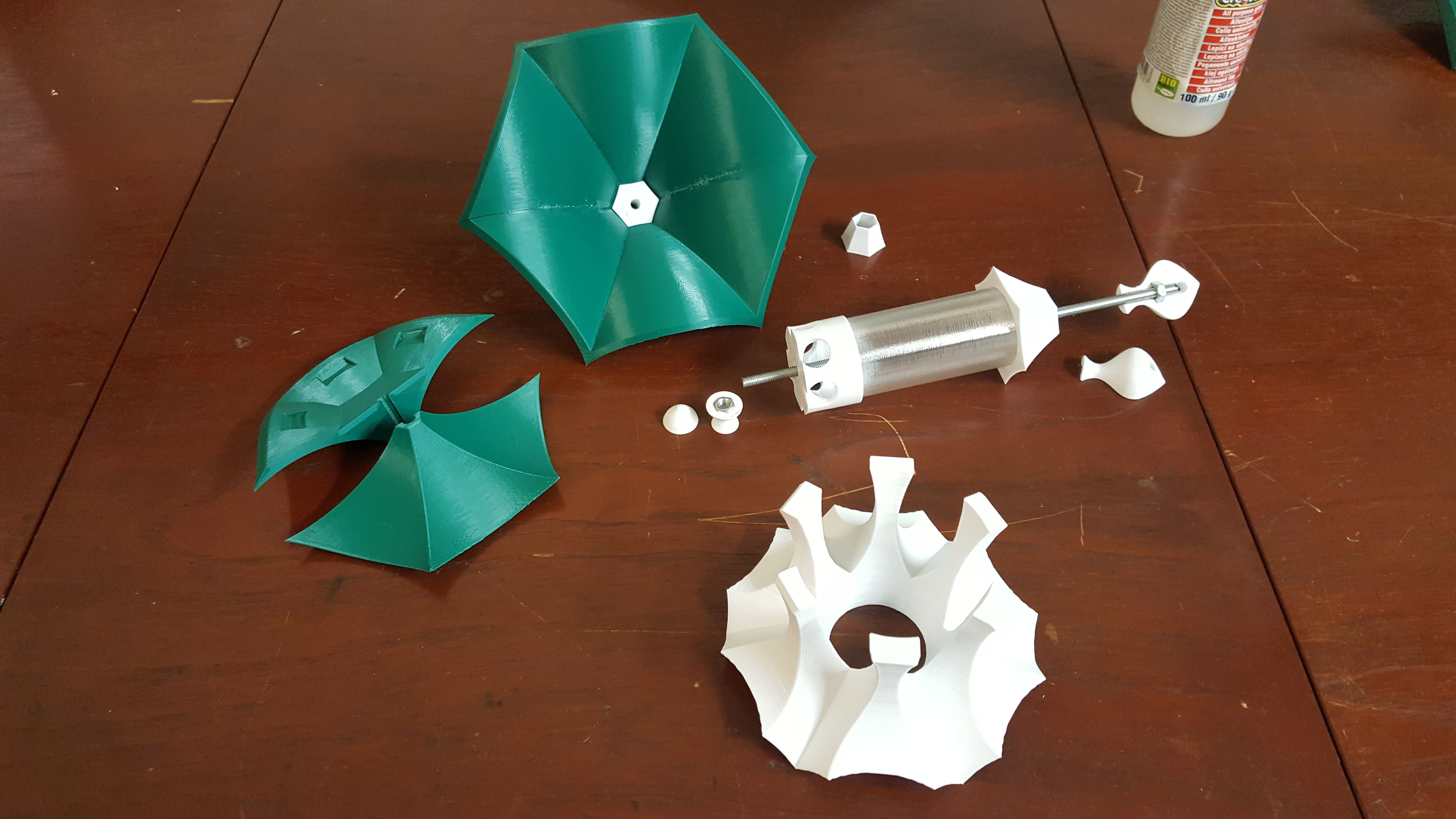

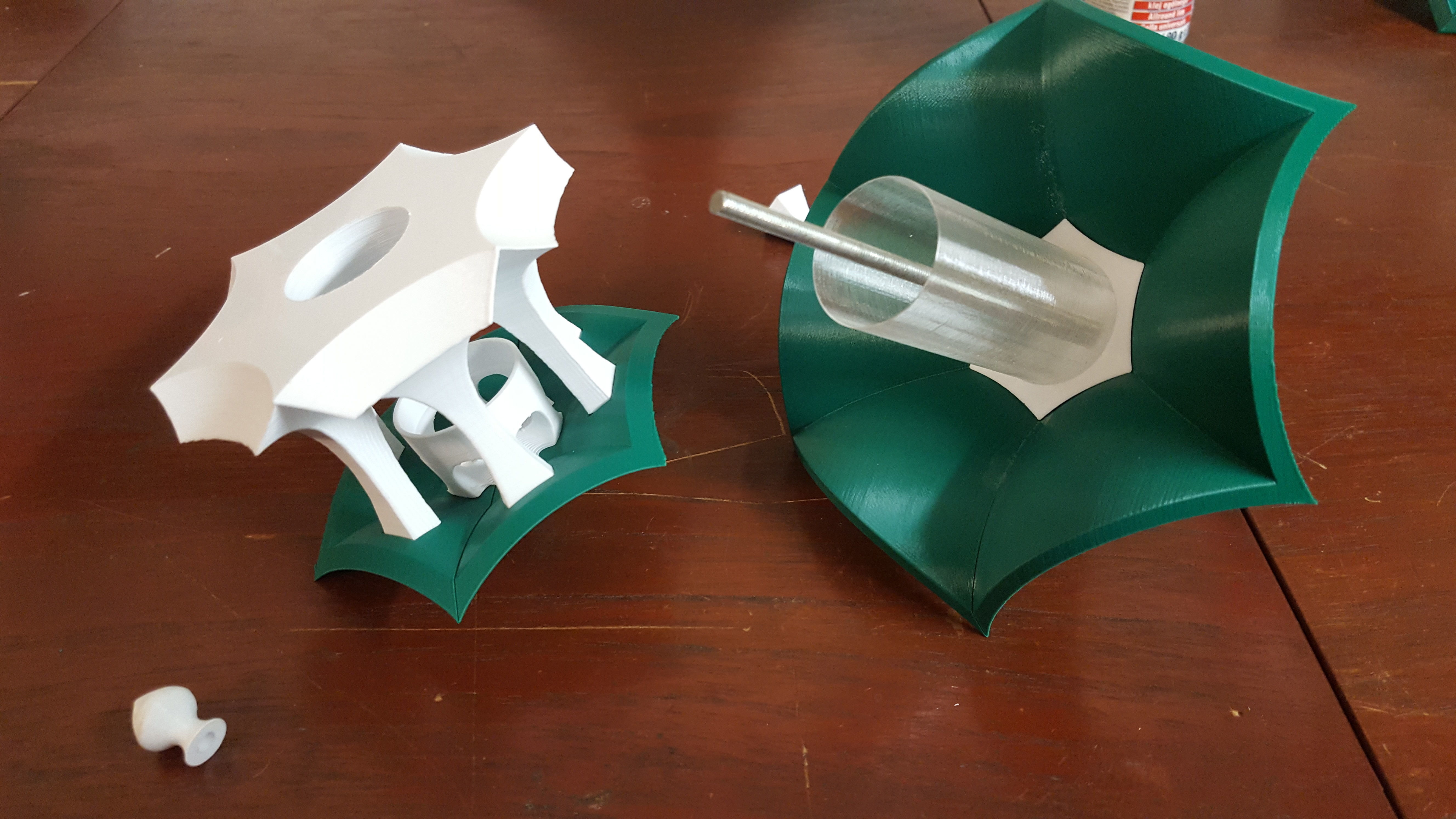

2X base.stl1X dispenser top.stl1X dispenser bottom.stl1X dispenser mid VASE MODE NO BOTTOM 0.4mm.stl1X nut holder bottom partA.stl1X nut holder bottom partB.stl2X nut holder top.stl1X pillars.stl1X roof inside wedge.stl2X roof part.stl1X roof top ring.stl

If you have any questions feel free to ask :-)
