Mini Table Modular Free 3D print model

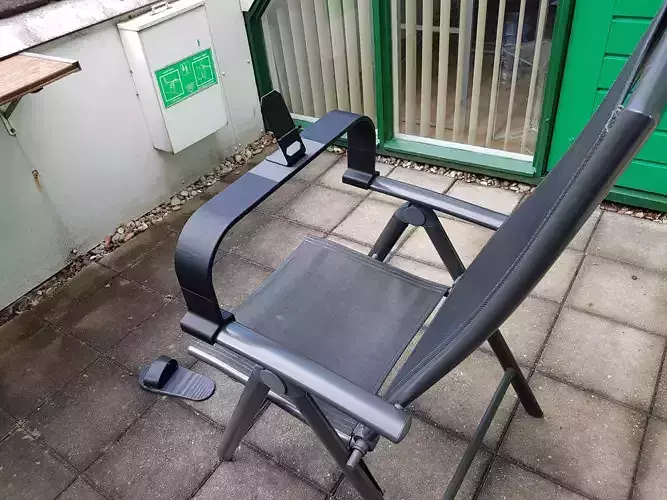

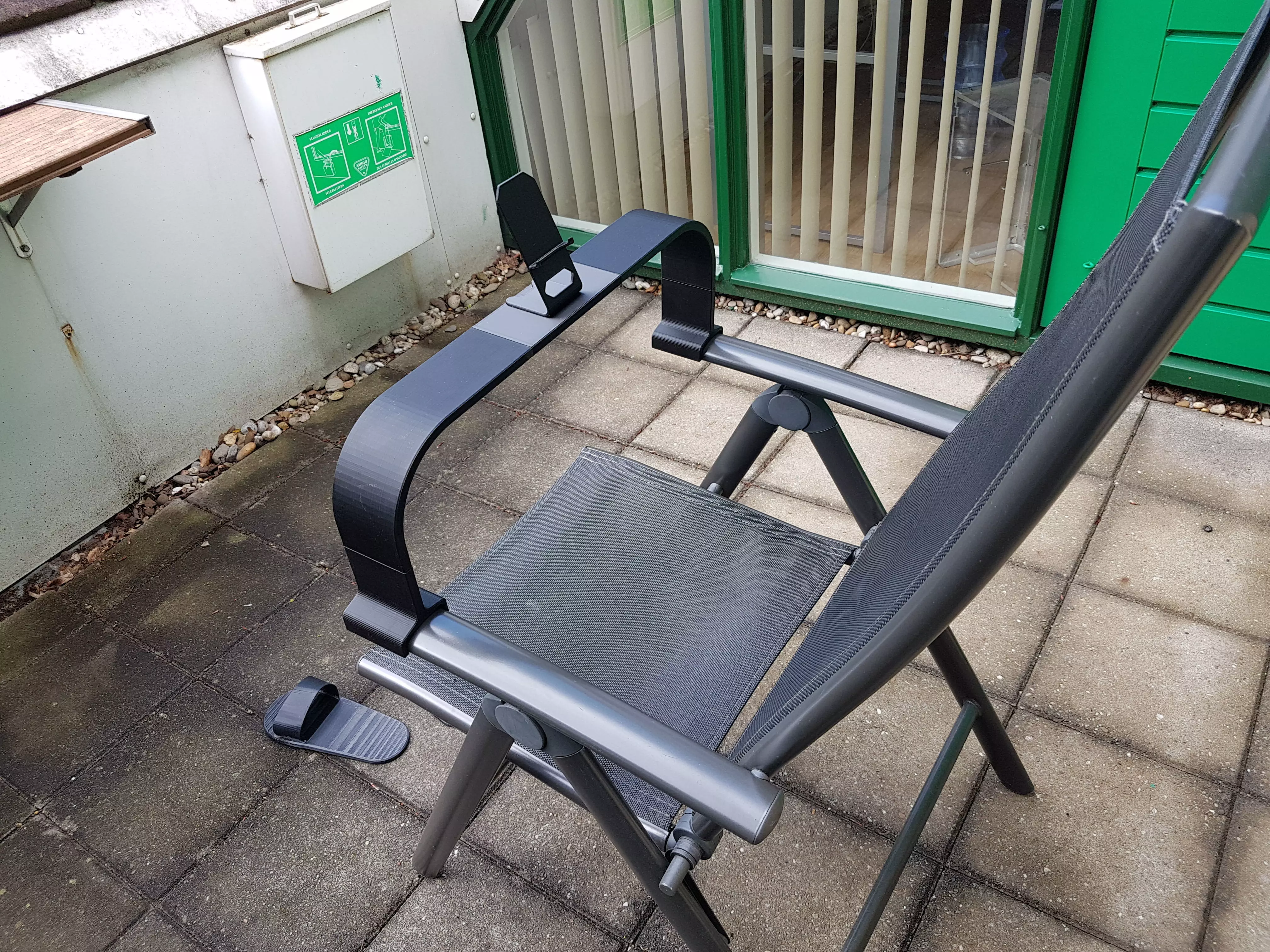

This is a 3D printed mini table with phone stand that you can use with your (lawn) chair!

Usage of any models from 3DParts4U will be at your own risk!

When sitting outside on a (lawn) chair, you may need a place where you can place your phone (or other stuff).This relaxes the neck muscles better while reading or watching videos on your phone for example.

The two clamps, the center part and the phone stand took about 3 hours to print. Each corner about 4 hours.These are estimated printing times when printed at 3600mm/minute (60mm/second). A total of about 20 hours for all parts.

The maximum supported phone thickness for the phone stand is 15mm.It can be printed on the side without support, because of the 45° angles.The phone can be placed on the side and upright as well.The maximum possoble width of a device is 15mm with this model.The width of the phone stand is 60mm.You can scale it to make it suitable for a bigger device of course.

AFTER 3D PRINTING:What you have to do is sliding the corners into both sides of the center and the clamps into the other side of each corner.You can glue the phone stand to the center part of the mini table. This could also be another part you created yourself!The phone can be placed on the side and upright as well with this phone stand.

If the parts are not glued, it's a modular design that can be changed anytime. You can also glue the parts of course.When you connected the mini table with the right parts, you have to clamp or slide it on both armrests of your (lawn) chair.

Watch this video for a quick demonstration: https://youtu.be/kR-BE0I6W9kWatch this video for how to edit STL files in FreeCAD: https://youtu.be/5lwENZeNiNg

IMPORTANT:

• The distance between the armrests are about 535mm for this model.
• The arm rest has an elliptical shape with a height of 25mm and a width of 50mm.

• The tolerance of the distance between the arm rests is about +-10mm (it's a little 'bendable').

• YOU CAN SCALE THE CENTER (IN A SLICER) TO CREATE A LONGER MINI TABLE

• YOU CAN SCALE THE PHONE STAND (IN A SLICER) FOR LARGER PHONES

• YOU CAN SCALE OR CREATE YOUR OWN CLAMP THAT FITS YOUR ARMRESTS

• PLA MAY SHRINK OUTSIDE BECAUSE OF THE HEAT OF THE SUN

PARTS:

• Clamp (2x; print on side; no support needed; 3 hours)
• Corner (2x; print on side; 20% normal support | 40% dense support; 4 hours)
• Center (1x; print on small side; no support needed; 3 hours)
• Phone Stand (1x; print on side; no support needed; 3 hours)

My PETG Simplify3D print settings:

• 3600mm/minute (60mm/second)
• hotend 215°C | bed 70°C
• 250 micron | infill 7%
• 3 top layers | 3 bottom layers | 3 outline layers
• brass nozzle 0.35mm
• extrusion width 0.44mm
• retraction 0.75mm
• extrusion multiplier 1.00
• coasting 0.20mm
• wipe distance off
• fan 100%
• corners only: 20% normal support | 40% dense support (3 layers)
