Door Hinge Free 3D print model
Description

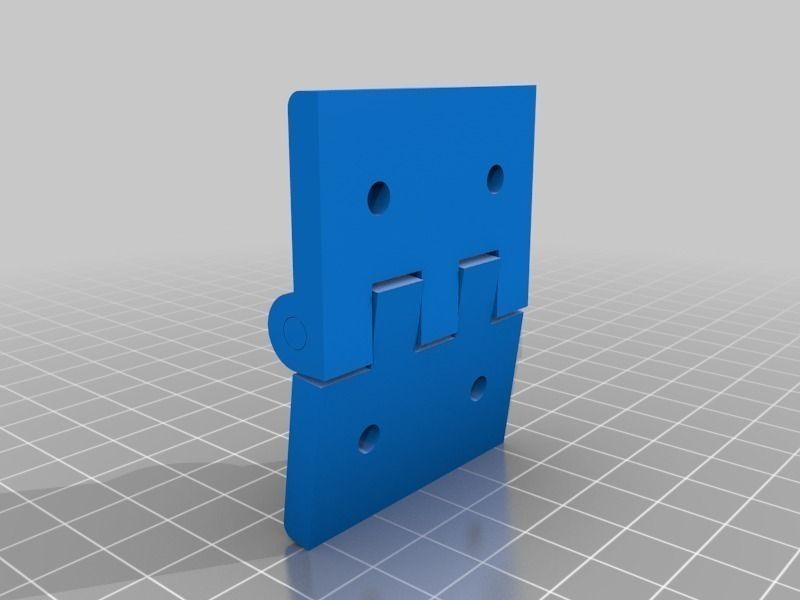

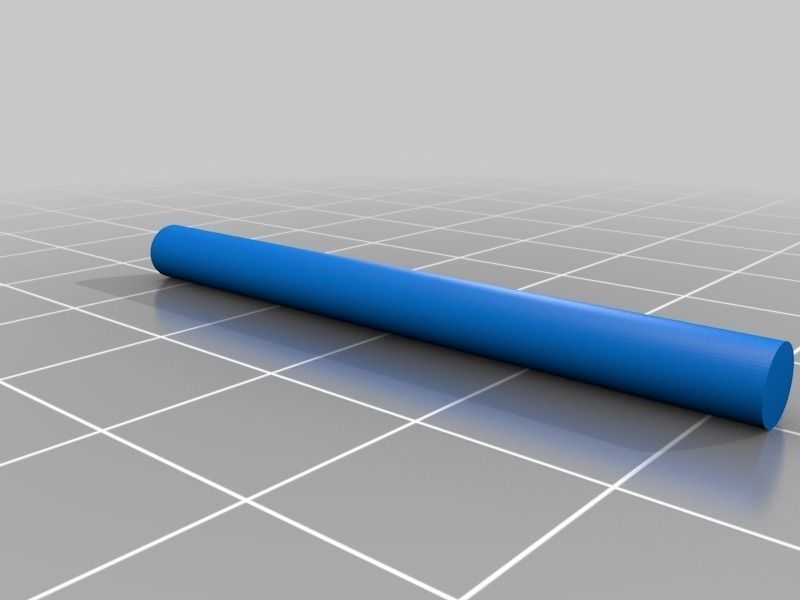

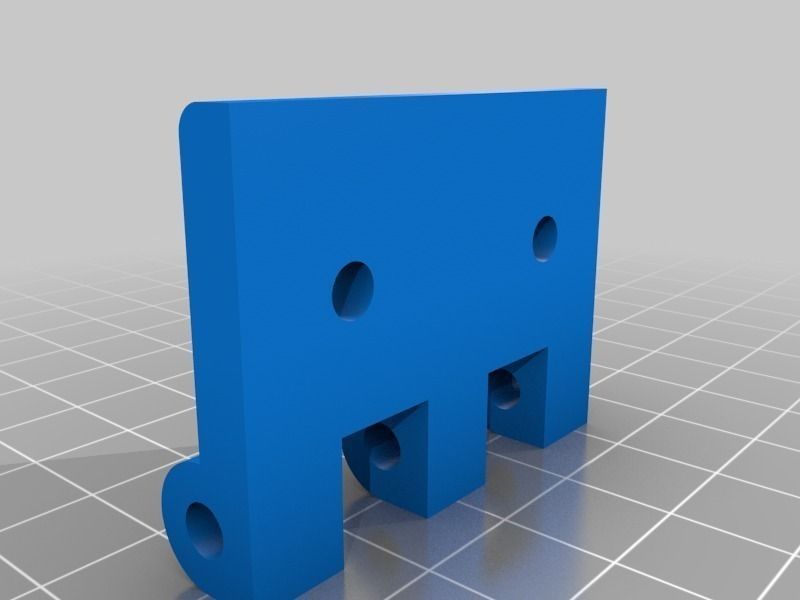

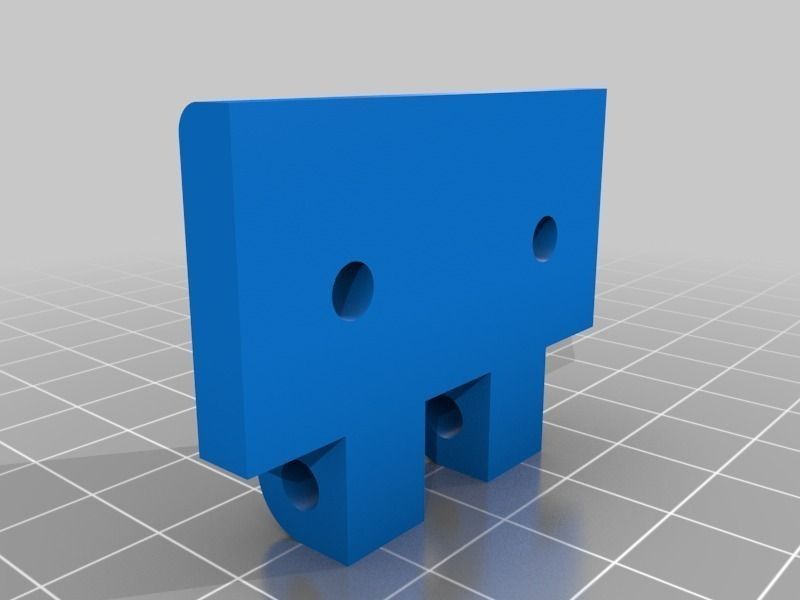

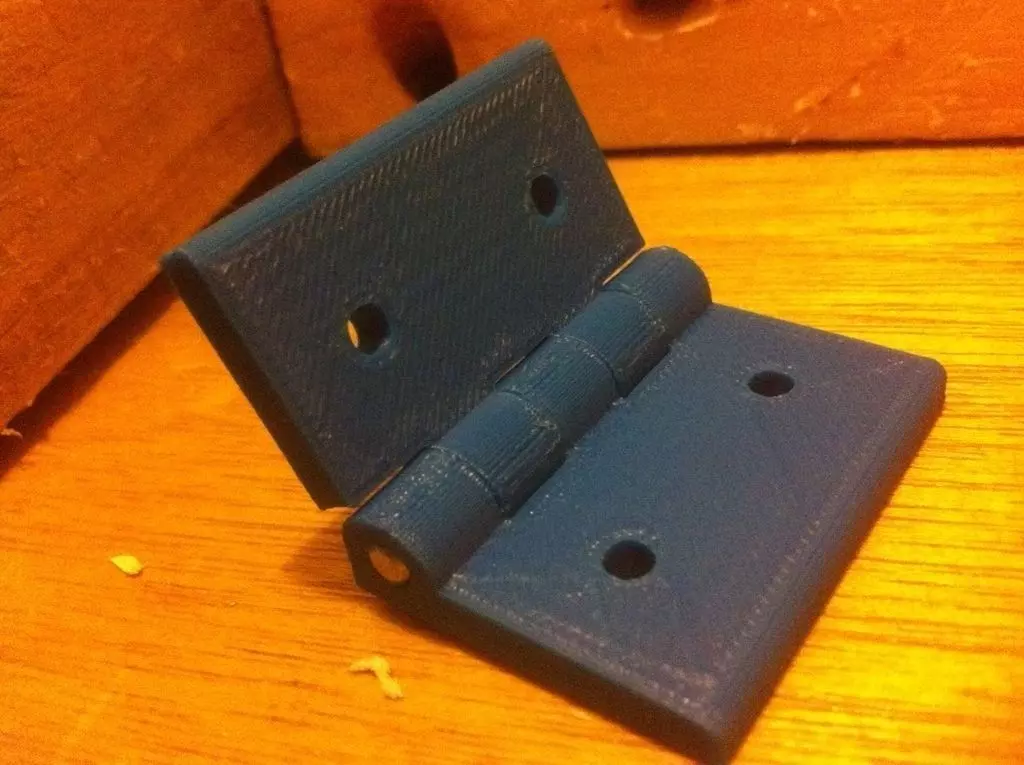

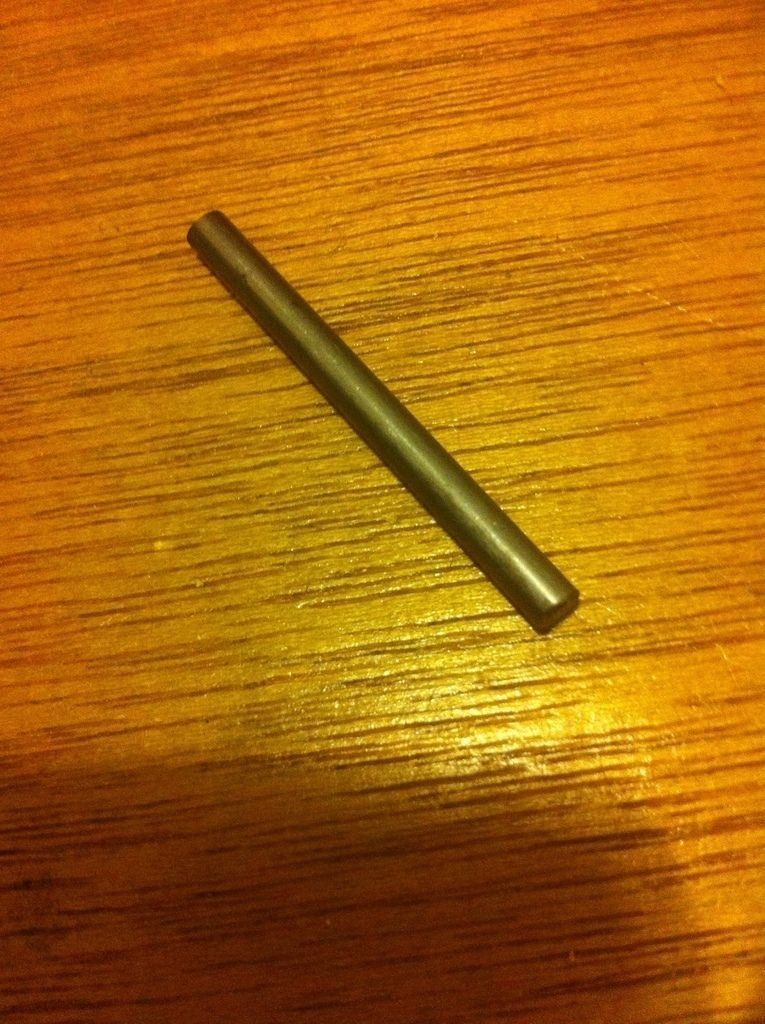

A simple door hinge that opens to at most 180 degrees rotation. Dimensions for given file are: 45mm x 34mm x 5mm hingeA/B with 4mm dowel and 4mm screw holes. Autodesk Inventor IPT file is parameterizable via the design table. There's an additional 0.2mm added to the holes so that the screw and dowel slide in easily. Likewise, for the hinge joint, an additional 0.4 mm clearance has been added to each inside edge of hingeA.
