Helix Test Cube Free 3D print model

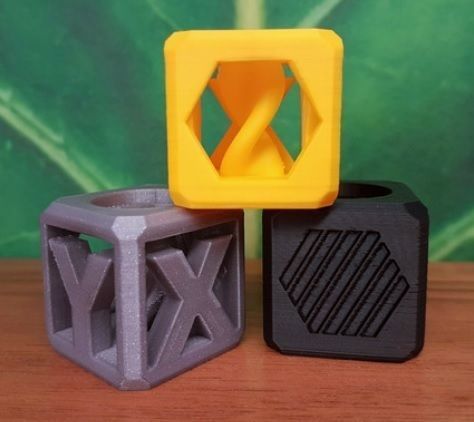

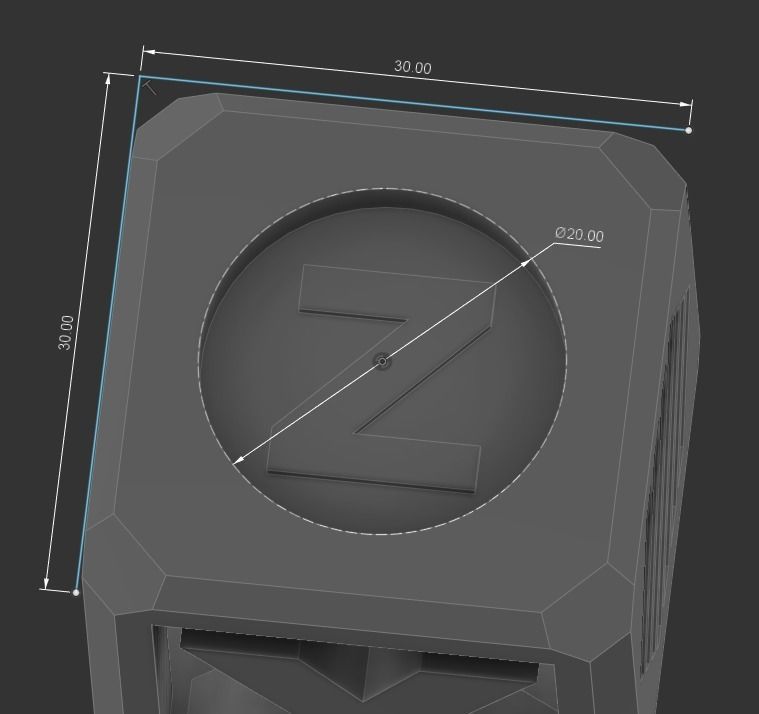

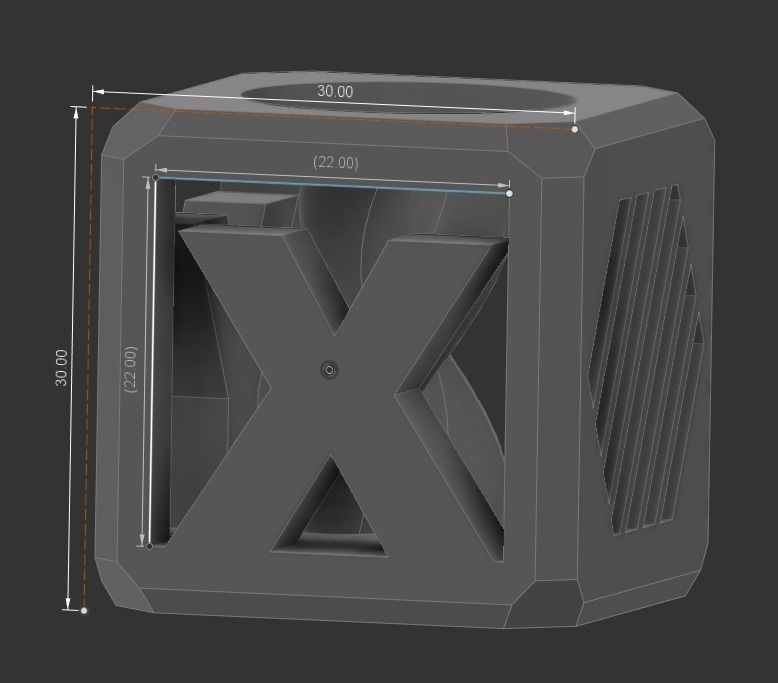

SummaryI wanted to have a test print which I can use to test the dimensional accuracy of my printer and the print quality of my filaments. But it should also be pretty enough to keep as a color sample afterwards. So I created this 30x30x30 mm cube which contains several functions.The print takes about 1.5 hours.

You can check the following properties on this cube:

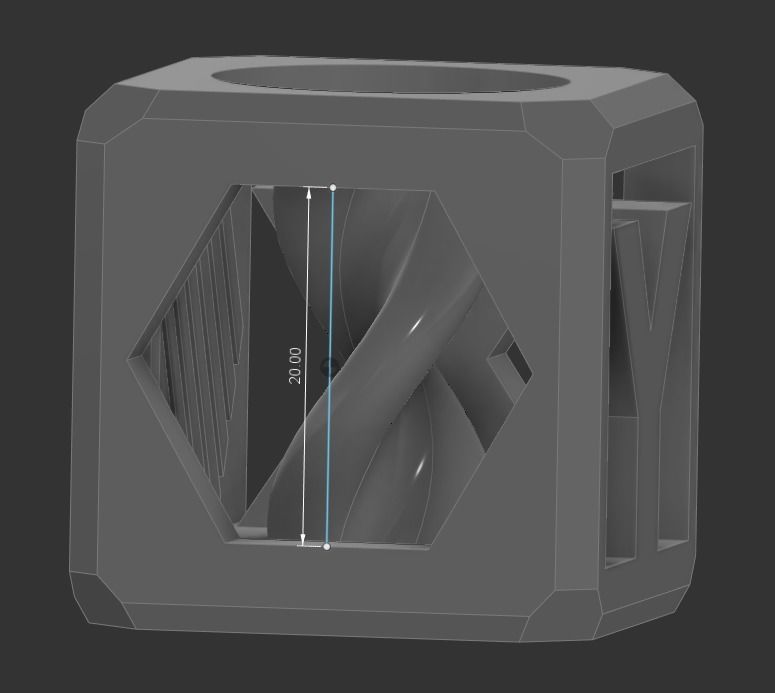

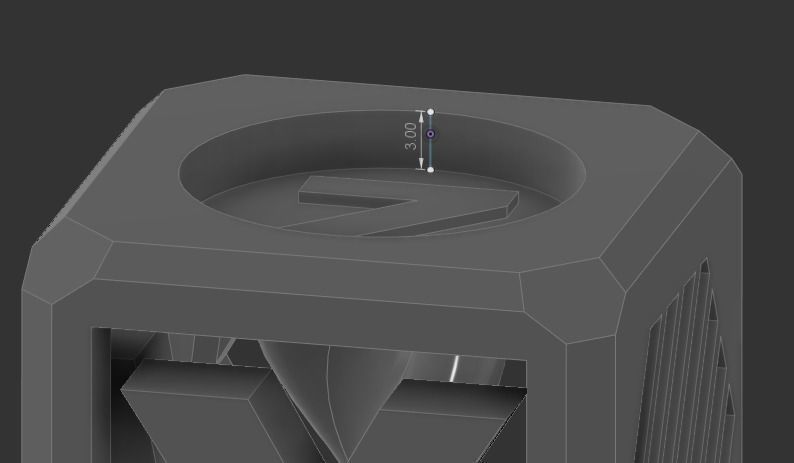

stringingbridging (are the bridges over the letter clean, including the large area inside?)ghosting / ringingoverhangsdimensional accuracy in all axesfirst layer height (is the logo clearly visible on the underside, are there holes in the narrow areas?)Was the helix printed neatly with a single wall line?Are there problems with the Z-seam due to the many retraction?Was the Z printed neatly on the top?You can also try breaking out the Y, if that is too easy you may have to reduce the cooling or increase the printing temperature.

Print SettingsRafts:No

Supports:No

Resolution:0,2

Infill:15Avtor modeli: Extrutim
