This model was designed for the Microsoft/CGTrader collaboration challenge. Overall outside Dimensions: 40mm x 40mm (1.57" x 1.57")Print time: TBA

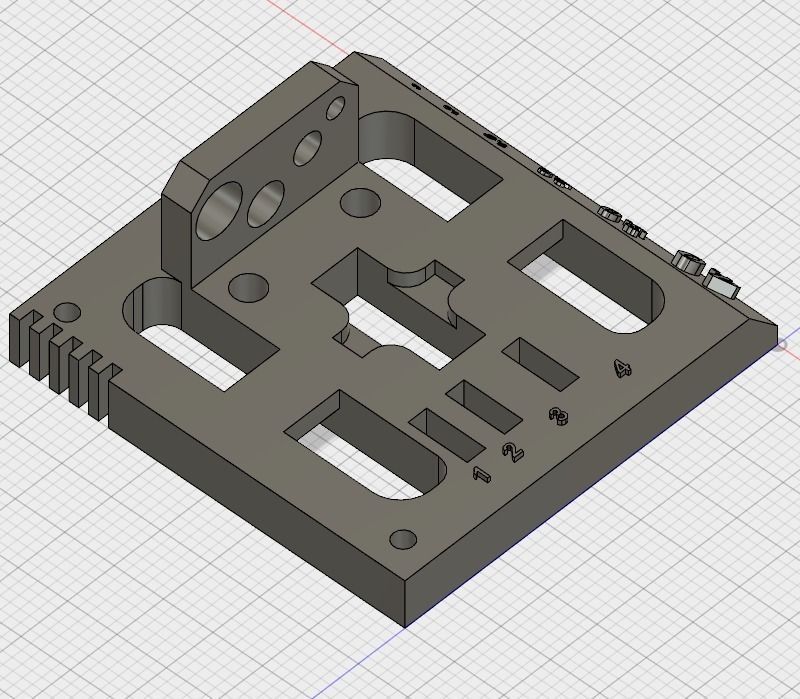

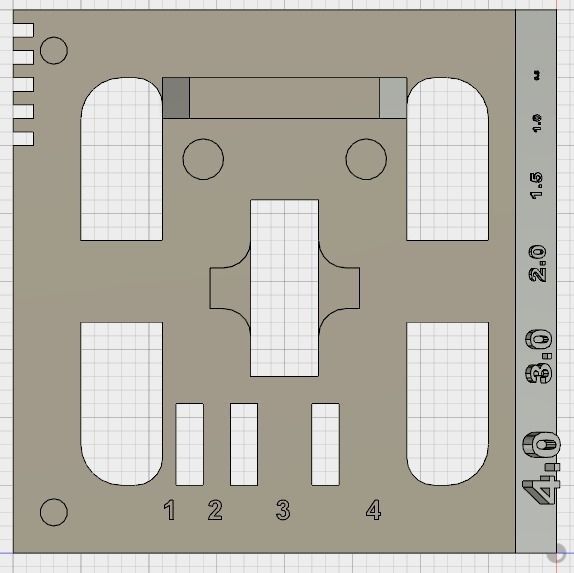

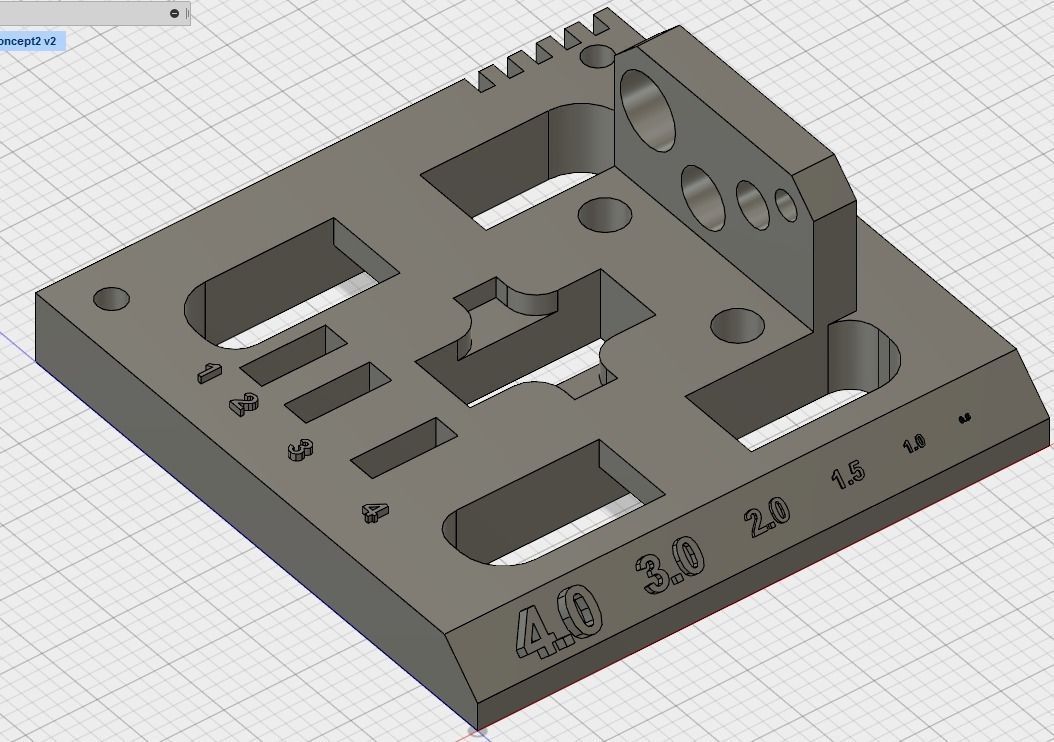

The features of this test model include: -45 degree slopes and chamfers to check layer smoothness -Holes of different sizes to check accuracy at different resolutions (along surface)-Horizontal holes of differing dimensions to check variable bridging conditions of circular bodies-Embossed text (numbers) which correspond to wall thicknesses or font sizes in that area-Horizontal flat planes to check smoothness over long distances -1,2,3 and 4mm thick walls to check dimensional accuracy with thin areas and gaps-Two flat bridging areas with 2mm thicknesses-A squared pocket to check sharp internal direction changes

This square pocket area was designed to hold a USB stick. This means that instead of just having a blob of "test part" plastic to throw away, you have a test part that functions as a practical item. This should create more desire to print the test part as it has this added functionality.
