FOLDING PROPELLER HUB SPINNER AP-SP-002 Free 3D print model

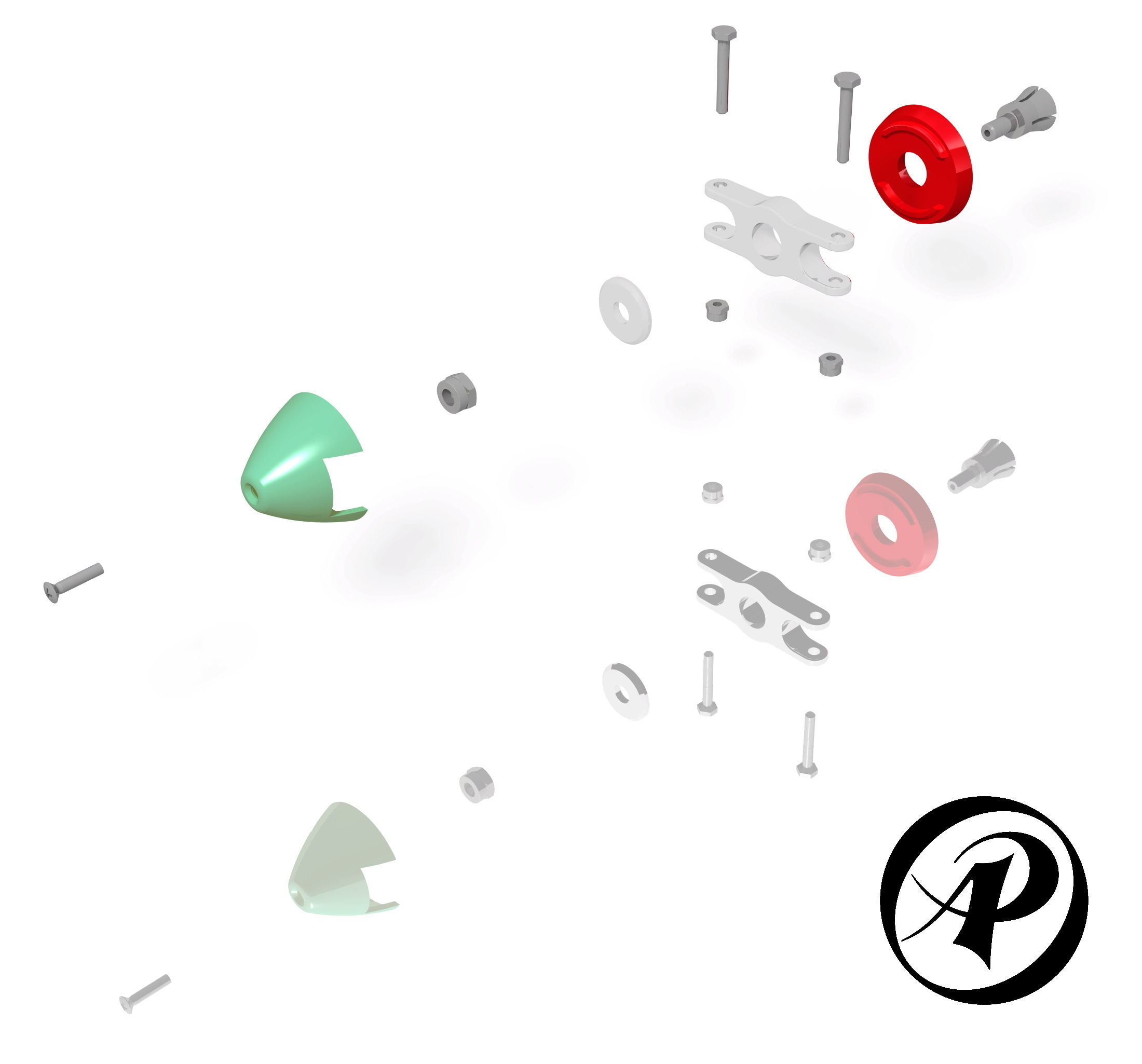

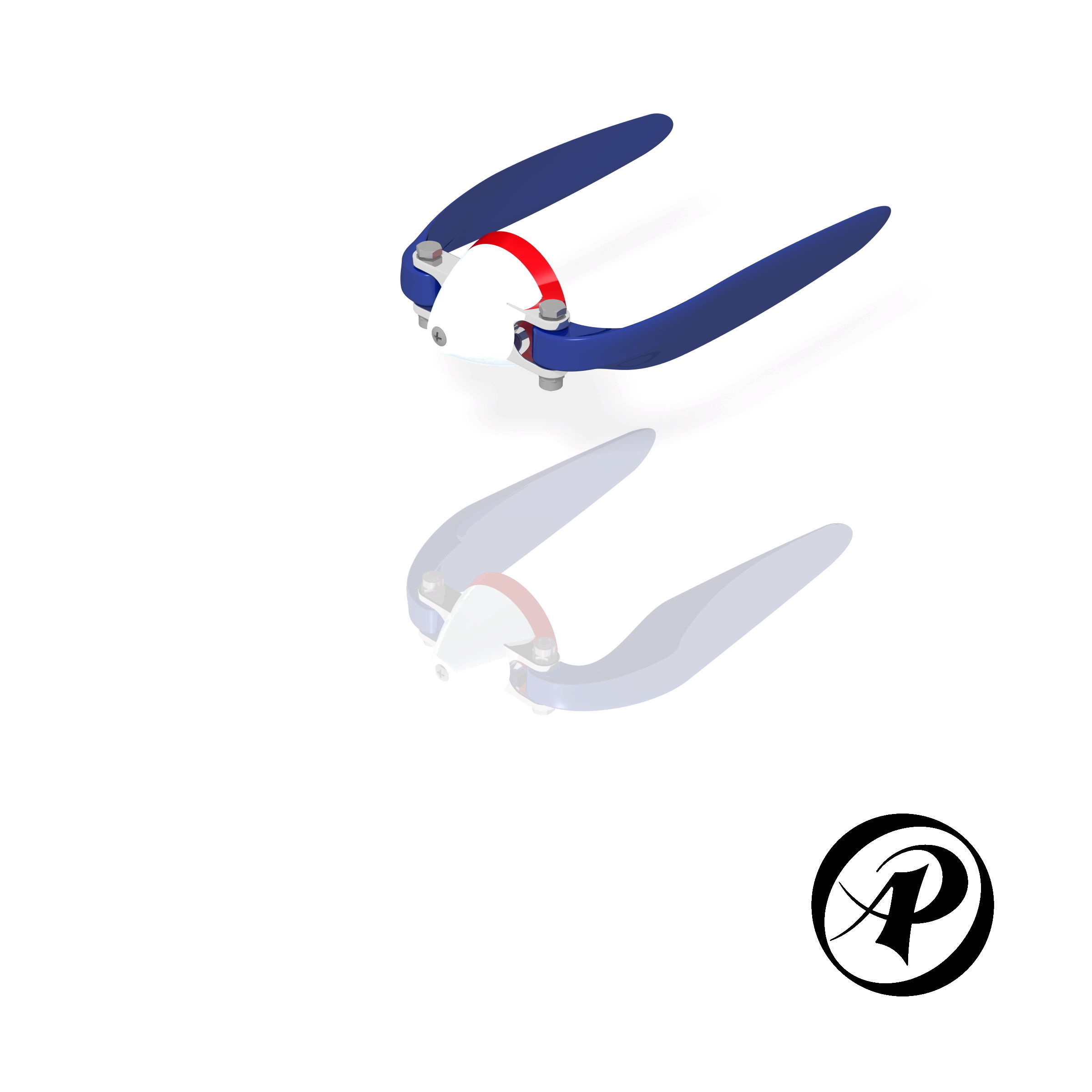

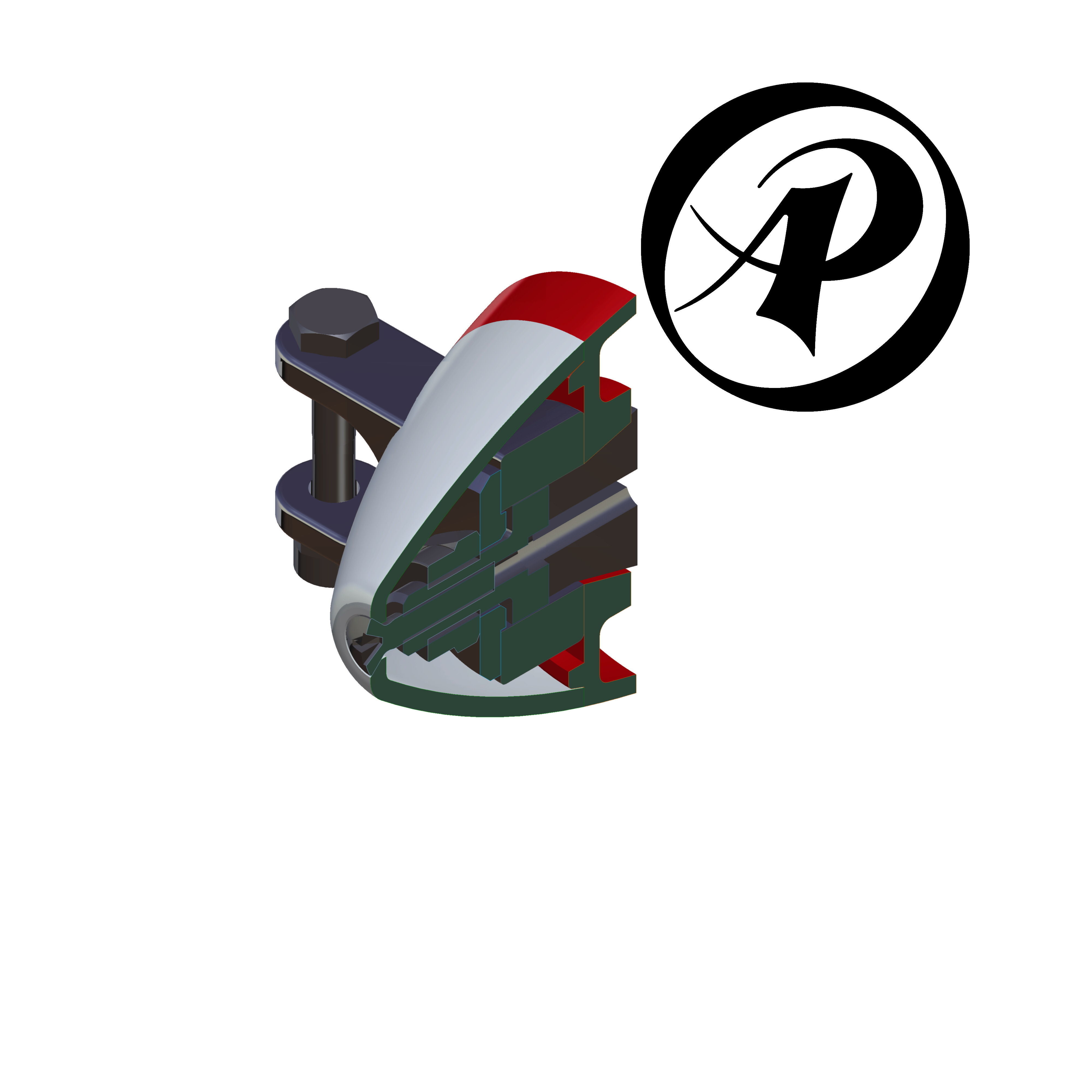

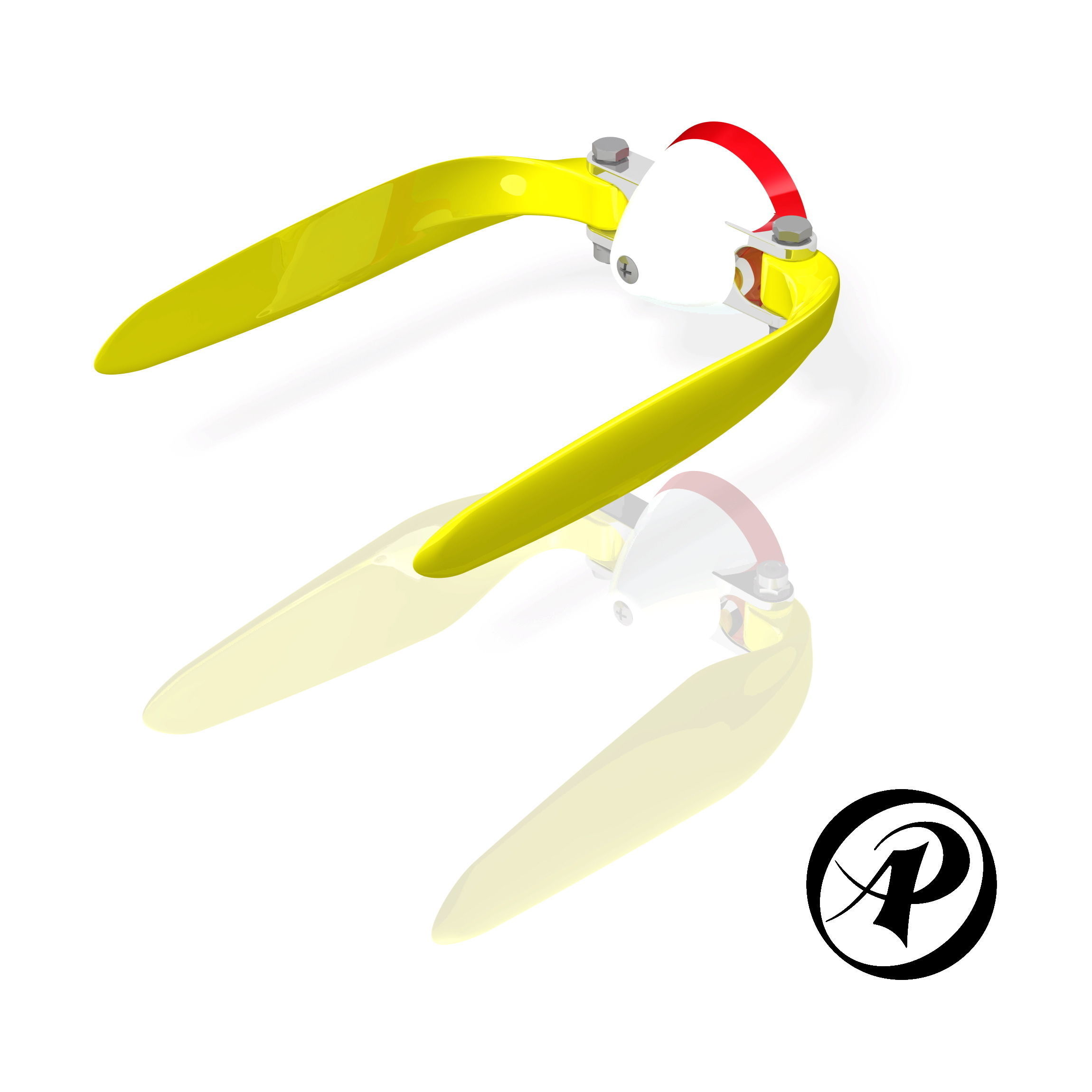

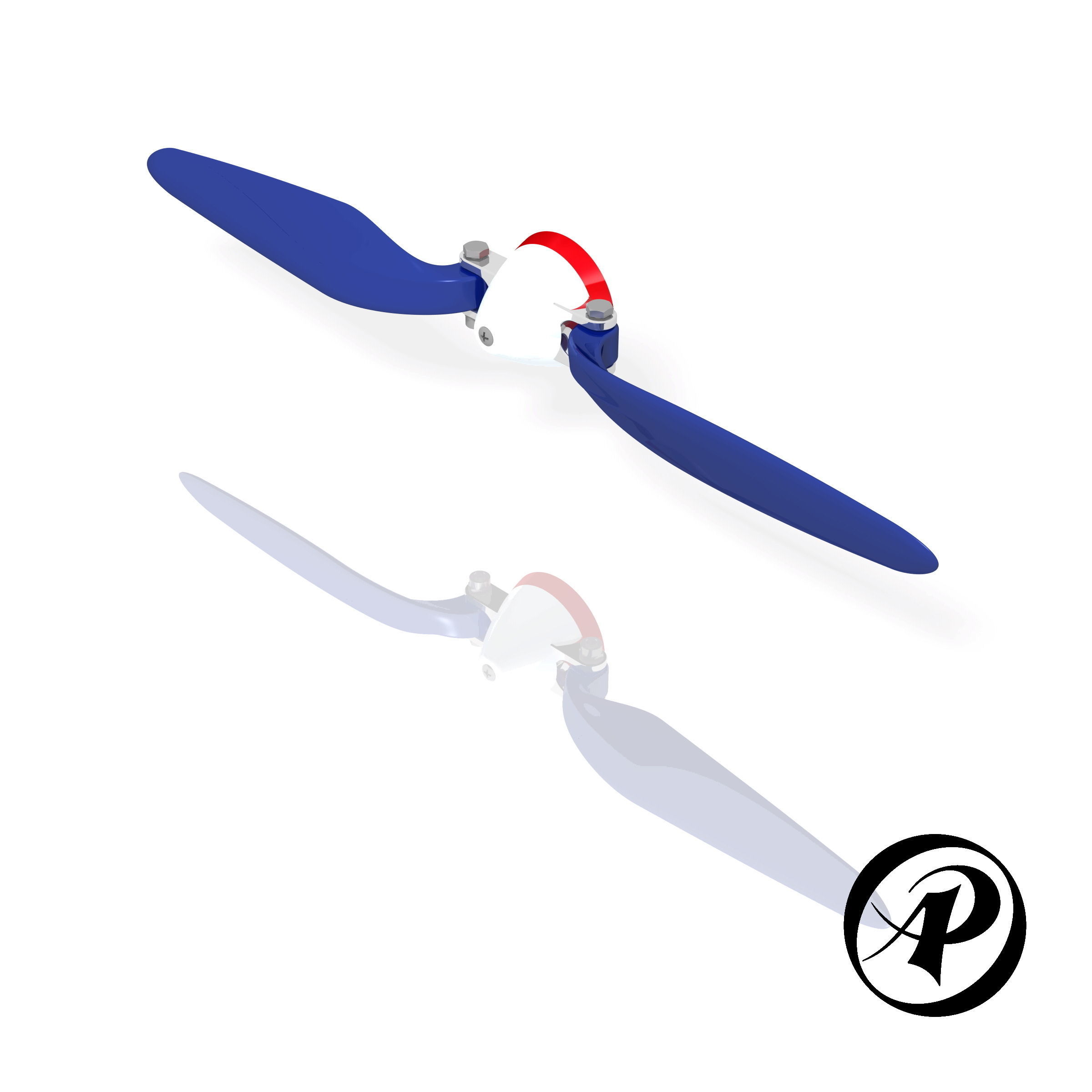

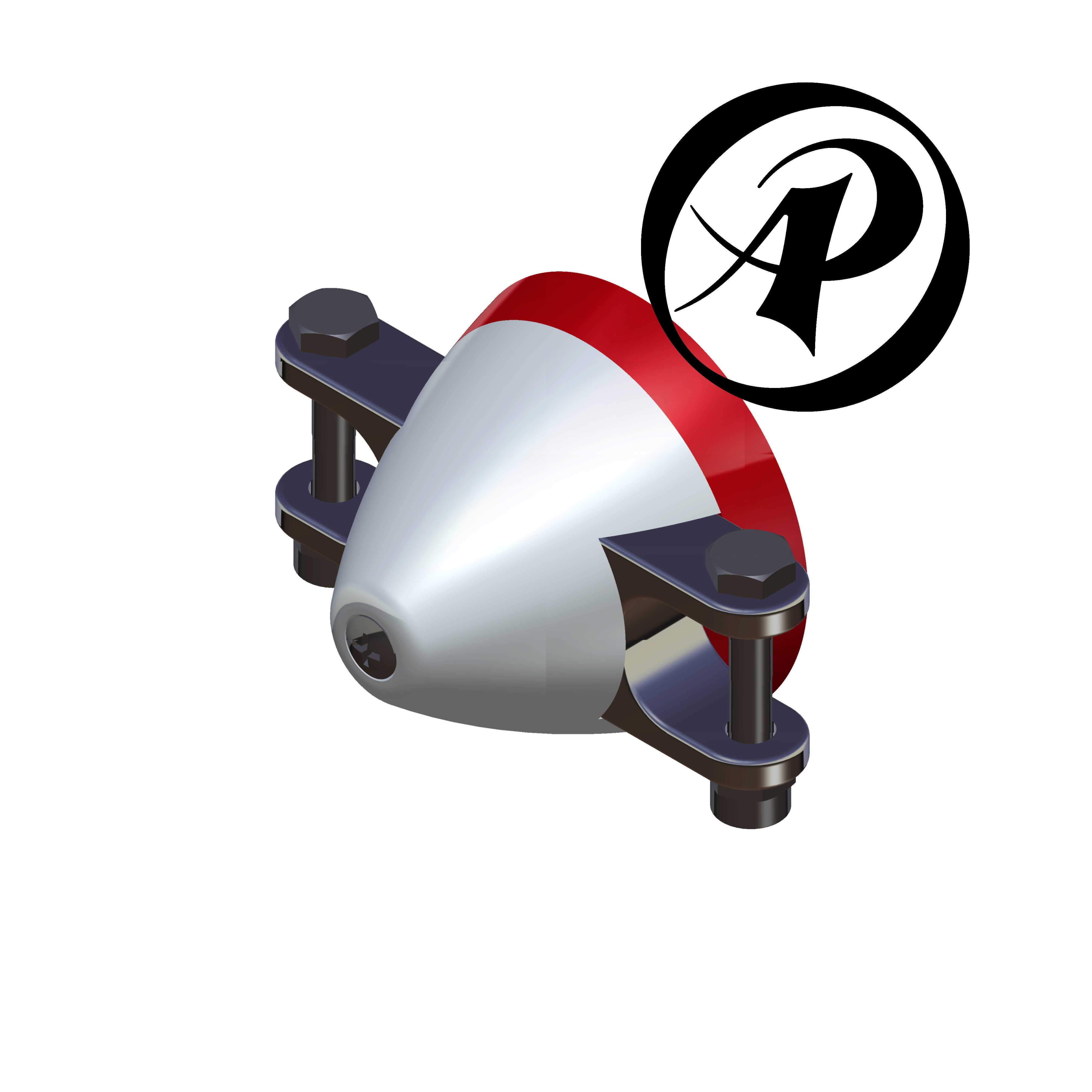

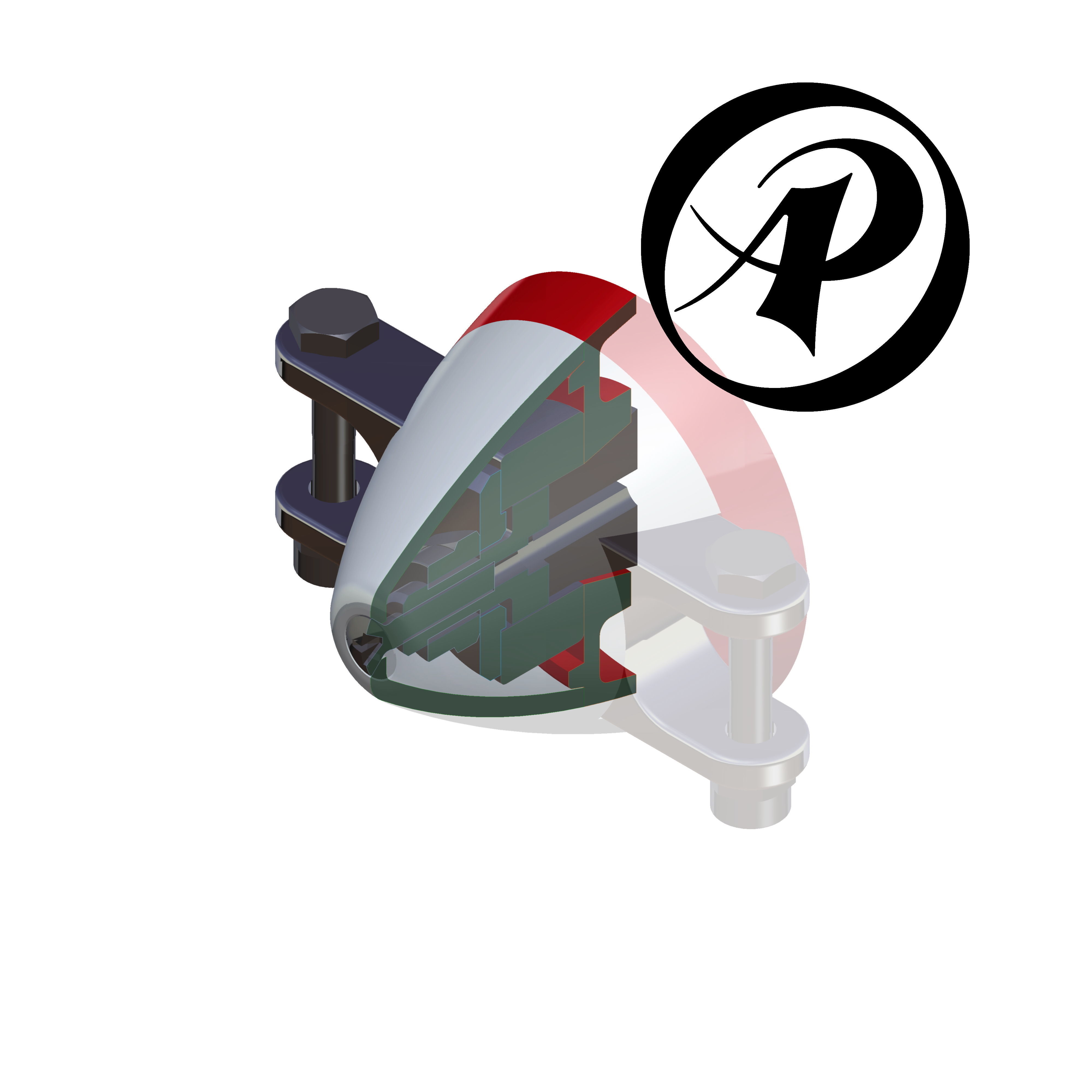

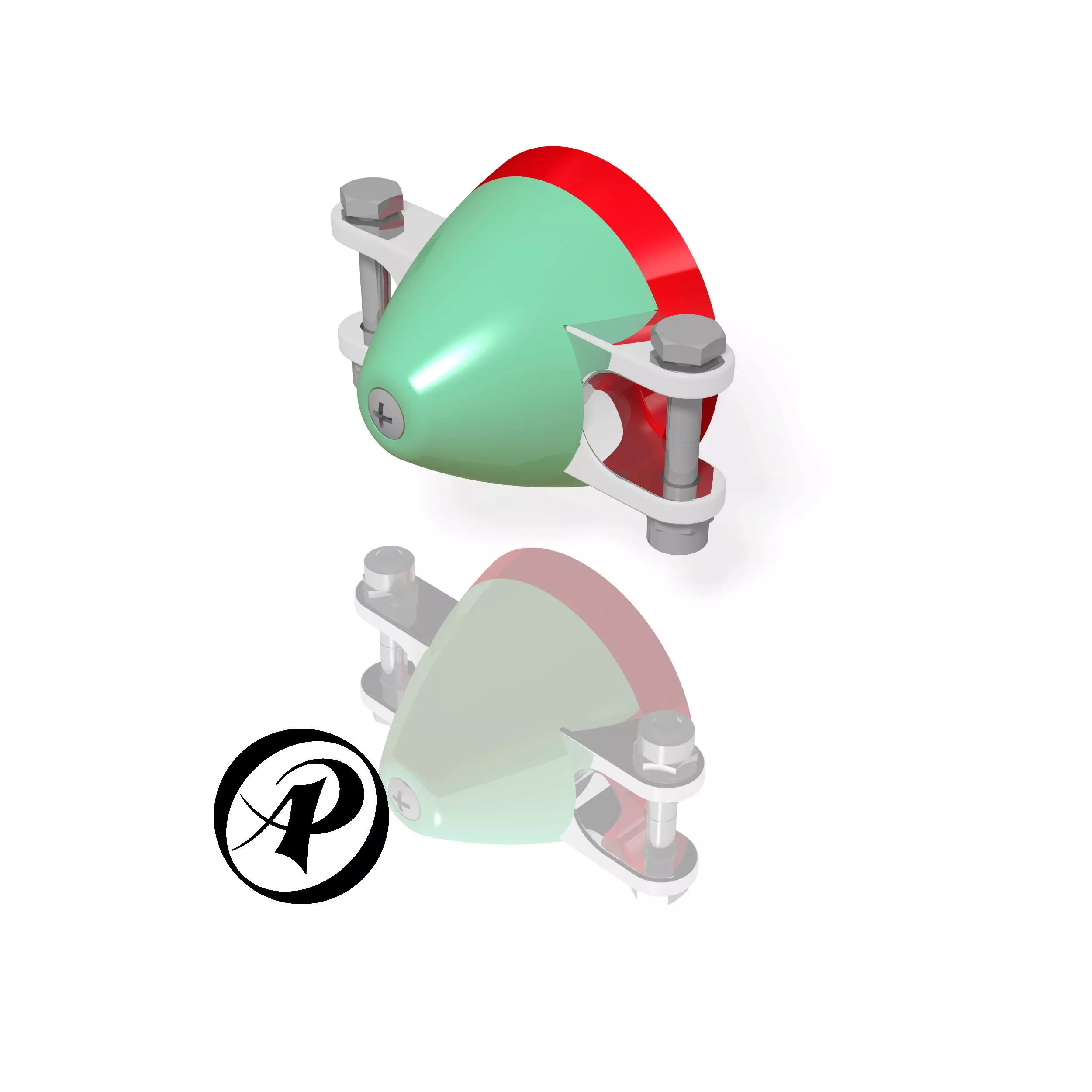

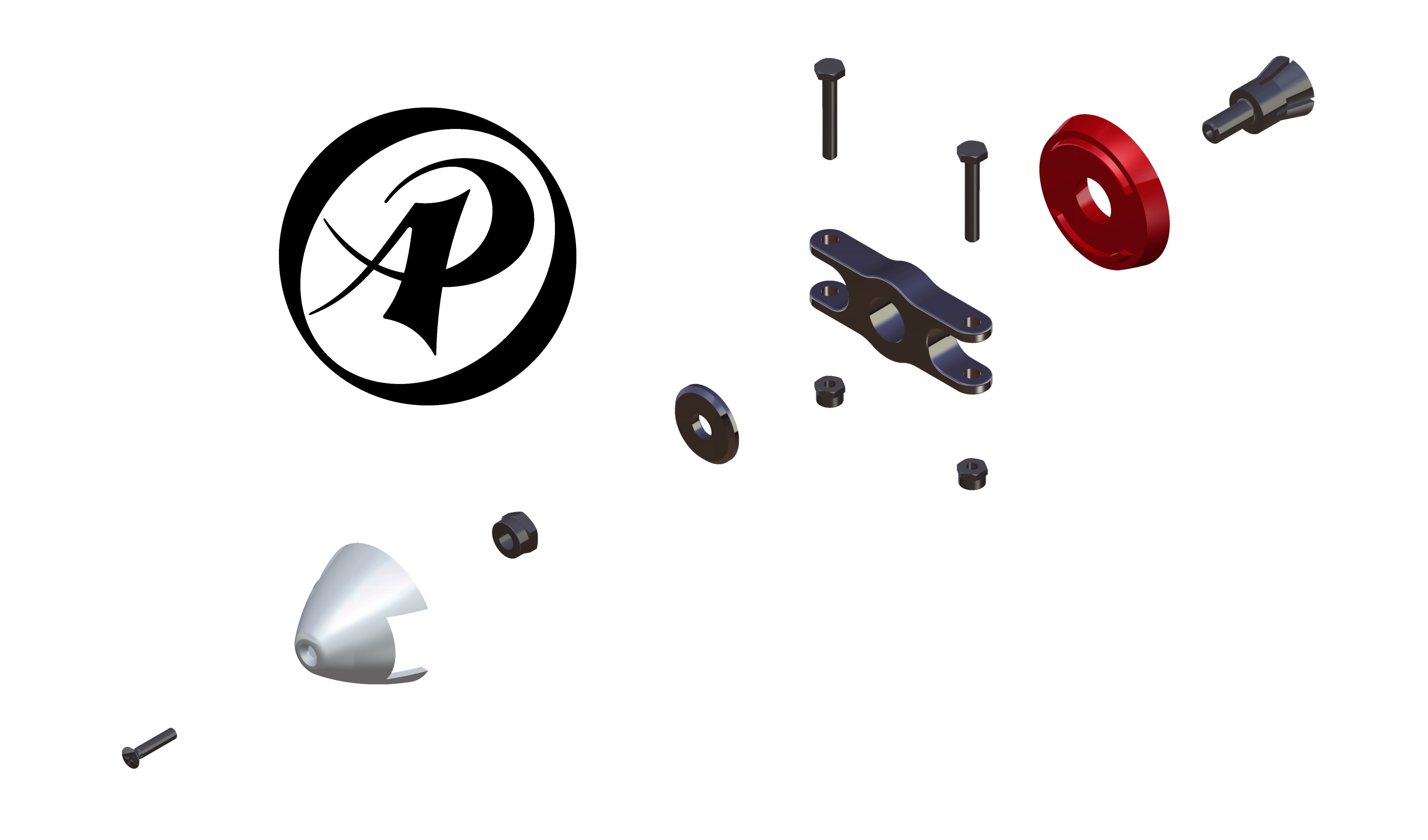

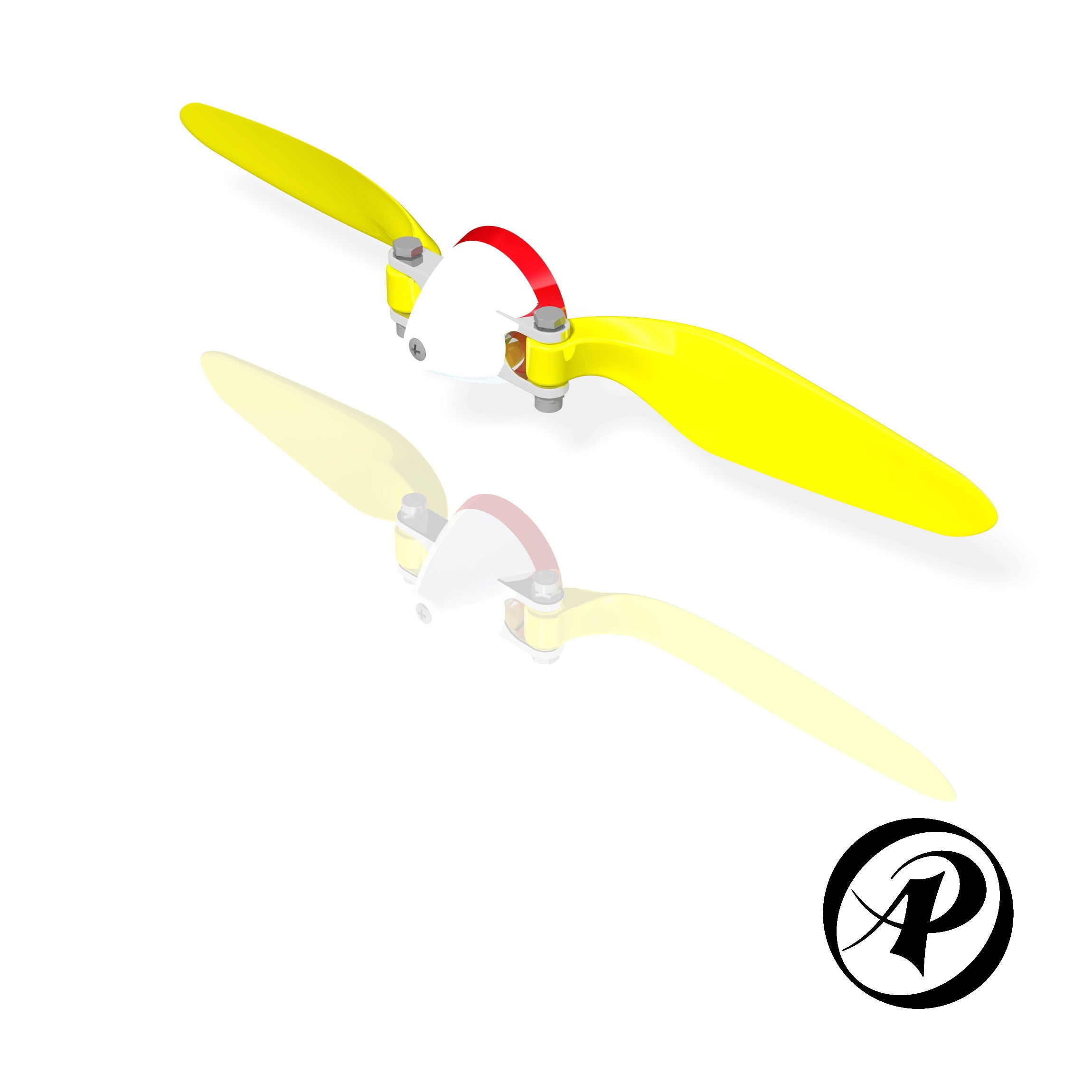

This is a model of Spinner AP-SP-002 for folding propeller AP-PR-009. Spinner and folding propeller can be set in Tractor or Pusher configuration.HUB Spinner assembly consists of:

• HUB
• Spinner
• Spinner 2
• Collet
• Washer
• 1x M5 nut (ISO 10511)
• 1x M2.5-12 Screw (ISO 7047)
• 2x M3 nut (ISO 10511)
• 2x M3-20 Bolt (ISO 4014)

Included 3D models in STEP and STL format are for following parts:

• HUB
• Spinner
• Spinner 2
• Collet
• Washer
• HUB Assembly (in STEP only)

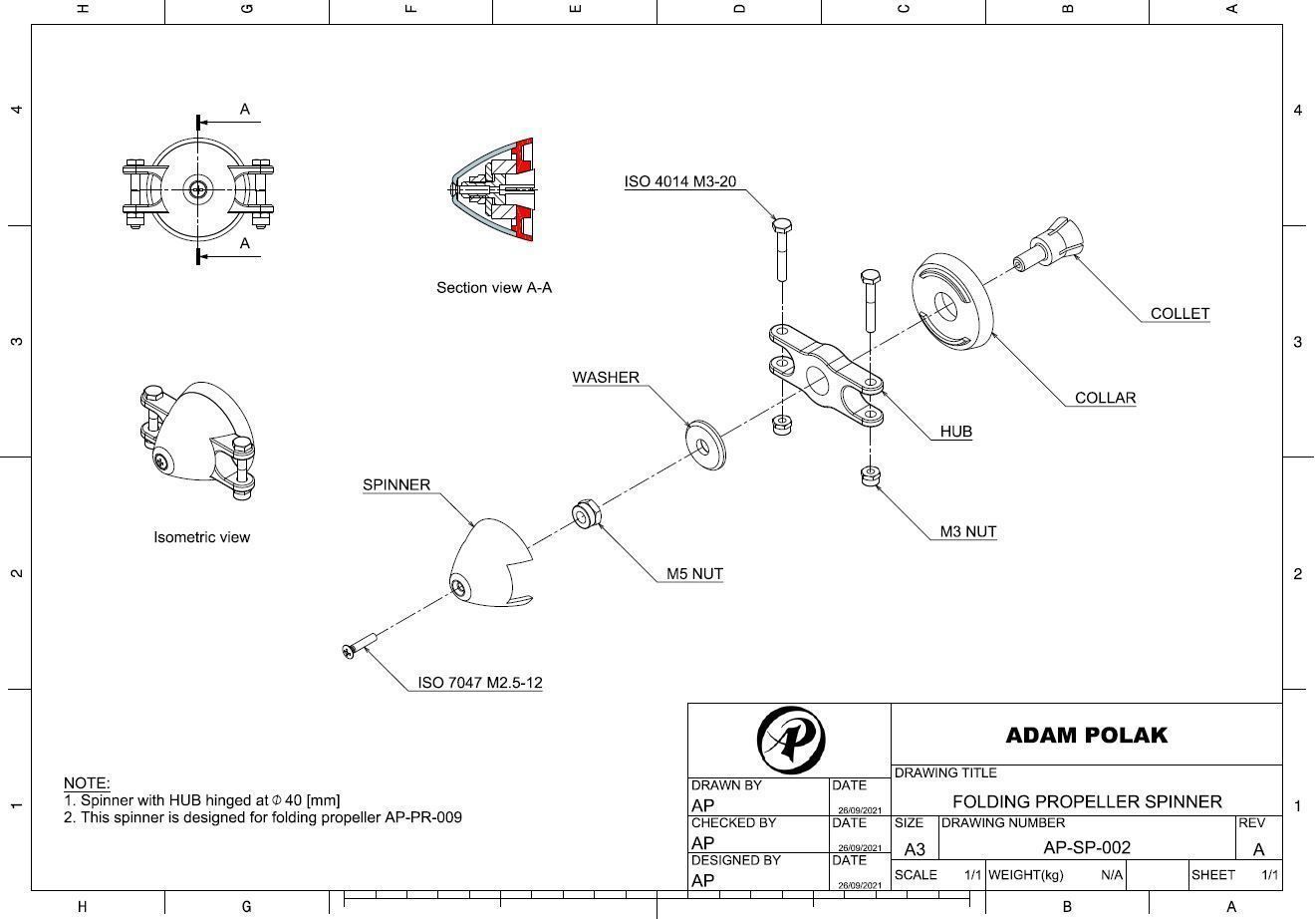

2D drawings in pdf format:

• HUB Spinner Assembly

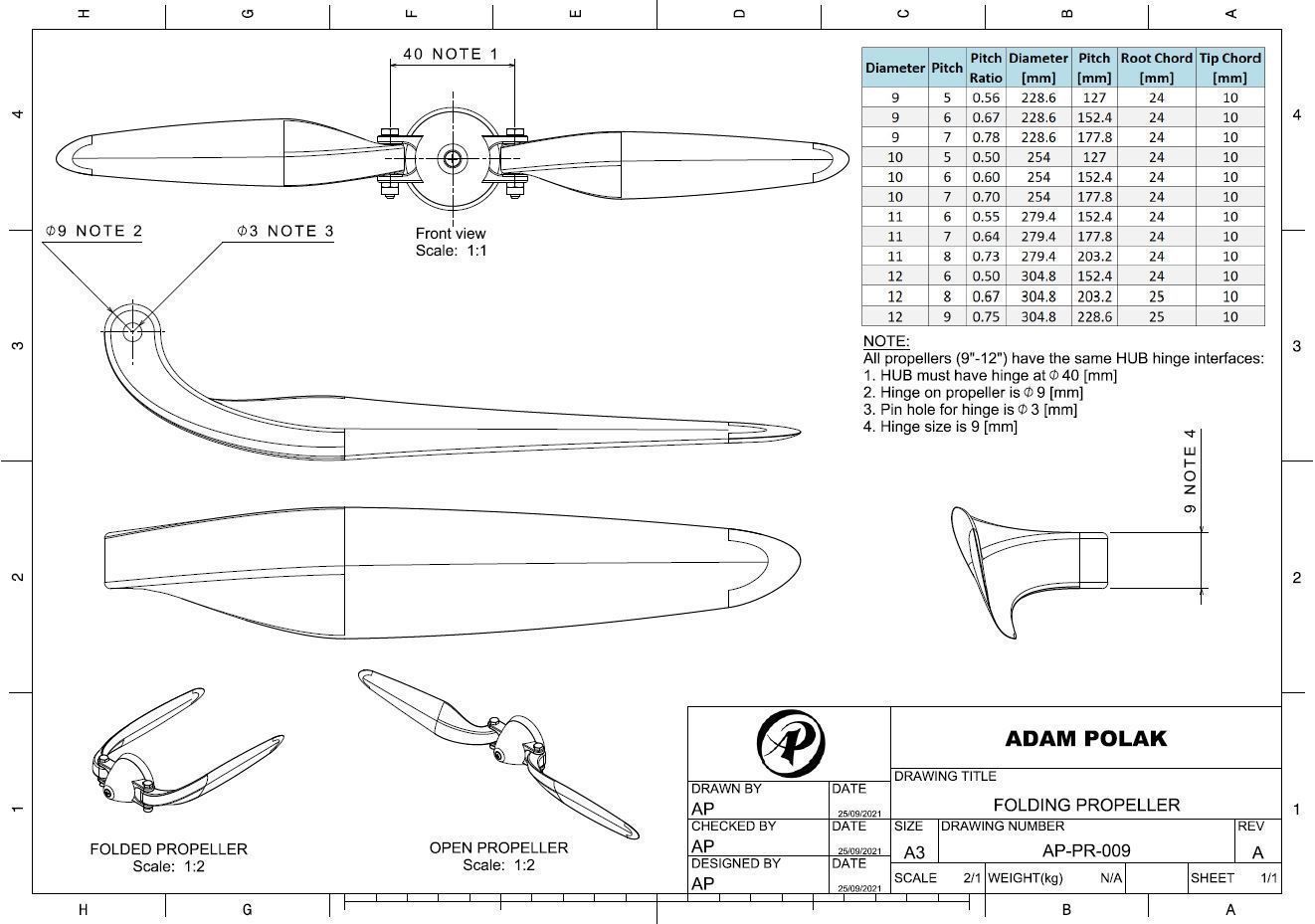

• Propeller Blade (for information only)

Note 1: 3D models of propeller blade must be downloaded separately:

https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/folding-propeller-ap-pr-009-9-5

https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/folding-propeller-ap-pr-009-9-6

https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/folding-propeller-ap-pr-009-9-7

https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/folding-propeller-ap-pr-009-10-5

https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/folding-propeller-ap-pr-009-10-6

https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/folding-propeller-ap-pr-009-10-7

https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/folding-propeller-ap-pr-009-11-6

https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/folding-propeller-ap-pr-009-11-7

https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/folding-propeller-ap-pr-009-11-8

https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/folding-propeller-ap-pr-009-12-6

https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/folding-propeller-ap-pr-009-12-8

https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/folding-propeller-ap-pr-009-12-9

Note 2: This 3D model is for free. For better performance of the folding propeller (AP-PR-009) it is recomended to buy HUB Spinner made out of metal such as:

https://hobbyking.com/en_us/folding-propeller-w-alloy-hub-40mm-3mm-shaft-10x6-1pc.html?___store=en_us#qa[bW9kZT03JnBhZ2U9MSZxdWVzdGlvbl9zZWFyY2hfY29udGVudD0=]

or

http://www.himodel.com/plane/D33xH30mm_3.17mm_Shaft_Aluminum_Folding_Prop_Spinner_HY002-01502.html

Note 3: Use maximum caution when operating Propeller, as it might be hazardous and risk to Your health.
