Breaker mount

Breaker mount Free 3D print model

Description

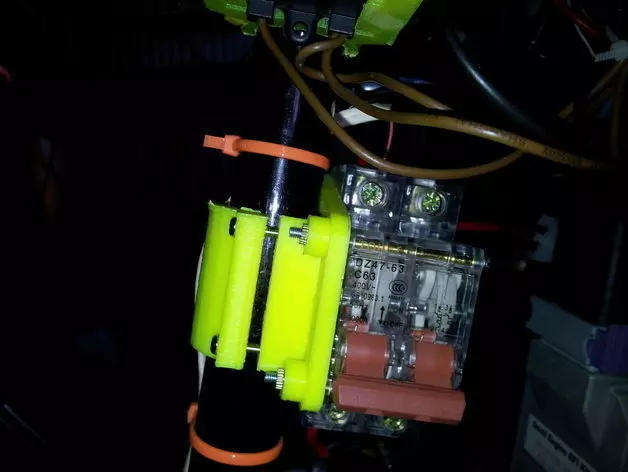

A mount for mounting my circuit breaker onto my blackhawk lowboy quad WPPG.
This doesn't use the DIN rail system.

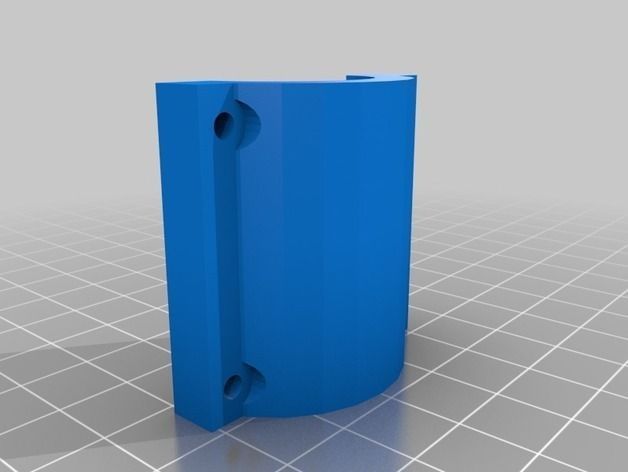

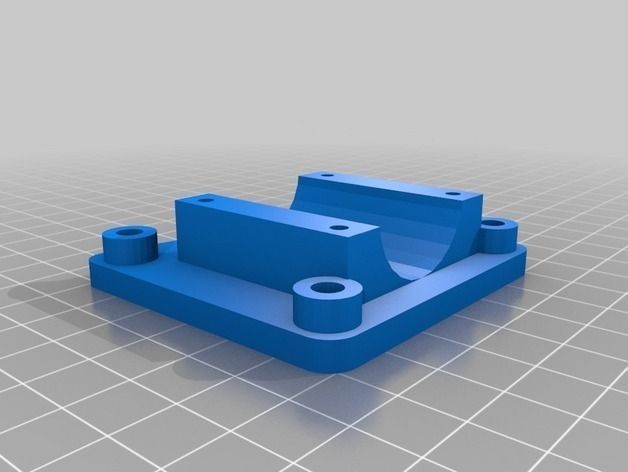

It is a sturdy way to mount to a 25mm tube.
The part was $10 here - uxcell.com/400v-63a-double-poles-transparent-mini-circuit-breaker-mcb-p-196557.html
It is described as - "AC 400V 63A Double Poles 2P Transparent Mini Circuit Breaker MCB"
I have no idea how common the hole pattern is.
Video will be at - youtu.be/fakeJql_IGw
