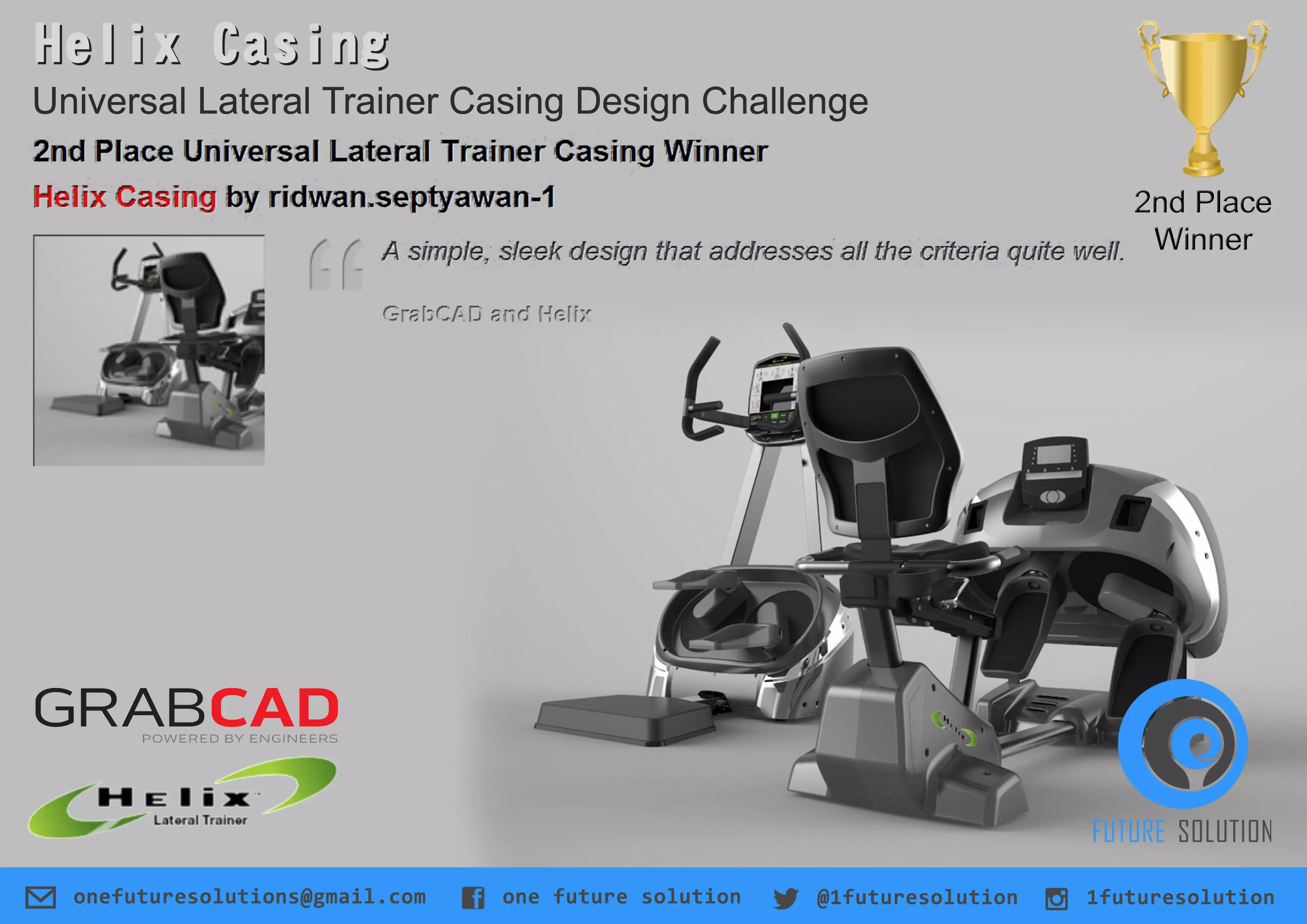

Helix Casing Free 3D model

Helix Casing

Designed by Ridwan S ( https://www.instagram.com/ridwan.sept/ )

Modeled with SolidWorks 2014

Rendered & Animated with KeyShot 5

File Types : .SLDPRT, .SLDASM, .IGS.

My design concept is Automotive, Futuristic, Marketable, Simple, Smooth, Aesthetic, Elegant, Good Looking & Matching The Trainers

The model has two mode

for stand mode TILTED

for sit mode RECUMBANT

I just try to make same Main Casing for two Mode to decrease production process & reduce casing part numbers (easy cost).

I try to follow the requirements Specific parts of the casing will be easily removable for repair or service access. I use fastener (bolt and screw) locking system, I think that's make easy to release and attach parts to the construction but make it strong enough too.

I choose plastic material and injection for process and some parts must be finished with some glossy paint and matte texture.

And there is one parts of casing called CFR & CFL (Main Casing) must be chrome.

At the chormium surface of the CFR & CFL parts, if the mold maker recommend to split the chromium surface become a single parts to help mold maker create their mold. I think that's no problem.

You can download this model for Free, but you should to hit ♥ button as the payment :).
