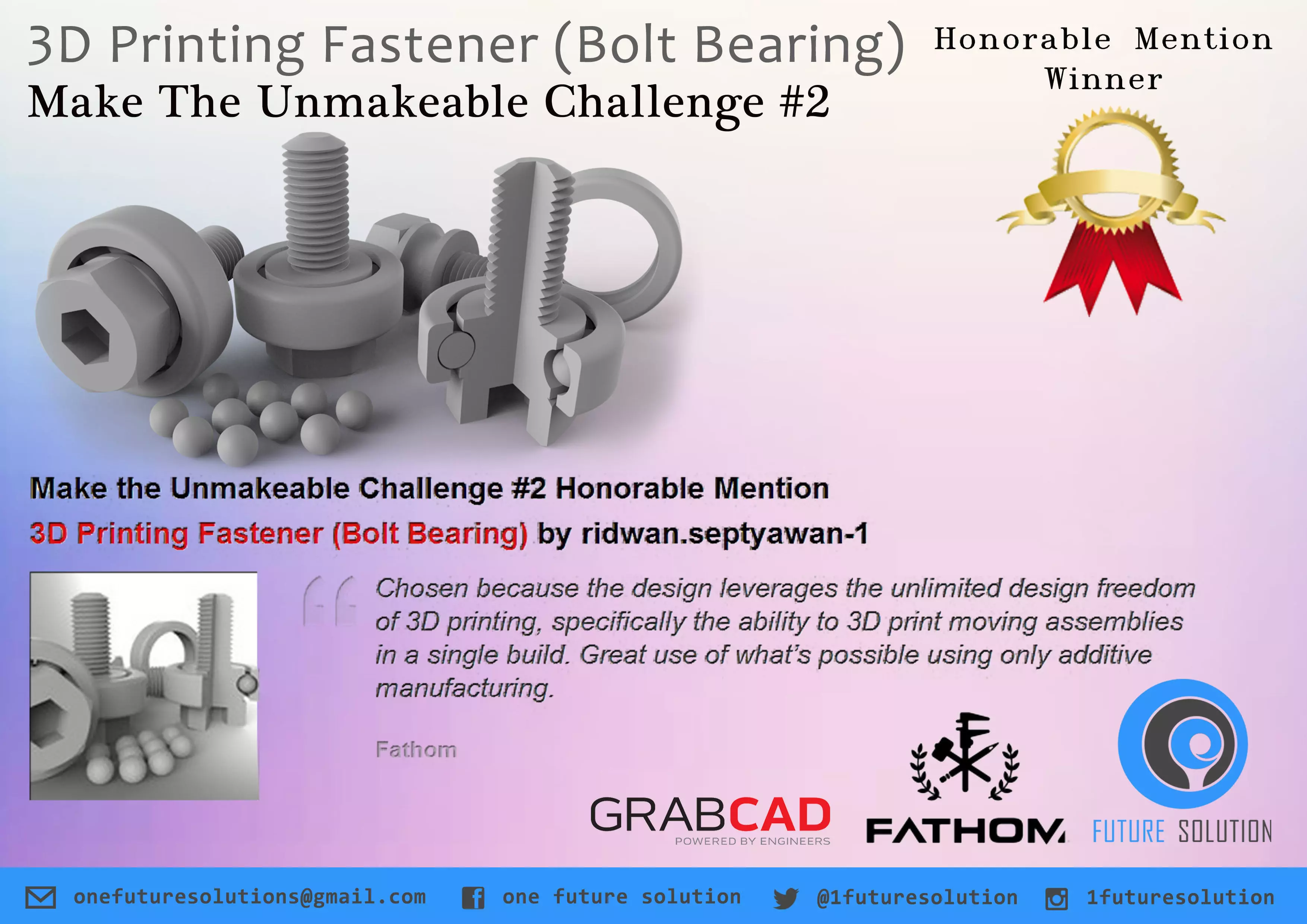

3D Printing Fastener (Bolt Bearing)

Designed by Ridwan S ( https://www.instagram.com/ridwan.sept/ )

Modeled with SolidWorks 2014

Rendered & Animated with KeyShot 5

File Types : .SLDPRT, .IGS, .OBJ, .STL.

Vertices : 134170

Polygons : 268296

Here, I make a combination of several items that are often used together. For this case I combine Bolt with Bearing.

For the furniture industry must be familiar with the use of plastic bearing drawer for the movement of their products.

Usually they put up the Bearing for the slider and is associated with a screw or bolt.

So, I initiated this idea, a product that is useful for many people, simple, multifunctional, and created using 3D Printing technology (assembly product in once printing process).

This design is an idea, I took a sample for this dimension specification like standard dimension of the bearing and bolt also

Bearing : ISO Angular Contact Ball Bearing 108

ID : 8 mm

OD : 22 mm

Thickness : 7 mm

Bolt : ISO Hex Screw 4017 M8 x 16

Material : ABS Plastic (or another recommended material from 3D Printer Manufacture)

Adittional feature :

I've add a hexagonal slot at bolt head, so we can tighten with Spanner or L key also.

You can download this model for Free, but you should to hit ♥ button as the payment :).
