Mandelli STORM Free 3D model

http://www.youtube.com/watch?v=MtblM68aDdQ

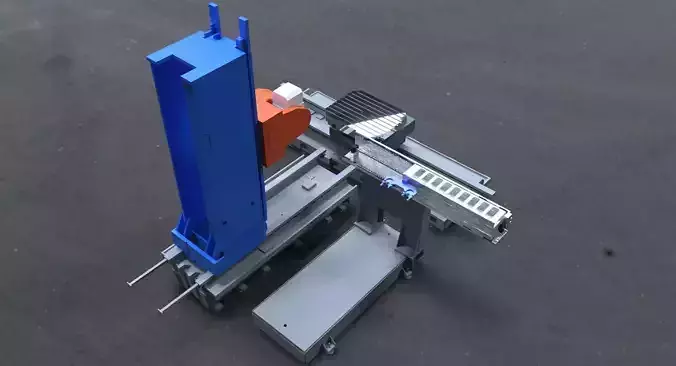

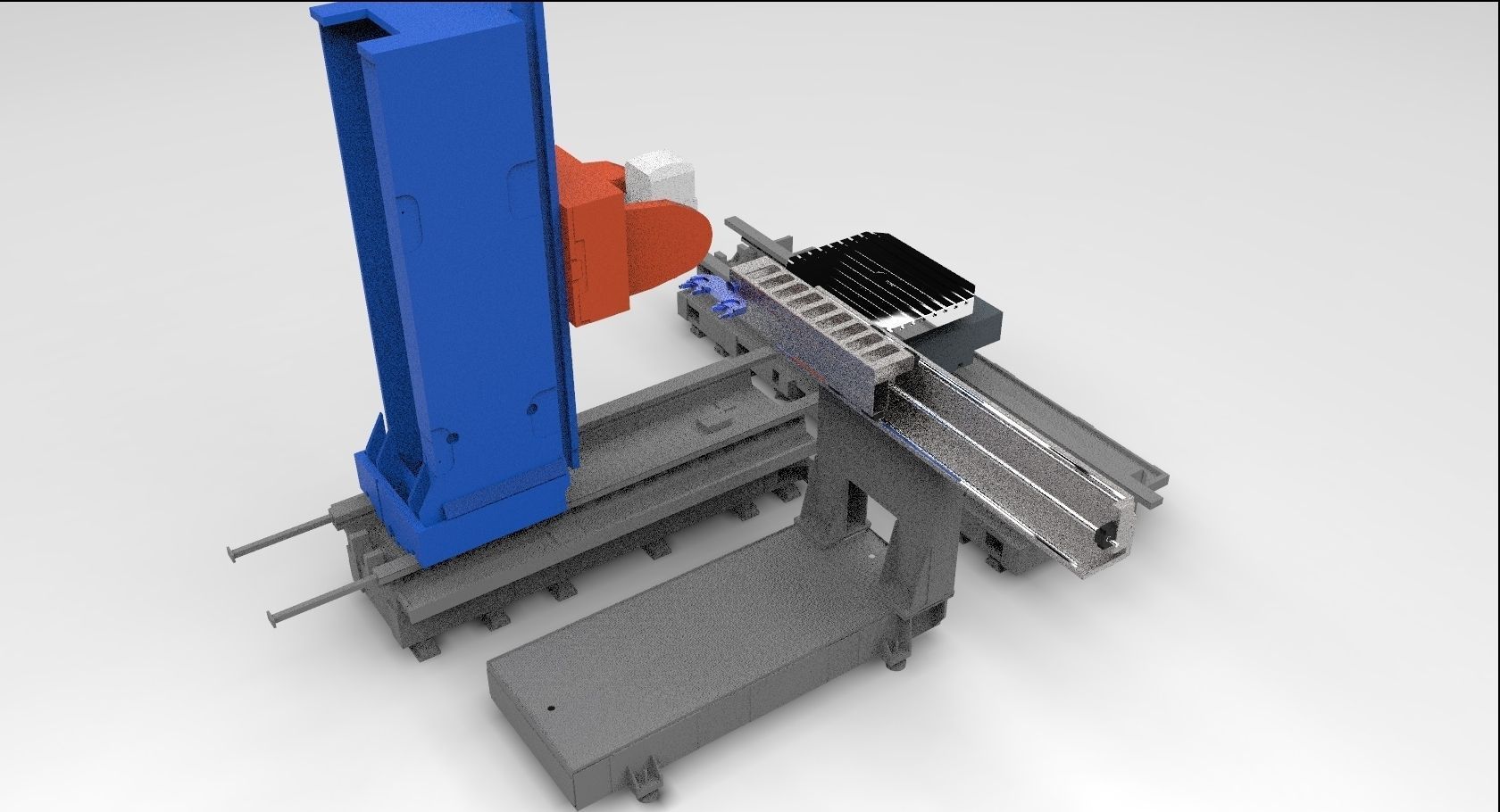

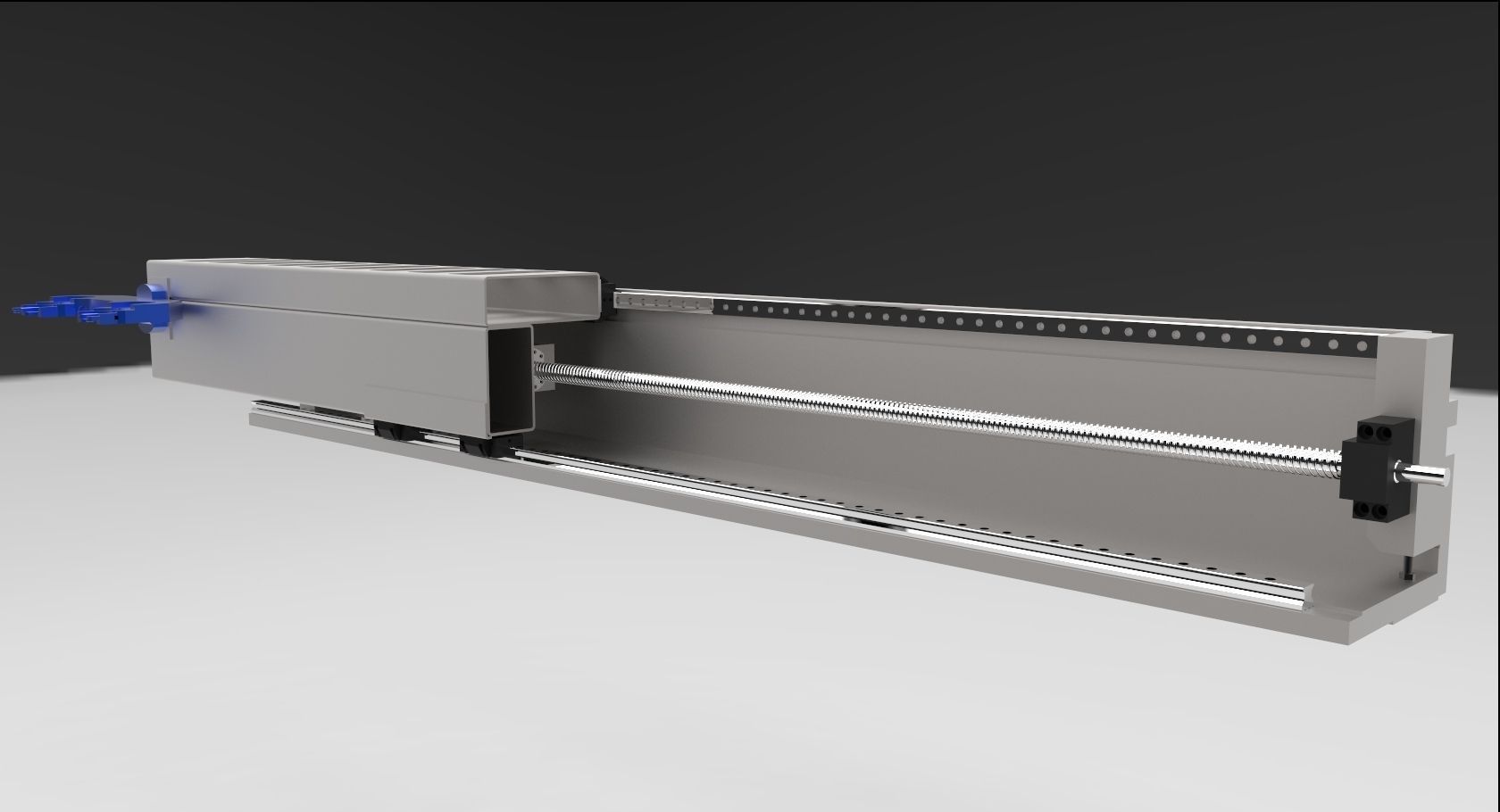

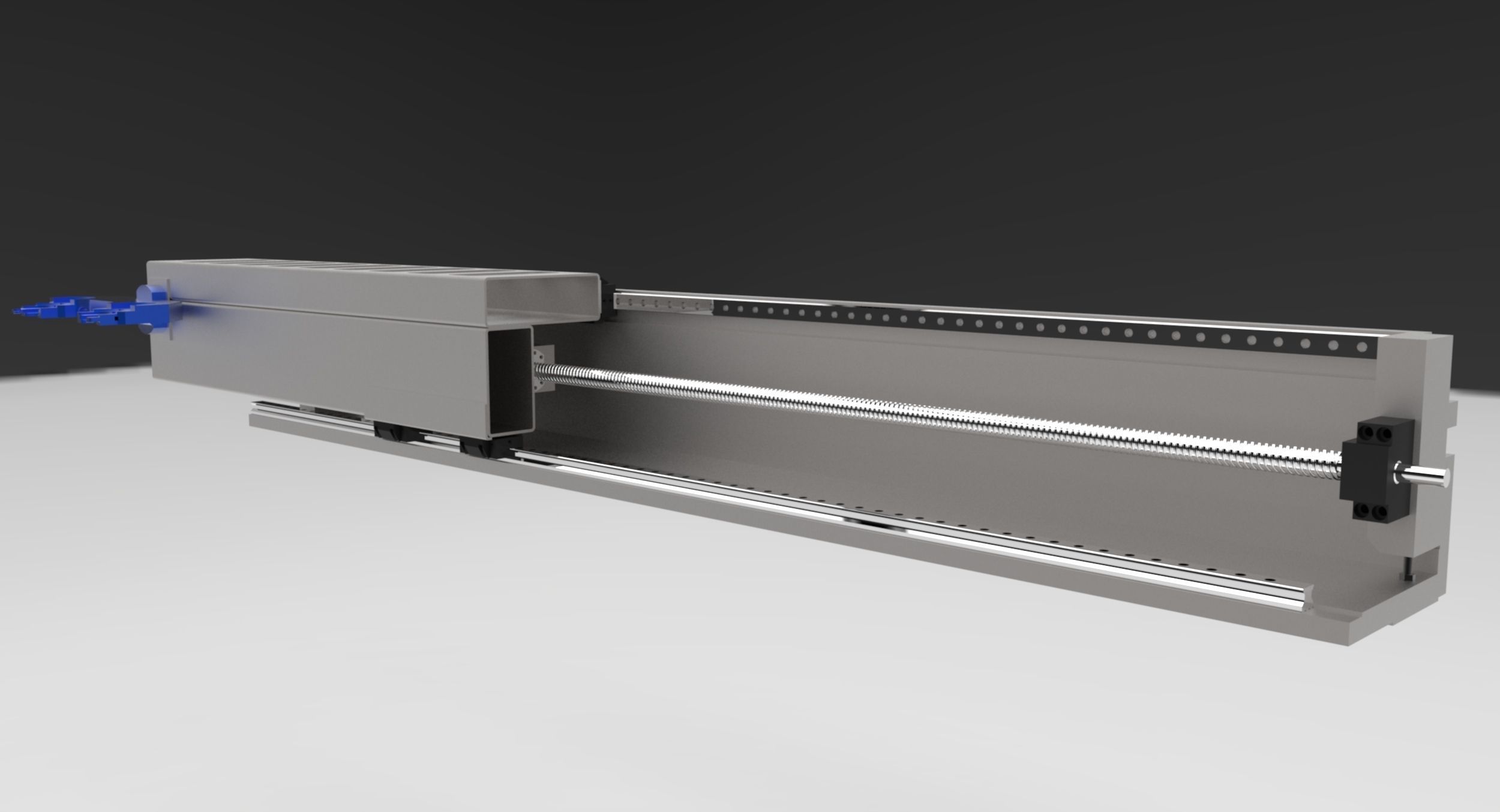

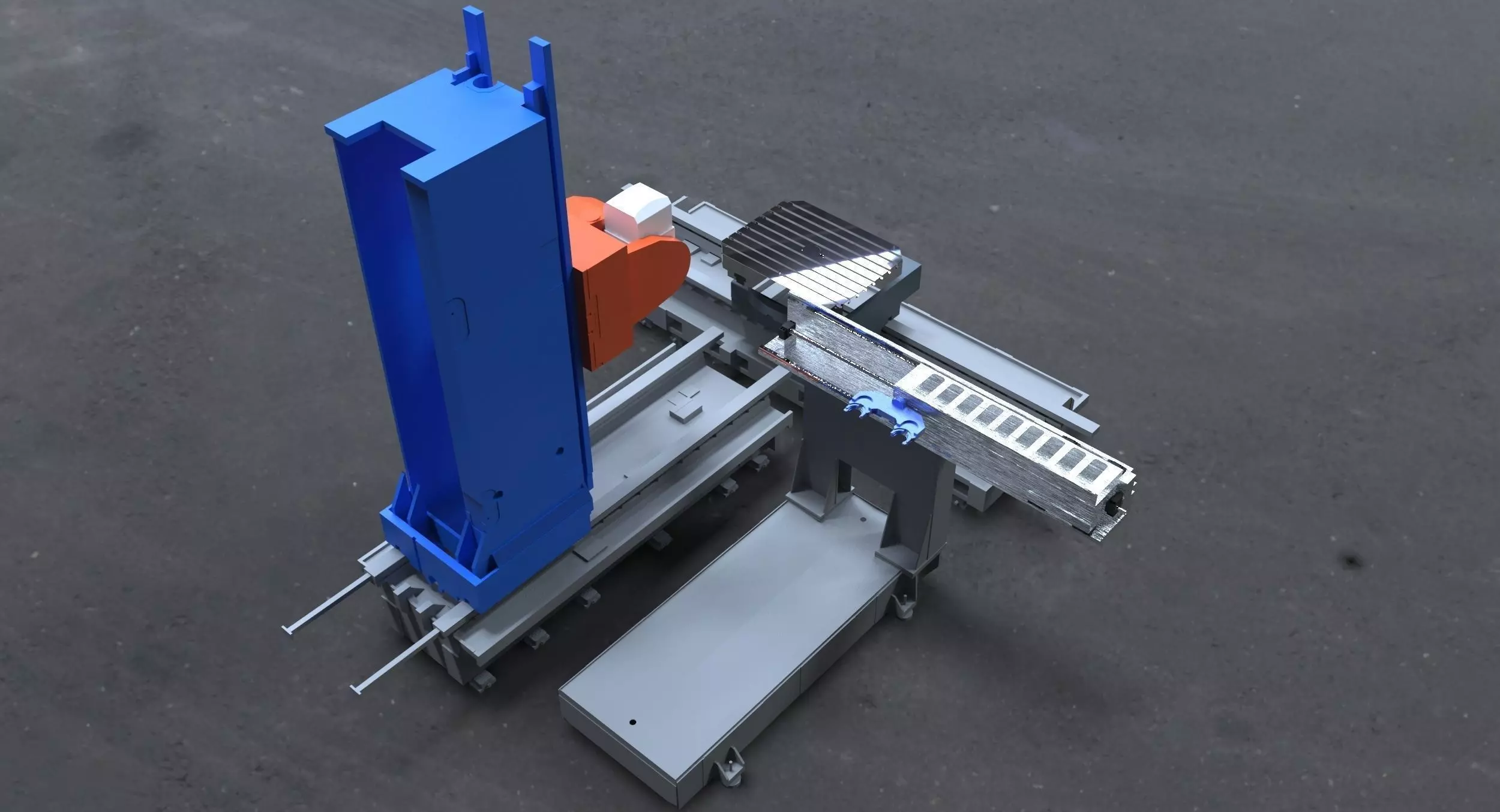

Here is an industrial internship project where I had to change a whole system change tools on MANDELLI STORM because it was too rough in the positioning of the tool in the spindle. So I transform the clamp with a double rotation arm welded with pliers. All elements have was carefully chosen and calculation of dynamic and static was made to have the choice of ball screw, the rail and roller skates.

All files are present, whether the file "share" or "product", but also the file "stp" and "igs".
