Profile gantry shifting mechanism Free 3D model
Description

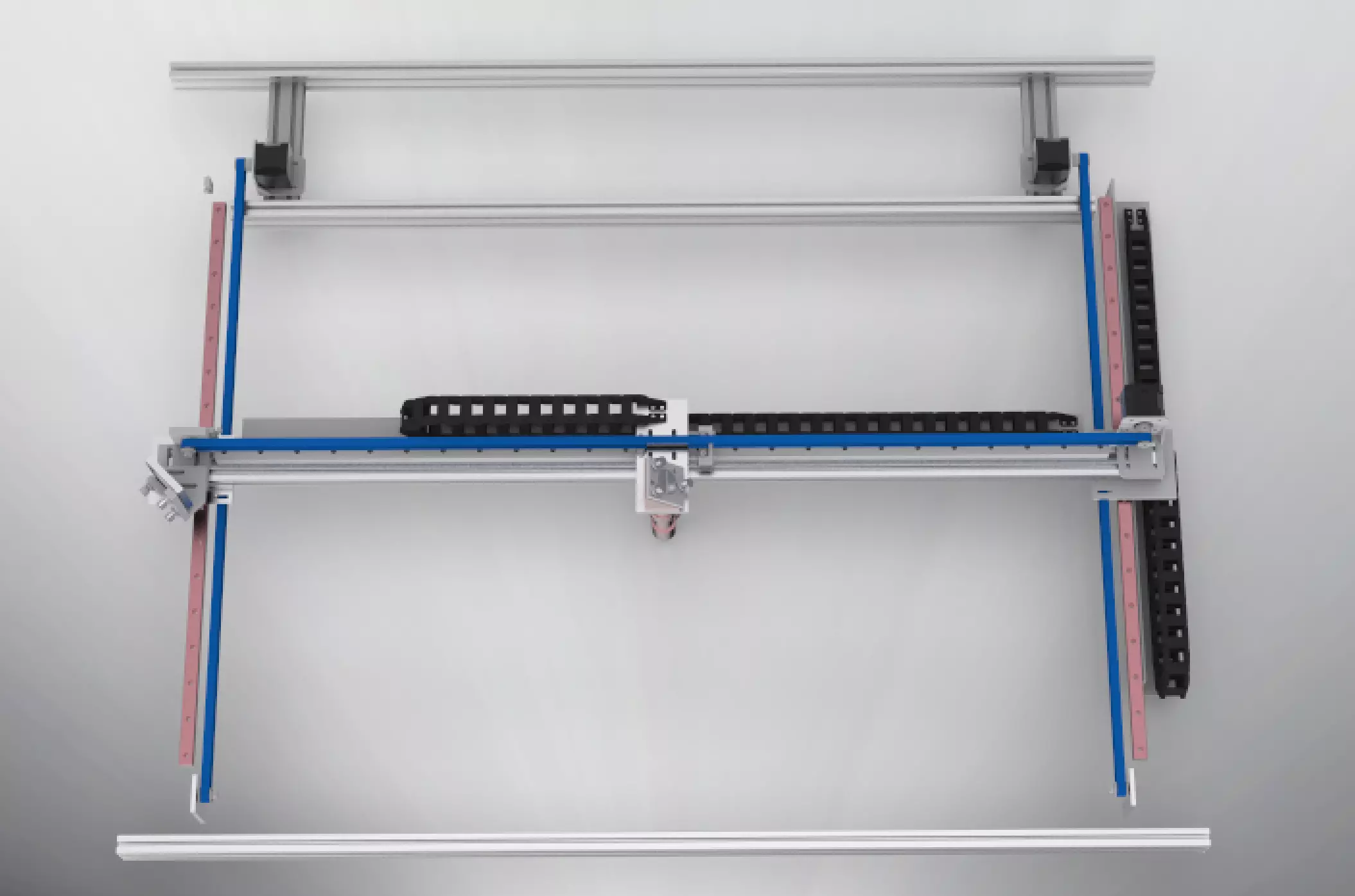

Profile gantry shifting mechanism
The mechanism is the main body of the profile structure, through the slide rail and synchronous belt connection mechanism, the use of motor drive, can realize the XYZ three axis load, the formation of the gantry load mechanism
The mechanism includes:
- Three-axis gantry mechanism
- Synchronous belt connection mechanism
- Motor drive mechanism************************************** Files format contains
-solidworks 2017-step-iges
- and other formats************************************** If you like,you can buy for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with Keyshot**************************************
Profile gantry shifting mechanism
Royalty Free No Ai License
Profile gantry shifting mechanism
Royalty Free No Ai License
3D Modeling
3D Model formats
Format limitations
- IGES (.ige, .igs, .iges)1.66 MB
- STEP (.stp)1.15 MB
- SolidWorks (.sldprt, .sldasm, .slddrw)4.16 MBVersion: undefinedRenderer: Mental Ray 2017
- KeyShot (.bip, .ksp)34.1 MB
3D Model details
- Publish date2021-05-25
- Model ID#3060799
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry -
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
