M10 Hex Bolt

M10 Hex Bolt Free 3D model

Verification details of the FBX file
Files
Binary FBX
Scene
No unsupported objects
Geometry
No N-gonsNo faceted geometryManifold geometry
Textures and Materials
PBR texturesNo embed texturesSquare texturesPower of 2 texture sizesAssigned materials
UVs
No UV overlapsUV unwrapped model
Naming
Allowed characters
Description

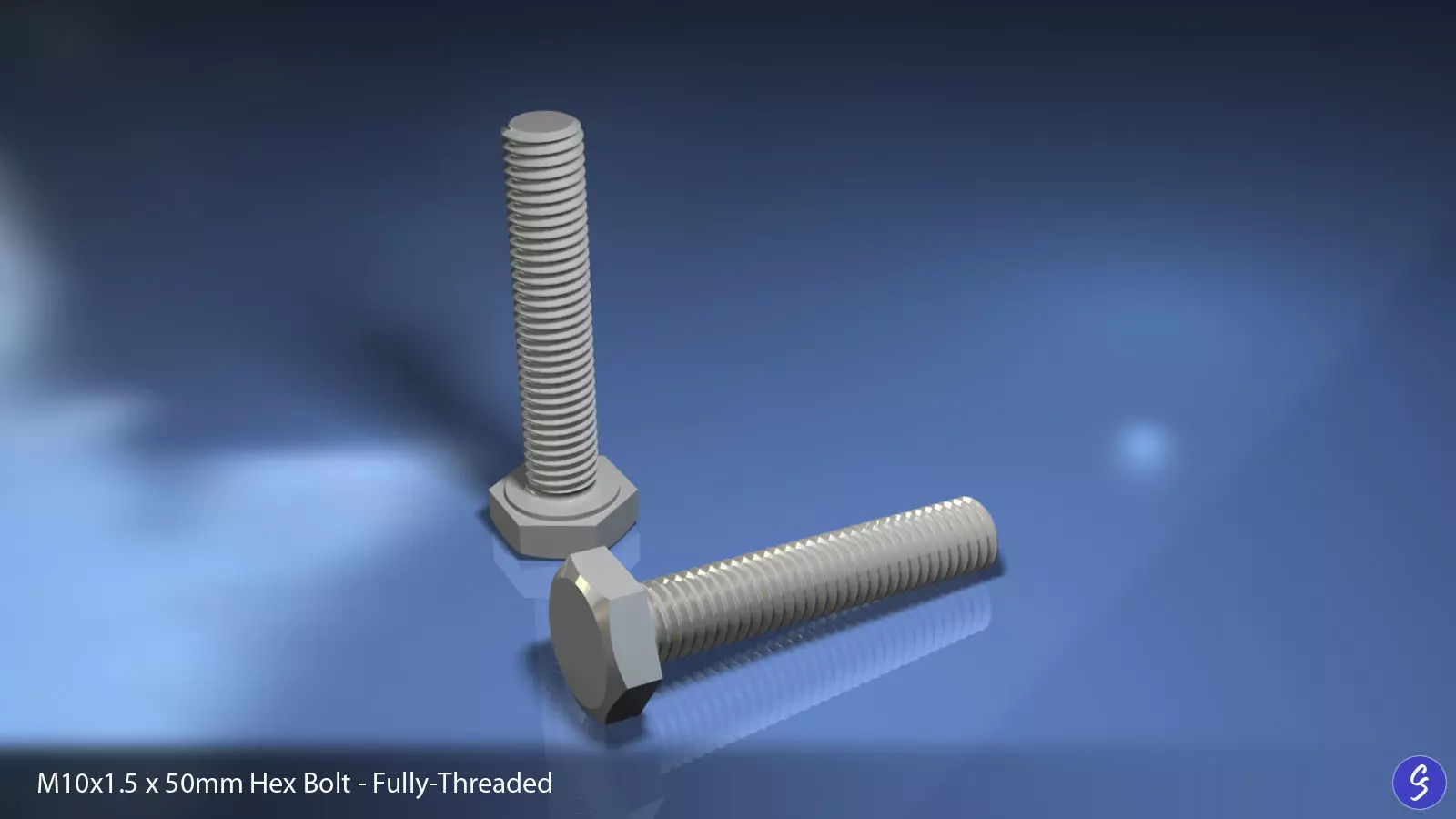

M10x1.5 x 50mm fully-threaded hex bolt, ready for use in CGI, CAD, and 3D print applications. Modeled in Autodesk Inventor and Carrara Studio and provided in multiple file formats.

Threads are fully functional and accurately modeled based on the general ISO standard thread profile. Part can be 3D printed to produce working fastener sets.

Model specifications:

  • Physical dimensions: 17.0 x 19.6 x 56.4 mm
  • Facets: 11,734

Product includes:

  • 1 STP model
  • 1 SAT model
  • 1 IGS model
  • 1 OBJ model
  • 1 FBX model
  • 1 3DS model
  • 1 STL model
  • 1 Carrara Studio model (CAR format) - includes lights and cameras
  • 1 Read Me text file (TXT format)

Want more fasteners that are compatible with this product? Download the complete set here: https://www.cgtrader.com/3d-models/industrial/part/m10-fastener-set

CBSpicer

Item rating
0 0
M10 Hex Bolt
Free

Editorial No Ai License
M10 Hex Bolt
Free

Editorial No Ai License
Response 92% in 1.2h
3D Modeling
3D Print Modeling
View all Designers Models

3D Model formats

Format limitations
  • OBJ (.obj, .mtl)190 KB
  • 3D Studio (.3ds)312 KB
  • Autodesk FBX (.fbx)317 KB
  • IGES (.ige, .igs, .iges)643 KB
  • 3D ACIS (.sat)82.2 KB
  • Stereolithography (.stl)4.6 MB
  • STEP (.stp)596 KB

3D Model details

  • Publish date2021-03-27
  • Model ID#2948469
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 11,734
  • Vertices 5,869
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
