Cement Silos

Cement Silos Free 3D model

Description

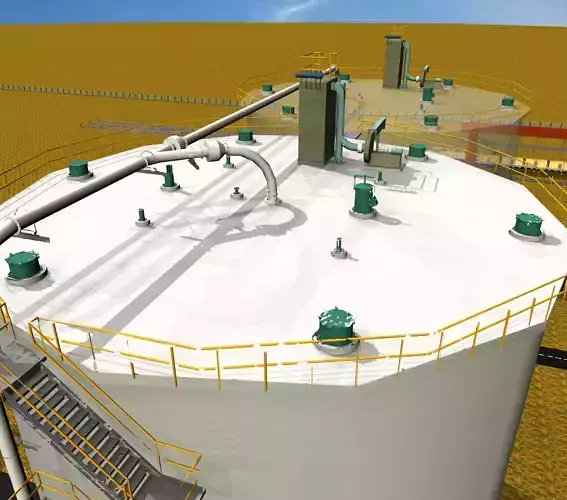

The cement comes into the silo No 1 via a transport pipe. There is a change over gate which takes the cement, to silo No. 2. There are manholes, Nivo pilot (Level indicator), Silo pilot (Maximum Level indicator), over /under pressure valve, sounding pipes and filter with fan etc. on the silo top. There are 6 outlets in the silo from which the cement comes to a common tank. Then it goes to the Air slide and then to the packing plant.

Item rating
0 0
Cement Silos
Free

Royalty Free No Ai License
Cement Silos
Free

Royalty Free No Ai License
Response 75% in 27.6h
3D Modeling
Hire me

3D Model formats

Format limitations
  • AutoCAD (.dwg)3.73 MB

3D Model details

  • Publish date2014-04-07
  • Model ID#65609
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 0
  • Vertices 0
  • Textures -
  • Materials -
  • UV Mapping -
  • Unwrapped UVs Unknown
  • Plugins used -
  • Ready for 3D Printing
