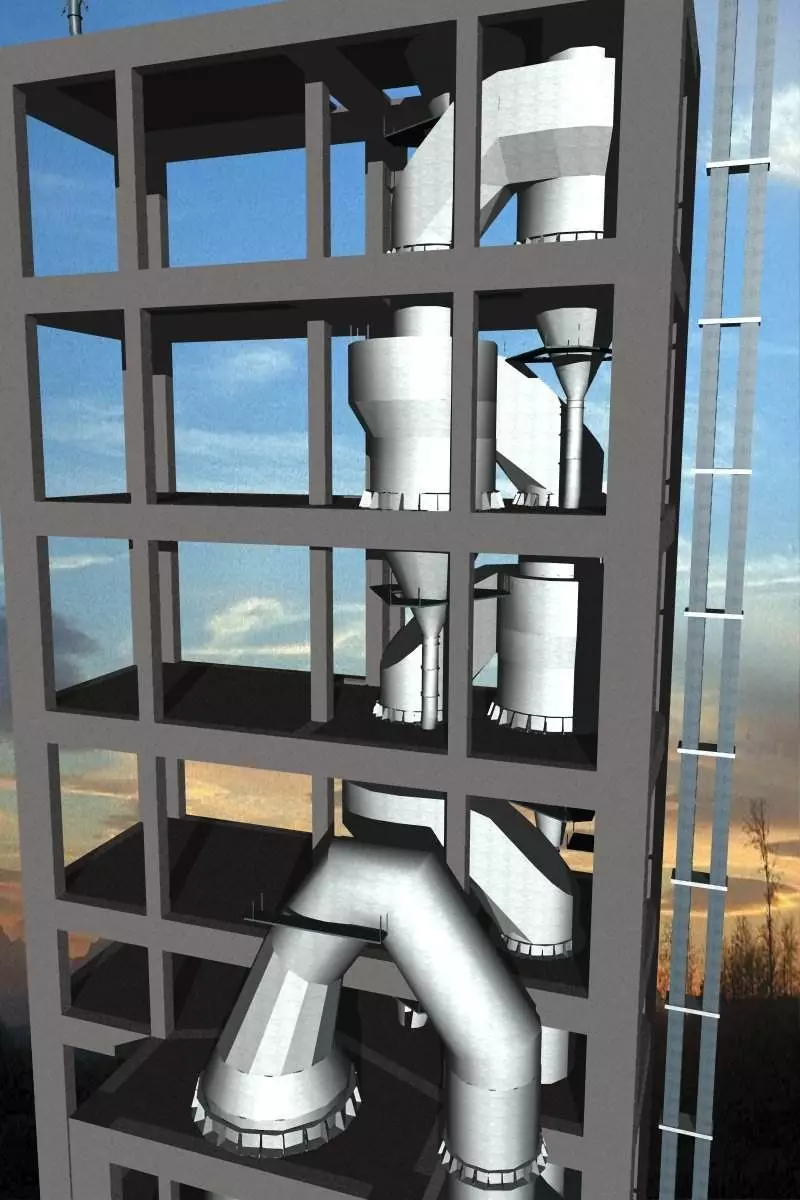

Cement Plant-Cyclone Preheater-ILC-S Inlined Calciner-Separate Free 3D model
Description
Cyclone Sizes from 1st stage-6.6, 6.6, 6.9, 6.9, 6.9 & 6.9 m. Calciner diameter 8.2 m. Syphone dia. 4.7 m. Dividing Gate dia. 1000 mm. Hot Air inlet dia. 2650 mm. Kiln dia 4.75 m. Smoke Chamber 3.10 x 3.10 m. Bucket Elevator 2750 x 1550. Air slides and all other relevant sizes are mentioned in layers of the 3D drawing
Cement Plant-Cyclone Preheater-ILC-S Inlined Calciner-Separate
Editorial No Ai License
Cement Plant-Cyclone Preheater-ILC-S Inlined Calciner-Separate
Editorial No Ai License
3D Modeling
3D Model formats
Format limitations
- AutoCAD (.dwg)5.01 MB
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 0
- Vertices 0
- Textures -
- Materials -
- UV Mapping -
- Unwrapped UVs Unknown
- Plugins used -
- Publish date2014-04-07
- Model ID#65603
