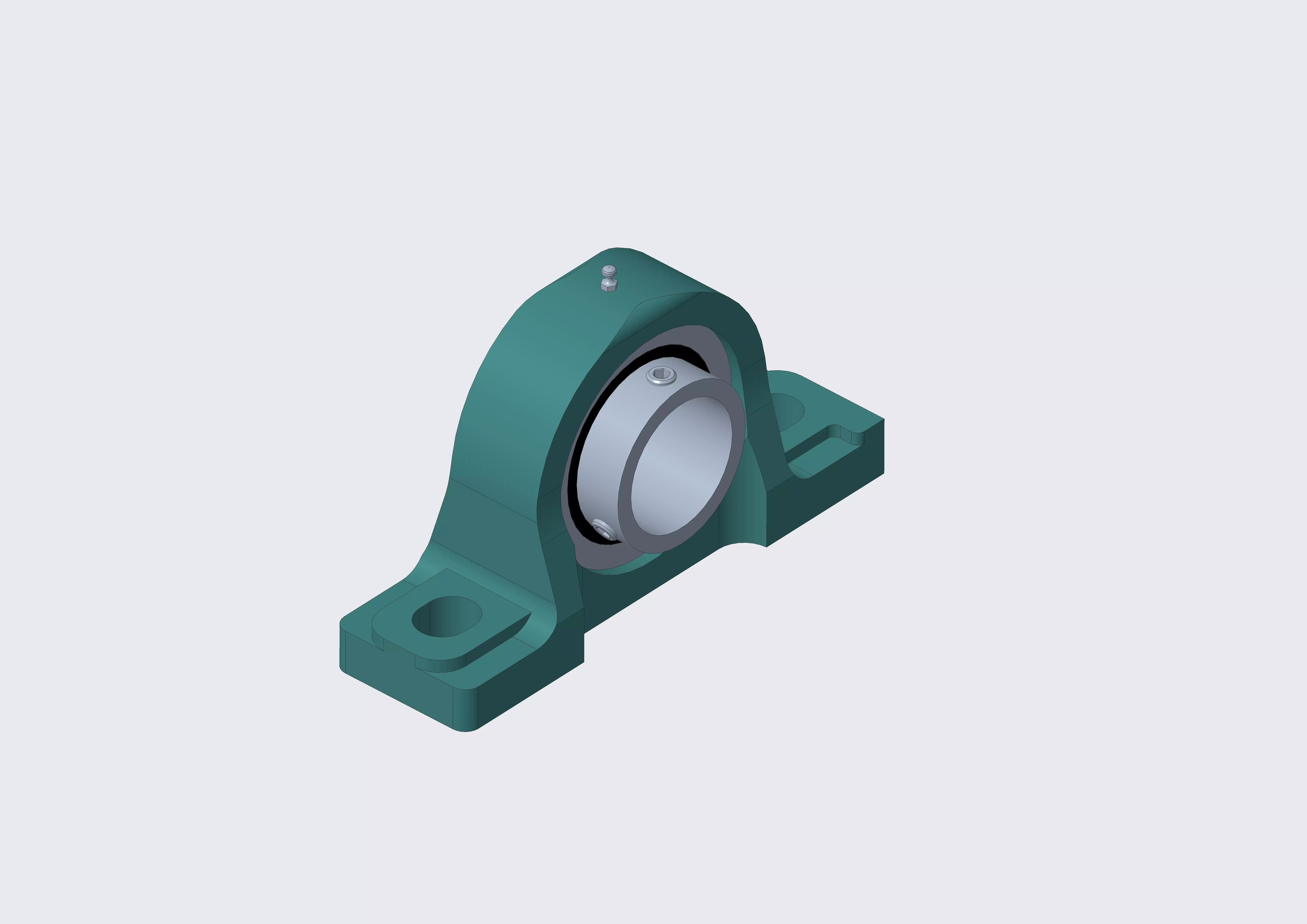

Ball Bearing Cast Iron Pillow Blocks Free 3D model
Description
- 3D model with shaft: 12, 15, 17, 20, 25, 30, 35, 40, 45 & 50 mm.
- Pillow block bearing units are the most popular housing design for mounted bearings. Featuring a one-piece cast iron housing they are designed to support loads primarily directed through the base. The two bolt holes are slotted for adjustment during mounting. Units are prelubricated and designed to slip fit on to the shaft. Setscrew type fixed to the shaft by means of the setscrews prepared in the wide inner ring.
- Dual heavy-duty contact-type seals, steel plate slingers on sides for dust exclusion. The pillow block is supplied with a grease fitting for relubrication. Tapped base housing design is optimized for radial loads acting in the direction of the base or the support surface. These units have a narrow width for tight areas and can be fitted with bolts from the underneath of the base.
Ball Bearing Cast Iron Pillow Blocks
Royalty Free No Ai License
Ball Bearing Cast Iron Pillow Blocks
Royalty Free No Ai License
3D Model formats
Format limitations
- STEP (.stp) (11 files)4.36 MB
- IGES (.ige, .igs, .iges)11.7 MB
3D Model details
- Publish date2022-12-12
- Model ID#4163499
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry -
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
