A Jig for Flange Free 3D model

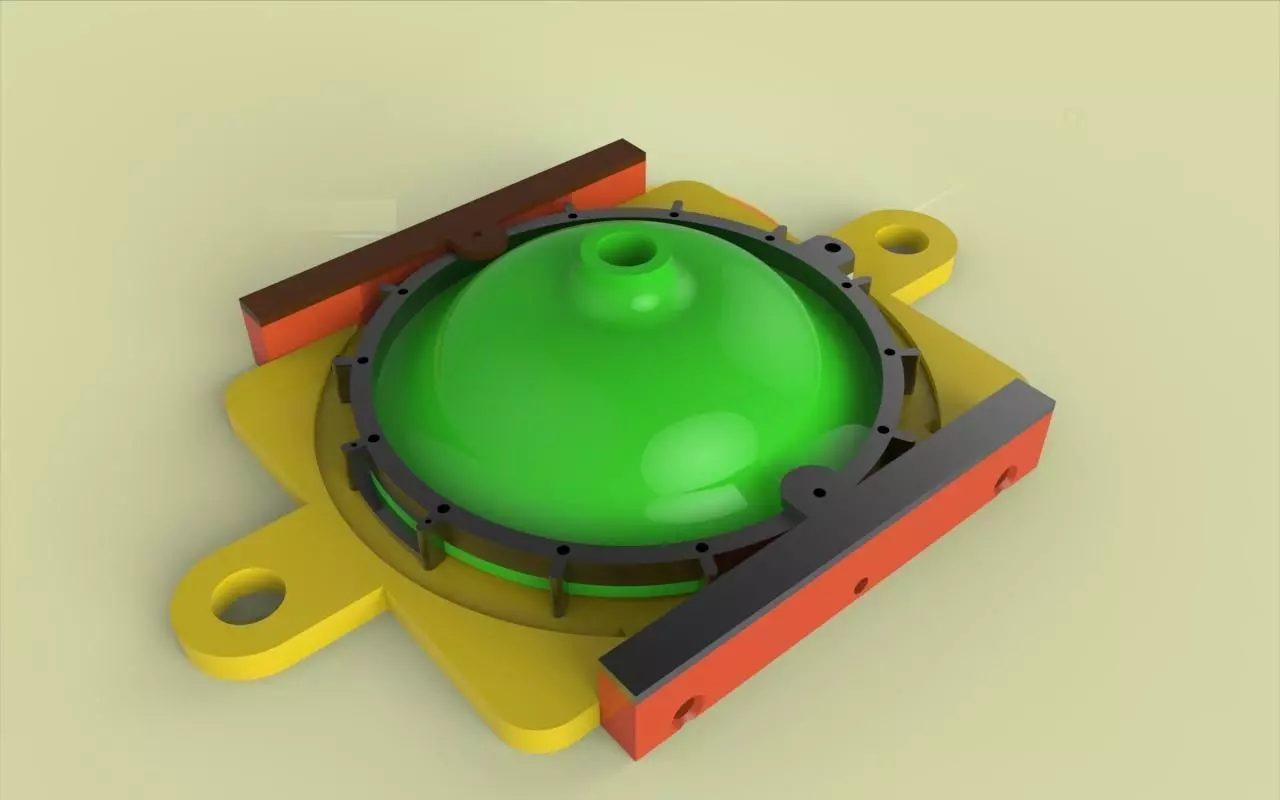

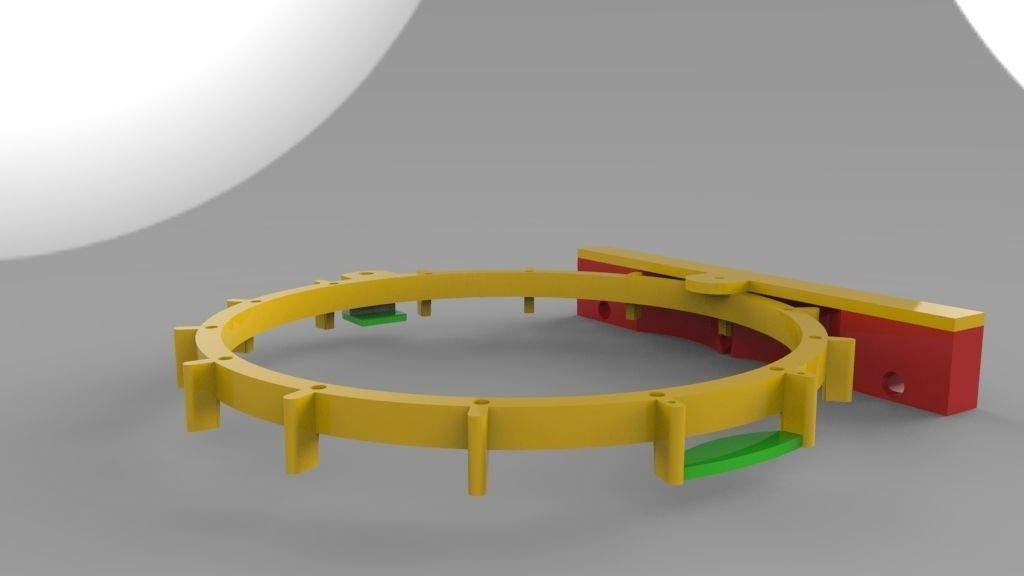

Here is the requested Jig design.REQUESTED FROM :- Pouriya

I also faced the same problem during my academic session and all over internet there is no suitable jig design for flange type component in which holes will going to machining.

So, i thought to design a jig to resolve this trouble for mass production.

This one is the first Proto-type design by Me.

I have lots of solution for the JIG design for this type of component.So, wait for the another one. I will upload it soon as possible.

Note:- Design is published for educational purpose only.Any type of modification and re-creation is prohibited.

(c) I-W Co.//Thanks//
