A theodolite is a precision optical instrument for measuring angles between designated visible points in the horizontal and vertical planes. The traditional use has been for land surveying, but they are also used extensively for building and infrastructure construction, and some specialized applications such as meteorology and rocket launching. It consists of a moveable telescope mounted so it can rotate around horizontal and vertical axes and provide angular readouts. These indicate the orientation of the telescope, and are used to relate the first point sighted through the telescope to subsequent sightings of other points from the same theodolite position. These angles can be measured with great accuracy, typically to milliradian or seconds of arc. From these readings a plan can be drawn, or objects can be positioned in accordance with an existing plan.

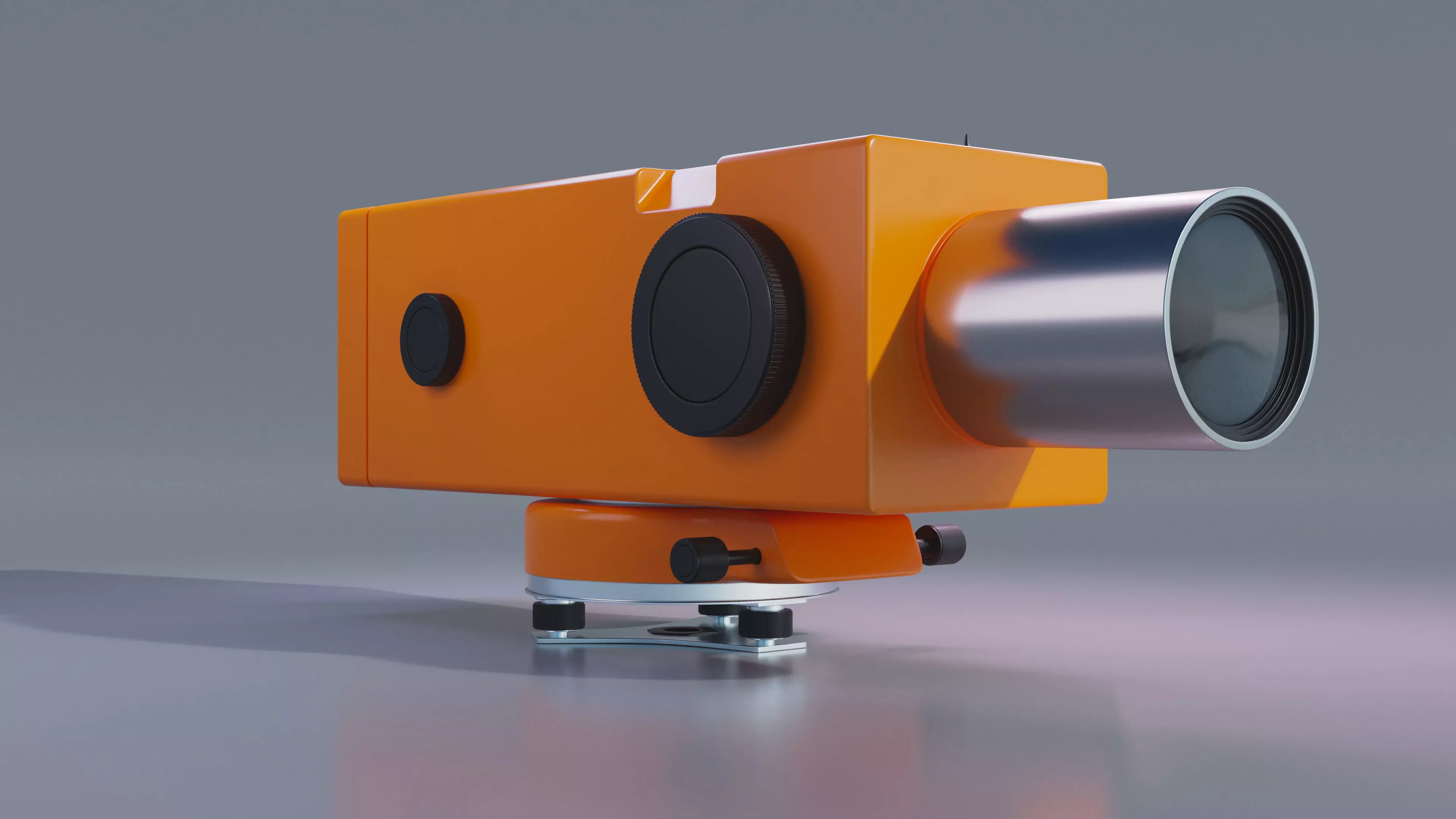

Here is a model of a typical render for a leveling machine used in civil works, surveying and geospatial engineering. For more product presentation services, modelling, rendering e.t.c please feel free to contact me!

Enjoy the free 3D model.
